Product Name
50W UHF Duplexer support to OEM services,whether the Low VSWR or Isolation index or any others all can be customized---Maniron,High quality duplexer is a better purchasing option!
Product Feature
◆ Compact, low weight
◆ Low VSWR
◆ High reliability
◆ Simple installation
Technical &Mechanical Specifications
|
Model No.
|
MN-UHFD-390-520-NF
|
|
Operating frequency
|
390-520MHz
|
|
Bandwidth(KHz)
|
±500
|
|
VSWR
|
≤1.5
|
|
Insertion Loss(dB)
|
≤1.0
|
|
Suppression(dB)
|
≥80
|
Isolation
|
≥80
|
Power(W)
|
50
|
|
Connector type
|
N-Female
|
|
Impedance(ohm)
|
50
|
|
Temperature
|
-20~+60
|
Outline Size(mm)
|
228*190*40
|
Services:
1. Professional skills support for 50W UHF Duplexer 50ohm 390-520MHz N-Female Connector
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

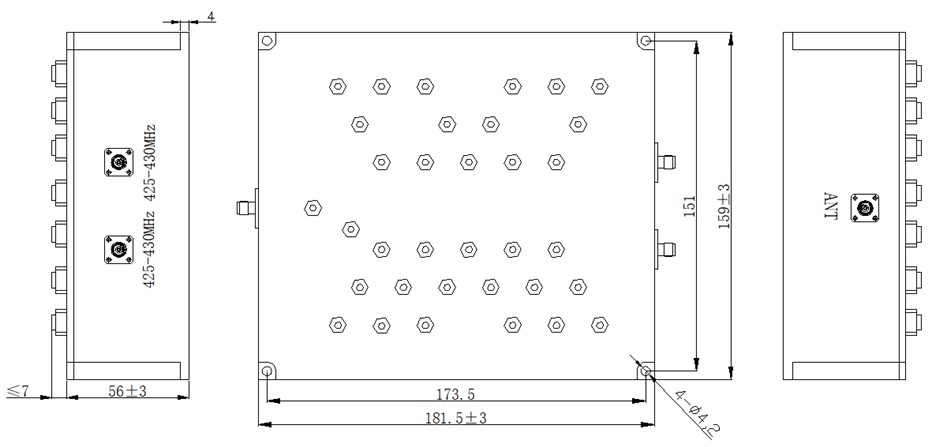

Outline Drawing:
