Product Description
Modular Energy Storage System
3500W/5000w
Uninterrupted Power Supply for Whole House Intelligent housekeeper
Battery support smart communication function RS485/ RS232/ CAN and built-in inverter.
CE,FCC, ROHS Certification etc. and IP55 efficient dustproof.
Technical Parameter
| Model No: |
ZL-JT3500W / ZL-JT5000W |
| Rated Voltage(V) |
51.2 |
| Rated Capacity(Ah) |
70 / 100 |
| Voltage Range(V) |
44.8~56 |
| Module Number |
2pcs |
3pcs |
4pcs |
| Rated Energy(Wh) |
7168 / 10240 |
10752 / 15360 |
14336 / 20480 |
| Standard Discharge Current(A) |
150 |
| Dimension:(L*W*H) |
530*445*470mm
580*500*530mm
|
530*445*602mm
580*500*692mm
|
530*445*734mm
580*500*854mm
|
| Weight(kg) |
78kg / 116kg |
111kg / 168kg |
144kg / 220kg |
| Single-phase Hybrid Inverter |
| EPS Rated Power(W) |
5500 |
| AC Output Voltage(V) |
220-240 |
| PV Max. Power(W) |
6000 |
| MPPT Voltage Range(V) |
160~450 |
| Output Frequency (Hz) |
50Hz/60Hz |
| Display |
4.3 inch touch IPS LCD |
| Physical Parameter |
| IP |
IP55 |
| Charge Temperature Range(C°) |
0~45 |
| Discharge Temperature Range(C°) |
20~60 |
| Installation |
Floor-mount |
| Cycle Life |
>6000 (0.5C @25C,80% DOD) |
| Certification |
CE, FCC,ROHS, UN38.3 |
If your purchase quantity exceeds 7 units, please specify separately.

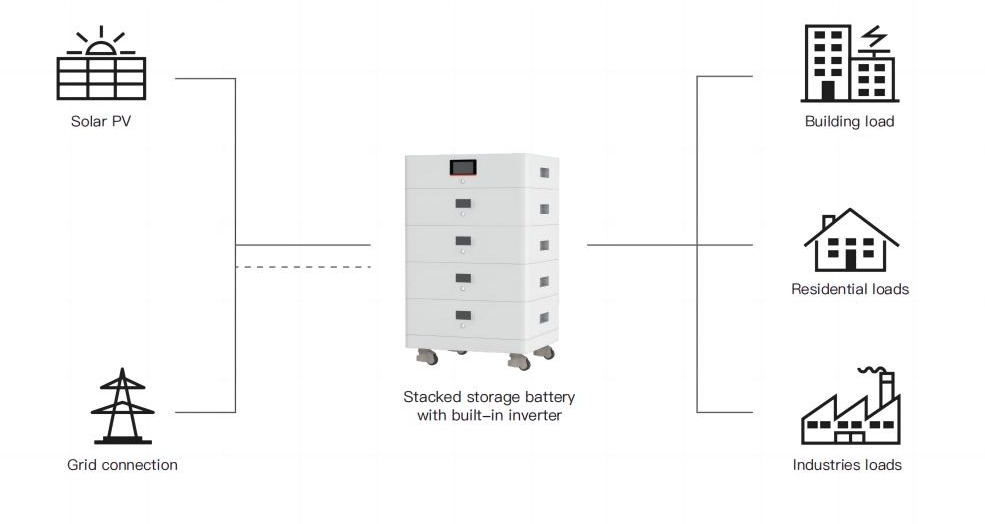

System Schematic
Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
