Introduction:

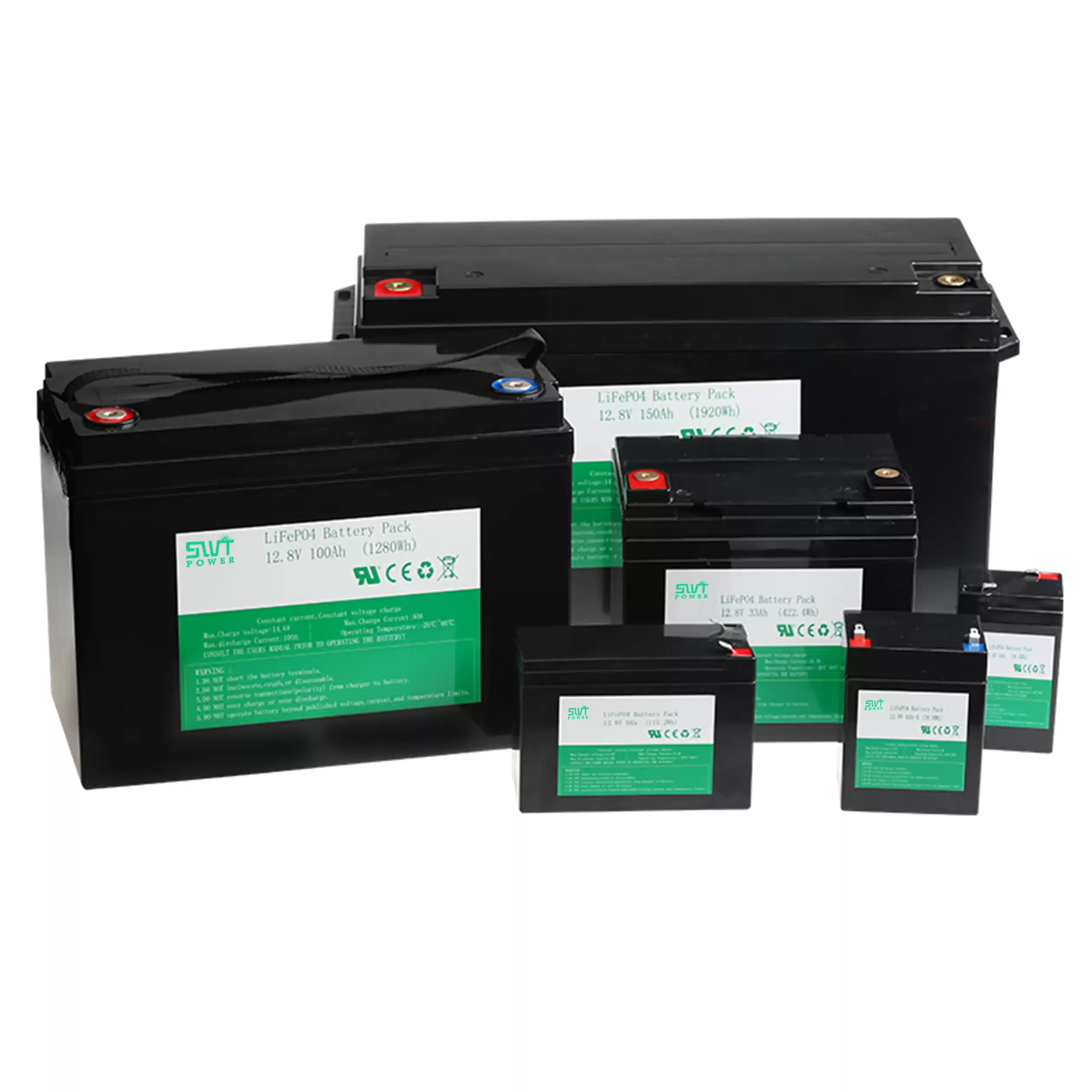

The lithium ironphosphate (Lifepo 4 ) is a type ofrechargeable battery based on the orriginal lithium ion chemistry ,created by the use of Iron (FE ) as a cathode material . LIFePO 4 cells have higher discharge current do not explode under extreme conditions and wegh less but have lower voltage and energy density than normal Li-lion cells
Applications:
The battery is applicable for industrial , commercial orresidential purposes
Battery Modules or Units are connected from Wh up toMwh for renewable energy system
Energy Storage System
Solar Energy Storage
Solar Street Lighting
Electric Vehicle ( EV)
Medica
Telecom
Robotic
UPS
|
Technical Parameters
|
|
No
|
Item
|
Parameters
|
|
1.Performance
|
Type
|
lithium battery
|
|
Nominal voltage
|
51.2V
|
|
Rated capacity
|
50Ah (0.2C/25°C) (Min:48.5Ah)
|
100Ah (0.2C/25°C) (Min:97Ah)
|
150Ah (0.2C/25°C) (Min:147Ah)
|
200Ah (0.2C/25°C) (Min:194Ah)
|
|
Energy
|
2560Wh
|
5120Wh
|
7680Wh
|
10240Wh
|
|
Operating voltage range
|
44.8V~ 57.6V
|
44.8V~ 56.8V
|
44.8V~ 56.8V
|
44.8V~ 56.8V
|
|
Recommended charging voltage
|
56V~57.6V
|
56V~56.8V
|
56V~56.8V
|
56V~56.8V
|
|
Discharge cut-off voltage
|
44.8V
|
44.8V
|
44.8V
|
44.8V
|
|
Charging current(Max.)
|
50A
|
50A
|
50A
|
50A
|
|
Charging current limit in parallelconnection(programmable ON/OFF)
|
10A
|
10A
|
10A
|
10A
|
|
Continuous discharging current(Max.)
|
50A
|
50A
|
50A
|
50A
|
|
Discharge current(Max.)
|
55A(<3s)
|
55A(<3s)
|
|
Months Self Discharge
|
≤3.5%
|
|
Cycle Life
|
>3500 cycles @0.2C 80%DOD
|
|
Efficiency of Charge
|
≥98% @0.2C
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
2.Function
|
Parallel
|
Support (difference of Pack's voltage< 0.5V)
|
|
Parallel funtion
|
Support 12 units in parallel
|
|
Alarm&potection
|
Over Voltage, Under Voltage, Over Current, Over temperature, Short Circuit etc.
|
|
3.Working Condition
|
Cooling mode
|
Automatic cold and hot
|
|
Altitude
|
≤4000m
|
|
Humidity
|
15%- 75%
|
|
Operating temperature
|
Charge
|
0°C~45°C@60±25% Relative Humidity
|
|
Dischage
|
-10°C~45°C@60±25% Relative Humidity
|
|
Recommended operating temperature
|
Charge
|
15°C~40°C@60±25% Relative Humidity
|
|
Dischage
|
15°C~40°C@60±25% Relative Humidity
|
|
Storage
|
-20°C~45°C@60±25% Relative Humidity
|
4.Mechanical
Specifications
|
Size (W*H*D)
|
External Size (W*H*D)
|
483*400*133mm
|
483* 385*222mm
|
450×400×230mm
|
483×400×400mm
|
|
Package Size (W*H*D)
|
583*500*233mm
|
583*500*322mm
|
583*500*322mm
|
583*500*502mm
|
|
Weight
|
Net Weight (kg)
|
About 31kg
|
About 49.5kg
|
About 75kg
|
About 105kg
|
|
Gross Weight (kg)
|
About 35kg
|
About 55kg
|
About 85kg
|
About 115kg
|
|
5.Other
|
Display
|
ByYou Select (LCD)
|
|
Shell
|
Metal/lBlack/White
|
|
SOC (optional)
|
RS232/RS485/CAN
|
|
Water dust resistance
|
IP30
|
|
Application Field: Telecommunication,Solar energy storage, Household energy storage etc.
|
