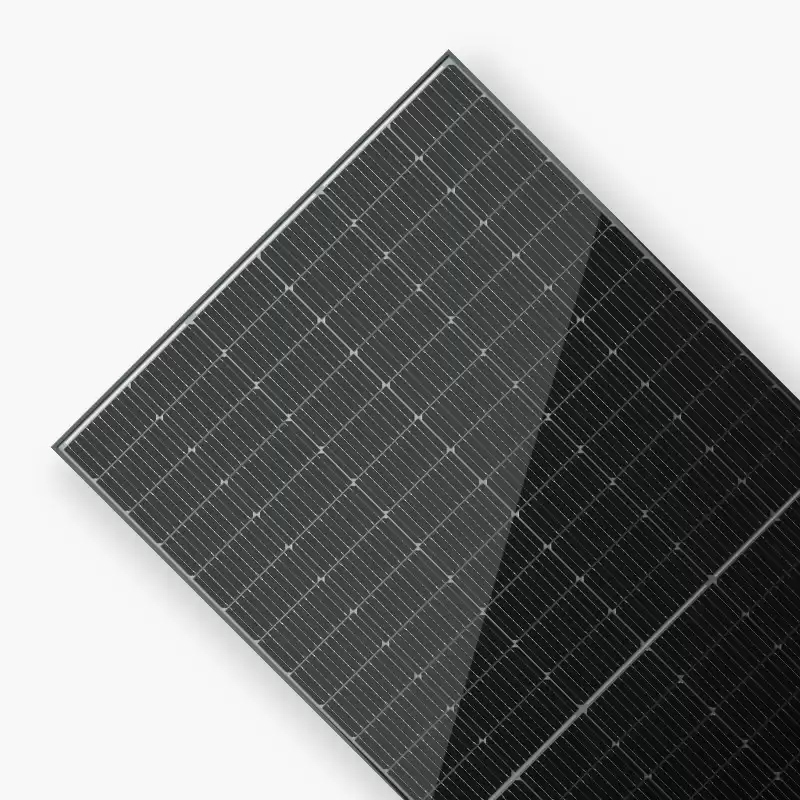

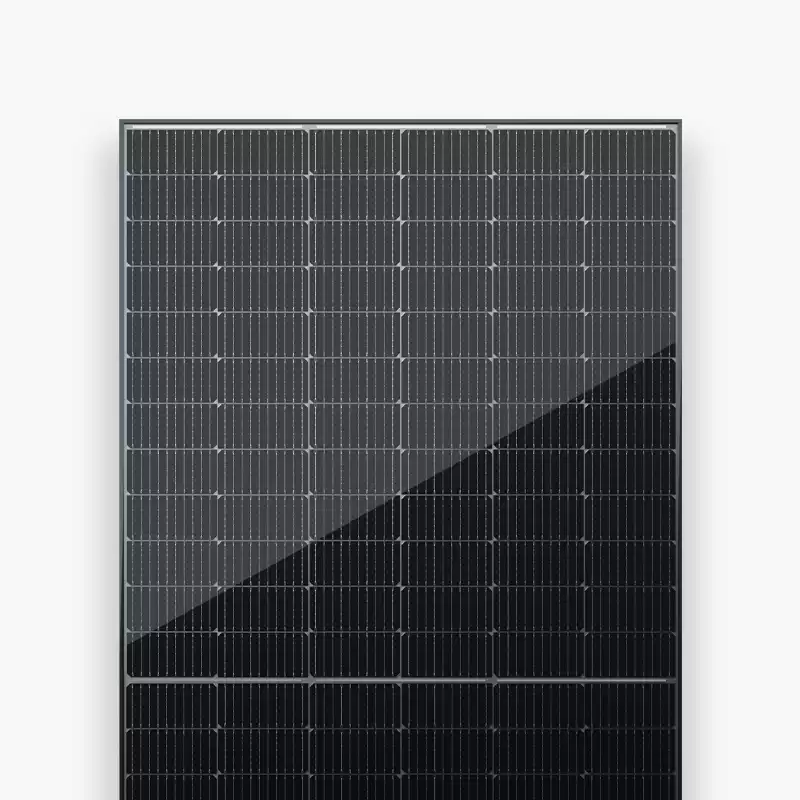

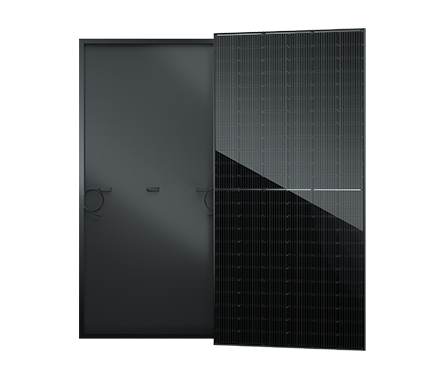

HiMAX5 Solar Panel
Sunpal focuses on customer value by introducing a new generation of all-black ultra-efficient photovoltaic modules, HIMAX5 series products.
Designed for large and super large photovoltaic power station, based on 182mm large size silicon wafer, combined with all-black, PERC, multi-main gate, half chip, double-sided technology, while using high density package to improve the energy density of the module, improve the module efficiency to 21.1%, the maximum output power up to 530W.

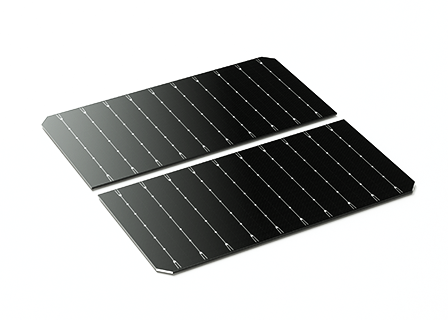

Half-cut cell technology
The output power of half-cell photovoltaic module with the same efficiency is significantly higher than that of a conventional full-cell module. Mainly due to the reduction of the series resistance of the half-cell module and the increase of the fill factor FF. Due to the lower internal resistance of the module, the temperature during power generation is lower than that of the conventional module, thereby further improving the power generation capacity of the module.
HiMAX5 solar panel meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
HiMAX5 solar panel featureas:
-
Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 20.51%)
-
Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
-
Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
-
Reduced resistive loss with lower operating current
-
Higher energy yield with lower operating temperature
-
Reduced hot spot risk with optimized electrical design and lower operating current
