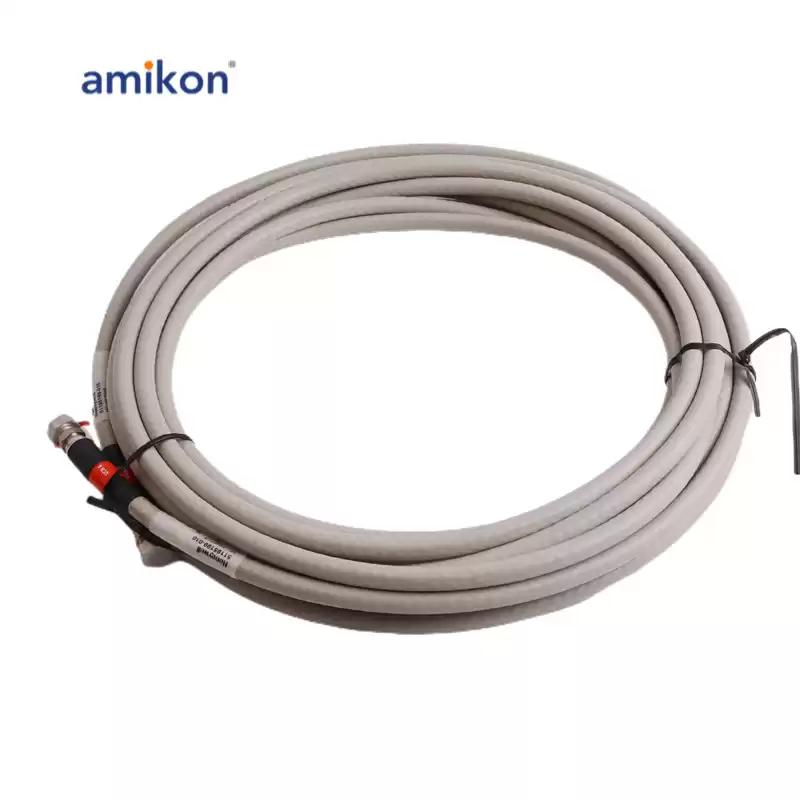

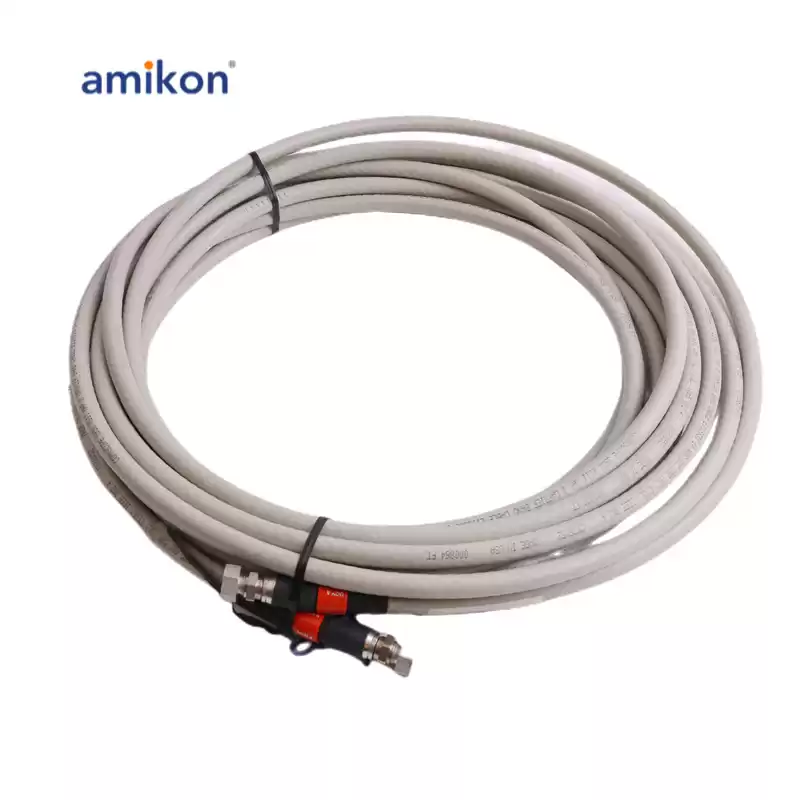

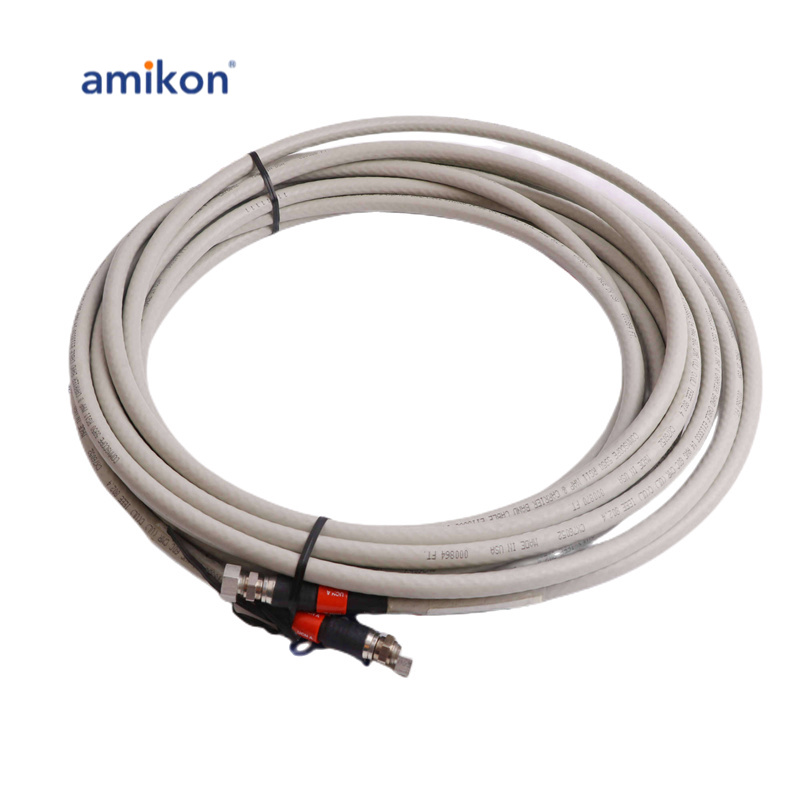

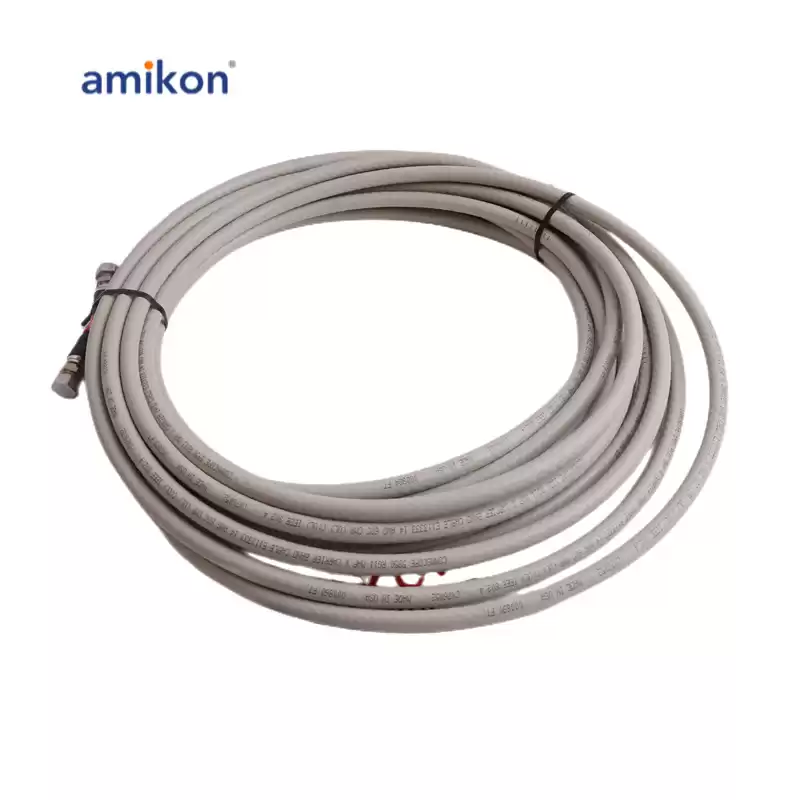

An extension cable is used to extend the I/O Link through an area where there are no IOTA connections or to another cabinet side. Extension cables come in a variety of lengths. They can plug into taps on a header cable, the end of a header cable, or the bottom of a drop cable (although this is not a normal use).
|
|
|
51195199-010 Data sheet
|
The Drop cable is a multi-drop cable that runs vertically in a CCA. Two drop cables can be plugged together to distribute the I/O Link in a pair of vertical CCAs. The top connector of the topmost drop cable plugs into a connector on the header cable.
|
|
There are several configurations of drop cables to handle the three different Series C IOTA dimensions [6-inches (152 mm), 9-inches (229 mm) and 12- inches (305 mm)].
|
|
This occurs primarily when there is a mixture of different size IOTAs in a CCA, or the hardware configuration does not fill the CCA. This cable connects C300s to header and bypasses redundant Control Firewalls above
|
|
