512 Channel Battery Formation and Grading Tester 5V2A For Mobile Phone Battery and 18650 Battery
SPECIFICATIONS
used for mobile phone battery, 18650 battery formation and grading with production line.
|
Model
|
Battery Formation and Grading machine TOB-BK-3512L/2
|
|
Source voltage
|
AC380v, 50hz
|
|
Power
|
9kw
|
|
Dimension
|
1600×500×1840mm
|
|
Channel
|
512
|
|
Control mode
|
Total control
|
|
Charging mode
|
Constant current,constant voltage
|
|
Charge cut-off condition
|
Voltage, current, time, capacity
|
|
Discharge mode
|
Constant current
|
|
Discharge cut-off mode
|
Voltage, time, Capacity
|
|
Protect function
|
Over voltage, under voltage, over current, under current, over capacity
Reverse connect protection
Power-off protection, data breakpoints recovery
|
|
Work flow setting
|
32 step with 256 cycles
|
|
Sampling inspection cycle
|
≤8s
|
|
Minimum frequency of data recording
|
≤8s
|
|
Channel parameter
|
|
Voltage testing range
|
0-5v, resolution 1mV
|
|
Battery voltage range
|
Charging :0-4.5V, Discharging :4.5-2V
|
|
Constant voltage range
|
2-4.5V
|
|
Voltage accuracy
|
±(0.1%RD+0.1%FS)
|
|
Current range
|
Charging :0.01-2A, Discharging :0.01-2A,resolution 1mA
|
|
Current accuracy
|
±(0.1%RD+0.1%FS)
|
|
Time range
|
0-30000min can be set,
|
|
Suitable battery height
|
10~80mm
|
|
Fixture spacing
|
35m
|

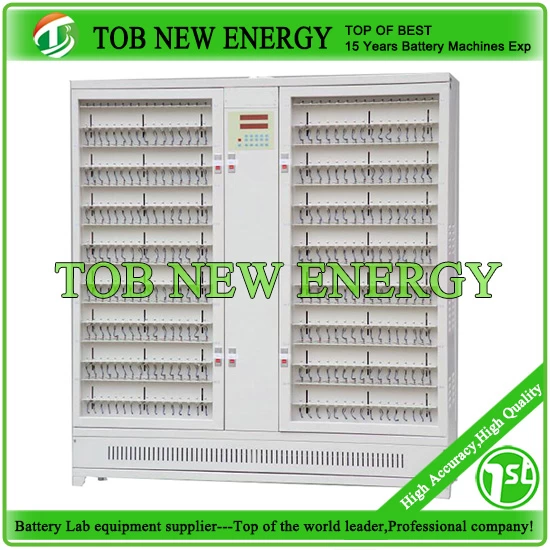

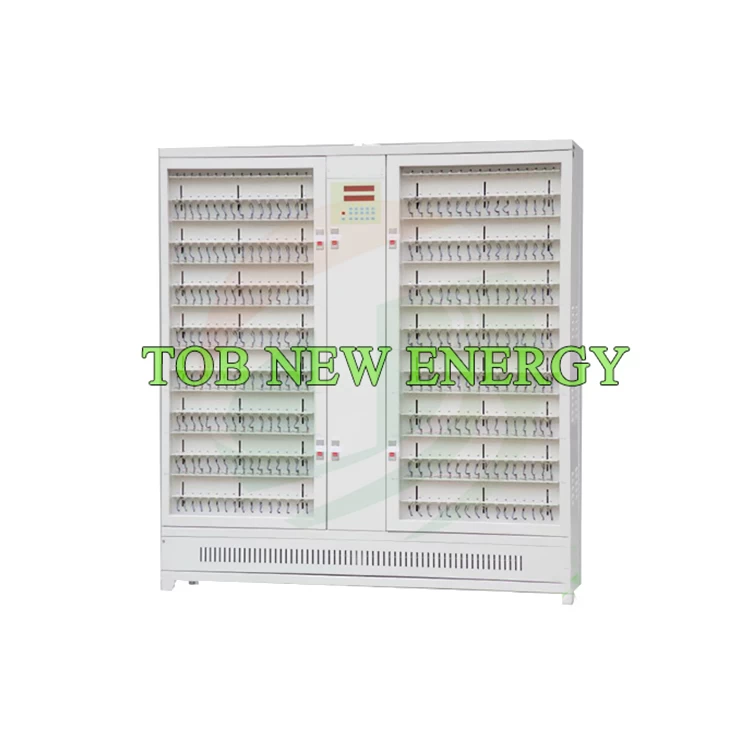

Product Display
