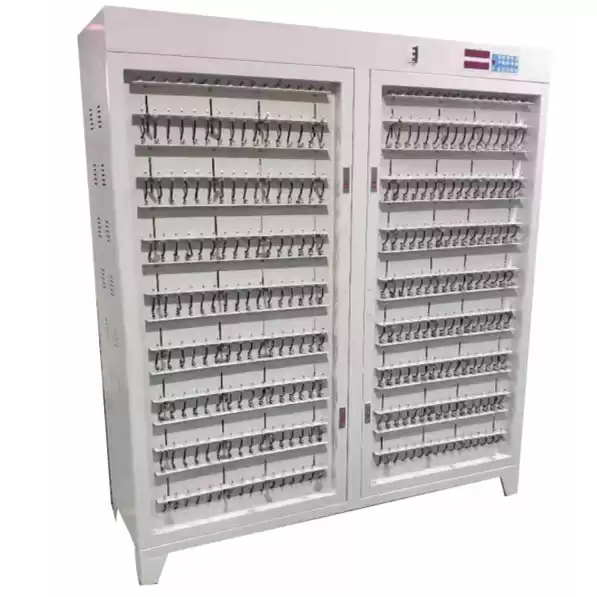

512 Channel Cylindrical Battery Formation Charge and Discharge Machine
1. This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet.
2. The tester is specially used for lithium ion Cylindrical Cell 18650 battery Formation and grading.
|
Model
|
TMAX-CG-8512W-5V2A-S1
|
|
Input Power
|
AC 220V ±10% / 50Hz
|
|
Whole power range
|
8300W
|
|
Voltage
|
Test Range
|
0.8V~4.3V
|
|
Accuracy
|
±（0.2% of reading + 0.2% of range）
|
|
Current
|
Output range
|
±2000mA
|
|
Accuracy
|
±（0.2% of reading + 0.2% of range）
|
|
Constant voltage cutoff current
|
Min 15mA
|
|
Time
|
Inspection time
|
Real time<2S
|
|
Timing range
|
0~9999 min/step
|
|
Data Logging Interval
|
≥20S
|
|
Sorting condition
|
Termination capacity (time)
|
|
Central controller version
|
6 series
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Ni-MH battery charge,lithium ion battery charge
|
|
End Condition
|
Voltage、cutoff current、 Time、Voltage variation
|
|
Discharge
|
Discharge Mode
|
CCD
|
|
End Condition
|
Voltage、Time
|
|
Cycle
|
Loop Measure Range
|
1~9999 times
|
|
Single cycle step
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
Power-down Data Protection
|
|
Setting Protection Condition,overvoltage protection,
undervoltage protection,overcurrent protection,
undercurrent protection,at the mean time protect the voltage and current value can be set.
|
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
512
|
|
Dimensions
|
W*D*H：1450*380*1780（mm）
|
|
Battery clamp type
|
Upper and lower probe clamp
|
|
Battery clamp adjust range
|
Max 80mm,clamp spacing 34mm
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
