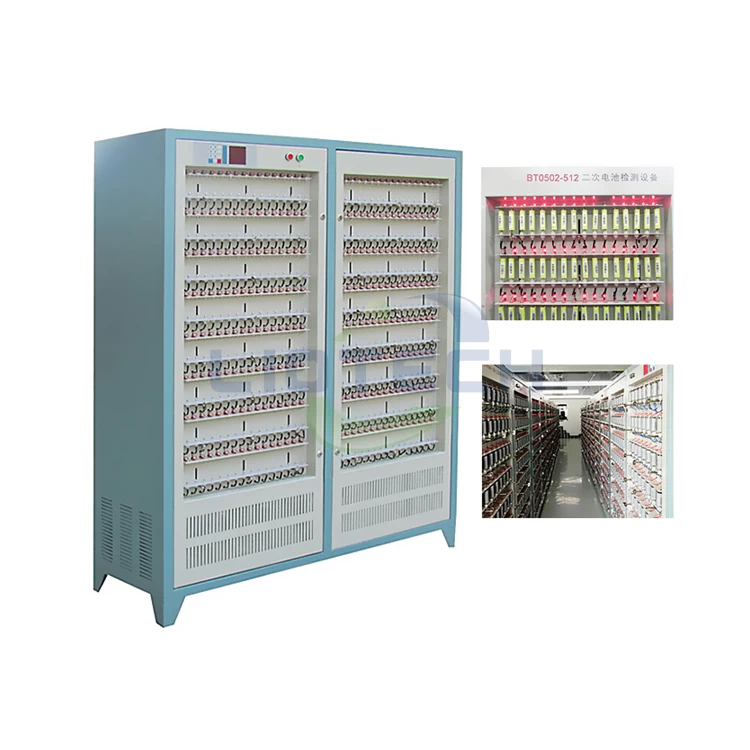

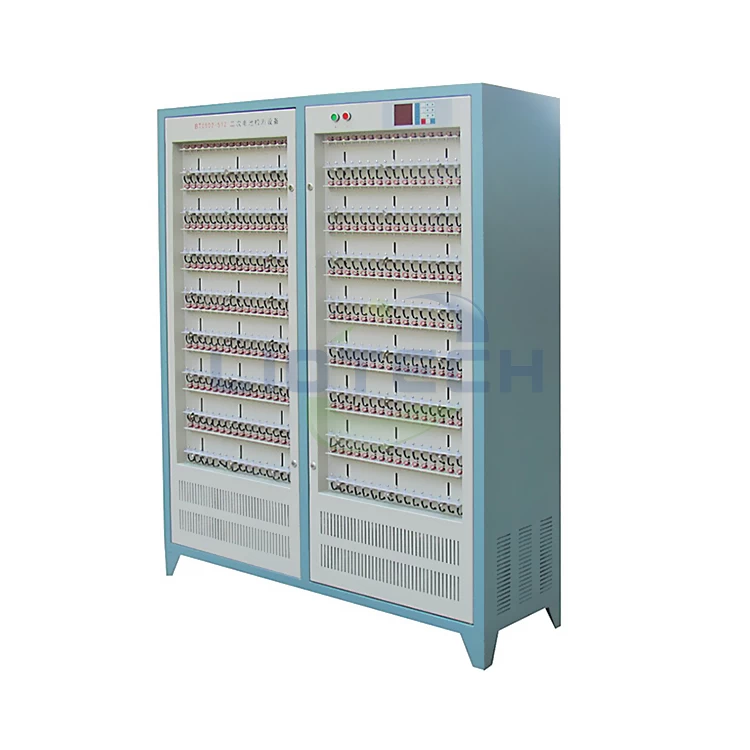

512 Channel Lithium Battery Capacity Discharge Tester For Cylinder Battery
Product Description
This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge
constant current source, storage control circuit, current sampling circuit, voltage sampling circuit,
the main control CPU, data memory, micro controller programming and control panel.
Technical Specifications
|
Model
|
LIO-BT0502-512-C
|
|
Voltage supply
|
AC 220V ±5% 50HZ
|
|
Max Power Dissipation
|
7000w
|
|
Channel
|
512
|
|
Dimension
|
1500*900*1900mm
|
|
Support battery height range
|
10-95mm( stepless adjustment)
|
|
Clamp spacing
|
35mm
|
|
Voltage measurement range
|
DC100-4500mV
|
|
Voltage accuracy
|
±0.1%FS ±0.1%RD
|
|
Voltage resolution
|
1mV
|
|
Constant voltage range
|
DC2000~4500mV
|
|
Charge discharge current range
|
DC5~2000mA
|
|
Current accuracy
|
±0.1%FS ±0.1%RD
|
|
Time measurement range
|
999min/step
|
|
Time measurement error
|
±0.1%
|
|
Working temperature
|
0~40 ℃
|
|
Relative humidity
|
≤85%
|
