512 Channels Coin Cell Battery Tester / Battery Forming and Grading Machine in Battery Making




 512 Channels Coin Cell Battery Tester / Battery Forming and Grading Machine in Battery Making


Product Description


1.This equipment is mainly constituted by the computer system and control software,

communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, micro controller programming and control panel.


2.The tester is specially used for lithium ion Polymer Battery Formation and grading.

Project index

Parameter index

Model

TOB-BT05002-512-LP

Demension

1500*900*1900(mm)

Working power supply

AC 220V ±5%  50HZ

Max Power Dissipation

1000w

Channel no

512

Support battery height range

10-95mm( stepless adjustment)

Clamp spacing

35mm

Voltage accuracy

±0.1%FS ±0.1%RD

Voltage measurement range

DC100-4500mV

Voltage resolution

1mV

Constant voltage range

DC2000~4500mV

Minimum discharge voltage

2000mV

Charge discharge current range

DC5~200mA

Current accuracy

±0.1%FS ±0.1%RD

Current  resolution

1mV

Time measurement range

999min/step

Time measurement erro

±0.1%

Working temperature

0~40 ℃

Relative humidity

≤85%

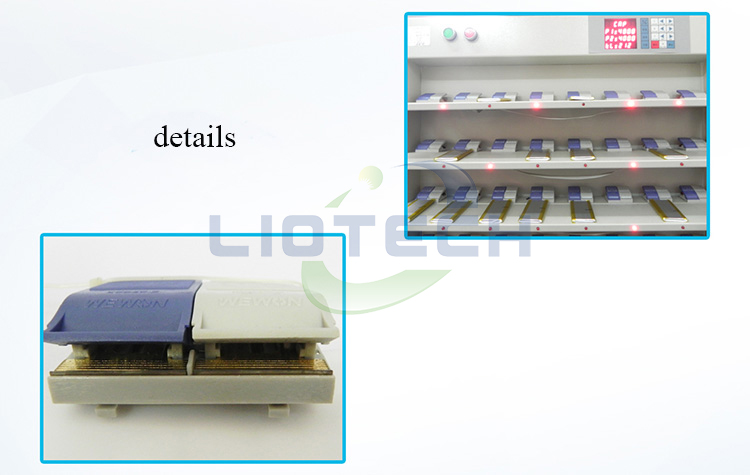

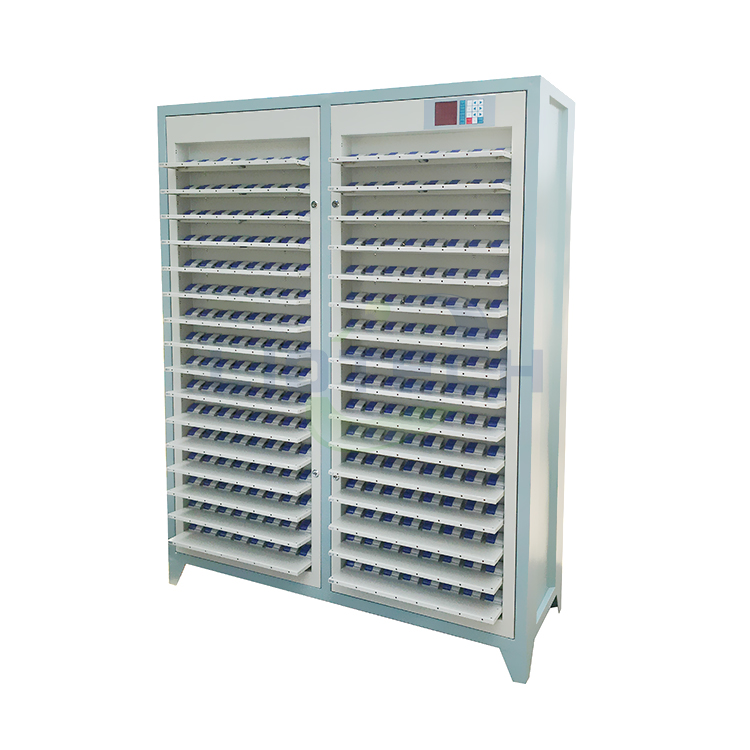

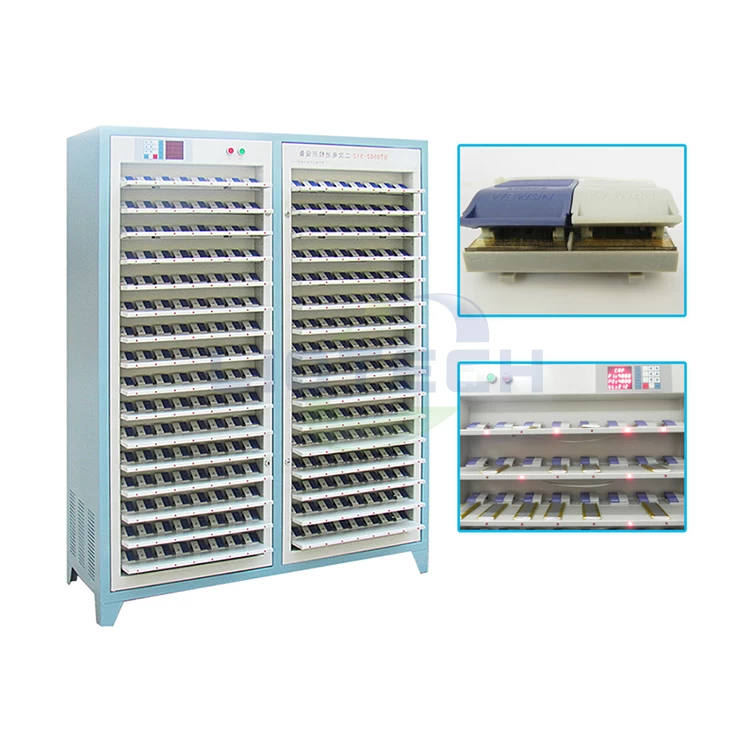

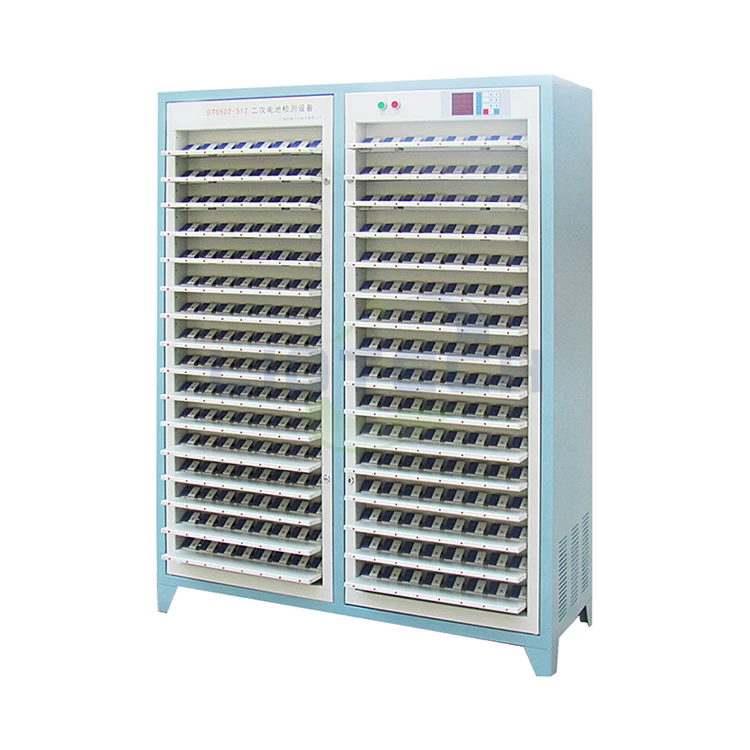

Product Images



Product Packing




tester machine shipping sample
