The power distribution subsystem consists of the hardware listed in the following table to distribute 24 Vdc from a Series C power system to one or more CCAs in one or both sides of a cabinet containing the power system.
|
|
|
51202324-100 Data sheet
|

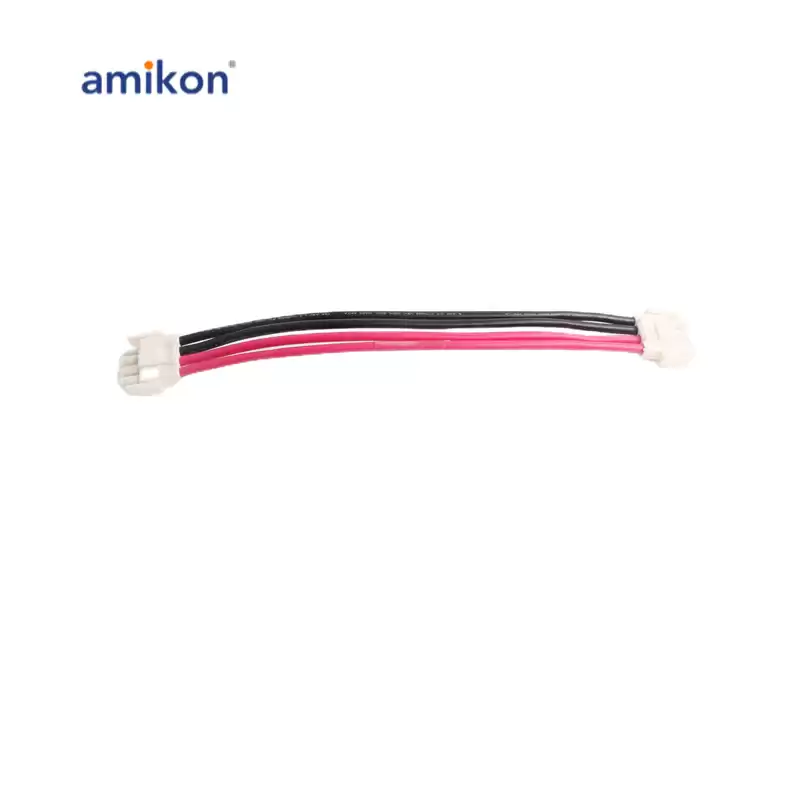

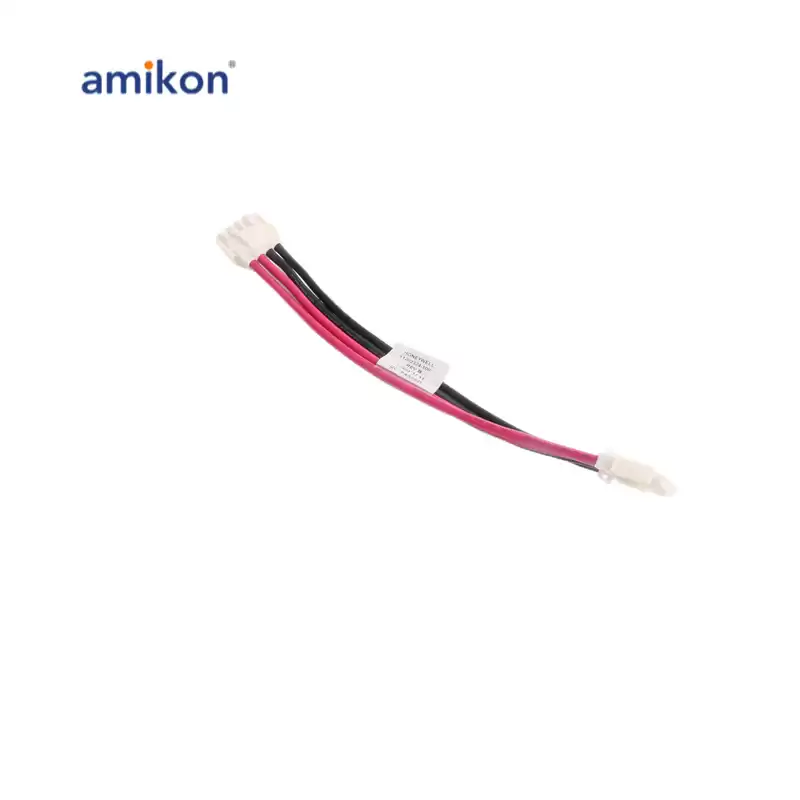

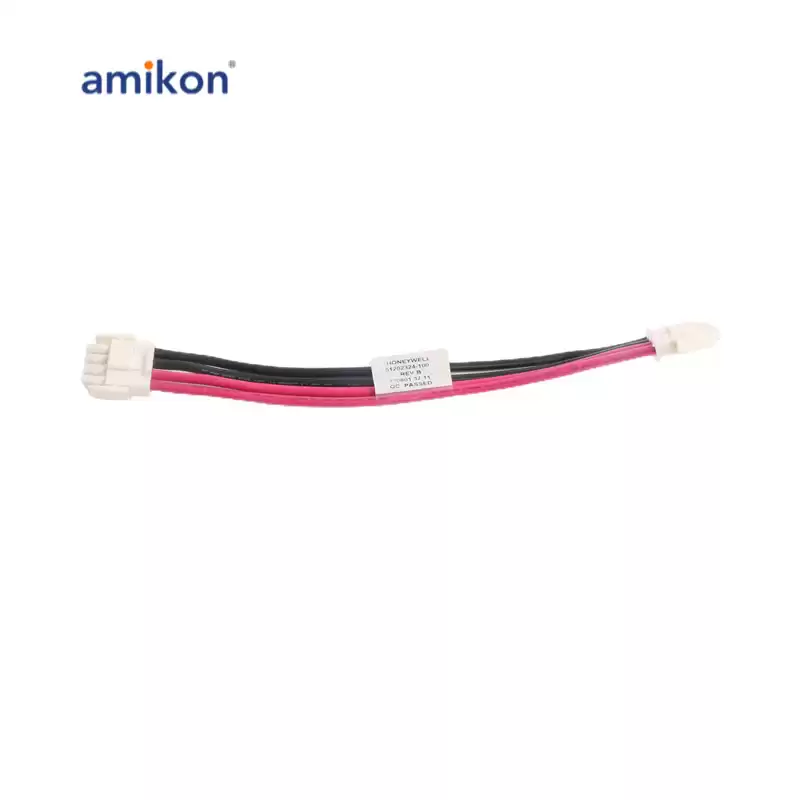

DC Power Cable (connects one of the six 24 Vdc power distribution connectors in the 8-connector interface on the subsystem to the Horizontal DC Power Bus Bar (HDPB)), 9-inches (229 mm) long.
|
|
If a Series C Power System and HDPB must also power additional CCAs in the other cabinet side of a dual-access cabinet.
|
|
additional red/black wire pairs (51202335-300) must be added for each vertically-adjacent pair of CCAs in the other cabinet side.
|
|
