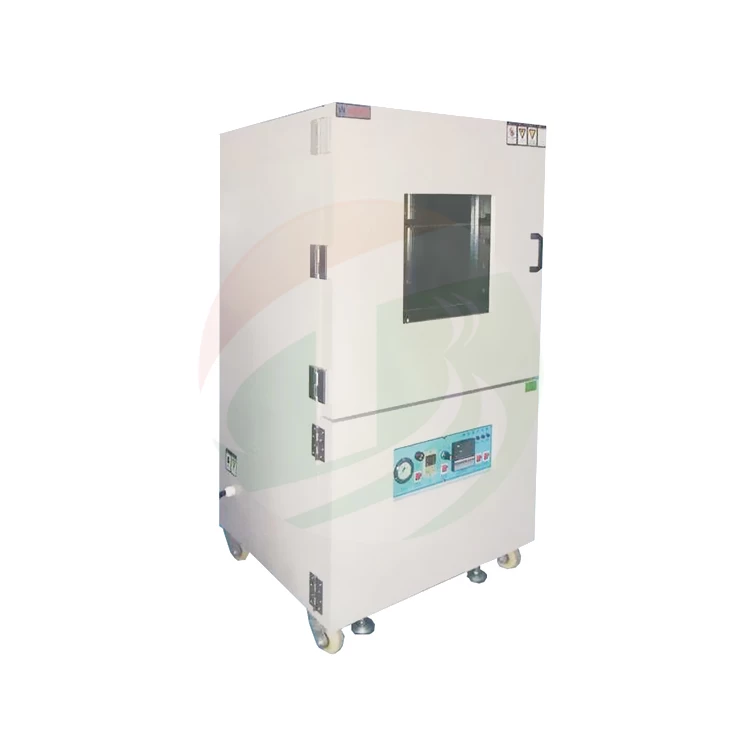

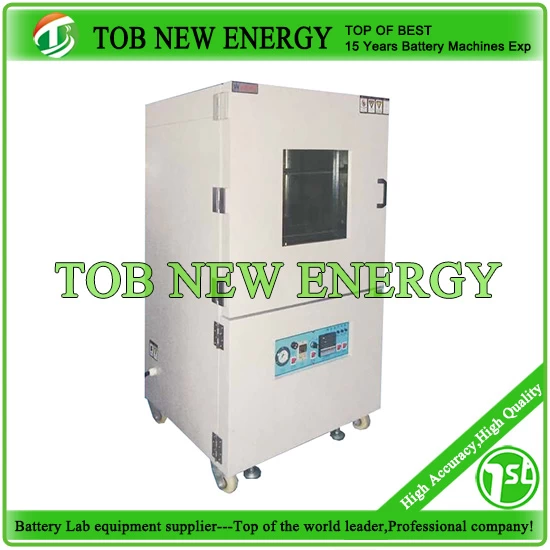

27L~512L Vacuum Degassing Oven For Lithium Battery Electrode Baking
SPECIFICATIONS
|
Type
|
BE-ZK-27L
|
BE-ZK-64L
|
BE-ZK-125L
|
BE-ZK-216L
|
BE-ZK-512L
|
|
Box size within
W*H*D mm
|
300*300
*300
|
400*400
*400
|
500*500
*500
|
600*600
*600
|
800*800
*800
|
|
Box size outside
W*H*D mm
|
600*470
*710
|
700*570
*810
|
800*670
*910
|
900*870
*1010
|
1100*1070
*1210
|
|
Weight
|
90KG
|
110KG
|
130KG
|
150KG
|
200KG
|
|
Power
|
3.0KW
|
4.0KW
|
6.0KW
|
8.0KW
|
10.0KW
|
|
Power supply
|
AC 220V 50HZ
|
AC 380V 50HZ
|
|
Temperature range
|
RT+10~200℃
|
|
Box material in
|
Stainless steel thickness:6.0mm
|
|
Box material out
|
SECC Steel sheet，Fine powder coating process,
Thickness：1.5mm
|
|
Timer
|
Three display 999(H:hour,M:minute,S:Second Switchable)
|
|
Vacuum degree- Digital Display
|
0~101Kpa adjustable
|
|
Vacuum pump
|
Standard configuration
|
