The 5136-DNP-CPCI features an entire DeviceNet protocol that is executed in the hardware. Additionally, it is UCMM capable with Group 1, 2, and 3 dynamic explicit connections supported and simultaneous execution of Group 2 client (master) and server (slave) operation.
Entire DeviceNet Protocol is Executed in Hardware
UCMM Capable, Group 1, 2, and 3 Dynamic Explicit Connections Supported
Simultaneous Execution of Group 2 Client (Master) and Server (Slave) Operation
All DeviceNet Standard Baud Rates Supported: 125, 250, and 500 Kbaud
Full DeviceNet Implementation Including Change of State (COS) and Explicit Messaging
DeviceNet Compliance is Ensured at the Card Level for I/O Scanner and Device Applications

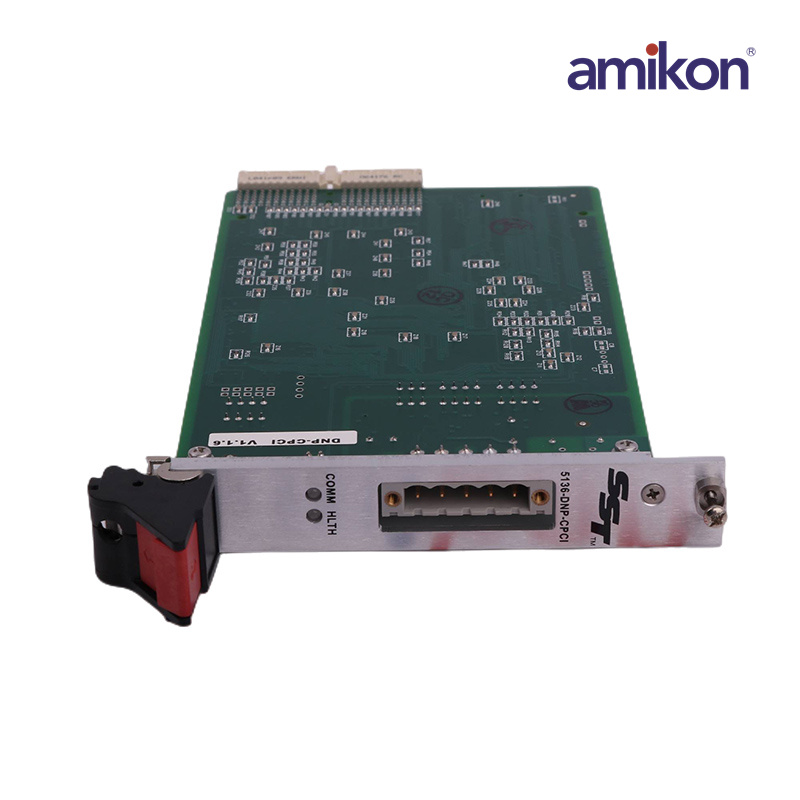

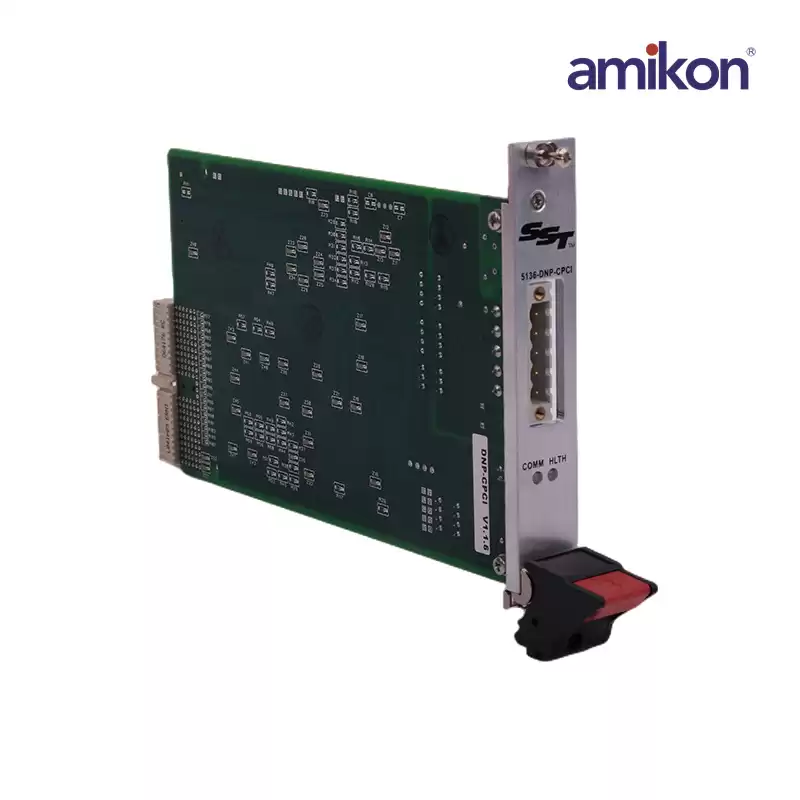

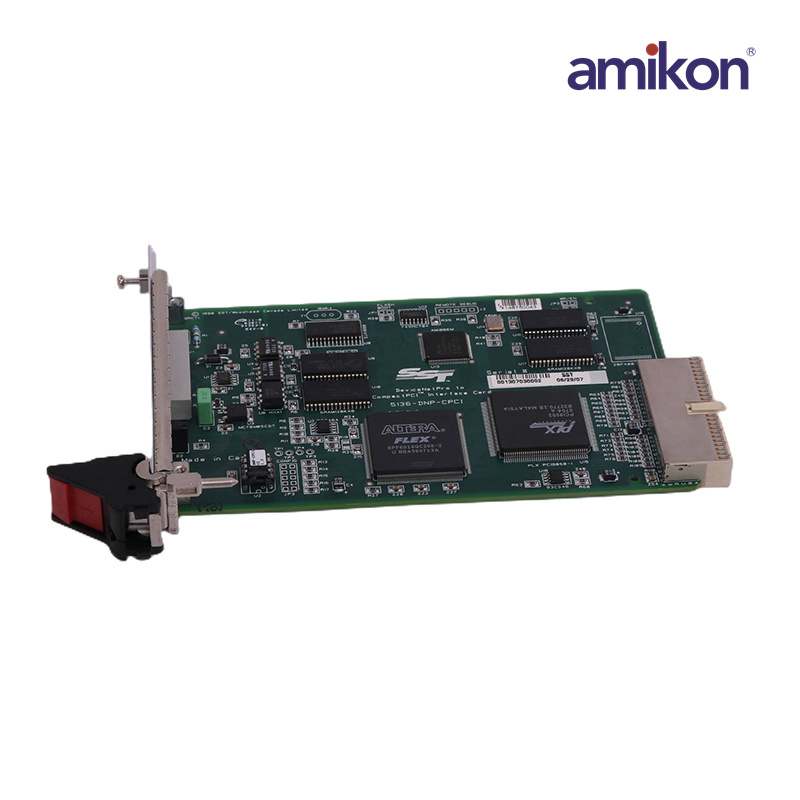

The Molex / Woodhead / SST 5136-DNP-CPCI DeviceNet Interface Card connects your Compact PCI bus computer to DeviceNet. Many third party software programs support the SST DeviceNet interface card for various applications including: operator interface and HMI, PC control, and I/O emulation.
|
