The High-Performance Process Manager subsystem (HPM) is comprised of the major assemblies that are described in the following subsections. Figure 1 is a view of a single cabinet containing a nonredundant HPMM and identifies some of the High-Performance Process Manager assemblies.
|
|
|

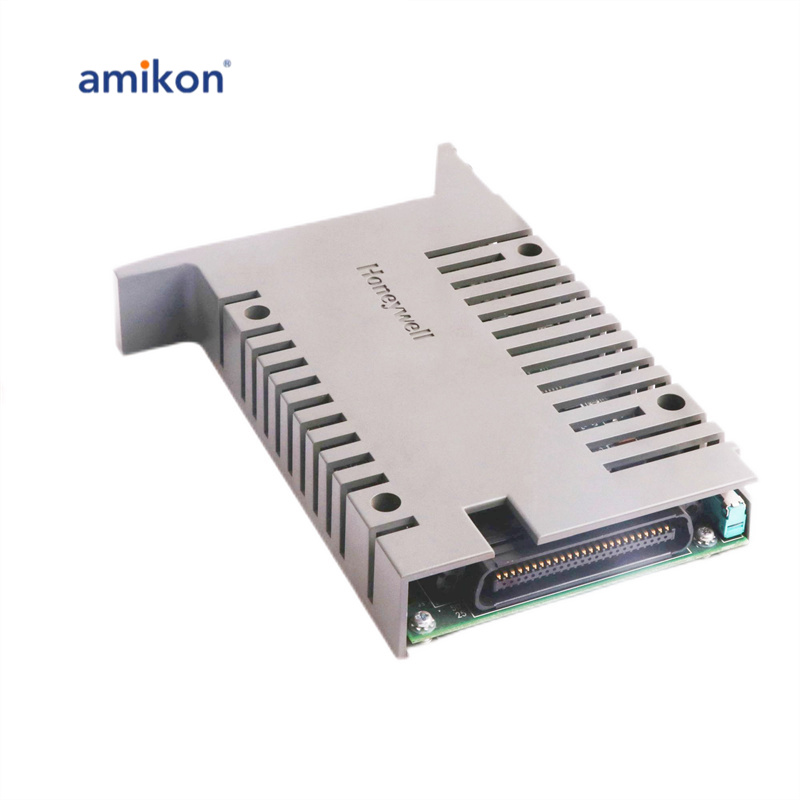

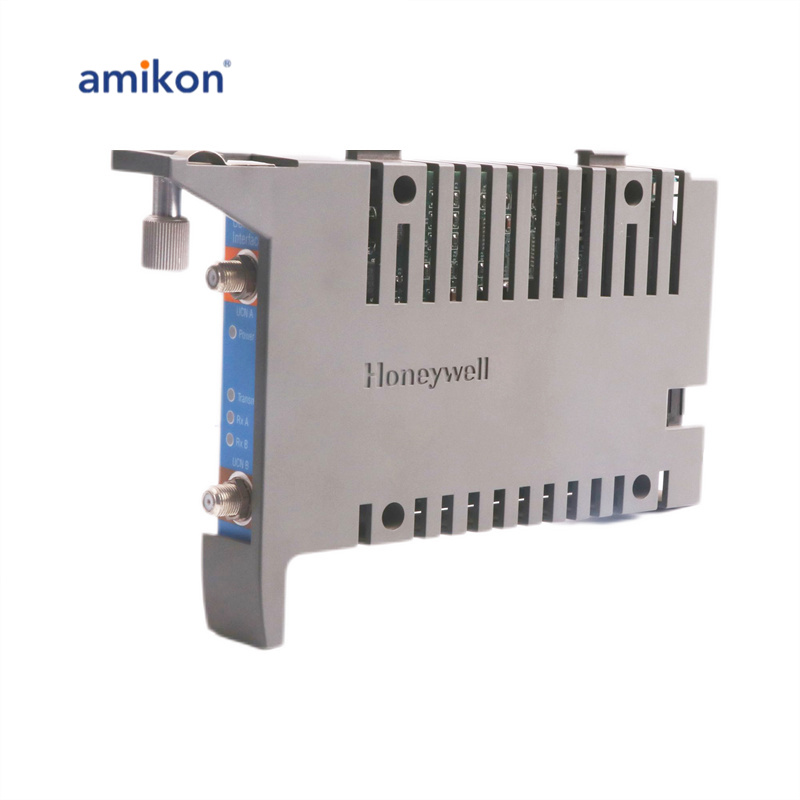

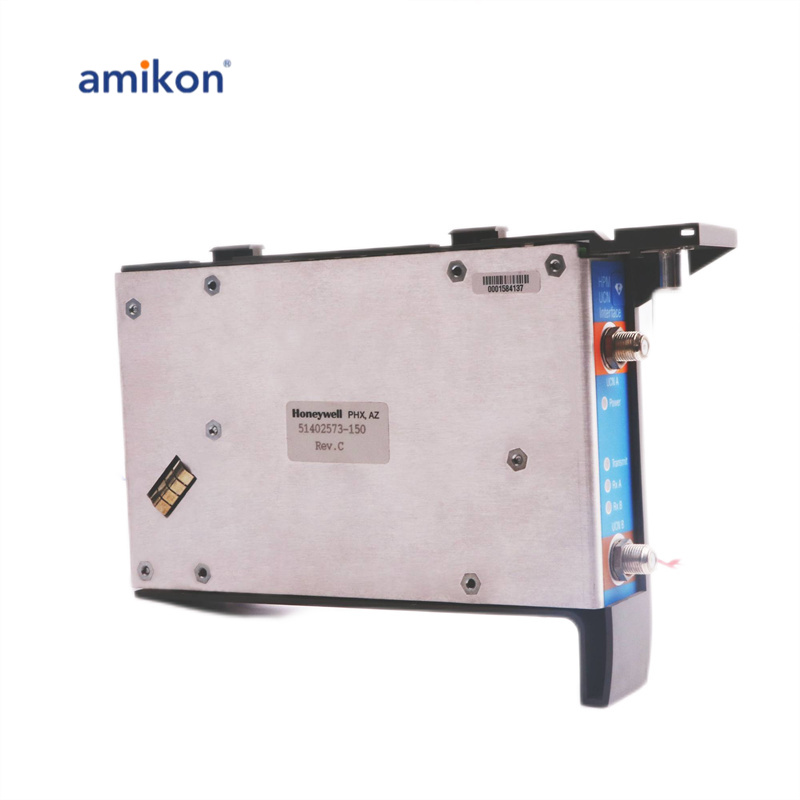

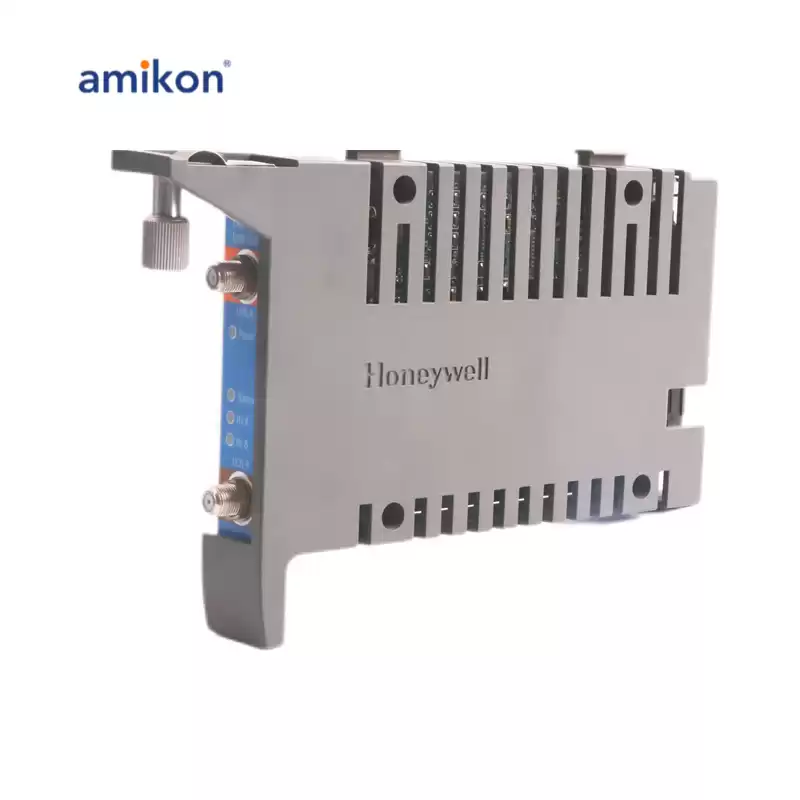

51402573-100 Data sheet
|
All card slots accept IOPs. An older “IOP Only” card file may exist in a HPM cabinet that was upgraded to an HPM from a PM or APM. This older card file cannot support an HPMM card set. It is restricted to IOP cards and optional I/O Link Extender cards.
|
|
Three types of card files can accommodate both High-Performance Process Manager Module (HPMM) and Input/Output Processor (IOP) cards, or may have IOP cards only.
|
|
The HPM card set occupies slots 1 and 2 in both the Left 7-Slot and 15-Slot card files. The HPMM card set occupies slots 9 and 10 in the Right 7-Slot card file.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
