520mm European Dough Sheeter for Bakery

Product Feature

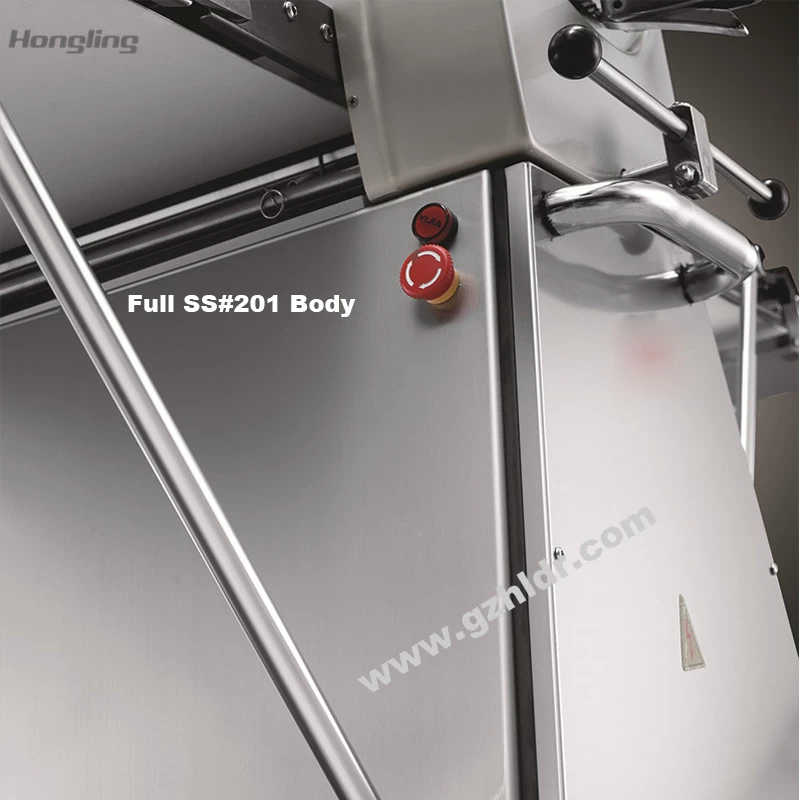

1. Full SS #201 body.

2. Belt size 52*220cm

3. Stowed W/H: 76*162cm 4. Expanded W/H 270*110cm

5. Max. dough capacity 5.5kg/time

6. Roller adjustable gap 1-40mm

7. Overload protection

8. Open-phase protection function.


  • HS Code8438100090
  • Max Dough Capacity5.5KG
  • Gap Range1-40mm
  • Dimension960*2700*1100mm
  • Power0.55kW/h
  • Voltage220V/380V 50Hz
  • ModelQS-520BE
  • EXW PriceUS$ 1-1800

 520mm European Dough Sheeter



       The commercial european dough sheeter is for making pastry type,pastry cake, puff pastry and pressing dough.Adopted the imported components and food grade steel for the machine. High class polyurethane belt allows smooth and efficient operation and will notshrink or deformation when used in humid conditions.Unique design provides lower noise, excellent abrasion resistance to extend machine's life. Space-saving, movable folding structure and easy cleaning.



Pastry Dough Sheeter machine


full stainless steel crisping sheeter



 Item  Model Voltage  Power Dimension(mm) Weight(KG) Belt size Max.Dough Capacity
 Dough Sheeter   QS-520BE  220/380V 50Hz  0.55kW/h  900*2700*1100 250 520mm 5.5KG
 Dough Sheeter   QS-630BE 220/380V 50Hz 1.1kW/h 1000*3100*1100 268 630mm 6.5KG
Dough Sheeter QS-400B 220/380V 50Hz 0.4kW/h 760*2000*1040 170 400mm 4KG
Dough Sheeter QS-400BT 220/380V 50Hz 0.4kW/h 780*1690*590 110 400mm 4KG
Dough Sheeter QS-520B 220/380V 50Hz 0.55kW/h 900*2700*1100 248 520mm 5.5KG
Dough Sheeter QS-520BT  220/380V 50Hz 0.55kW/h 910*1890*590 130 520mm 5.5KG
Dough Sheeter QS-630B 220/380V 50Hz 1.1kW/h 1000*3100*1100 258 630mm 6.5KG
