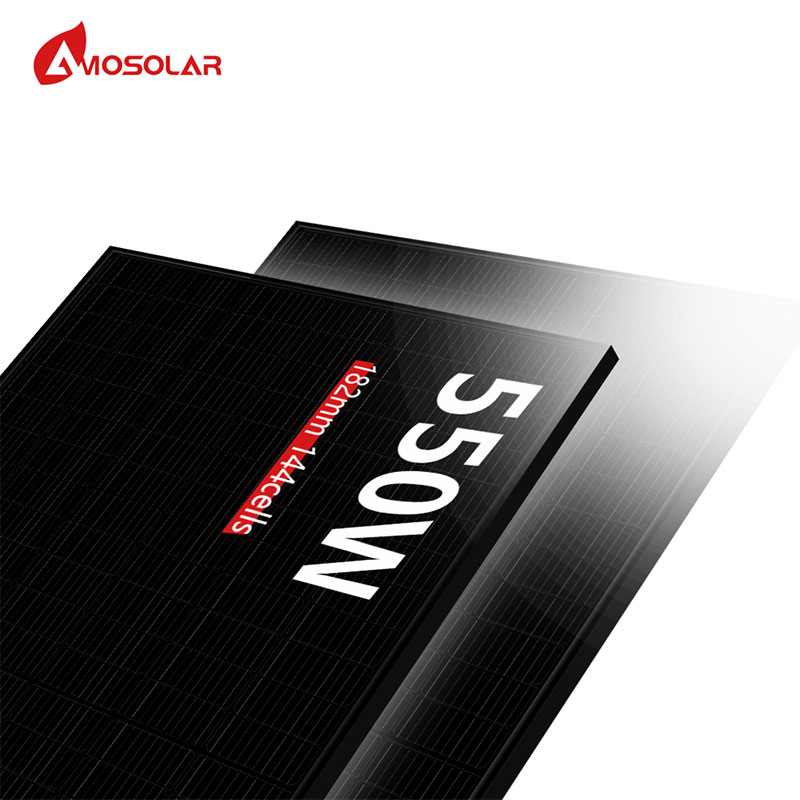

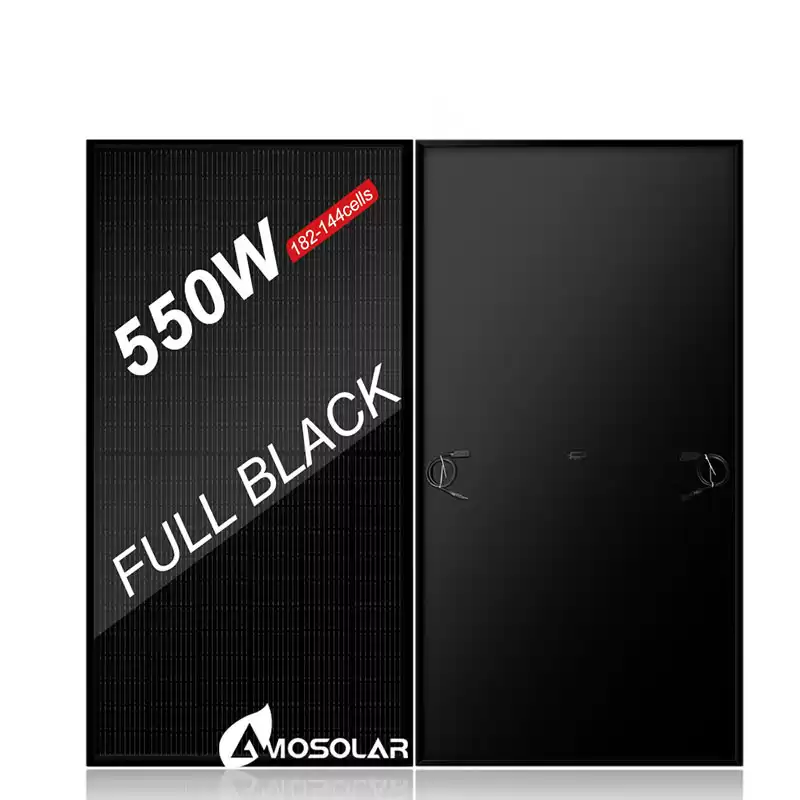

525W-550W All Black Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

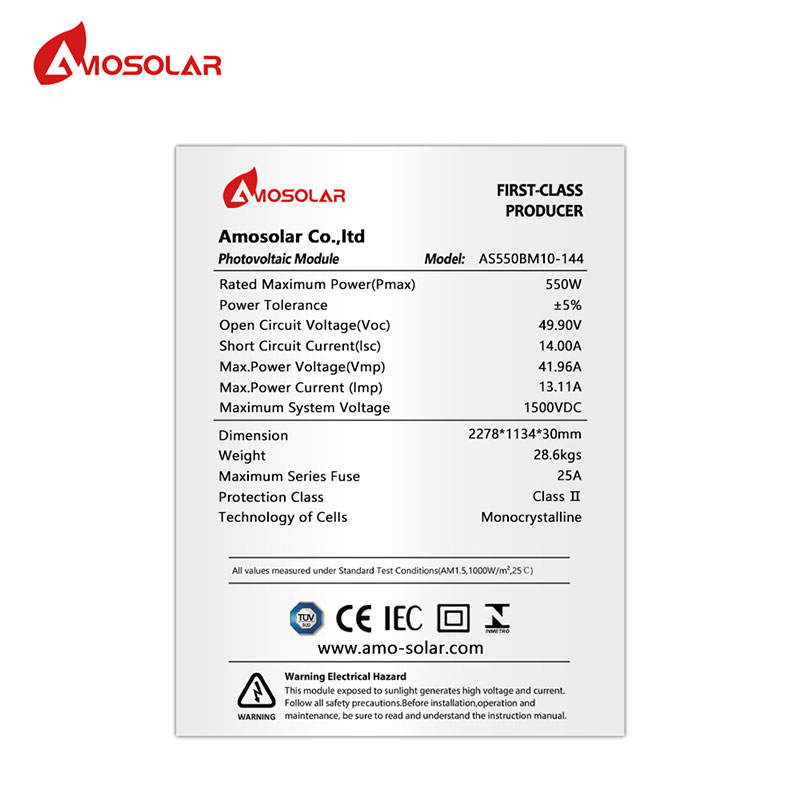

Electrical Performance Parameters (STC Test)
Model
|
AS525BM10-144
|
AS530BM10-144
|
AS535BM10-144
|
AS540BM10-144
|
AS545BM10-144
|
AS550BM10-144
|
|
Rated Maximum Power at STC
|
525W
|
530W
|
535W
|
540W
|
545W
|
550W
|
|
Open Circuit Voltage (Voc)
|
49.15
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
|
Maximum Power Voltage (Vmp)
|
41.15
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
|
Short Circuit Current (Isc)
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
|
Maximum Power Current (Imp)
|
12.76
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
|
PV Module Efficiency (%)
|
20.31
|
20.51
|
20.70
|
20.89
|
21.09
|
21.28
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 144( 6 × 24 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 28.6KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

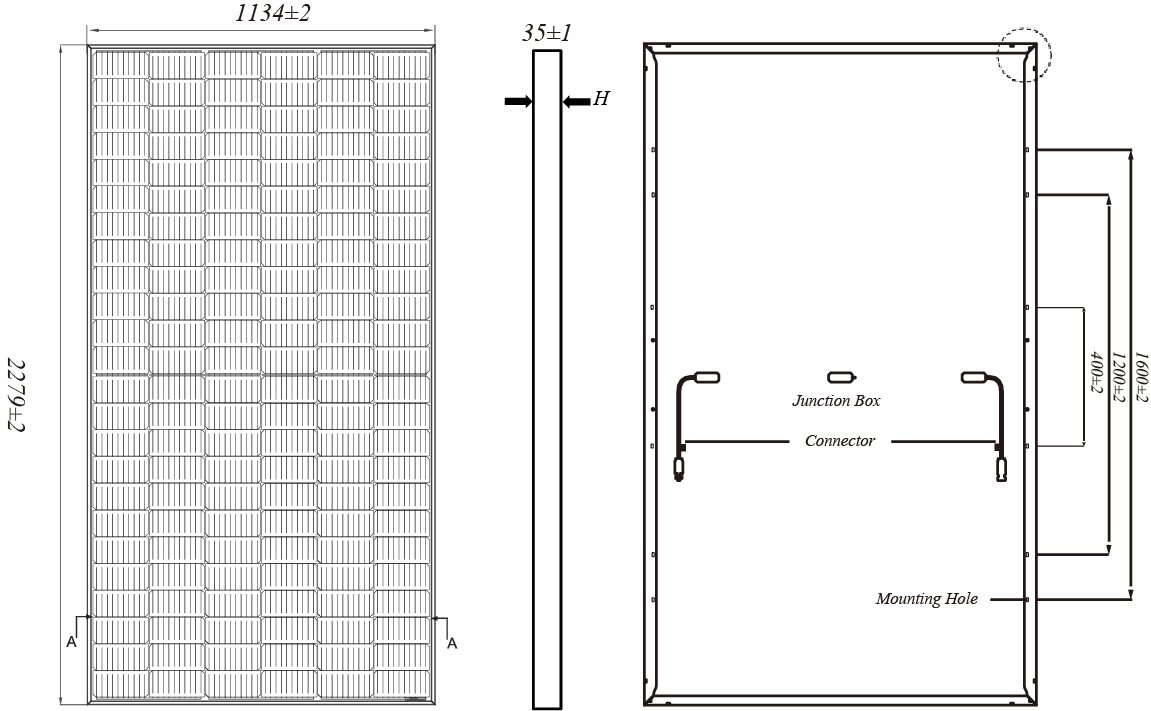

PV Size: 2279×1134×35mm

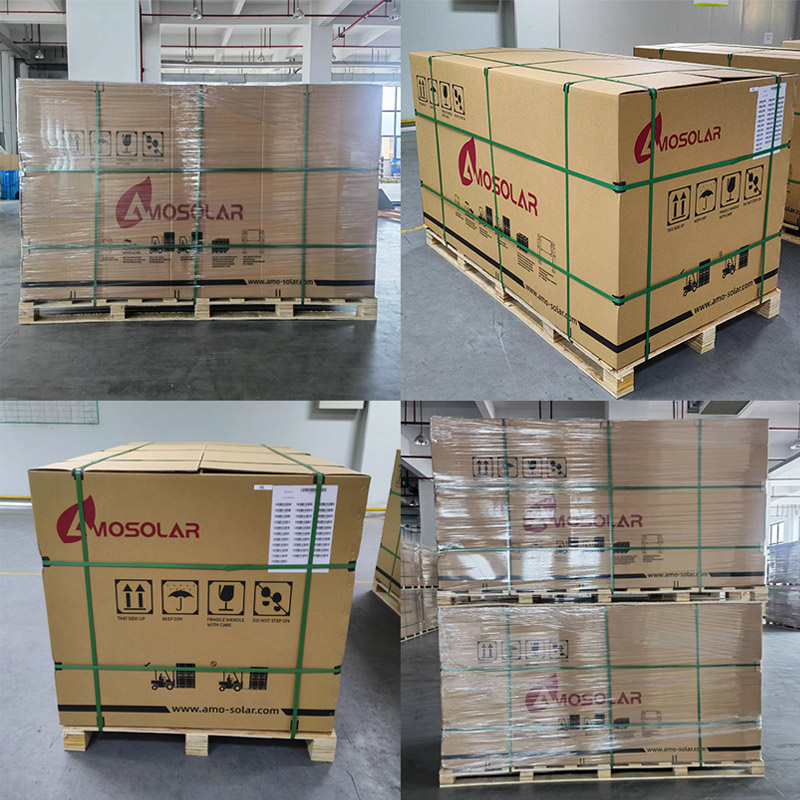

Packaging: 31 pcs / pallet
620 pcs / 40HQ container
