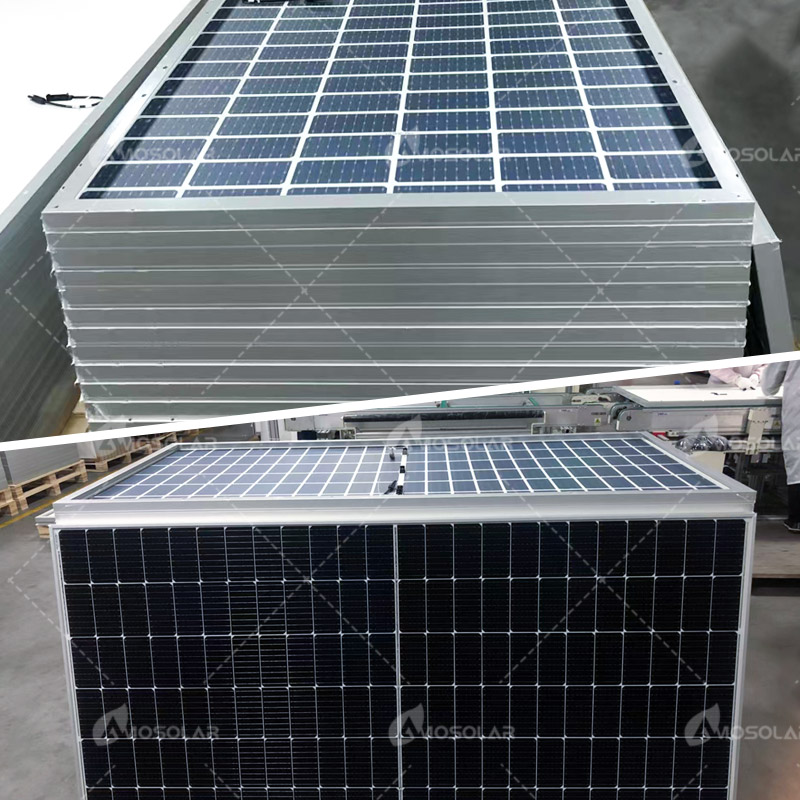

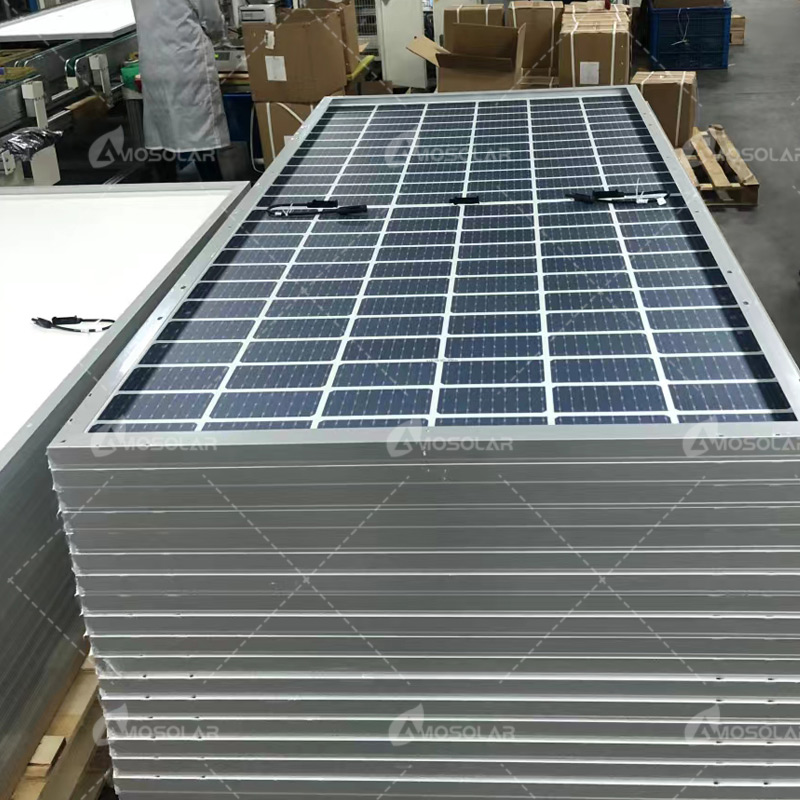

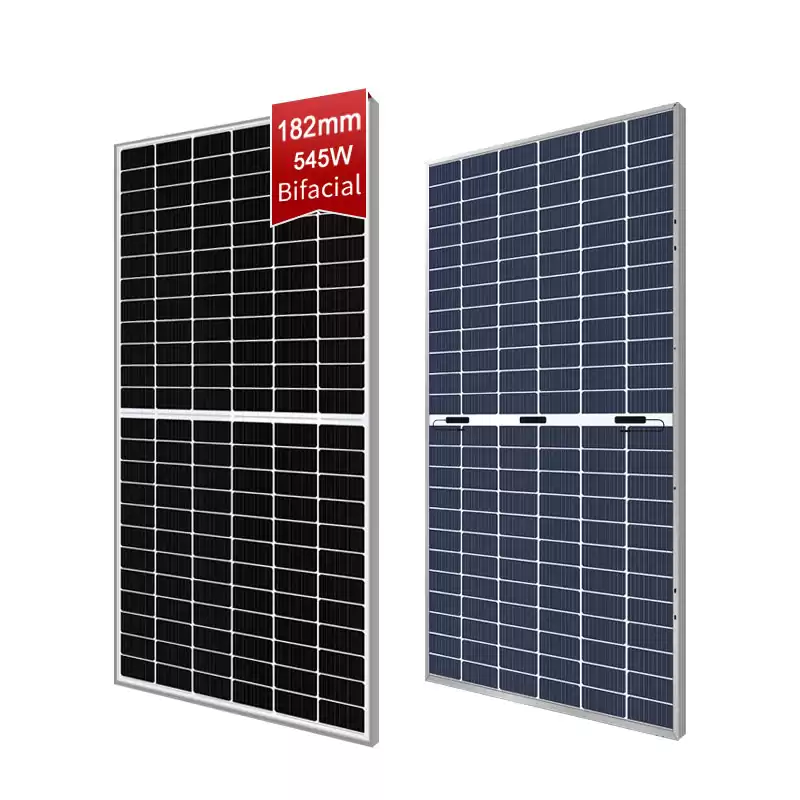

525W-550W Bifacial Double Glass Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.
Electrical Performance Parameters (STC Test)
Model
|
AS525M10-144B
|
AS530M10-144B
|
AS535M10-144B
|
AS540M10-144B
|
AS545M10-144B
|
|
Rated Maximum Power at STC
|
525W
|
530W
|
535W
|
540W
|
545W
|
|
Open Circuit Voltage (Voc)
|
49.27
|
49.35
|
49.42
|
49.49
|
49.65
|
|
Maximum Power Voltage (Vmp)
|
40.61
|
40.71
|
40.81
|
40.91
|
41.07
|
|
Short Circuit Current (Isc)
|
13.64
|
13.71
|
13.79
|
13.87
|
13.94
|
|
Maximum Power Current (Imp)
|
12.93
|
13.02
|
13.11
|
13.20
|
13.2
|
|
PV Module Efficiency (%)
|
20.26
|
20.45
|
20.65
|
20.84
|
21.03
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 144( 6 × 24 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 28.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

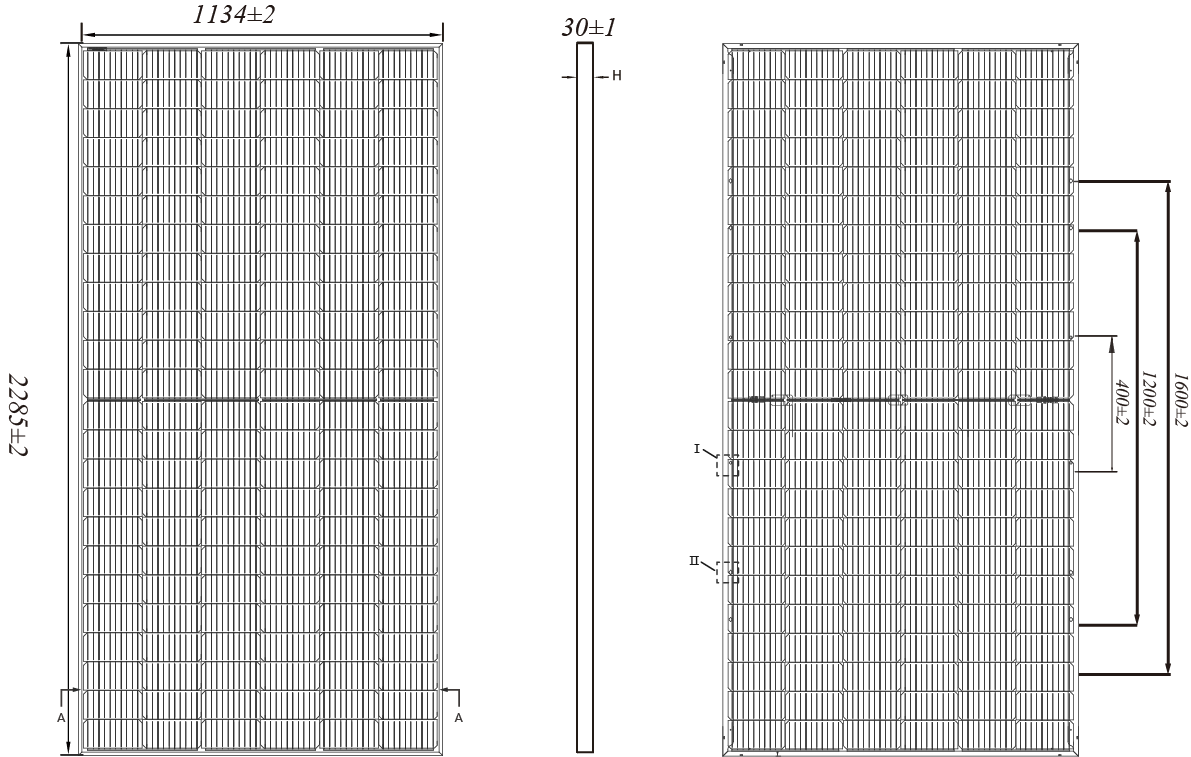

PV Size: 2285×1134×35mm
Packaging: 35 pcs / pallet
700 pcs / 40HQ container
