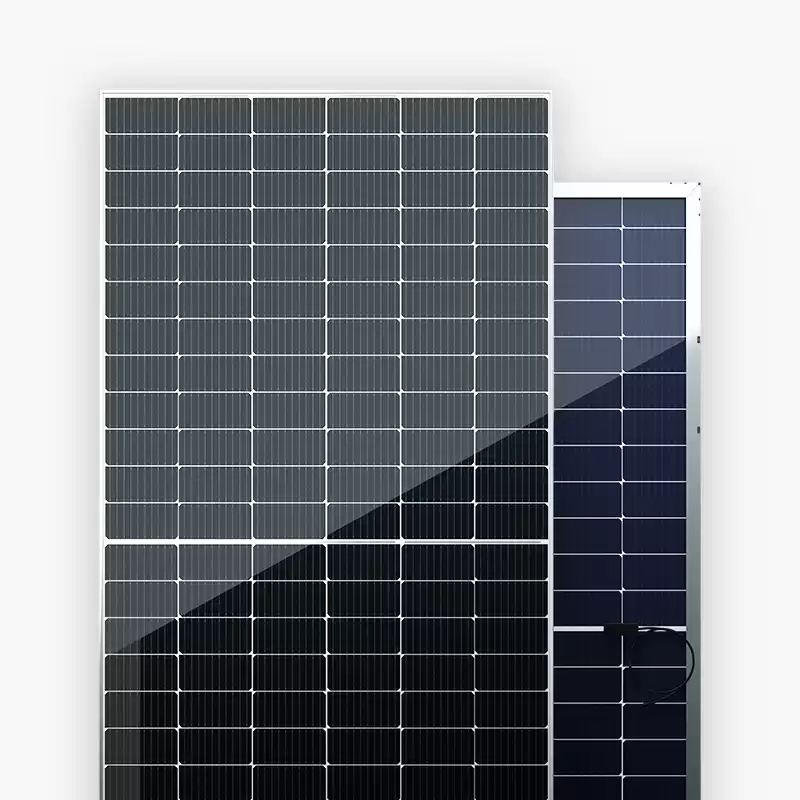

525W-550W Bifacial Double Glass Multi-busbars Half Cell Silver Framed Solar PV Panel

182mm Bifacial Double Glass Multi-busbars Half Cell Framed Solar PV Panel, Sunpal BiMAX5 144 Cell Series Solar Panel Power Range 525W 530W 535W 540W 545W 550W.


  • Packaging31pcs per pallet 620pcs per 40'ft Container
  • Dimension2285x1134x35mmvv
  • Weight31.6kg±3%
  • FrameSilver anodized aluminum alloy frame
  • Output Cable4mm2, 300mm in length,length can be customized
  • GlassDual glass, 2.0mm coated tempered glass
  • Junction BoxIP68, three diodes
  • Cell Orientation144 (6x24)
  • Junction BoxIP68, three diodes
  • ModelSP550MB-72H

bifacial solar panel



MBB Solar Panel

High-density interconnect technologies and MBB, Sunpal Solar's research and development team has developed an innovative multi-busbar technology that enables increased light absorption. The 1500V system voltage and low current third-cut cell technology integration allows more modules per string, thus reducing BOS costs and higher power generation capacity per watt.






double glass solar panel

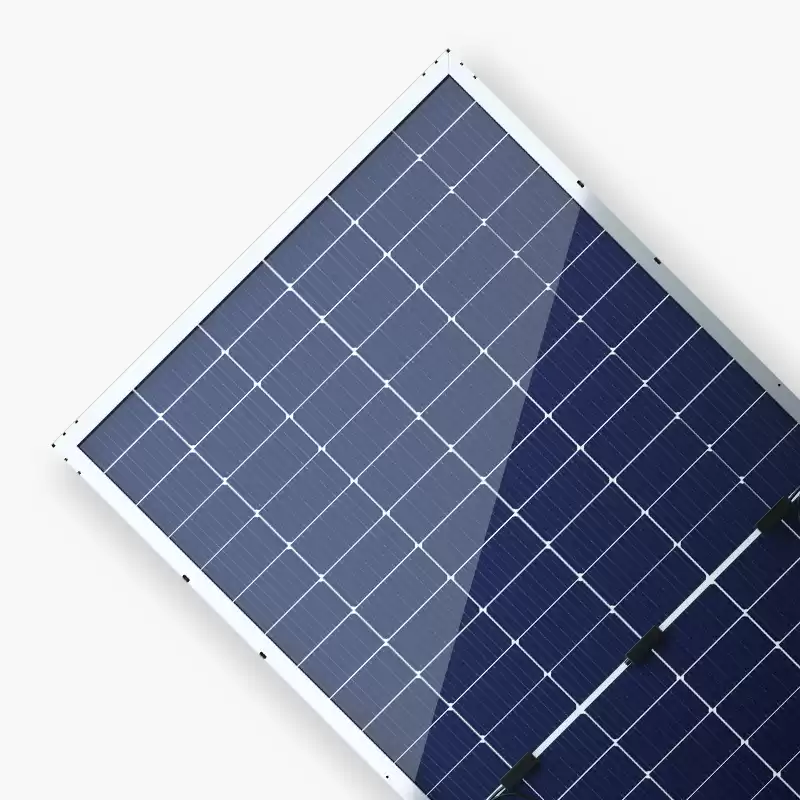

Bifacial Solar Panel

BiMAX5 series, 550W high power with 21.2% module efficiency. Based on the high volume 182mm half cut monocrystalline PERC cells, the BiMAX5 module contains several innovative design features allowing high power output of 550W. Excellent temperature coefficients and low irradiation performance combined with square mono cells and the MBB technology enables higher modules efficiency.







half cell solar panel


Half Cut Technology

BiMAX5 is one of the industry’s most trusted modules. Low hot spot occurrence and half-cut cell technology can reduce failures, improving safety and performance. The application of multi-busbar cells results in more uniform loads to prevent stress, resulting in better performance even in case of slight cracking. Nowadays the market share of PV modules featuring half cut technology is dominant in the global solar industry.





certifications of solar panel

BiMAX5 Solar Panel Certifications:

IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System

OHSAS 18001: 2007 Occupational Health and Safety




BiMAX5 Solar Panel Features:

  • Bifacial technology enables additional energy harvesting from rear side (up to 25%)
  • Glass/glass lamination ensures 30 year product lifetime, with annual power degradation < 0.45%,
  • 1500V compatible to reduce BOS cost
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current
