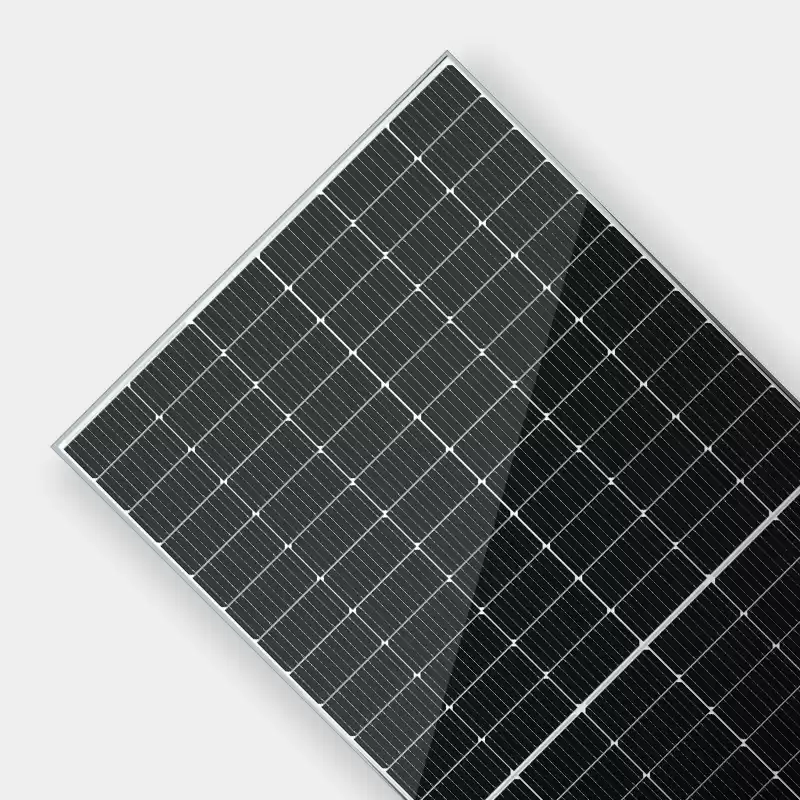

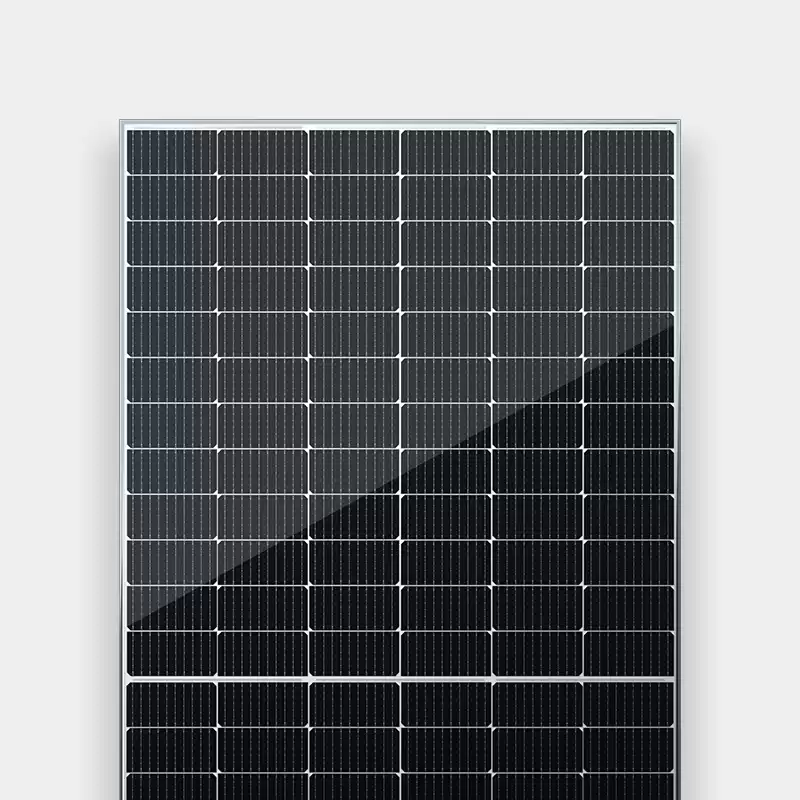

525W-550W Mono Solar Panels Half Cut 144 Cell Photovoltaic Module
With 182mm Cells Mono PERC with MBB & Half-cut Technology, Sunpal HiMAX5 144 Cell Series Solar Panel Power Range 525W 530W 535W 540W 545W 550W.
- FrameSilver anodized aluminum alloy frame
- Weight28.6kg±3%
- GlassSingle glass 3.2mm coated tempered glass
- Output Cable4mm2, 300mm in length,length can be customized
- Junction BoxIP68, three diodes
- Cell Orientation144 (6x24）
- Packaging31pcs per pallet 620 pcs per 40'ft Container
- Dimension2279x1134x35mm
- Junction BoxIP68, three diodes
- ModelSP550M-72H
HiMAX5 Solar Panel
Monocrystalline Perc battery is more efficient,Low current density technology effectively reduces the internal power consumption of components.
MBB and half-chip technology to reduce the impact of hidden cracks and shading on module power generation
Lower system and labor costs.
Half-cut cell technolog
Sunpal mono 144 Cells half-cut MBB PERC solar panel series adopt innovative half-wafer technology, superimposed large size silicon wafer and multi-main gate technology to reduce internal loss while achieving high output power, effectively increasing the generation capacity of the component by 5-10%, and achieving stability and reliability of both half-wafer and double-glass module.
HiMAX5 solar panel meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
HiMAX5 solar panel featureas:
- Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 21.3%)
- Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
- Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
- Reduced resistive loss with lower operating current
- Higher energy yield with lower operating temperature
- Reduced hot spot risk with optimized electrical design and lower operating current
