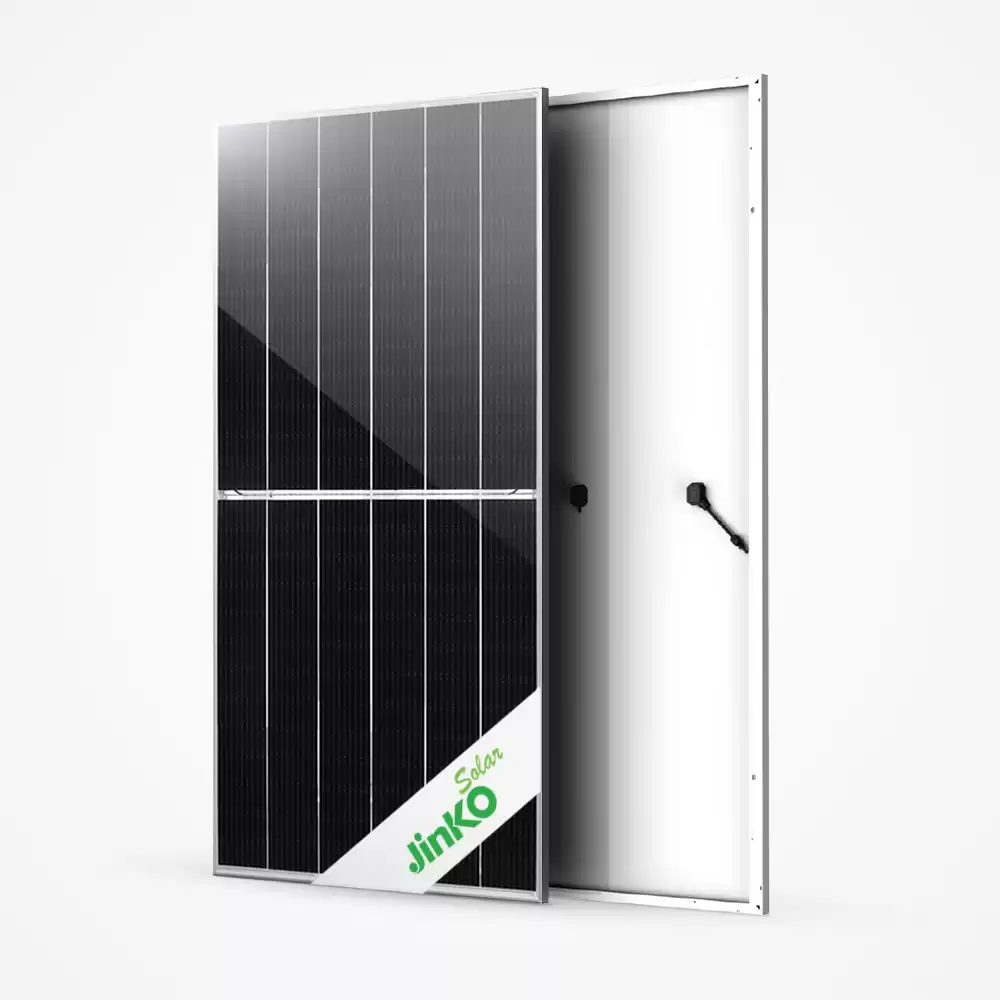

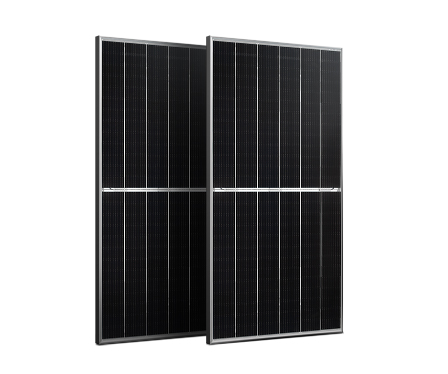

530-550W Jinko Tier 1 Multi Busbar PV Module 144 Cells MBB Solar Panel

With Mono PERC with MBB & Half-cut Technology, Jinko Solar Tiger Pro Mono 144 Cell Series Solar Panel Power Range 530W 535W 540W 545W 550W.


  • PACKAGING31pcs per pallet 620pcs per 40'ft Container
  • WEIGHT28.9 KG
  • GLASSSingle glass 3.2mm coated tempered glass
  • FRAMESilver anodized aluminum alloy frame
  • OUTPUT CABLE4mm2, 300mm in length,length can be customized
  • DIMENSION 2274 *1134 *35 mm
  • CELL ORIENTATION144Cells(6*24)
  • JUNCTION BOXIP68, three diodes
  • MODELTiger Pro



Jinko Tiger Pro Module

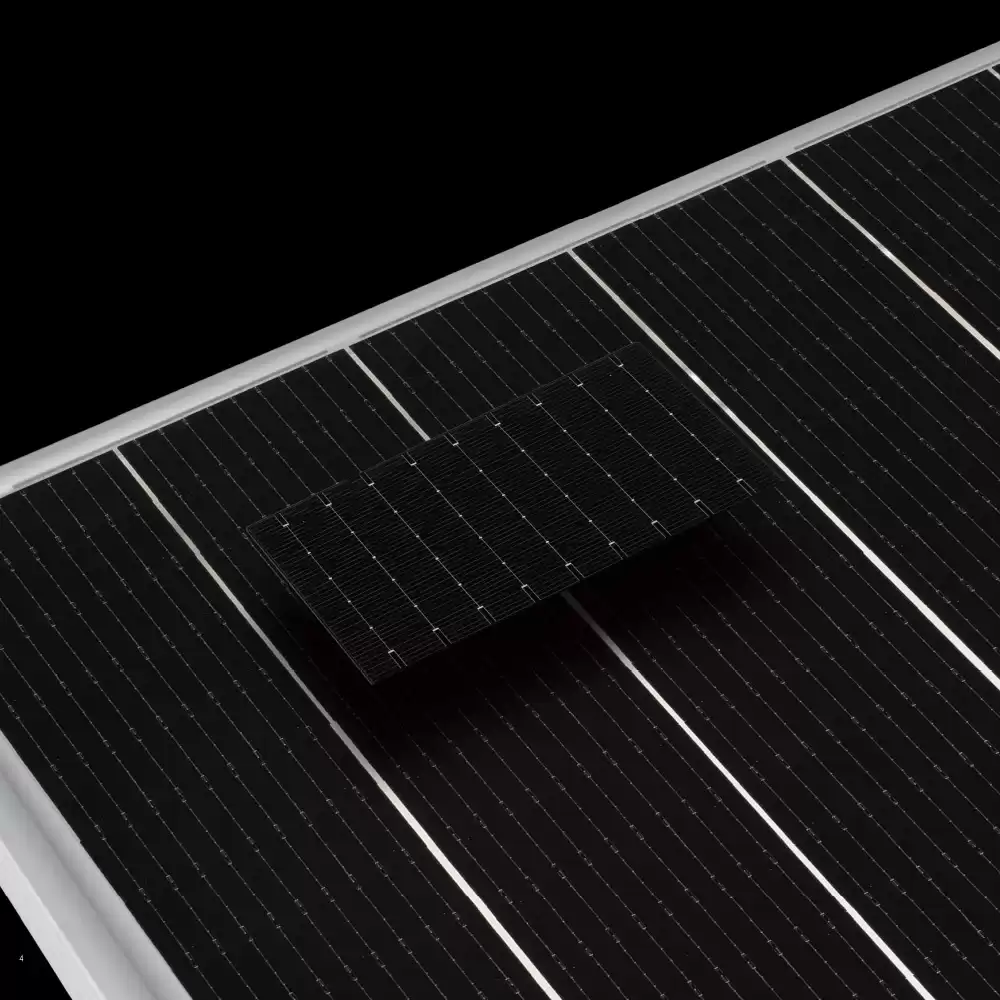

Tiger Pro is designed for the residential roof market and delivers outstanding performance in both design and overall performance.In terms of design, the Tiger Pro offers a smoky bezels in addition to the regular model, making the overall look cooler and more futuristic, while also reducing the amount of sunlight reflected.Overall, Tiger Pro has an industry-leading maximum conversion efficiency of 21.3%. To do this, JinkoSolar uses multi-gate, stack welding and half-sheet technology in the Tiger Pro. Through layers of optimization, improve the overall efficiency.









Jinko Tier 1 Brand

JinkoSolar greatly values the opinions and feedback from our customers. As such, JinkoSolar conducts random and periodic customer satisfaction to ensure that the needs of our customers are understood, address, and even anticipated. Customers can participate in the survey through an online portal or one-on-one interviews. Furthermore, JinkoSolar’ s Customer Claim Management (CCM) system provides timely resolution of all customer claims and product issues. With technical services, and warranty claims, JinkoSolar is committed to providing top-notch service to our customers.








Jinko Solar and Sunpal

Jinko and Sunpal became professional partners. Assign liaison and customer service staff to answer customers' questions about orders, deliveries, product technical details and investments. As professional partners, both parties will provide comprehensive information and marketing materials. Jinko is one of the strongest PV brands in the world, providing you with exceptional quality, proven reliability and financial stability.







certifications of solar panel

Jinko solar panel meet certifications:

IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety




 Tiger Pro solar panel featureas:

  • Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 21.33%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current

Product Tags MBB Solar Panel          Multi Busbar Solar Panel          Jinko PV Module          550W Jinko PV Module          Tier 1 540W Solar Panel
