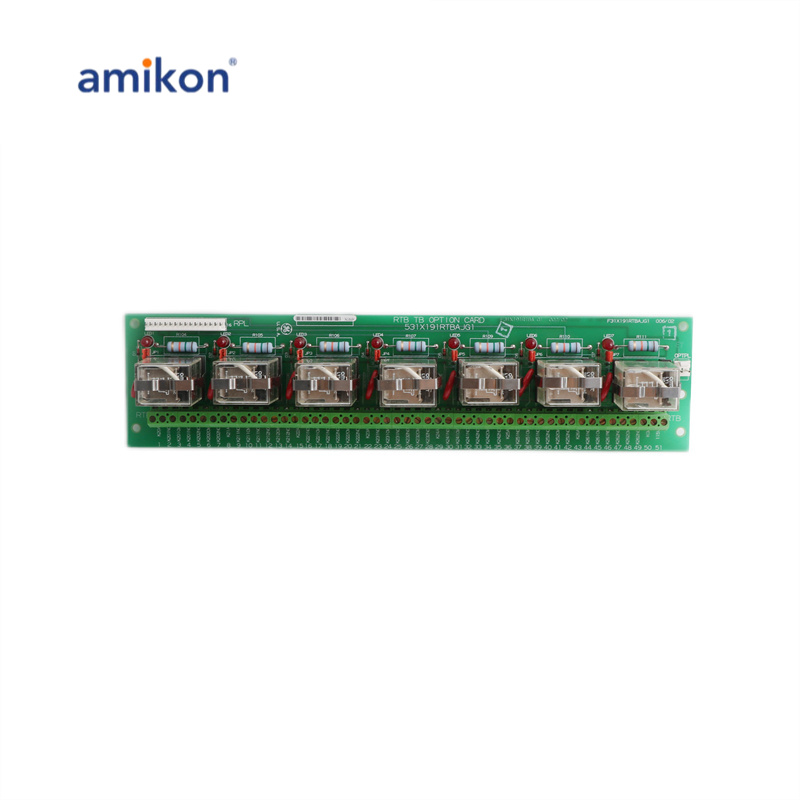

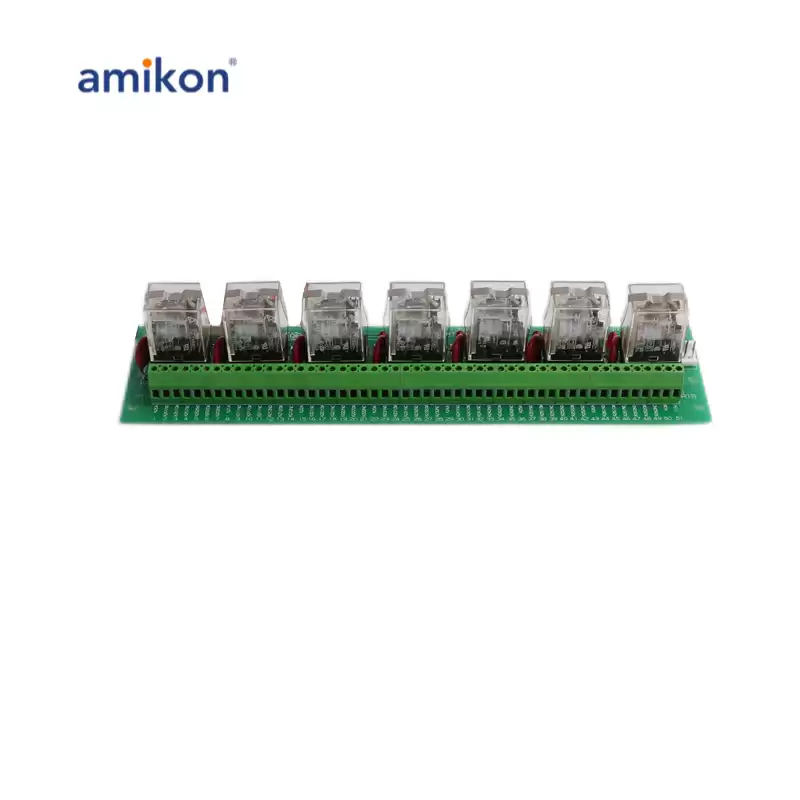

It can also tabulate the RTB points and relay contacts for the board. Each relay features an integrated LED indicator light. These will illuminate when the relays is energized. The card can also be used to control external circuits fed to the board.
|
|
|
531X191RTBAJG1 Data table
|
When this card is installed, a number of board functions are provided to the drive. Within the board is a 115 VAC coil that features a frequency of 50/60 Hz. Contacts on the board are rated at 0.7 A DC or 105 VDC while produced hold currents rate at 9 mA.
|
|
This card was developed as a member of the 531X family of replacement drive and exciter boards. Installing this card provides two services to the drive.
|
|
External circuitries can be connected and controlled by one of the seven onboard relays. The device also allows users to access the coils and contacts using the terminal board found on the card.
|
|
