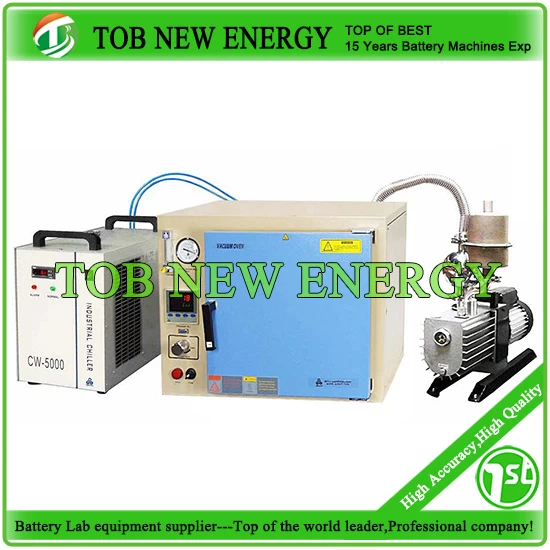

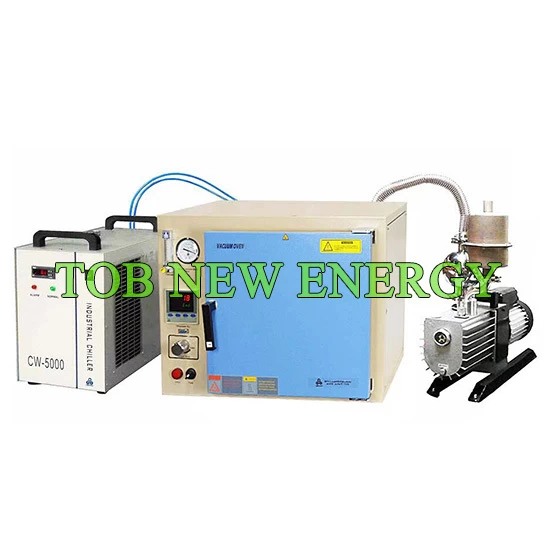

53L 500 Degree High Temperature Vacuum Oven With Gas Flow-meter, Chiller & Vacuum System
SPECIFICATIONS
The DZF-6050-HT series vacuum oven is CE certified. This oven is using an advanced temperature controller which comes with a RS485 computer comunication port and is able to be computerized. Also it can be heated up to 500°C and able to hold the temperature for long period with the support of compact chilling water recirculating system. A 500-5000ml flow meter is installed in the front panel for user to simply control and create a gas environment in the chamber.
|
Voltage
|
208 -240VAC 50/60HZ (Power cable is included w/o plug)
|
|
Power
|
2200W
|
|
Heating Temp
|
Continuous: 50~400°C, <= 1 hour for staying at 500°C
|
|
Recommended
Heating Rates
|
10 ºC/min: 0ºC - 100ºC
7 ºC/min: 100ºC - 200ºC
7 ºC/min: 200ºC - 300ºC
3.5 ºC/min: 300ºC - 400ºC
2.3 ºC/min: 400ºC - 450ºC
0.4 ºC/min: 450ºC - 480ºC
0.2 ºC/min: 480ºC - 500ºC
|
|
Chamber and Door
|
Chamber dimensions: 415 mm x 345 mm x 370 mm ( 16.3 x 13.5 x 14.5", 53 Liter )
The chamber is structured with stainless steel and welded with bracing pieces.
Aluminium Plate with thermal insulation
Silicone door gasket and positive latch door ensure the good sealing
2 stainless steel shelves are included to facilitate processing efficiency.
|
|
Temperature Controller
|
30 segments programmable
Built-in over-temperature protection
+/- 5°C accuracy
|
|
Gas flowing/purging
|
A precise flow meter is installed in the front panel which ranges from 500 ~ 5000ml/min.
The gas is able to be continuously flowing into the chamber at a constant flow rate
defined by user during operation.
The oven can be purged by inert gas before operation.
|
|
Water Cooling
|
One Digital Temperature Controlled Recirculating Water Chiller is included .
Refrigeration range : 5~35°C
Flowing Rate: 16L/minute
Suggest using anti-corrosion coolant (available for auto-part store) to achieve best water cooling.
The water cooling jacket is built inside the oven door.
|
|
Vacuum Pump
|
One Rotary Vane Vacuum Pump with Exhaust Filter, Bellows & KF-D25 Inlet is included.
Vacuum level of oven after pumping < 133pa (2 torr)
Power: 0.4KW / 0.37KW
|
|
Dimensions & Weight
|
48" x 40" x 42"; 420 lbs
|

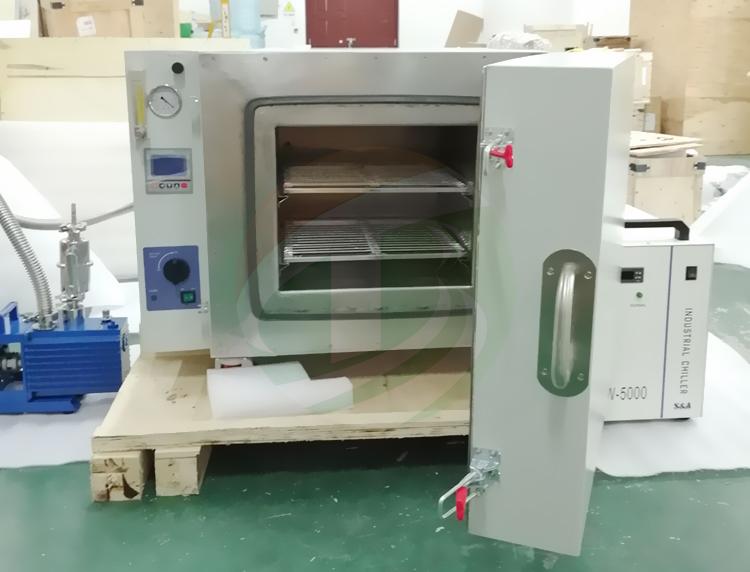

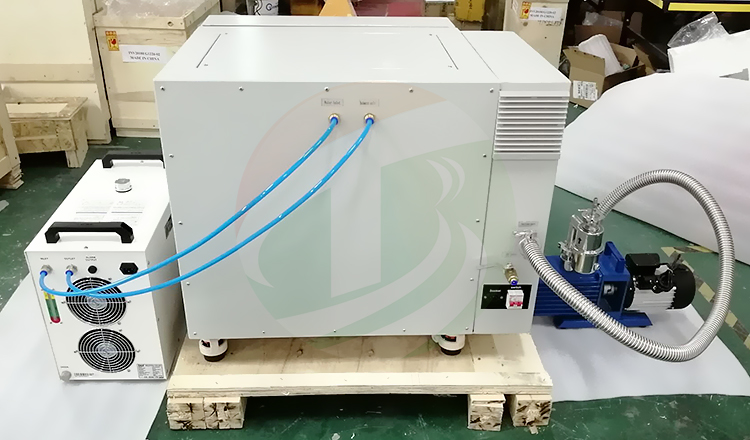

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
