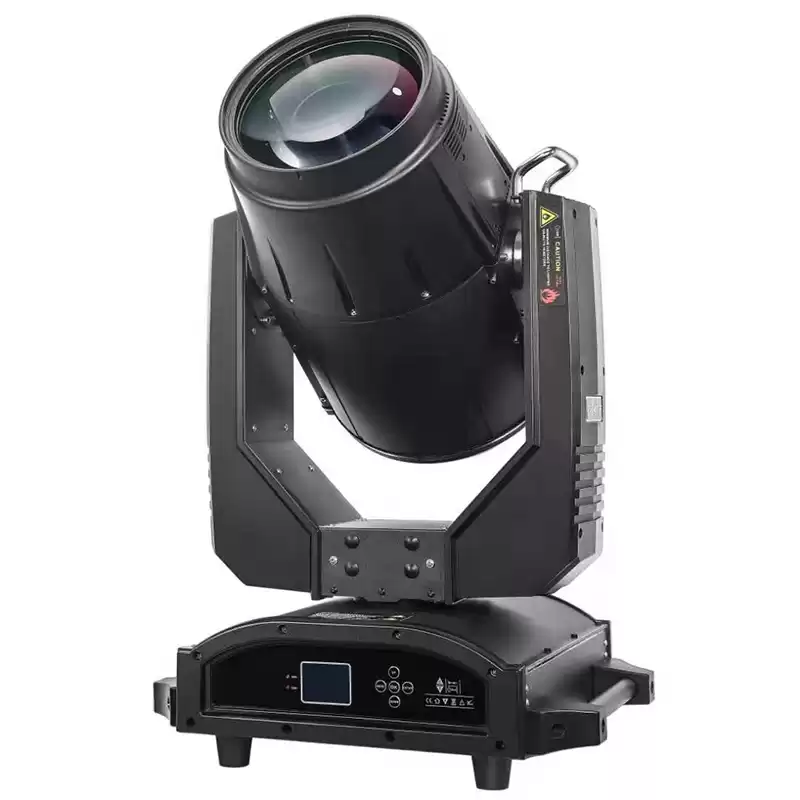

The appearance design is exquisite, the housing adopts full die-cast aluminum alloy, IP55 dynamic rotating computer moving head beam light, using 550W gas discharge lamp as the light source, color temperature 7800K, beam angle 1-2°, linear zoom, High-efficiency output waterproof moving head beam light with long service life. A color wheel, a fixed gobos wheel, 2 independent rotating prisms, two-way rotation can be rotated forwards and backwards to to adjust the frost effect,Pan/Tilt adopts three-phase motors, high-speed, smooth, stable and precise mechanical movement, in addition to DMX control, there is also a powerful RDM control technology.
● Optics
. Light source:Osram 550W lamp (Optional 460W)
. Beam angle : beam mode: 1°~2°
● Scanning
. Pan / tilt operation：
※16bit fine-tuning
※Smooth and precise positioning
※Pan : 540 °,Tilt 270 °
※Pan/Tilt speed can be ajustable
※The scanning position can be memorized, and it will be reset automatically after no expected operation.
※Pan and tilt with error correction function
● Colour
. Color wheel: 11static colors + Open, the color wheel has half-color effect and continuous forward and reverse of the rainbow effect
● Gobos
. 1 static gobos wheel:17gobos+White circle, pattern jitter effect
● Specification
. 2DMX channel modes: 16/20CH international standard DMX512 channels
. 4 control modes: DMX512, master-slave,sound，auto
. 2 two-way prsim wheels: prism wheel with prism overlap and positioning macro function
. Focus:0-100% linear focusing,
. Dimming:Supports 16 bit dimming of light switch.
. Frost:support
. Strobe effect :1-25Hz strobe, adjustable speed
● Display
. High anti-interference four-button touch button
● Other functions
. Adopt copper tube + fan heat dissipation structure and intelligent temperature monitoring technology, since
Adjust the heat dissipation system to effectively control the temperature of lamps and lanterns.
● Power / DMX connection
. Power connection:3pin waterproof power cable input and output
. DMX XLR socket：3 Pin waterproof XLR socket input, output
● Power
. AC100-240V 50/60HZ
. Power consumption：800W
● Protective class
. Housing material: full die-cast aluminum alloy,, high temperature resistance, extreme cold resistance, corrosion resistance, aging resistance, UV resistance
. Waterproof level: IP65
● Working environment
. Indoor working temperature：-20°C～+40°C
● Size and weight
. Packing size：690x600x485mm
. Net weight：32KG
● Certification：
. CE,ROHS
