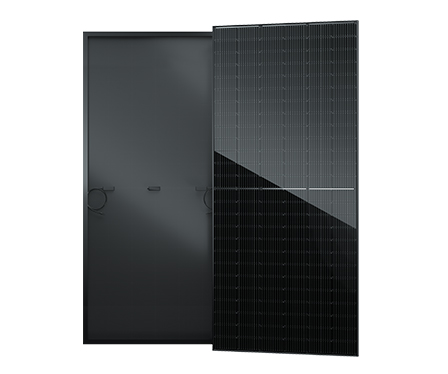

555W-575W All Black Half Cells PV Module 156 Cells Monocrystalline PV Module

With 182mm All Black Cells Mono PERC with MBB & Half-cut Technology, Sunpal HiMAX5 156 Cell Series Solar Panel Power Range 555W 560W 565W 570W 575W.


  • Dimension2465x1134x35mm
  • Weight30.5kg±3%
  • FrameSilver anodized aluminum alloy frame
  • Output Cable4mm2, 300mm in length,length can be customized
  • GlassSingle glass 3.2mm coated tempered glass
  • Junction BoxIP68, three diodes
  • Cell Orientation156 (6x26)
  • Junction BoxIP68, three diodes
  • ModelSP575M-78HB
  • Packaging30pcs per pallet 540 pcs per 40'ft Container



HiMAX5 Solar Panel

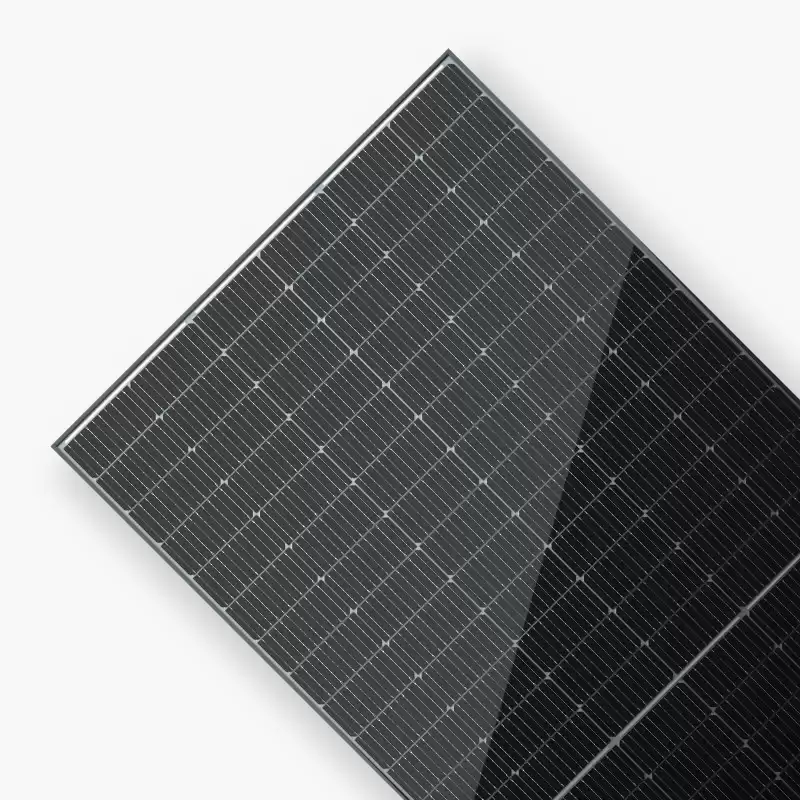

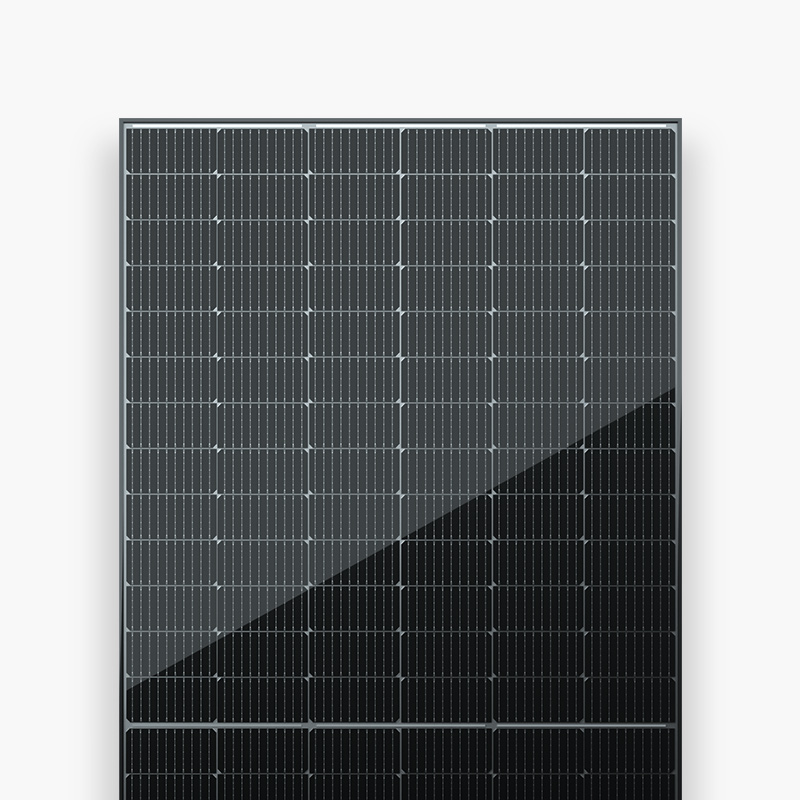

Sunpal HiMAX5 SP555-575HB series has an efficiency of 20.57% and a higher power density. It has a black anodized aluminum frame and 2.84 mm anti-reflective tempered glass. The model improves power density, shading performance, reliability and aesthetics. The all-black monocrystalline module also has a black backplane and a black frame, and the appearance is particularly smooth, which can match the roof.








Half-cut cell technology

Half cell technology: new circuit design, lower internal current, gallium doped silicon wafer, first year attenuation < 2%, linear attenuation ≤0.55%. Significantly reduces hot spot risk: Unique circuit design significantly reduces hot spot temperature, reduces power loss, increases module generation, lower cost per kilowatt hour: increases generation by 2%.





certifications of solar panel

HiMAX5 solar panel meet certifications:

IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety




HiMAX5 solar panel featureas:

  • Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 21.3%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current

Product Tags All Black Solar Panel          Half Cells PV Module          156 Cells Photovoltaic Module          Monocrystalline Panel          550W Solar Panel
