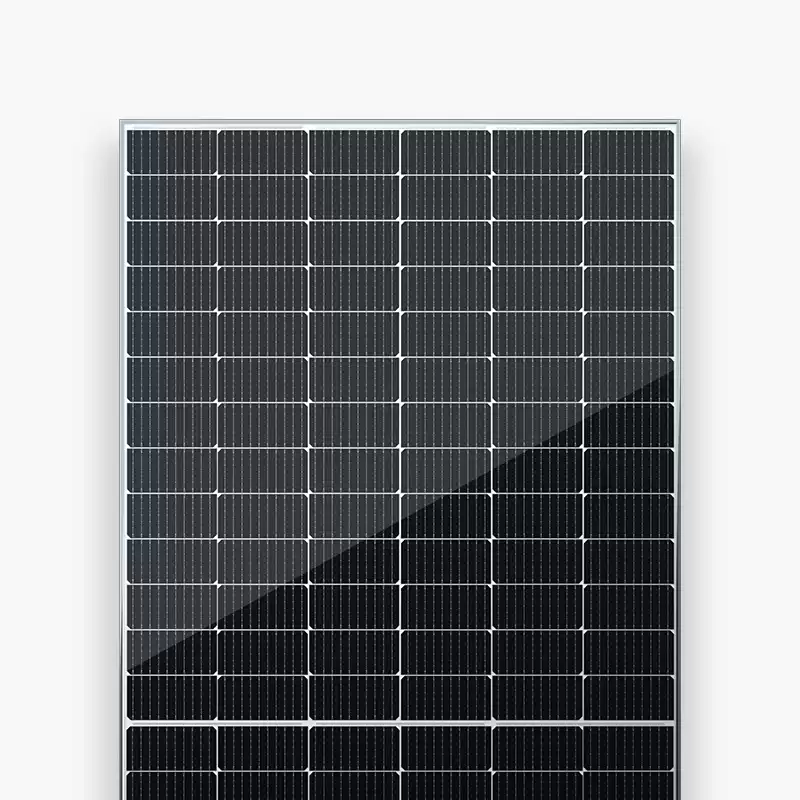

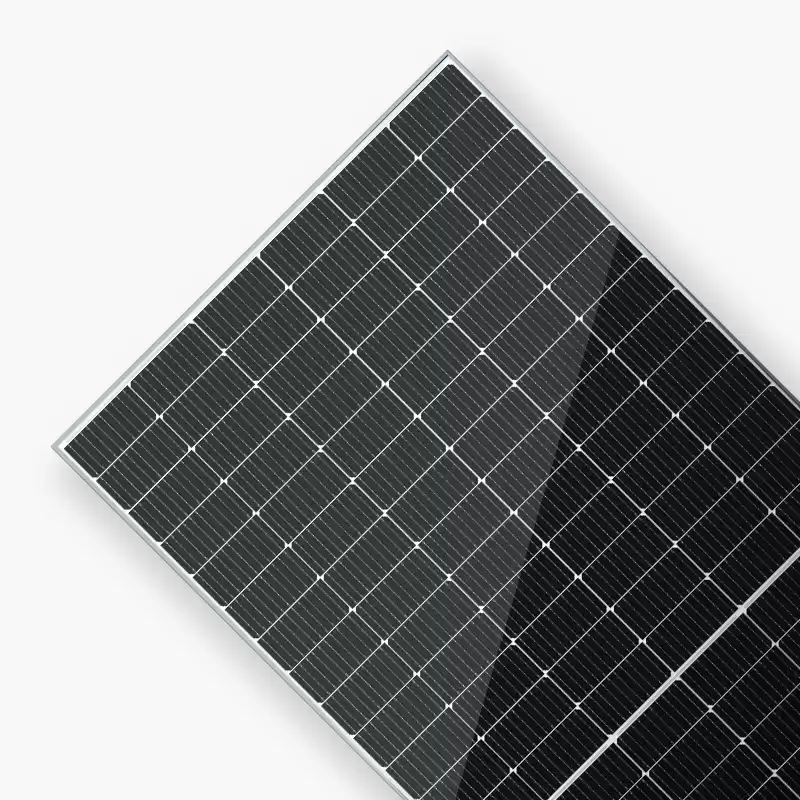

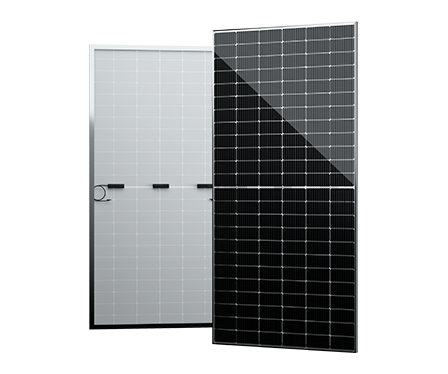

HiMAX5 Solar Panel
Sunpal high-efficiency PV module HiMAX5 156 cell
series, the maximum power can reach 605W. It has lower current and power loss;
low temperature coefficient, high low light power generation performance, high
power and low hot spots and a series of outstanding characteristics, can
withstand the same snow load and wind load capacity as standard components. The
installation method is also equipped with two ways of guide rail and clamp
(press block), customers can choose to use according to the actual situation.
Half-cut cell technology
Half Cell Solar panel has 605W ultra-high power，with 21% module efficiency. Less mismatch and parallel design
reduce shading impact. High density encapsulation reduces
the cell spacing to 0.5mm. Significantly lower LCOE,and
more BoS savings. Lower
internal loss and the risk of micro-cracking due to multi-busbar cells.
HiMAX5 solar panel meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
HiMAX5 solar panel featureas:
-
Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 21.65%)
-
Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
-
Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
-
Reduced resistive loss with lower operating current
-
Higher energy yield with lower operating temperature
-
Reduced hot spot risk with optimized electrical design and lower operating current
