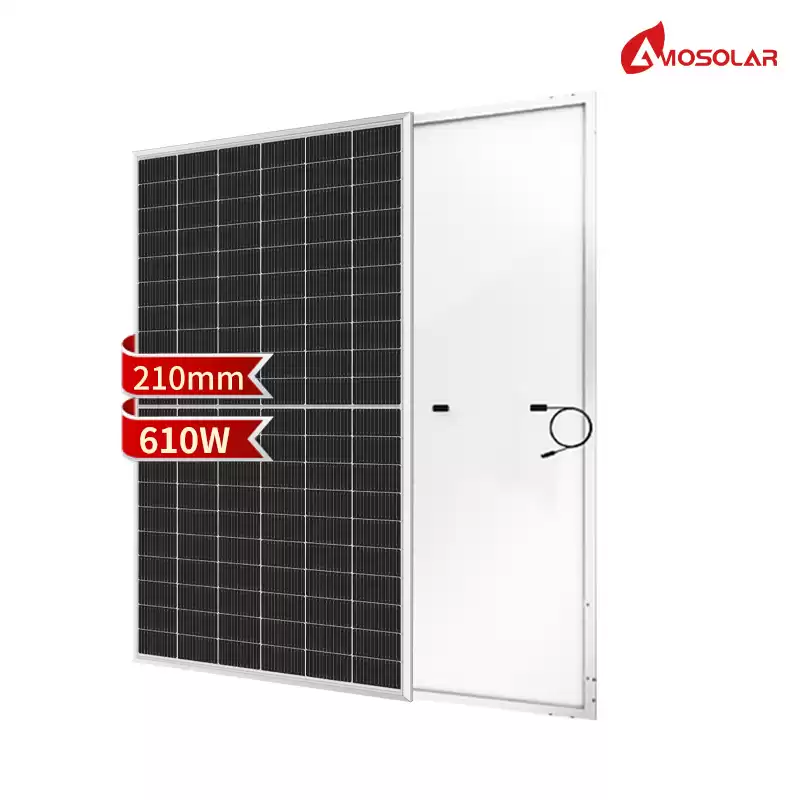

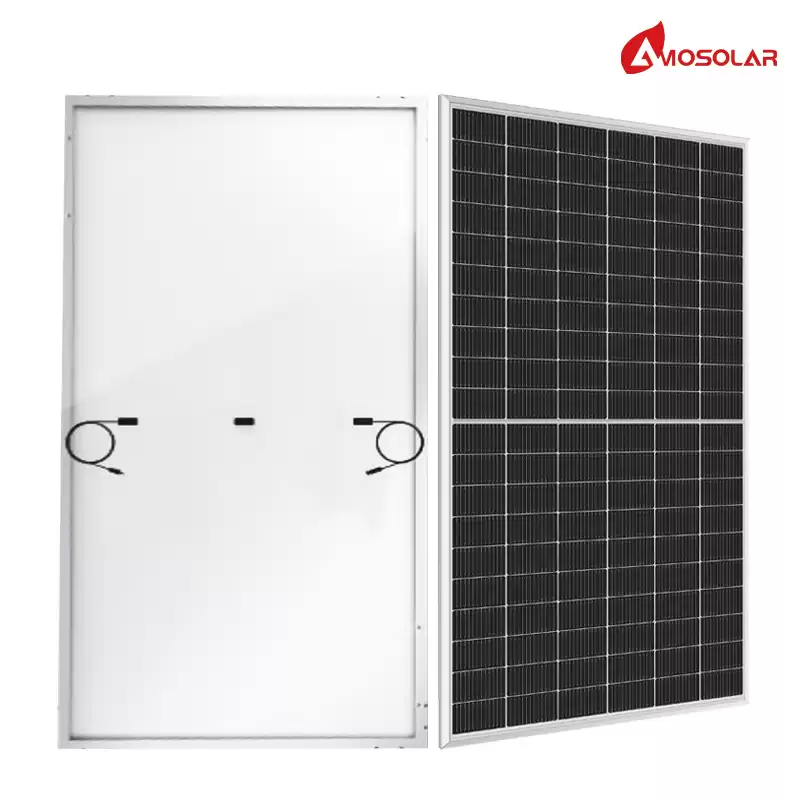

580W 585W 590W 595W 600W 605W 610W Half Cells Mono Solar Panel China Factory

AS580-610G12-120


Cell Mono
Rated Maximum Power
610W
Maximum Efficiency 21.60%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

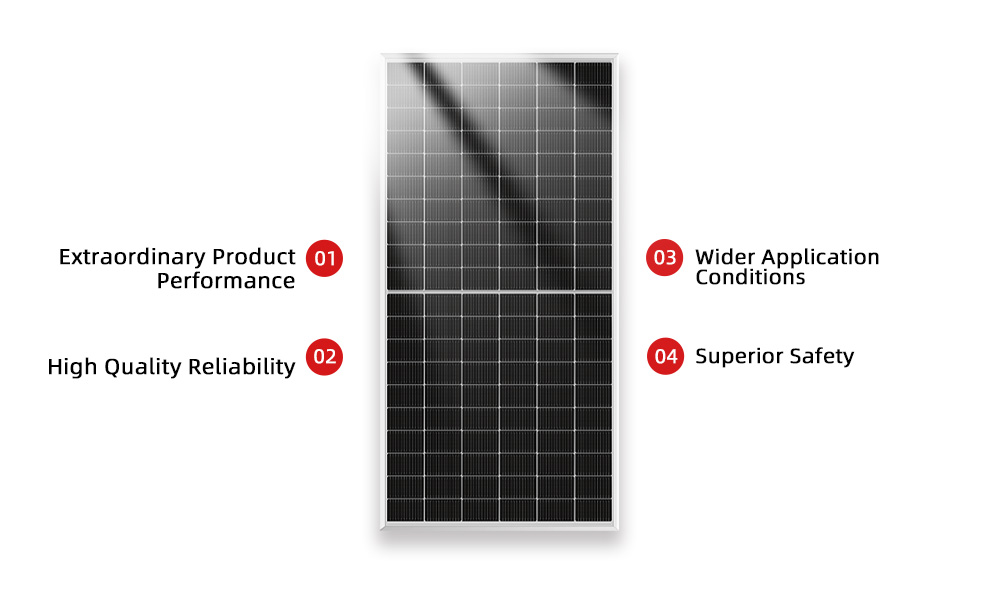

580W-610W Half Cells Mono Solar Panel China Factory : With multi-busbar PERC cells, 210mm solar cells will bring extraordinary product performance, wider application conditions , reliability quality and higgest safety.

Paneles Solares Monocristslinos

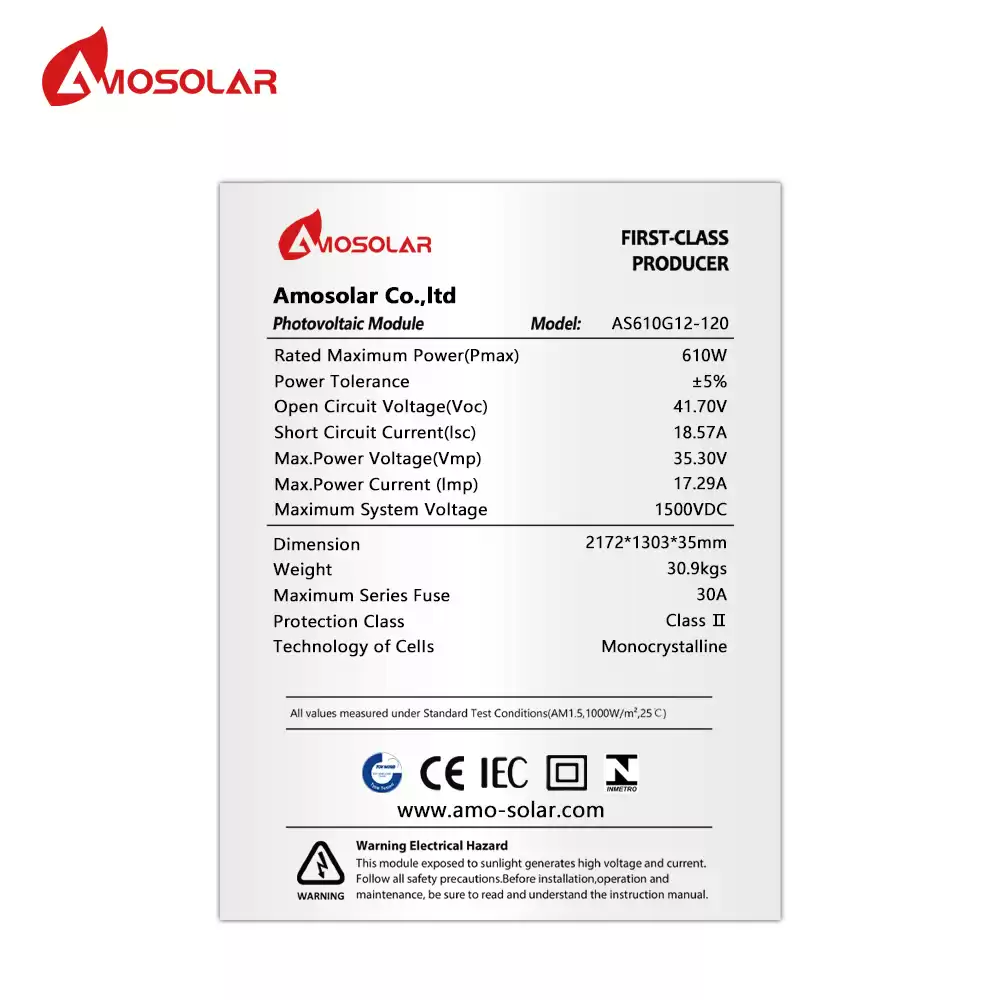

Electrical Performance Parameters (STC Test)


Model
AS580G12-120 AS585G12-120
AS590G12-120
AS595G12-120
AS600G12-120
AS605G12-120
AS610G12-120
Rated Maximum Power at STC 580W
585W 590W 595W 600W 605W 610W
Open Circuit Voltage (Voc) 40.50 40.70 40.90 41.10 41.30 41.50 41.70
Maximum Power Voltage (Vmp) 34.10 34.30 34.50 34.70 34.90 35.10 35.30
Short Circuit Current (Isc) 18.27 18.32 18.37 138.42 18.47 18.52 18.57
Maximum Power Current (Imp) 17.02 17.06 17.11 17.15 17.20 17.25 17.29
PV Module Efficiency (%) 20.50 20.70 20.80 21.00 21.20 21.40 21.60
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5

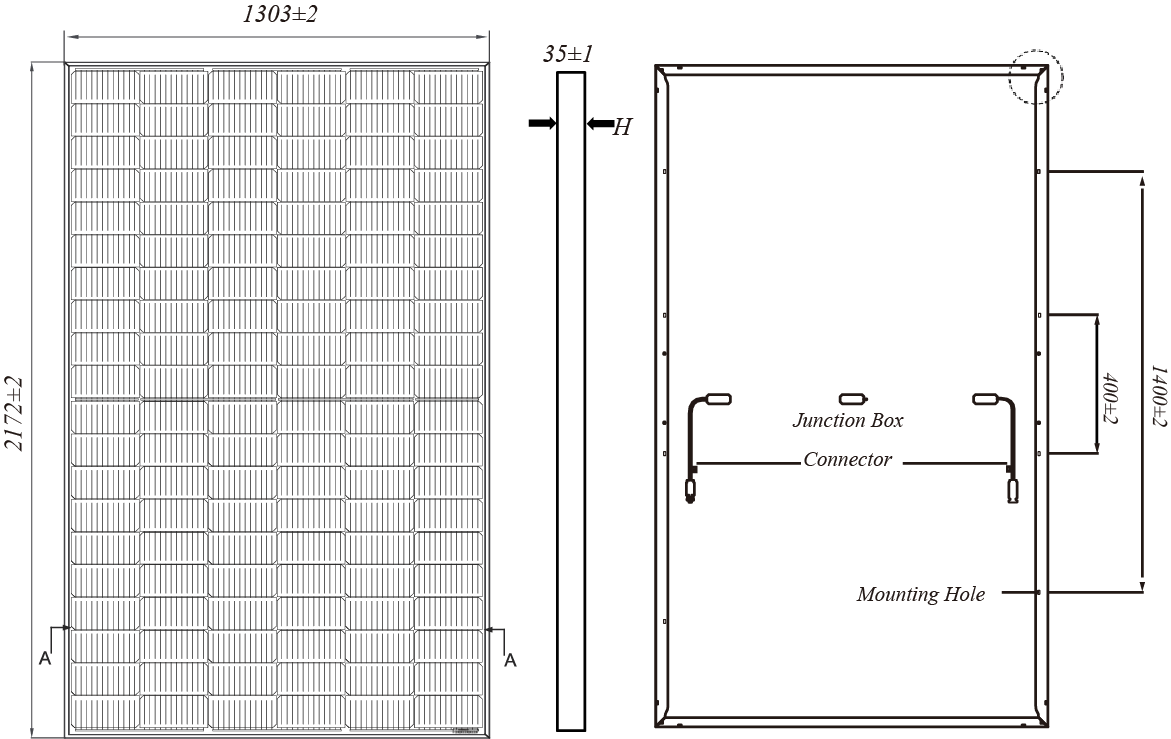

Mechanical Parameters


Panel Solar Monocrystalline

  Layout :                  120( 6 × 20 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   30.9KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2172×1303×35mm

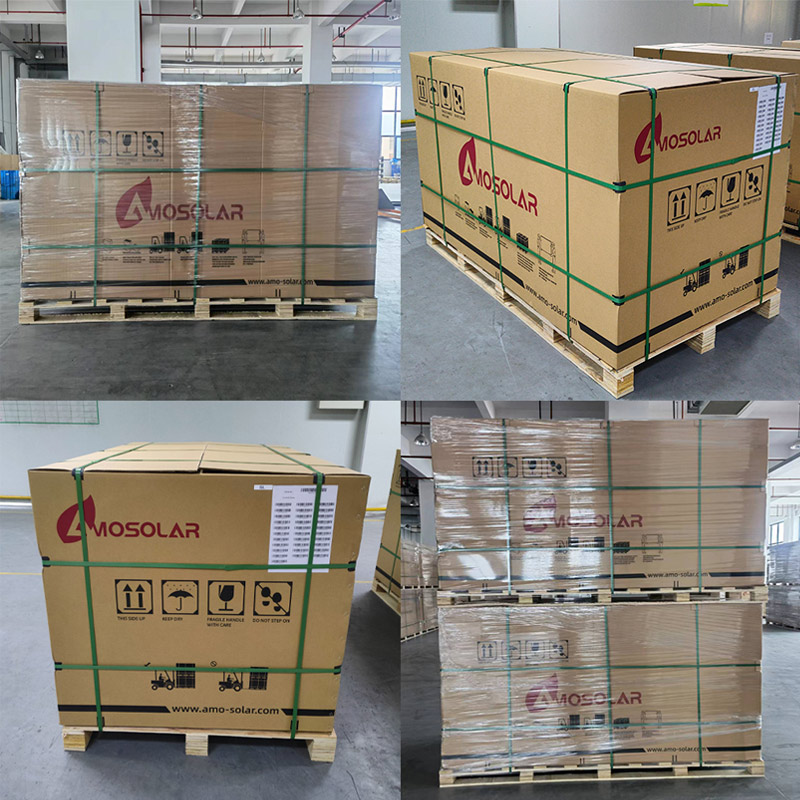

  Packaging:              31 pcs / pallet

                                   558 pcs / 40HQ container


Solar Panel 48 Volts


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
