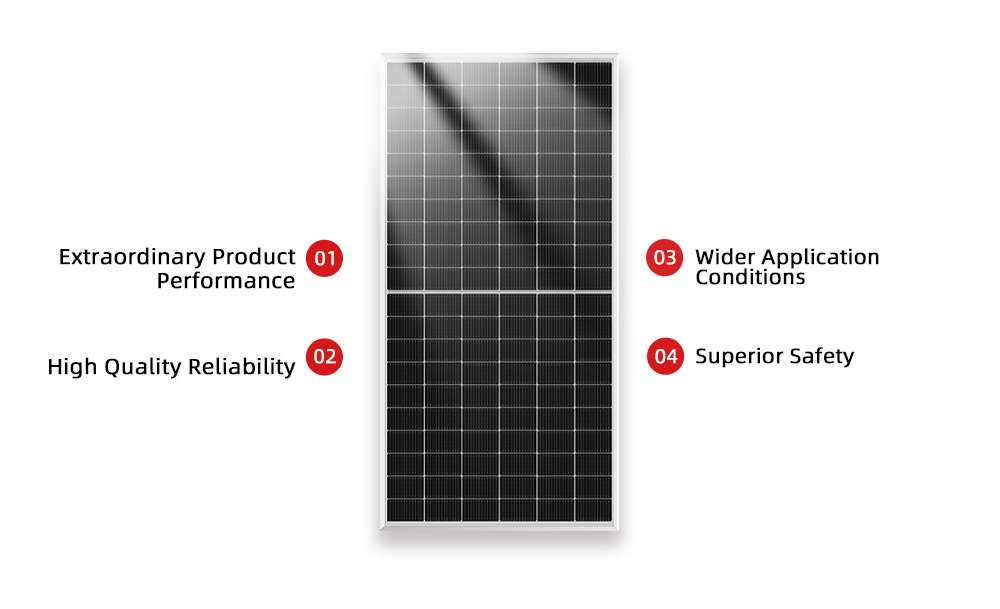

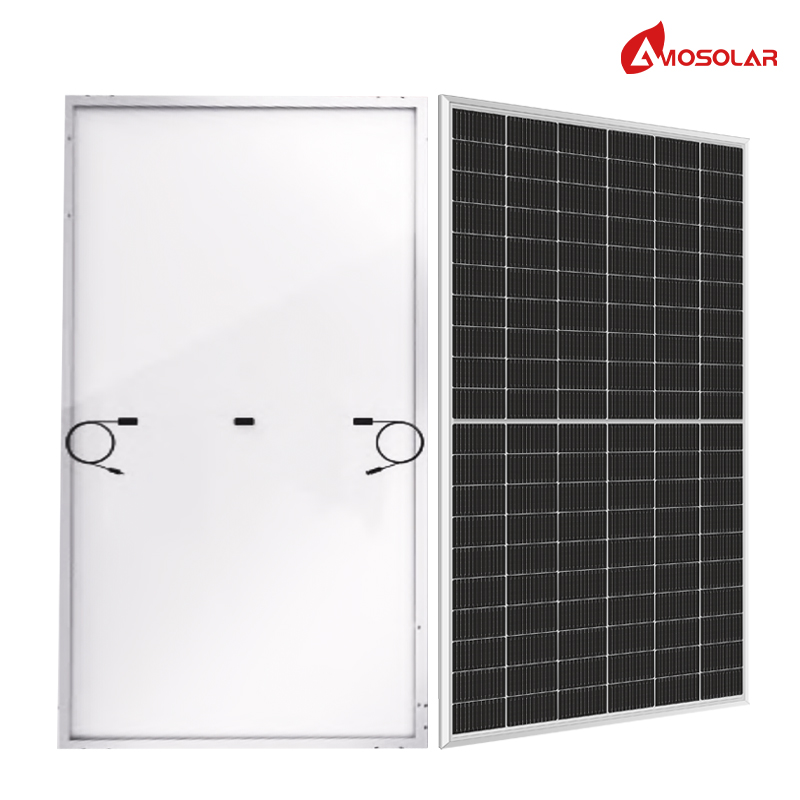

580W-610W Half Cut Mono PV Panel Chinese Manufactory : With multi-busbar PERC cells, 210mm solar cells will bring extraordinary product performance, wider application conditions , reliability quality and higgest safety.

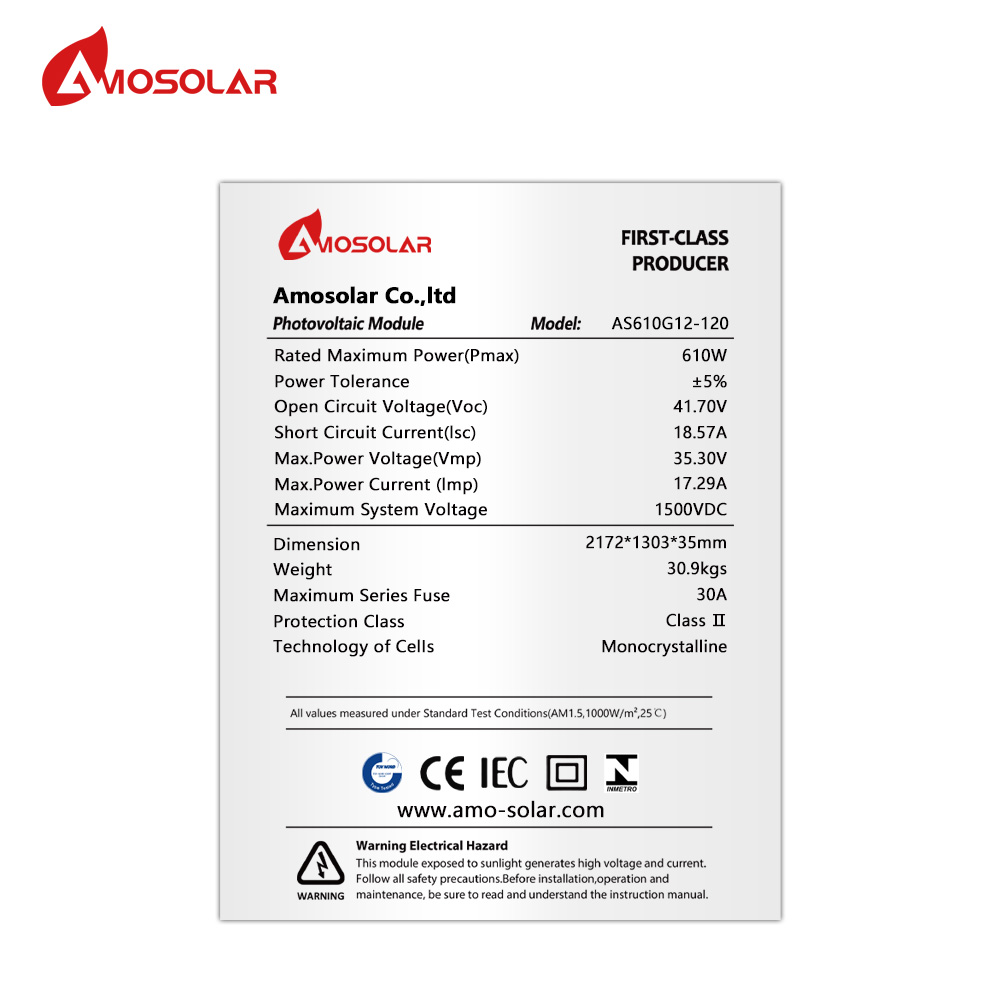

Electrical Performance Parameters (STC Test)
Model
|
AS580G12-120
|
AS585G12-120
|
AS590G12-120
|
AS595G12-120
|
AS600G12-120
|
AS605G12-120
|
AS610G12-120
|
|
Rated Maximum Power at STC
|
580W
|
585W
|
590W
|
595W
|
600W
|
605W
|
610W
|
|
Open Circuit Voltage (Voc)
|
40.50
|
40.70
|
40.90
|
41.10
|
41.30
|
41.50
|
41.70
|
|
Maximum Power Voltage (Vmp)
|
34.10
|
34.30
|
34.50
|
34.70
|
34.90
|
35.10
|
35.30
|
|
Short Circuit Current (Isc)
|
18.27
|
18.32
|
18.37
|
138.42
|
18.47
|
18.52
|
18.57
|
|
Maximum Power Current (Imp)
|
17.02
|
17.06
|
17.11
|
17.15
|
17.20
|
17.25
|
17.29
|
|
PV Module Efficiency (%)
|
20.50
|
20.70
|
20.80
|
21.00
|
21.20
|
21.40
|
21.60
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|

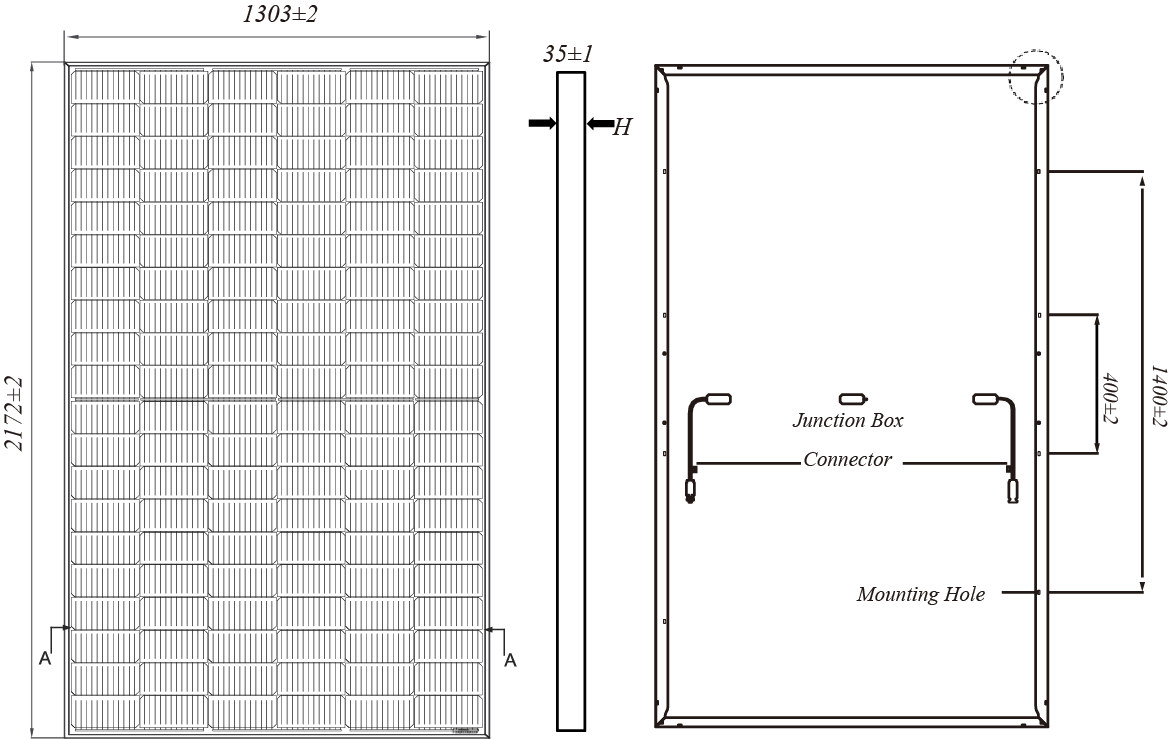

Mechanical Parameters
Layout : 120( 6 × 20 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 30.9KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 2172×1303×35mm
Packaging: 31 pcs / pallet
558 pcs / 40HQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
