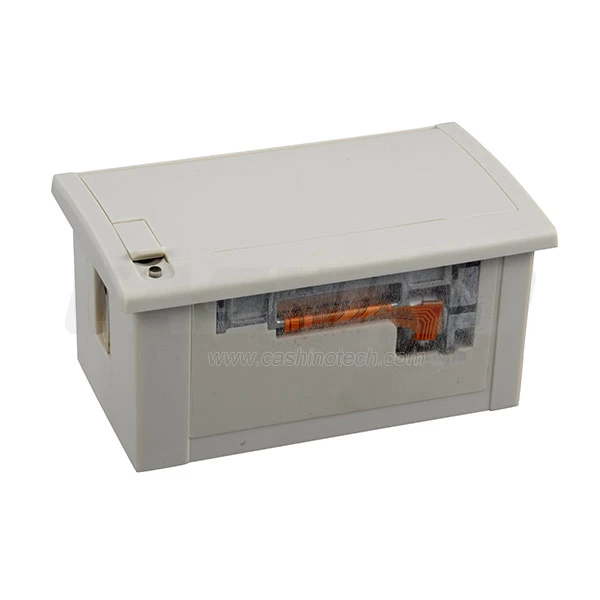

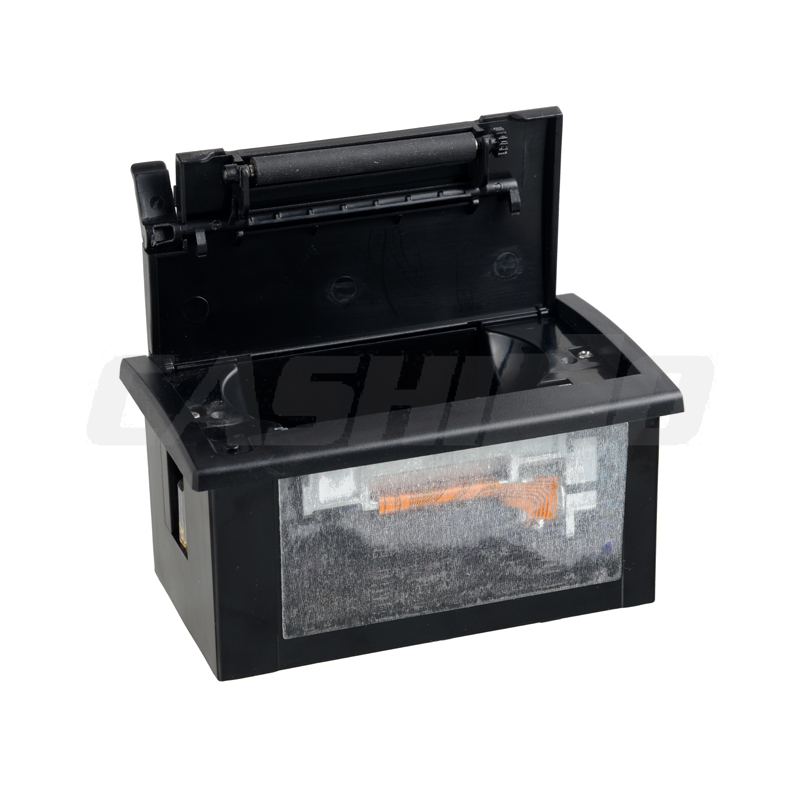

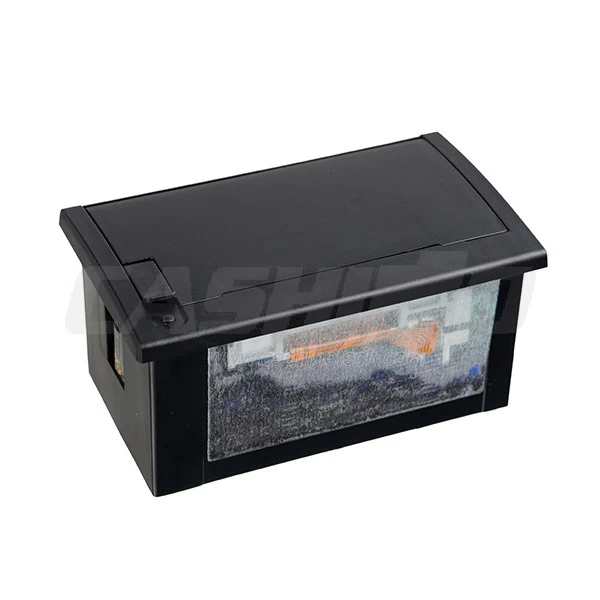

58mm mini panel thermal android usb receipt printer

USB DC5-9V

Front fixing



58mm mini panel thermal android usb receipt printer


Feature:

Interface:USB

Power supply: DC5-9V

Color:Black/White/Orange or customization

Specification:

Print

Printing Method

Thermal Line

Printing Speed

50-80mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GB2312-80(Chinese)

Print Font

ANK:(8x16,9x17,9x24,12×24), GBK: 16×16,24×24

Paper Spec.

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Roll Diameter

Max: 39mm

Reliability

MCBF

5 million lines

Interface

RS-232/TTL/Parallel/USB

Insert Depth

50mm

Power Supply (Adapter)

DC5V-9V/12V

Physical

Outline Dimension (WxDxH)

111x65x57mm

Installation Port Size

103 x 57mm

Color

Beige/Black

Environment

Operating Temp

0°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%



thermal printer android usb

FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
