1) Technical Specifications : |
||
|
Item Name: |
Thermal Printer |
|
|
Item Number: |
I58TP04 |
|
|
Print Method: |
Thermal Line Printing |
|
|
Print Font Size : |
384dot/Line ; ANK Character |
|
|
Font A: |
12*24 dots,1.5(W)*3.0(H)mm |
|
|
Chinese simplified/traditional: |
24*24 dots,3.0(W)*3.0(H)mm |
|
|
Printer Character: |
GB one/two Chinese character 24*24 dots, Support Taiwan,Hong kong traditional |
|
|
Extend Character : |
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/ Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/ WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai |
|
|
2) Printer Parameters : |
||
|
Support NV LOGO Print |
|
|
|
Print Speed： |
90mm/sec |
|
|
Interface： |
USB Port |
|
|
Print Width： |
57.5±0.5mm |
|
|
Roll Diameter： |
50 mm |
|
|
Print Thickness： |
0.06-0.08mm |
|
|
Unit Weight： |
800 g |
|
|
Dimension： |
175*130*110mm (L*W*H) |
|
|
DC 12V/3A |
||
|
Cash Drawer Control: |
DC 12V/1A |
|
|
Reliability Print: |
100km |
|
|
Temperature: |
0-45℃ |
|
|
Contrast Humidity: |
10-80％ |
|
|
Drivers: |
Win 9X /Win 2000 /Win 2003/Win XP/Win Vista/Win 7 /Win8/Linux |
|
|
Compatible With |
EPSON, SAMSUNG System |
|
|
Print Command： |
Compatible With Command ESC/POS |
|
|

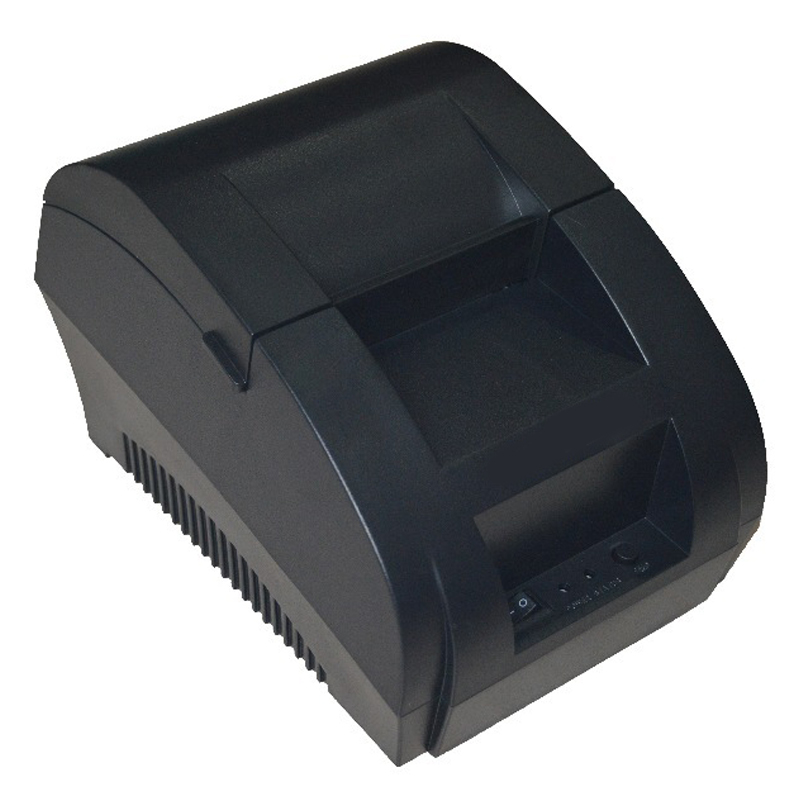

3) Printer Appearance And Operational Schematic |
||
|
Paper Exit : |
print paper exit |
|
|
Feed Button: |
Printer self-inspection, Model change, Paper feed |
|
|
The State Of Light: |
Red light flashing means no paper ; Red light always lit means normal. |
|
|
Power Light: |
Blue light always lit means normal ; Blue light off means not connect to power or abnormal. |
|
|
Power Control Button: |
Control the power switch |
|
|
4) Printer Interface Schematic |
||
|
Connect 110V~240V |
|
|
USB Interface : |
Connect Tablet/PC via USB-B data cable |
|
|
Cash Drawer Interface : |
Connect cash drawer via data cable |
|
