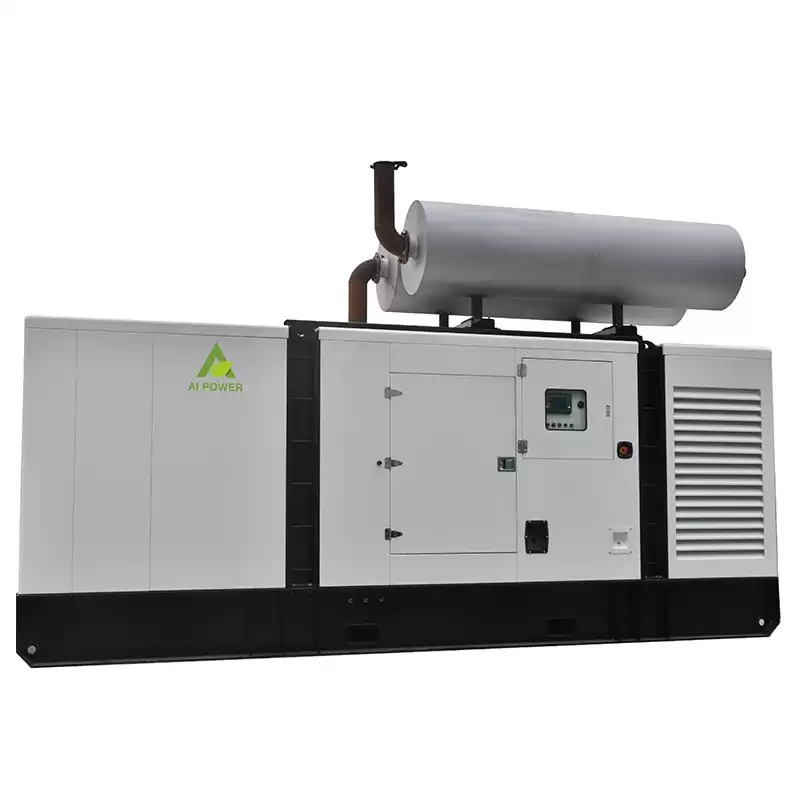

590kva Perkins Soundproof Marine Generator Set 6 Cylinder 254V 2806C-E18TAG1A

Factory Generator Set Servicing Companies 2806C-E18TAG1A Genset Noise Level Low

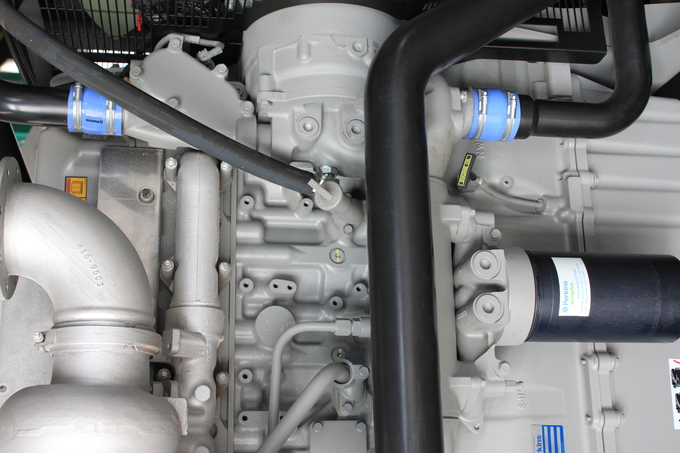

The Perkins 2800 Series is a family of well-proven 6 cylinder 16 and 18 litre inline diesel engines, designed to address today’s uncompromising demands within the power generation industry with particular aim at the standby market sector. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. The 2806C-E18TAG1A is a turbocharged and air-to-air chargecooled, 6 cylinder diesel engine of 18 litres capacity. Its premium features provide economic and durable operation, low gaseous emissions and advanced overall performance and reliability

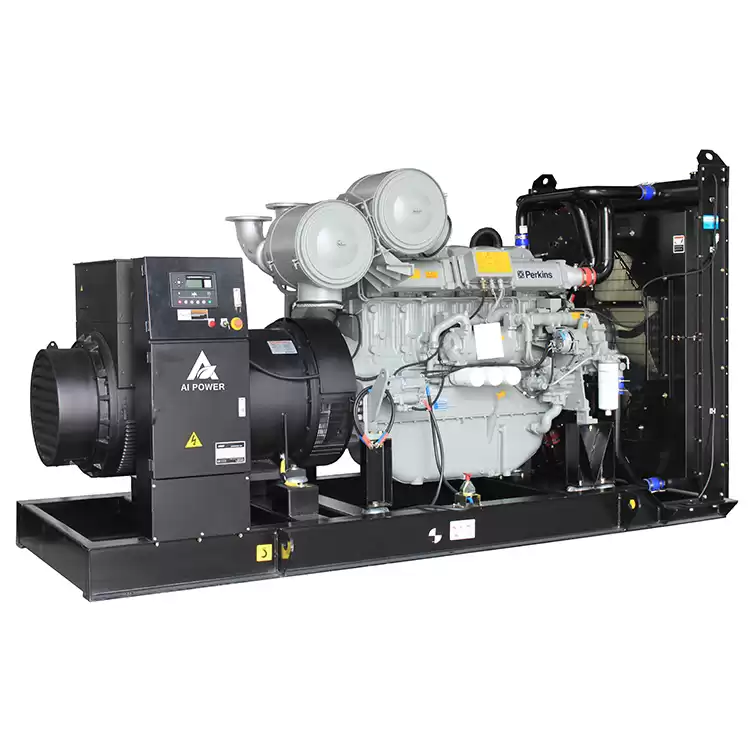

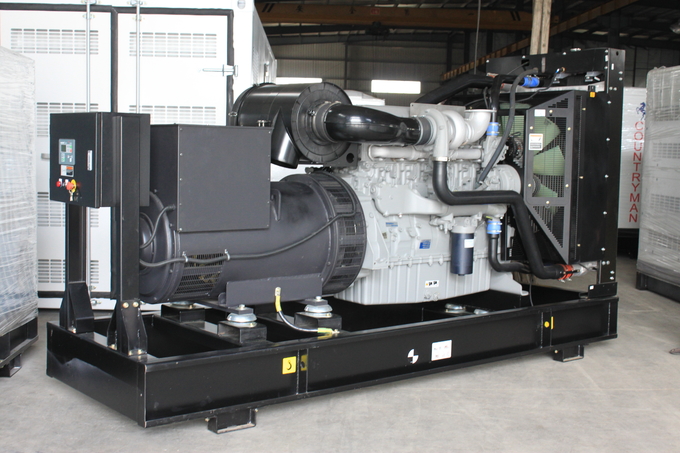

Prime 480kw 600kva Perkins 2806C-E18TAG1A engine industrial diesel genset manufactured by leading Perkins diesel engine OEM factory in China, with high compression ration and electric governor UK Perkins diesel engine, coupled by US Stamford HCI544E IP23 alternator, we standard equip Smartgen control panel with it, skid mounted open type and containerized soundproof canopy type diesel generator set available for different applications. Suitable for Dubai, South Africa, Qatar, Indonesia, Brasil, Chile, Argentina market etc.

How to debug diesel generator governor

How to debug the diesel generator governor? How to check and adjust the speed stability of diesel generator governor? The diesel generator governor is a device that automatically adjusts the fuel supply of the fuel injection pump. It can automatically adjust the fuel supply of the fuel injection pump according to the change of the external load of the diesel generator, so that the diesel generator runs at a relatively stable speed, so as to ensure that the diesel generator will neither overspeed nor idling. Cause downtime. So how to check and adjust the stability of the speed governor of diesel generator? AiPower will give you a brief introduction.

Method 1: Set the joystick to the calibrated speed position, and slowly increase the camshaft speed. When the fuel injection pump's fuel supply starts to decrease (that is, the starting point of the speeder), immediately keep the camshaft speed unchanged, and then carefully Observe the adjustment gear and the adjustment rack, there must be no swimming phenomenon.

Method 2: When the camshaft speed is 400r/min, 250r/min or any other speed, use the method of changing the position of the joystick to make the adjustment rack in various positions of different oil supply. At this time, check the adjustment gear and adjustment The gear rod prevents it from swimming.
Method 3: When the diesel engine is unstable at low speed, rotate the low-speed stabilizer slowly until the speed is stable and then fix it. The factory diesel engine has been adjusted. If it is not necessary, the user should not pull it. Only after disassembly, assembly and repair, adjustments are required. Note that the low-speed stabilizer cannot be screwed in too much to prevent the minimum stable speed from being too high.
