Hot selling precision current transformer, if you are looking for high qulity and competitive price current transformers, you can send specification to us, we will give you fast reply.
Quick Details
|
Part No: MCT07A05 Precision CT Transformer
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current: 5A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information

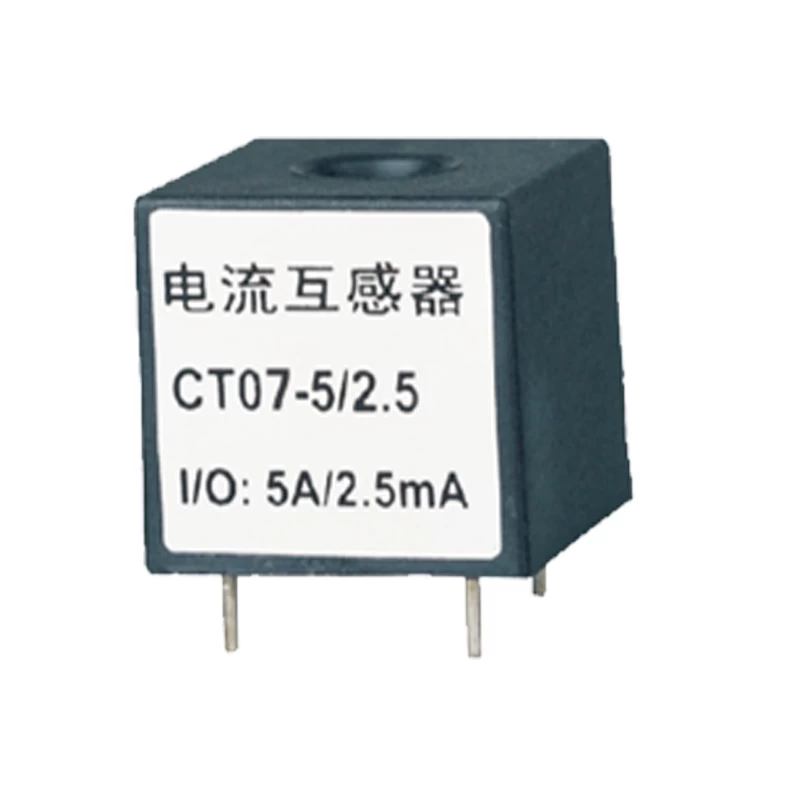

Product Name: 5A/2.5mA Micro Precision Current Transformer for Energy Meter
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems.Measuring instruments.Relay protection,metered.Switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT07A05A
|
5A/2mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.0
|
|
MCT07A05B
|
5A/2.5mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.0
|
|
MCT07A05C
|
5A/5mA
|
0.5
|
0~10A
|
≤15’
|
≤50Ω
|
3000V
|
Φ4.0
|

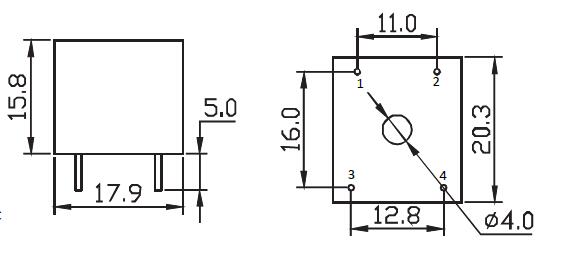

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome for customized type CT transformers。
