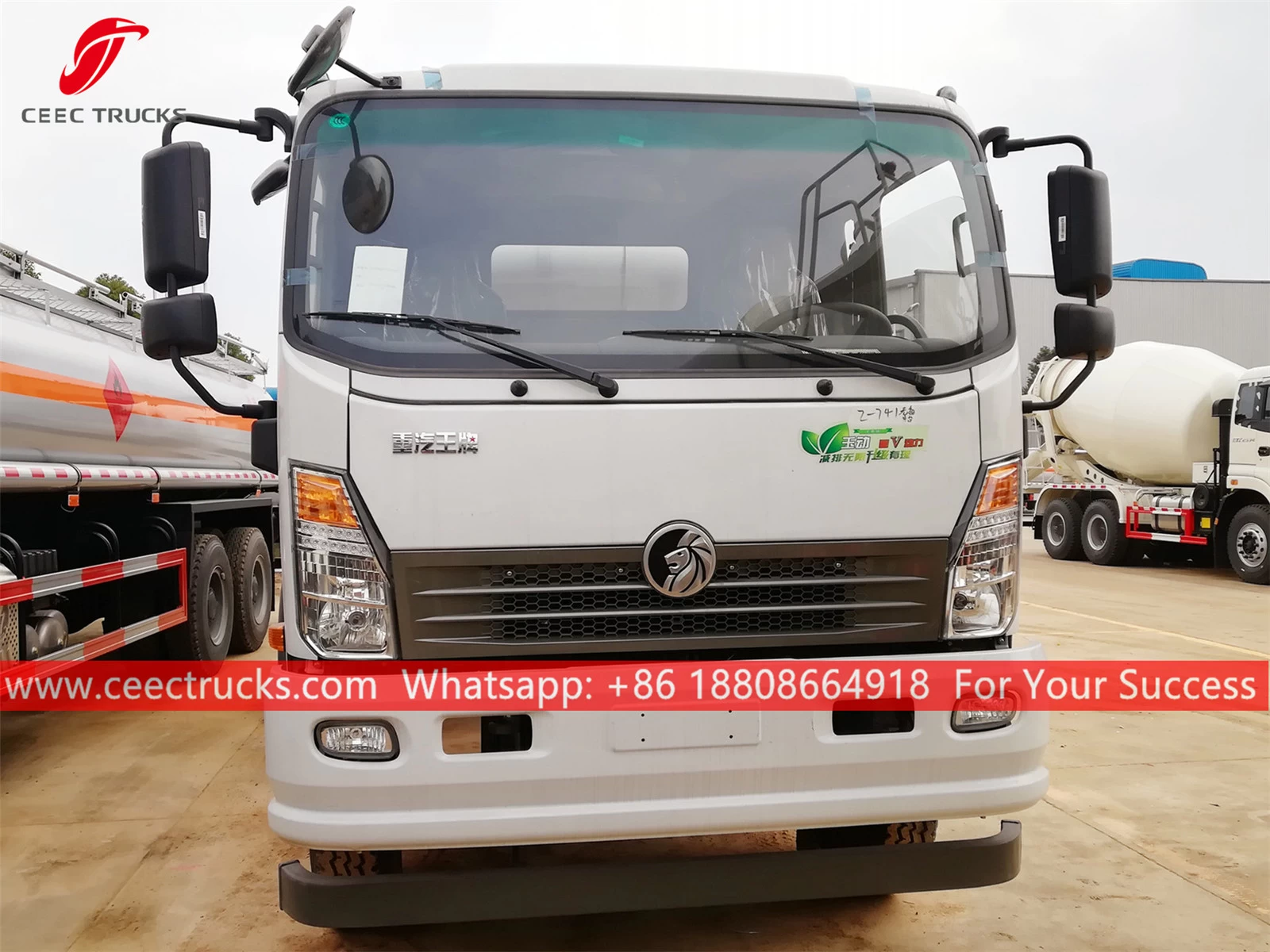

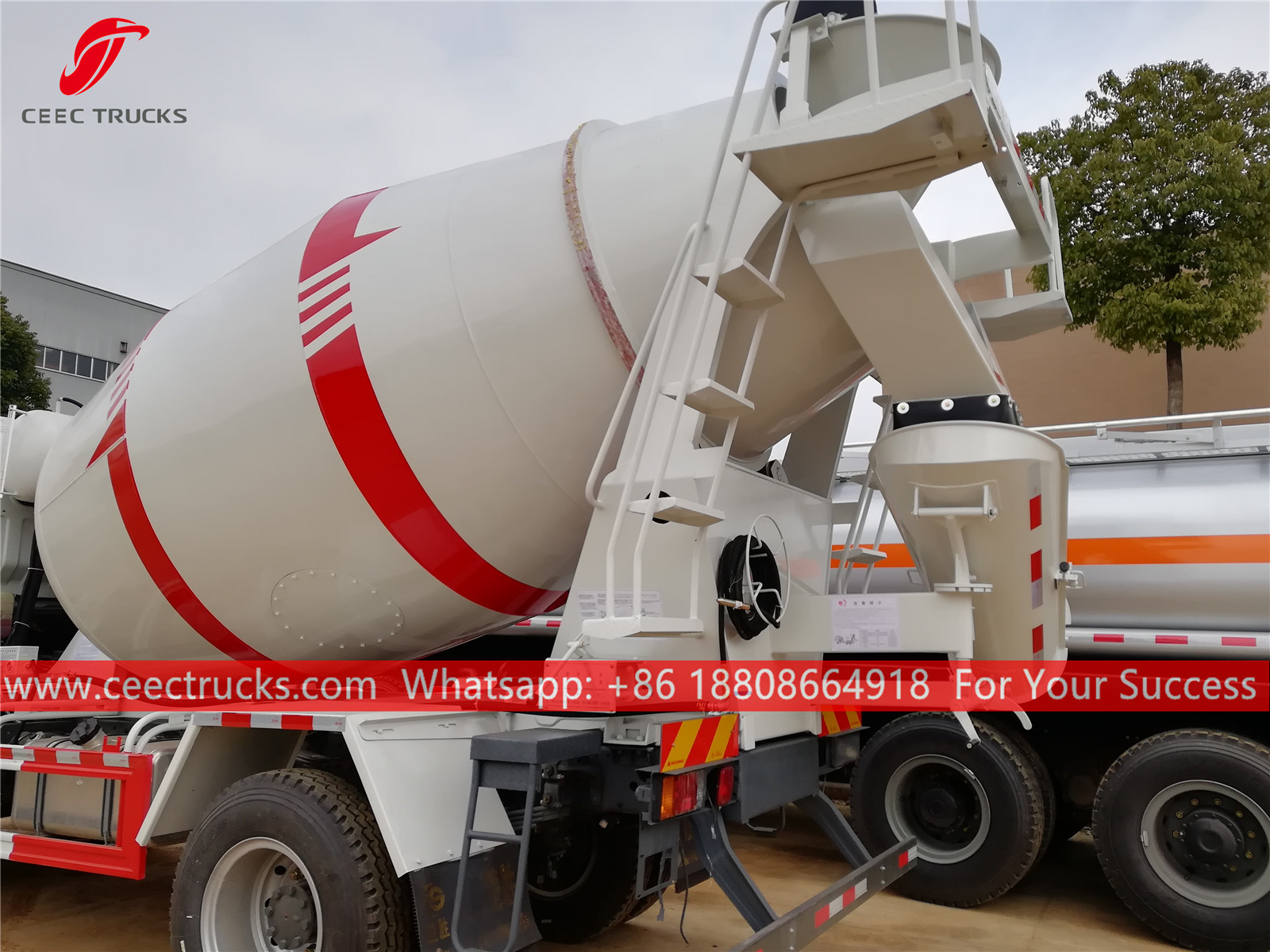

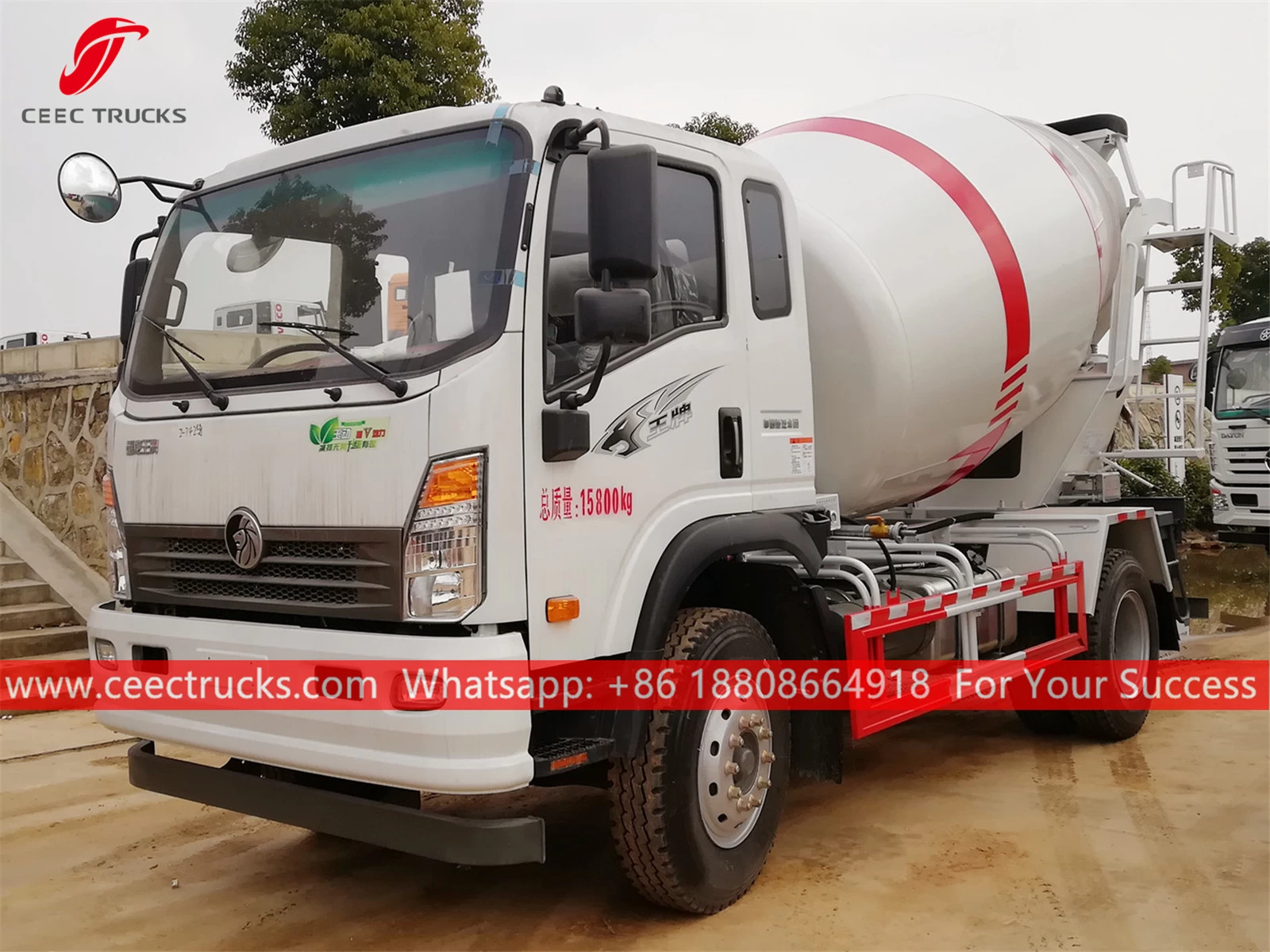

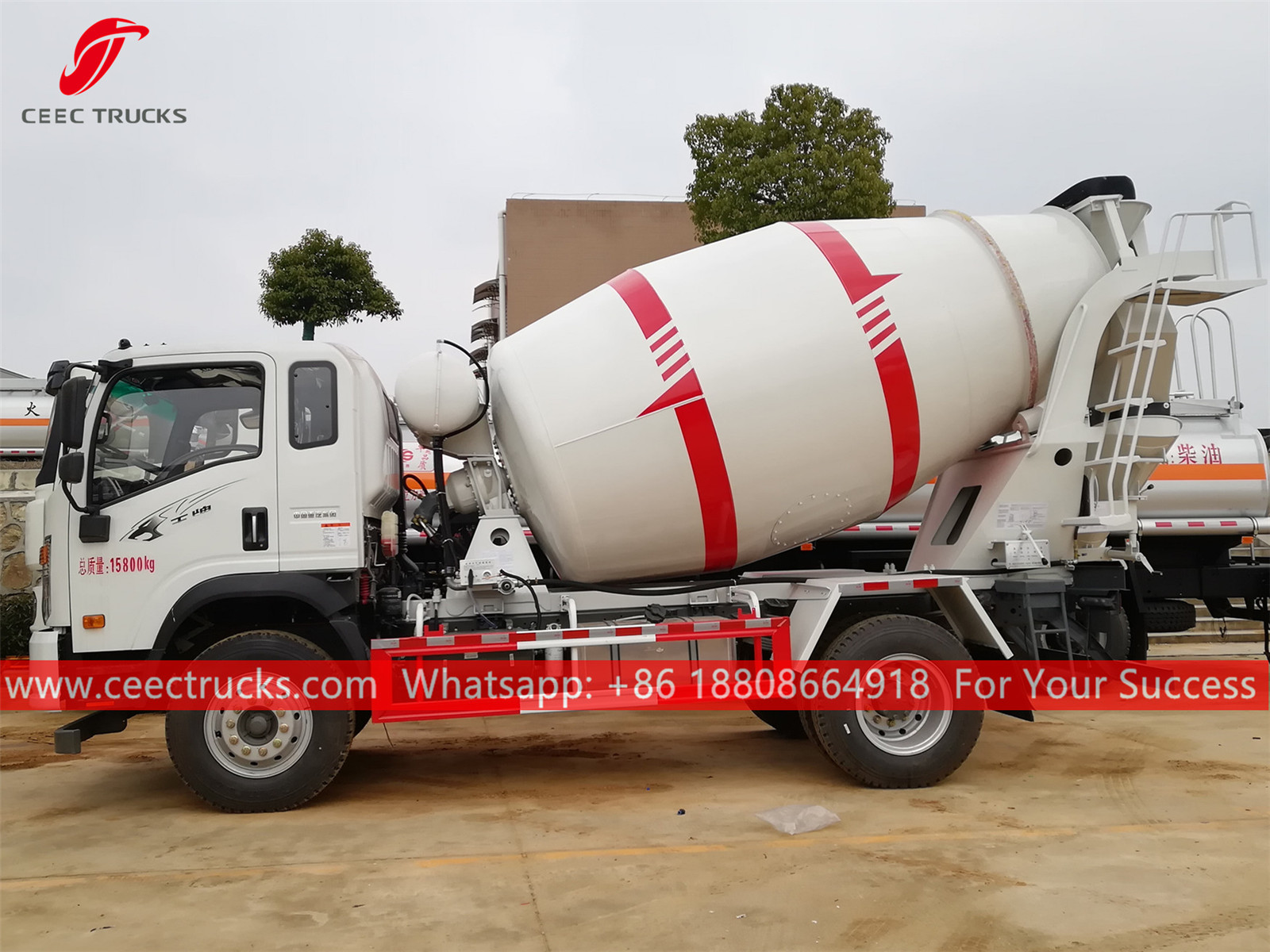

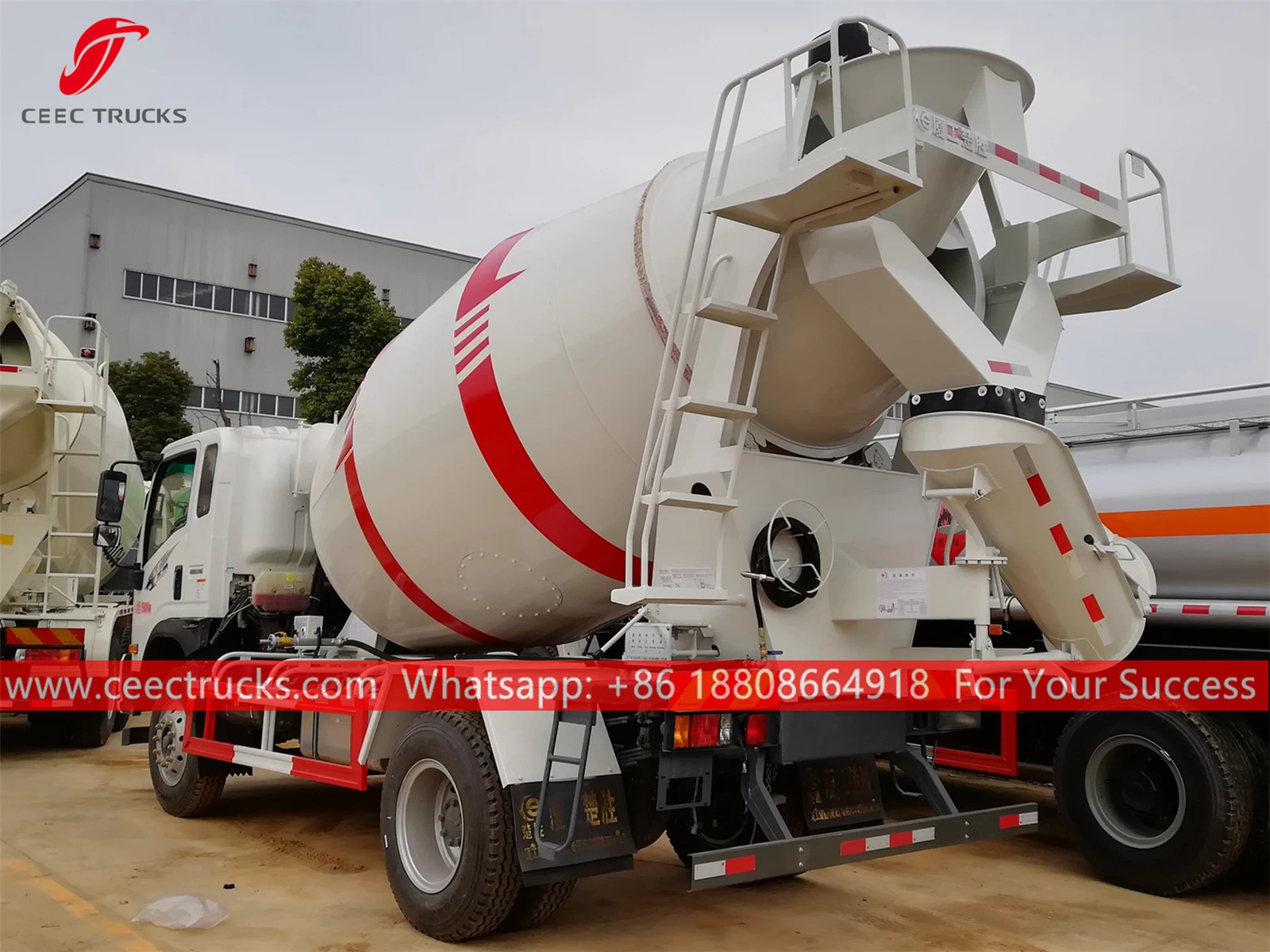

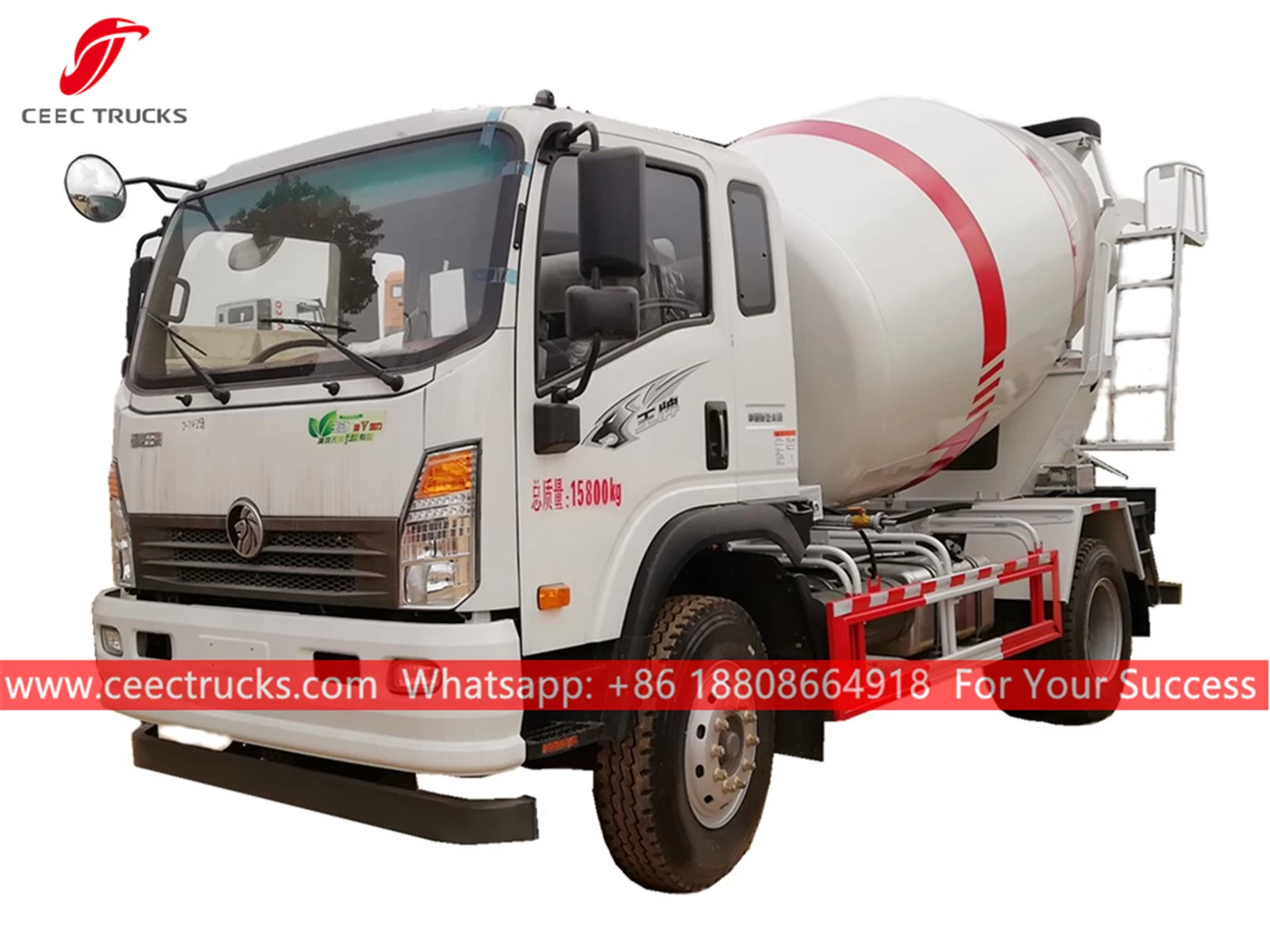

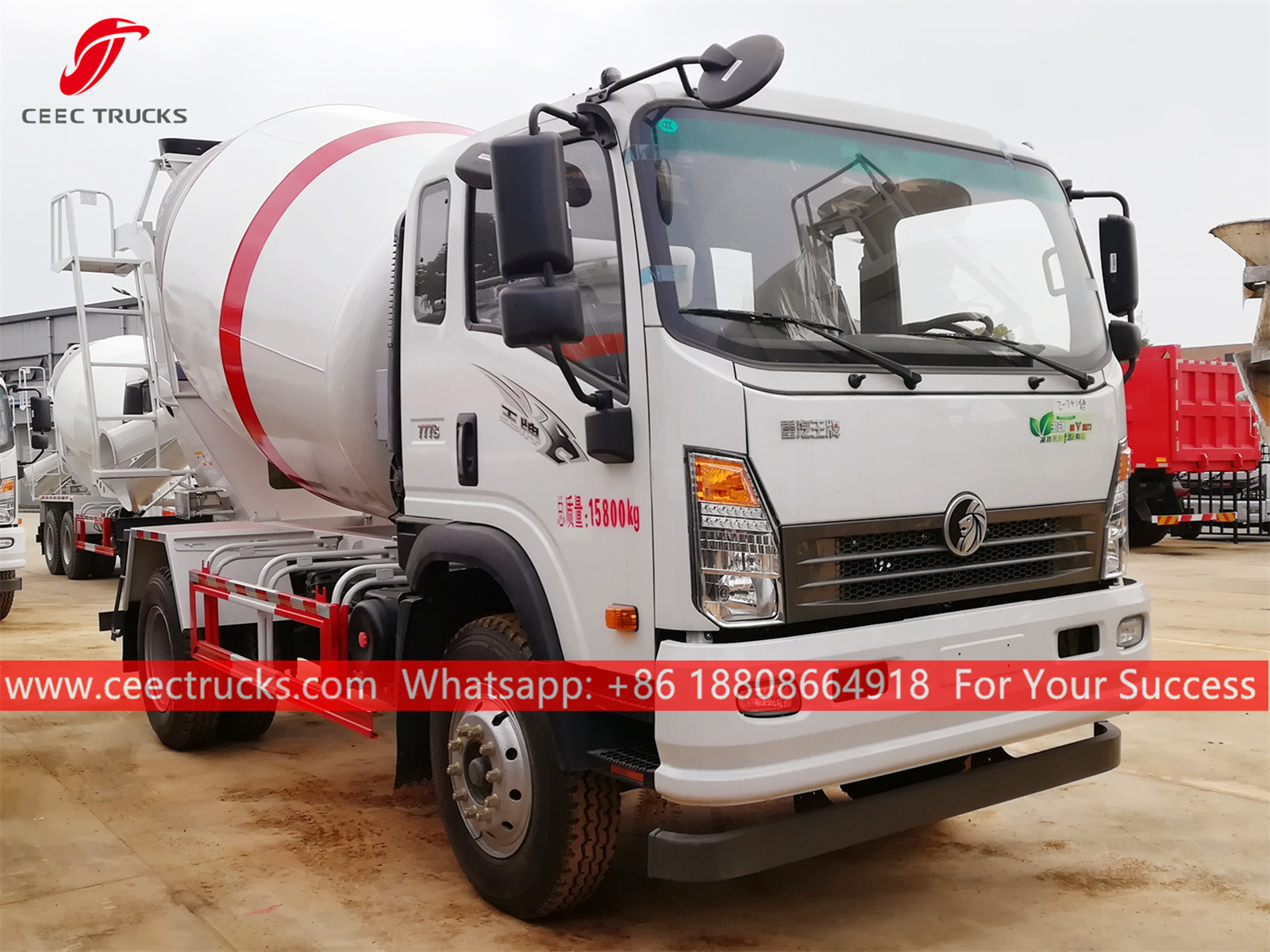

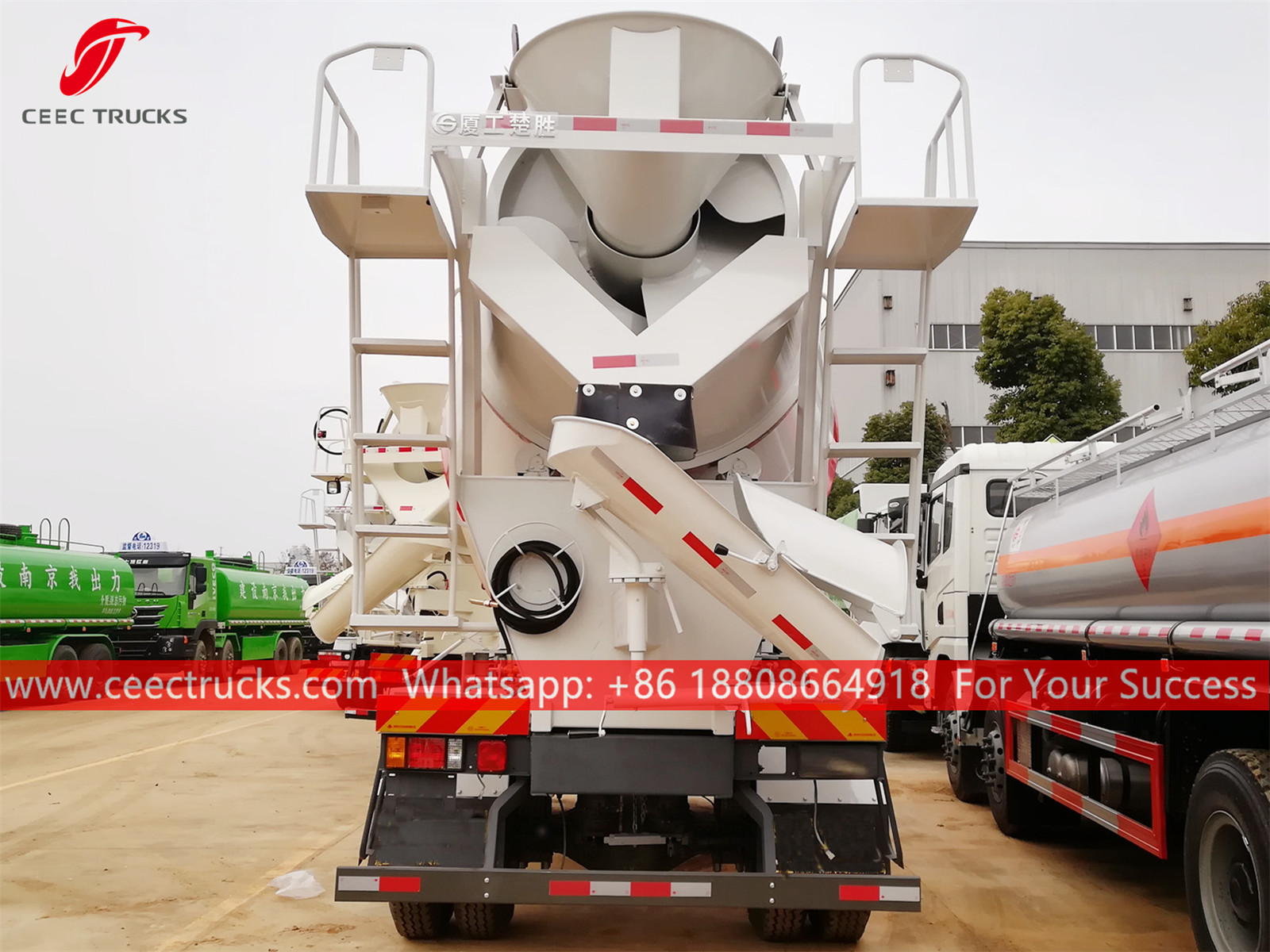

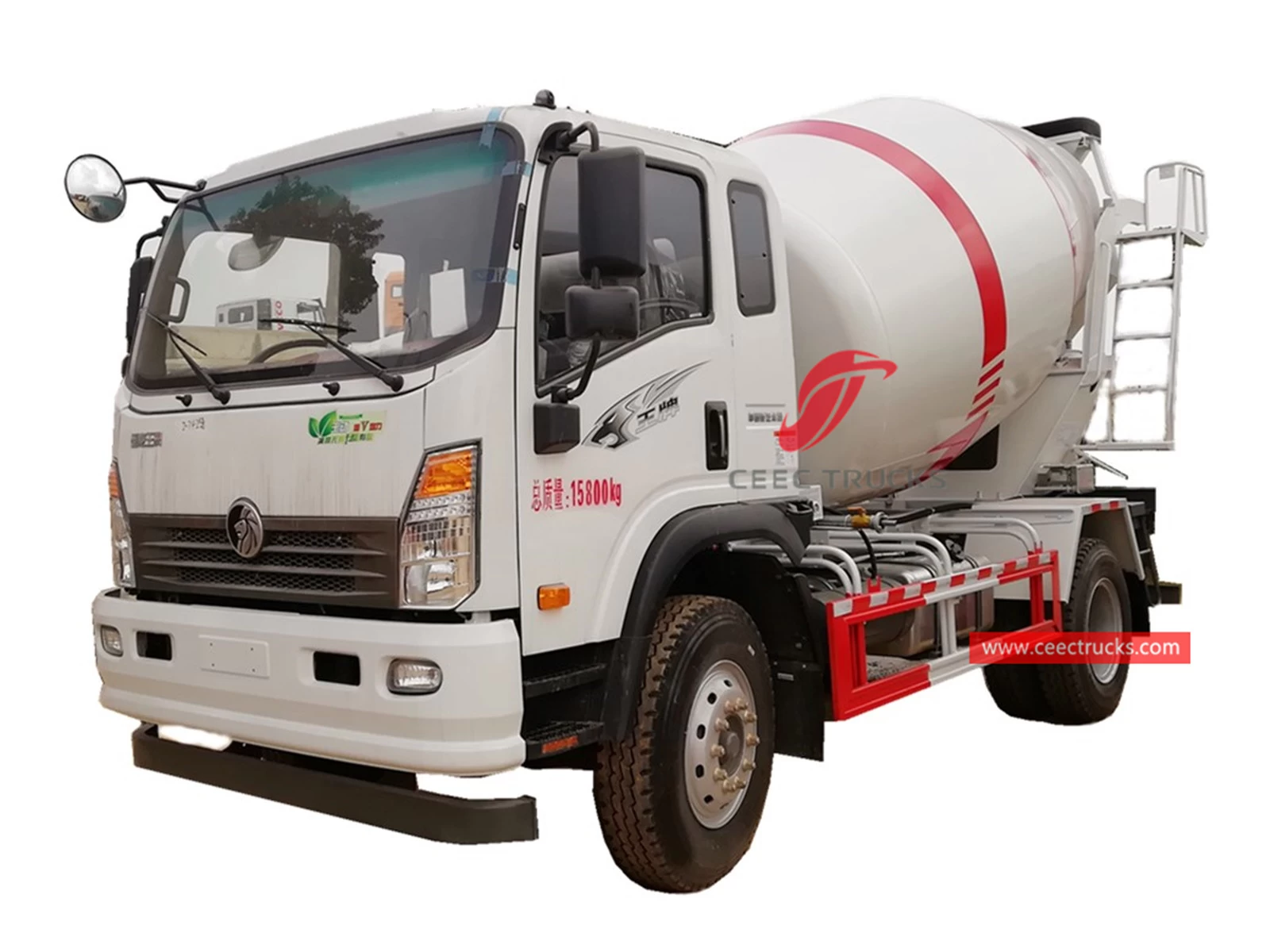

5CBM Mixer truck SINOTRUK

SINOTRUK 5cbm concrete mixer truck, 4x2 LHD chassis, YUCHAI 160HP diesel engine, FAST 5-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.

Facebook Twitter Pinterest LinkedIn 分享



 Applications:

SINOTRUK 4x2 Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS  mixer truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- SINOTRUK heavy duty chassis, perfect performance
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

mixer truck advantage



 Specifications:



SINOTRUK transit Mixer truck (5 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

SINOTRUK

Overall Dimension

6940 * 2350 * 3500 mm

GVW / Kerb Weight

15,800kg / 8,250kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUCHAI

Power

160 HP (118 KW)

Displacement

4730 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

FAST 5 speed levers with 1 reverse

Wheelbase/No. of axle

3650 mm / 2

Tire Specification

9.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

80 km/h

Paint

Metallic paint

Superstructure

Mixer tank volume

5 cubic meter

Barrel wall Thickness

5 mm

Barrel wall material T520JJ

Loading speed

≥  1.2

Discharging speed

≥  2.7

Rest rate

≤  1

Control

Both side with hydraulci control

Pump Import Brand
Motor Import Brand
Reducer Import Brand

Color & LOGO

According to wish

All standard accessories: All tools. .

Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other body capacity can be choose.

** Other material and plate thickness can be choose.
