Applications:
Arm roll garbage truck (also called skip
loader, swing arm waste truck, roll off garbage truck, 6 wheels arm roll refuse truck, Refuse collection truck, Skip Truck for Garbage Collection) is widely used in sanitation & municipal, industrial enterprises
and residential area. The truck has several garbage tanks to avoid
pollution during transporting process. The modified part can be
separated from chassis, so it is easy to maintain and the mobility &
readability of the truck are kept. If
you have special demand of garbage truck, please contact with us. We
may design and modify it for you. We also can add power steering and A/C
for you

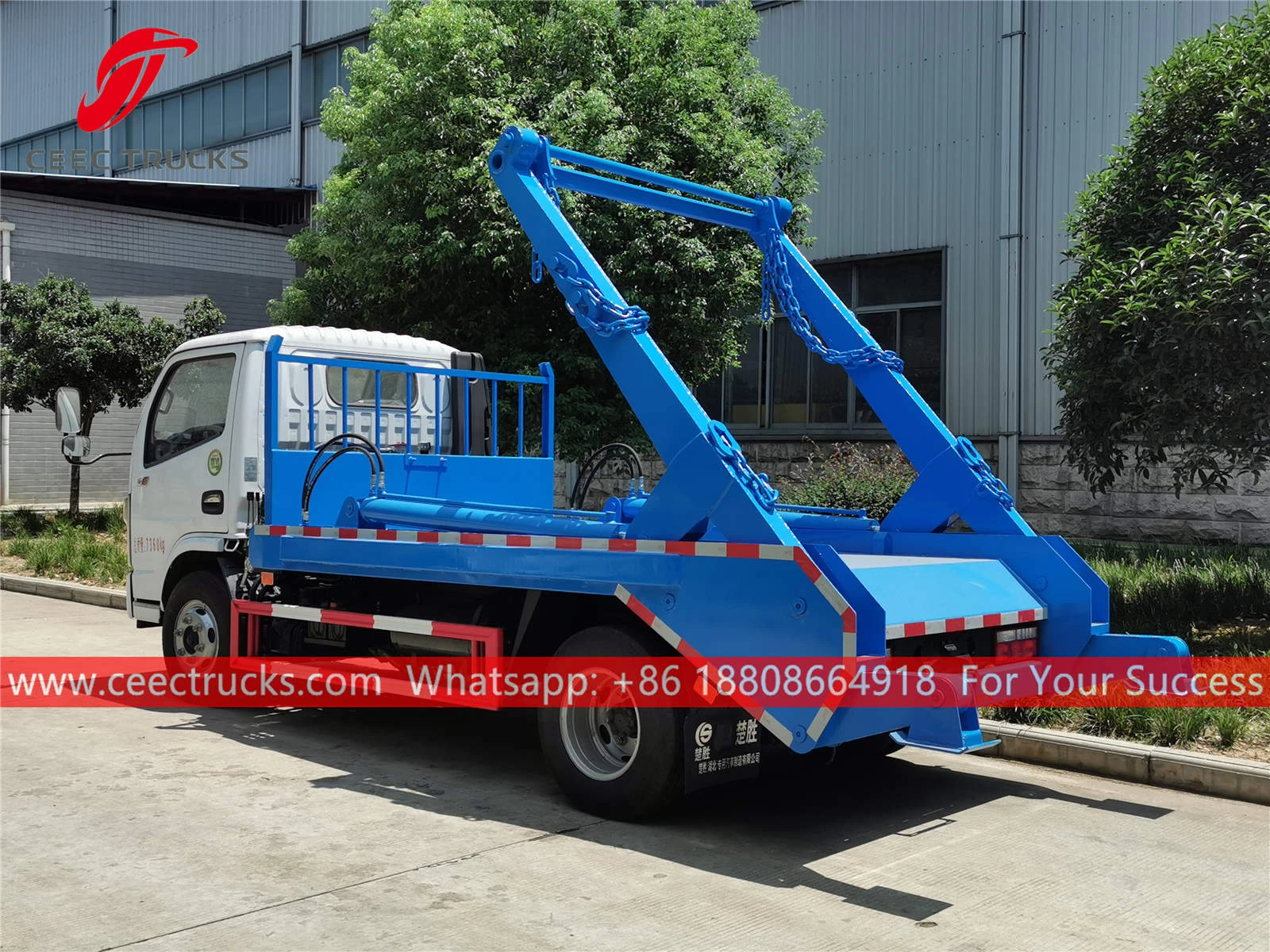

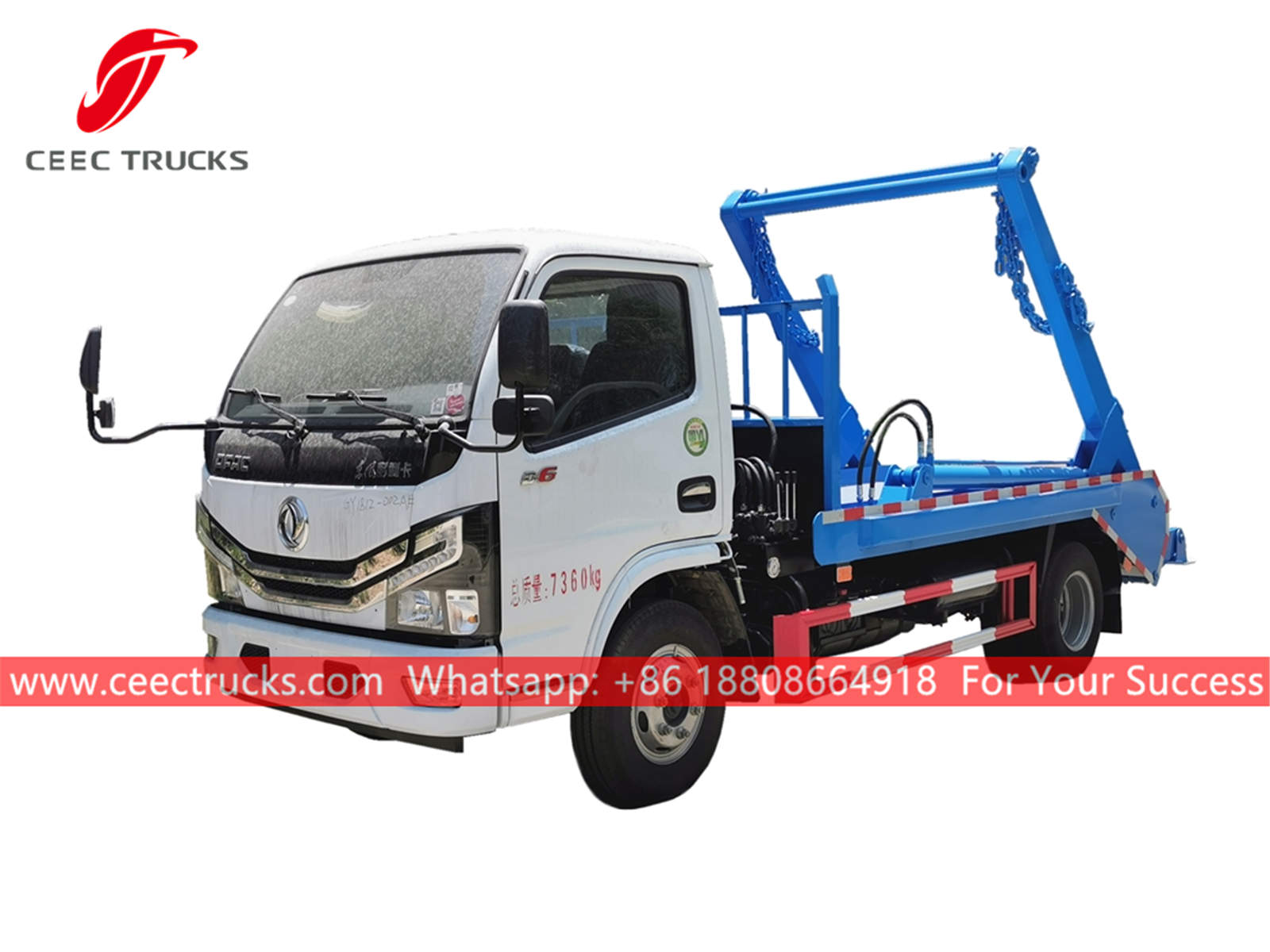

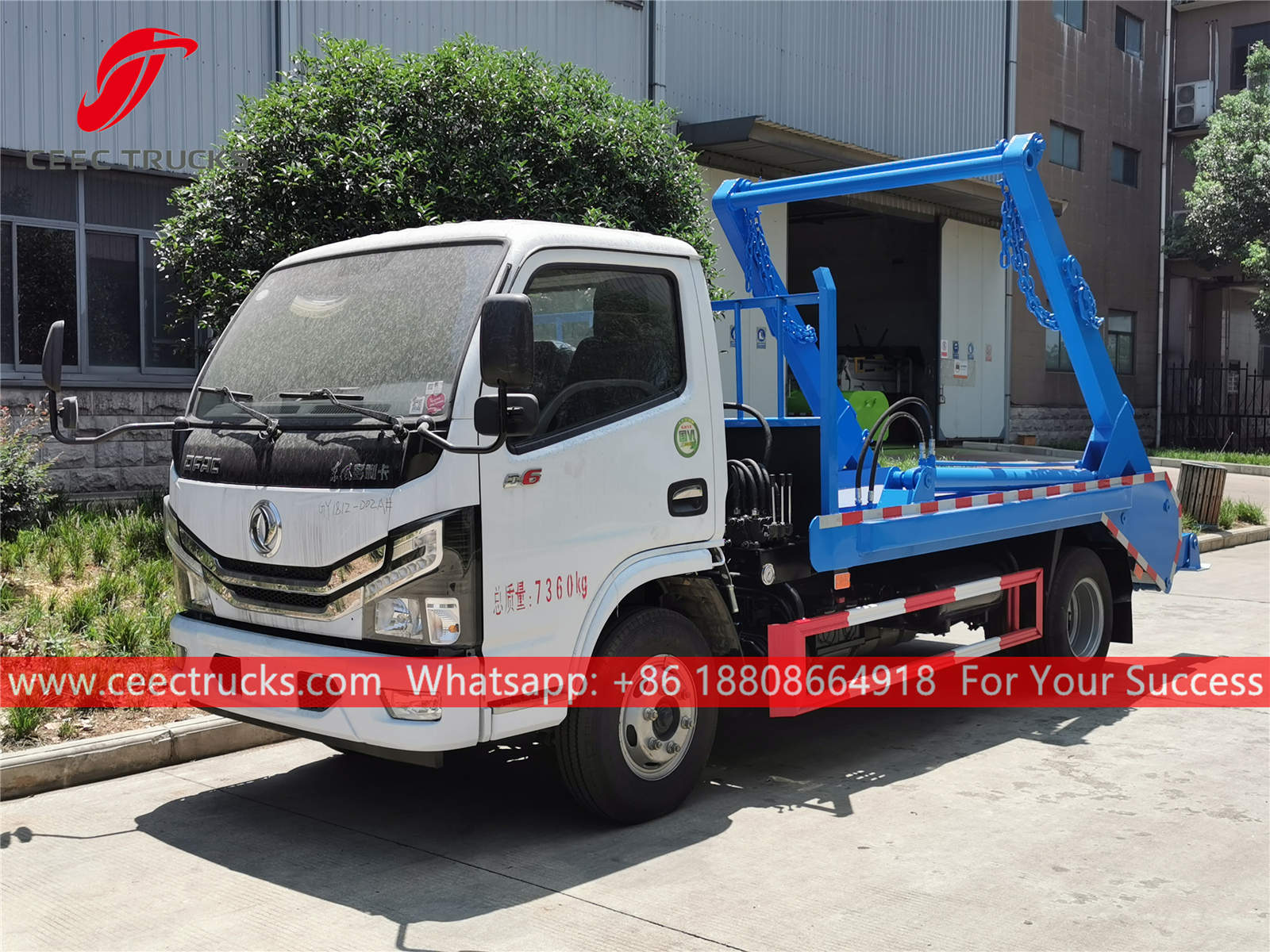

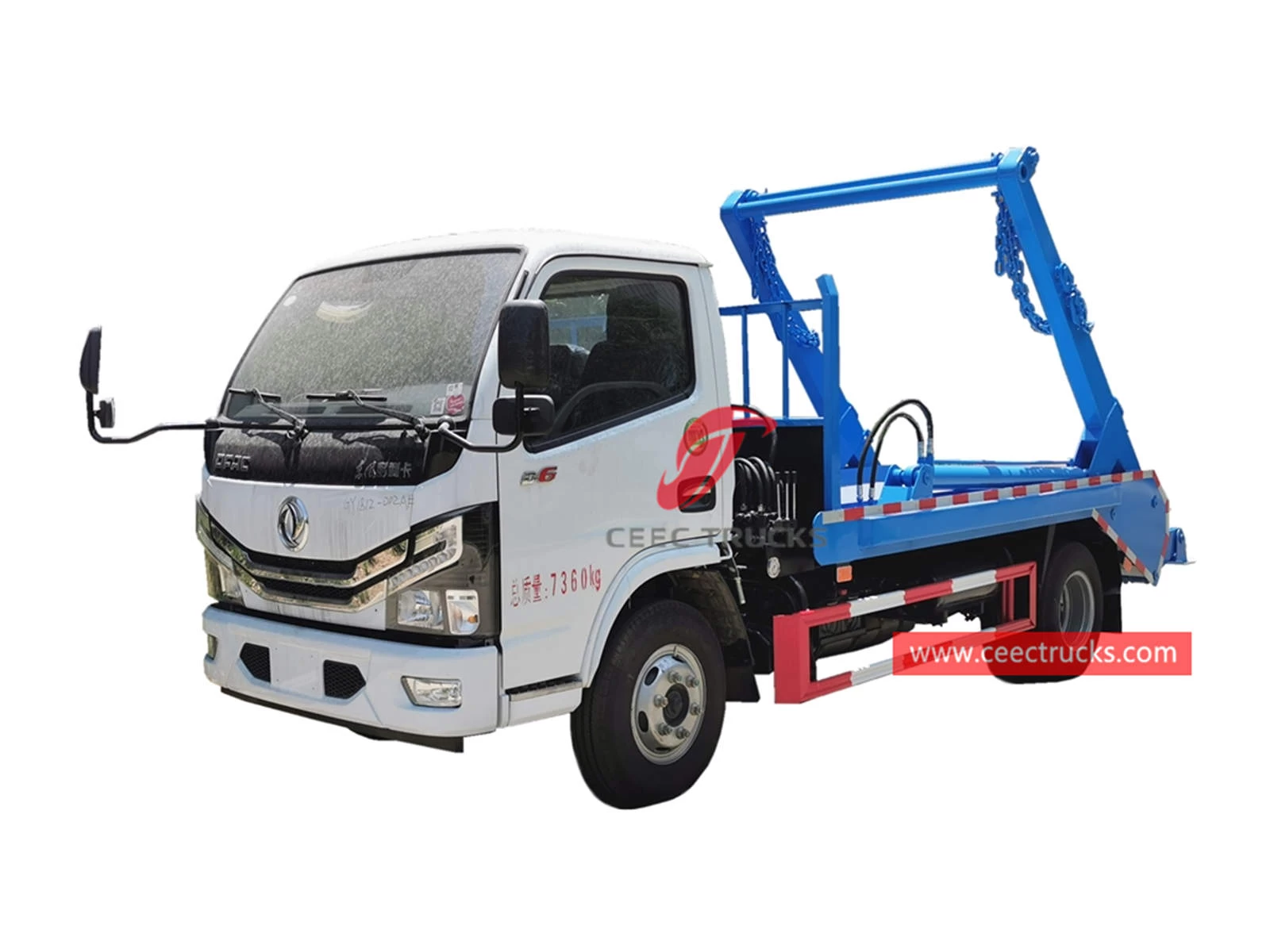

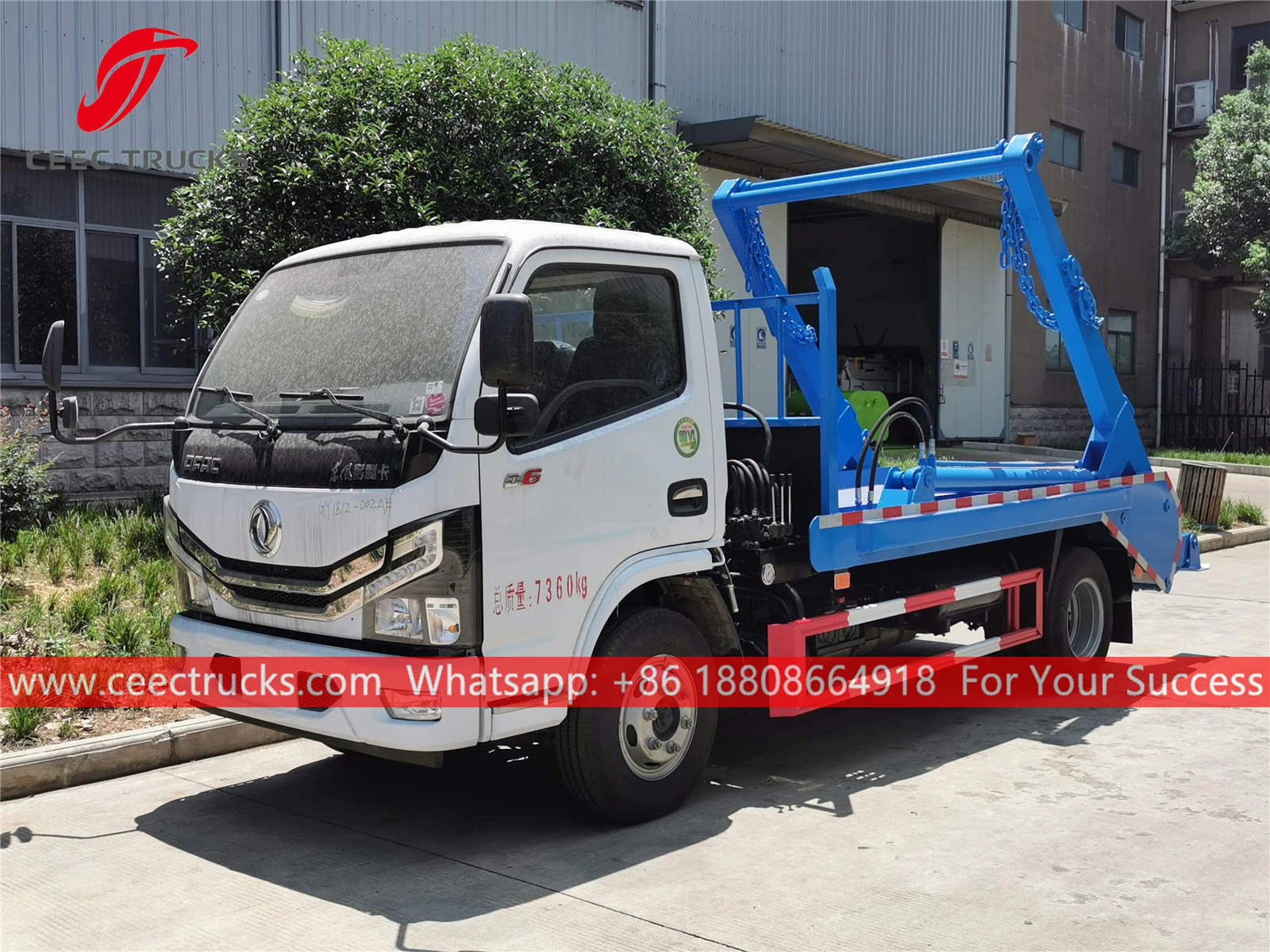

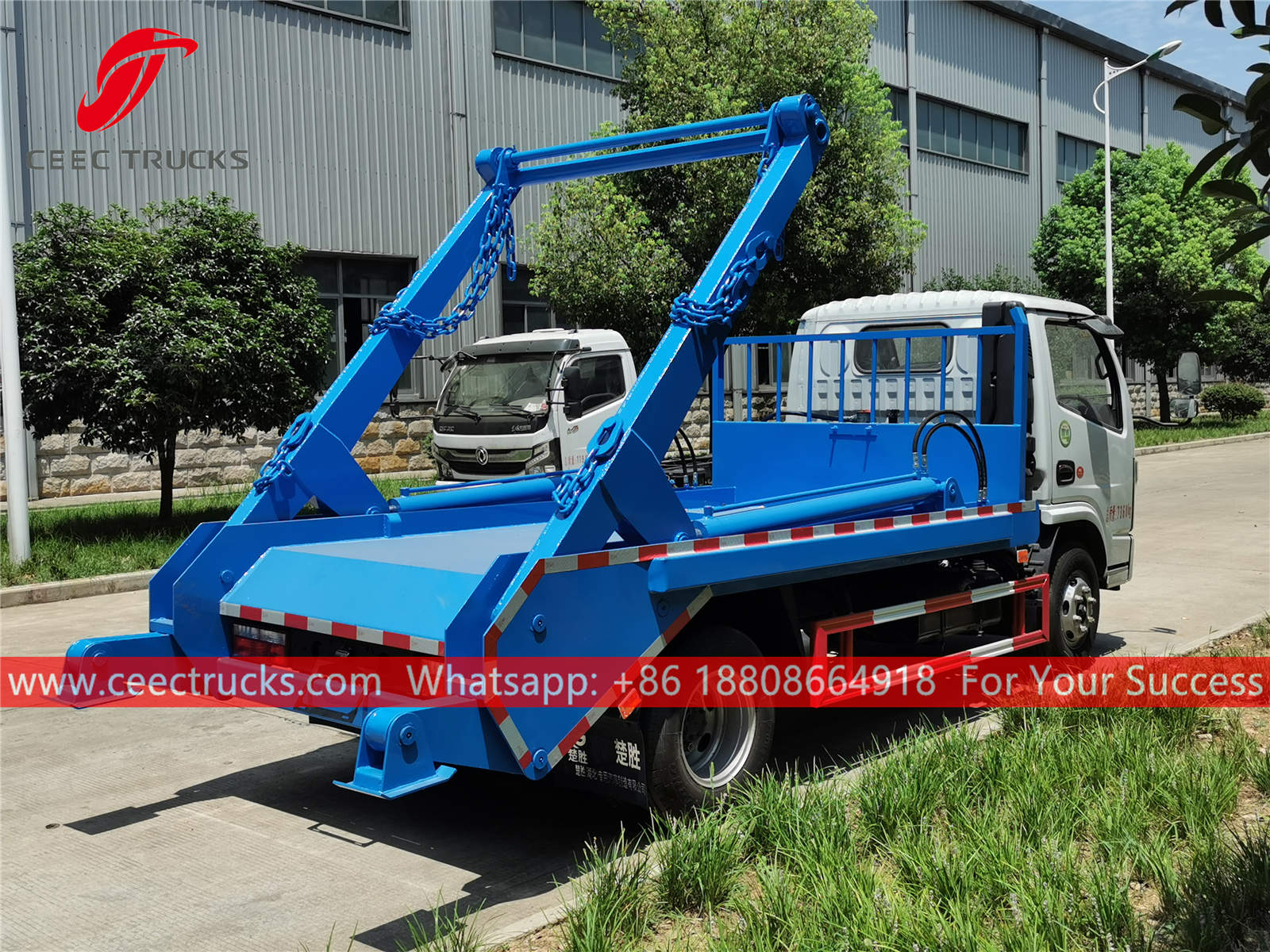

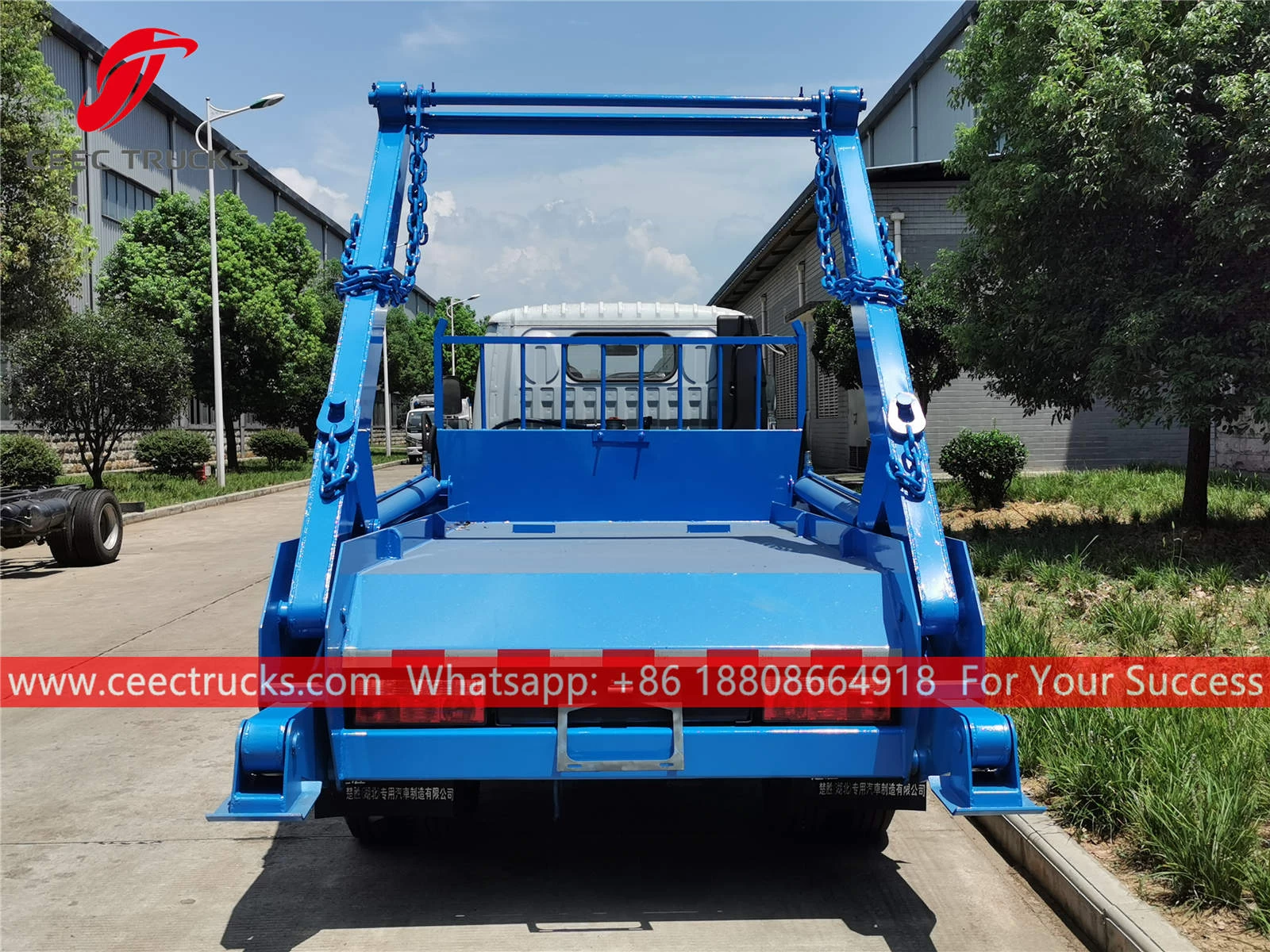

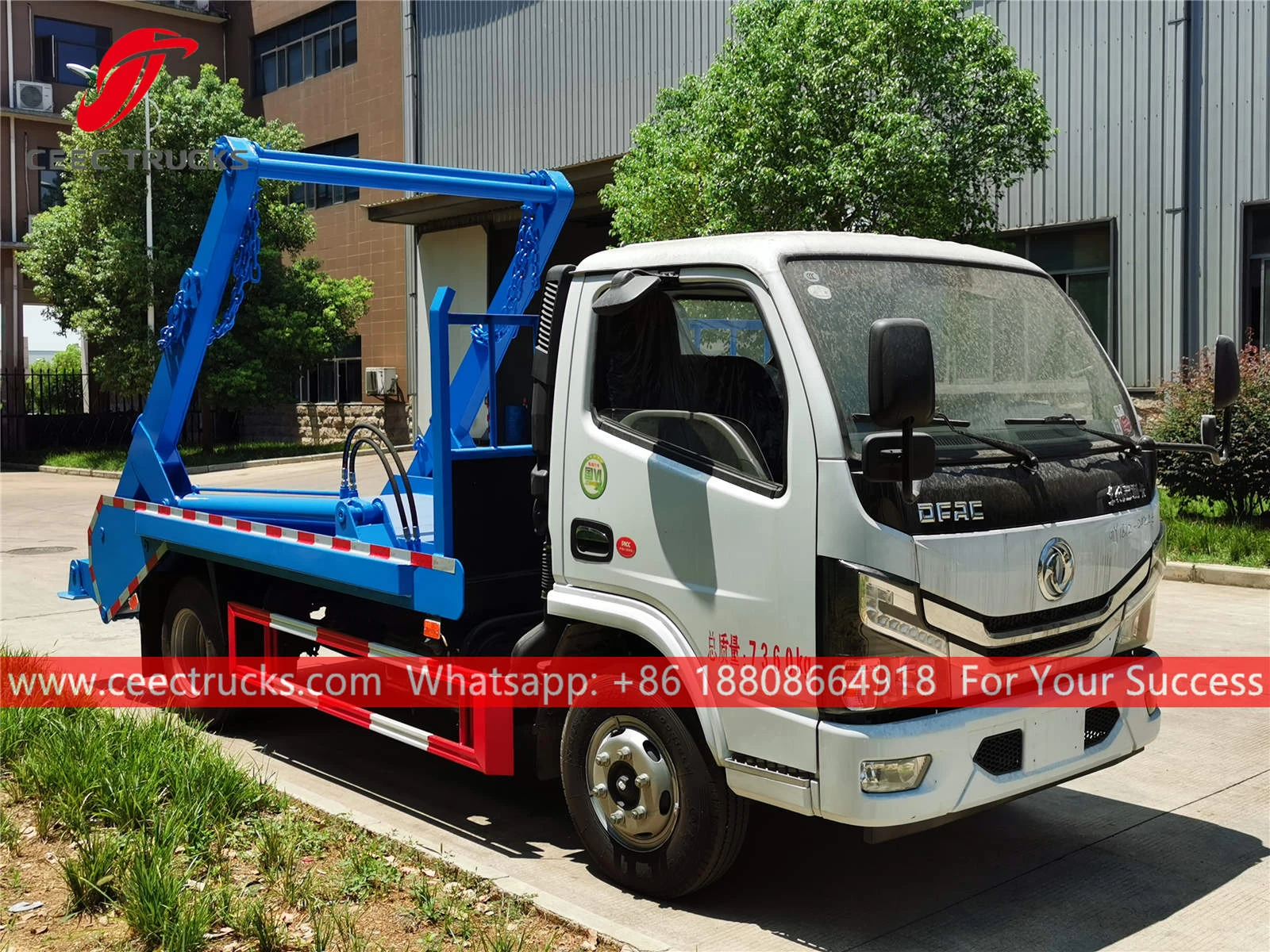

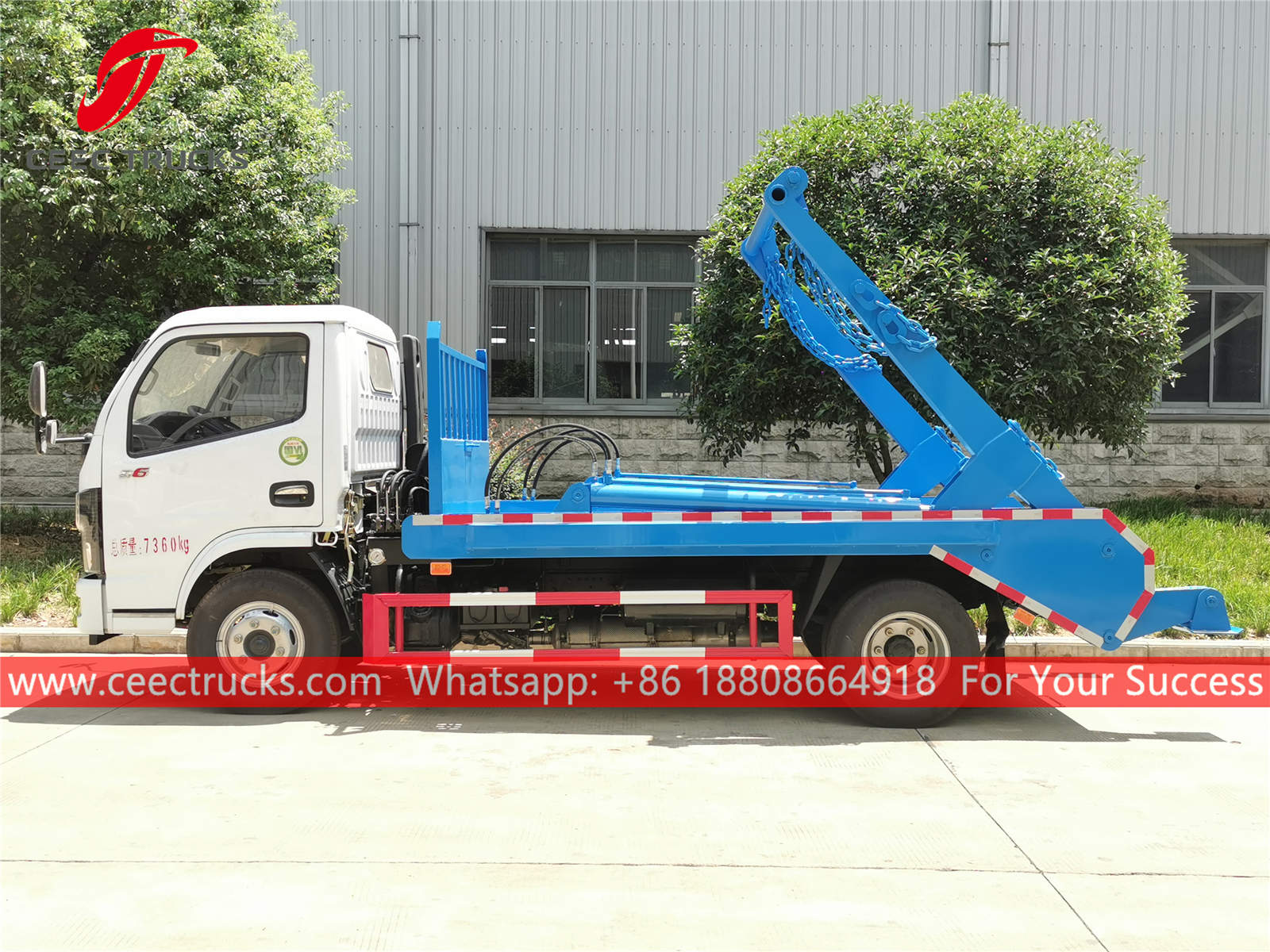

CEEC TRUCKS Swing
arm
garbage truck is a garbage truck with detachable body container, which
could enable one truck with several garbage containers for recycle use.
Key Features:
---- Dongfeng chassis, perfect performance
---- YUNNEI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Garbage container capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|
Dongfeng Swing arm garbage truck (5 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
5999 * 2000 * 2910 mm
|
|
GVW / Kerb Weight
|
7,360kg / 3,950kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
YUNNEI
|
|
Power
|
126 HP (93 KW)
|
|
Displacement
|
1999 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3308 mm / 2
|
|
Tire Specification
|
7.00R16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
110 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
5 cbm
|
|

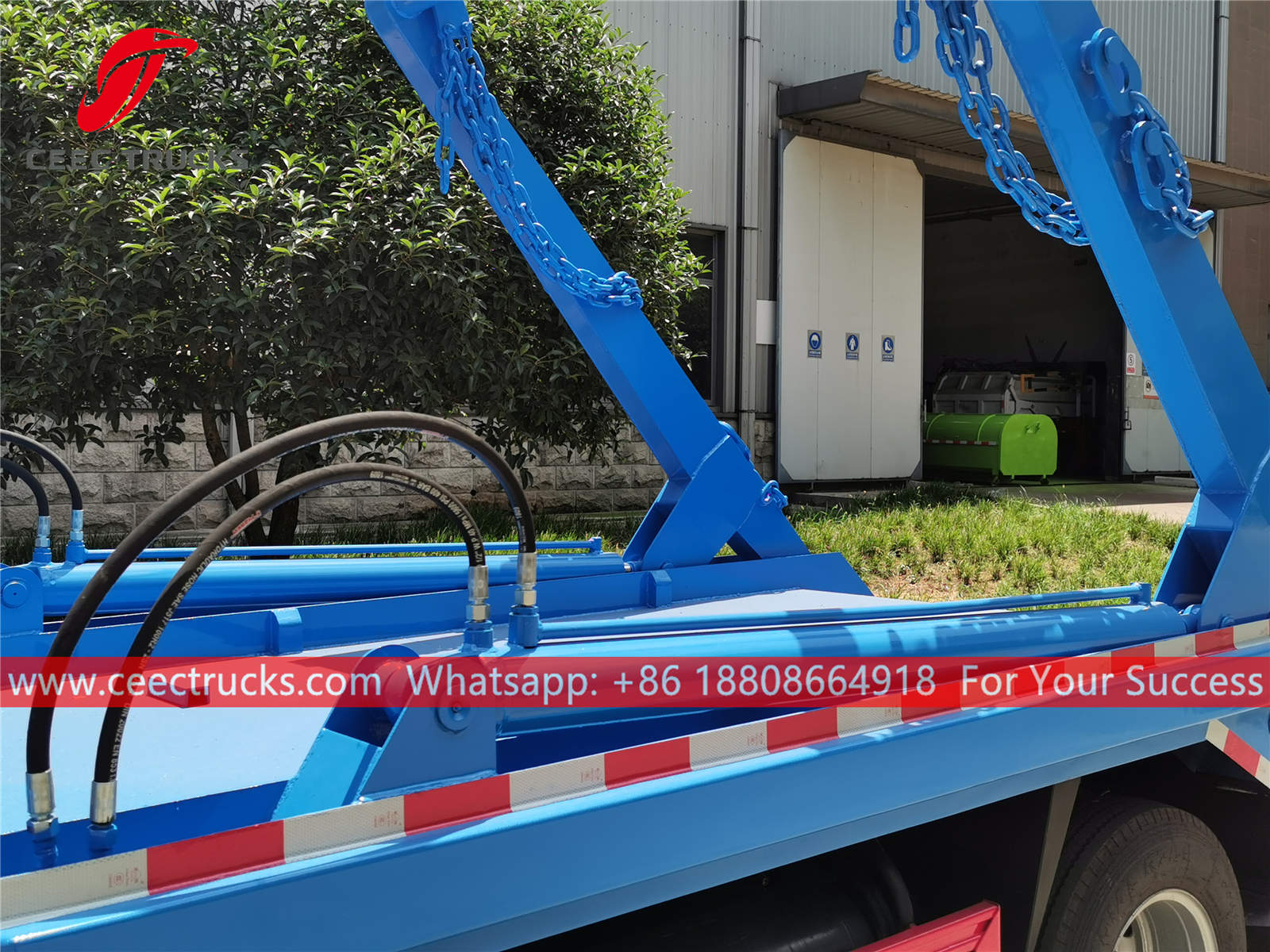

Lifting device
|
Two swing arm lifting system
|
|
Rear legs
|
Two hydraulic rear legs for support
|
|
Lifting cycle time
|
20~25 s
|
|
Match model
|
One truck match with several containers
|
|
Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Basic tool kit, English manual……
|
|
Optional
|
** Container material could be stainless steel.
** A sealed cover for the container.
** A truck with several containers.
|
