Frequency Range-MHZ;698-960/1710-2700/4800
Gain-dBi;4.5/6/6
Horizontal Beamwidth-°;360
Vertical Beamwidth-°;824-960MHz: 40-60°
1710-2500MHz: 14-32°
2700-4800 MHz: 16-33°
F/B Ratio-dB;>15

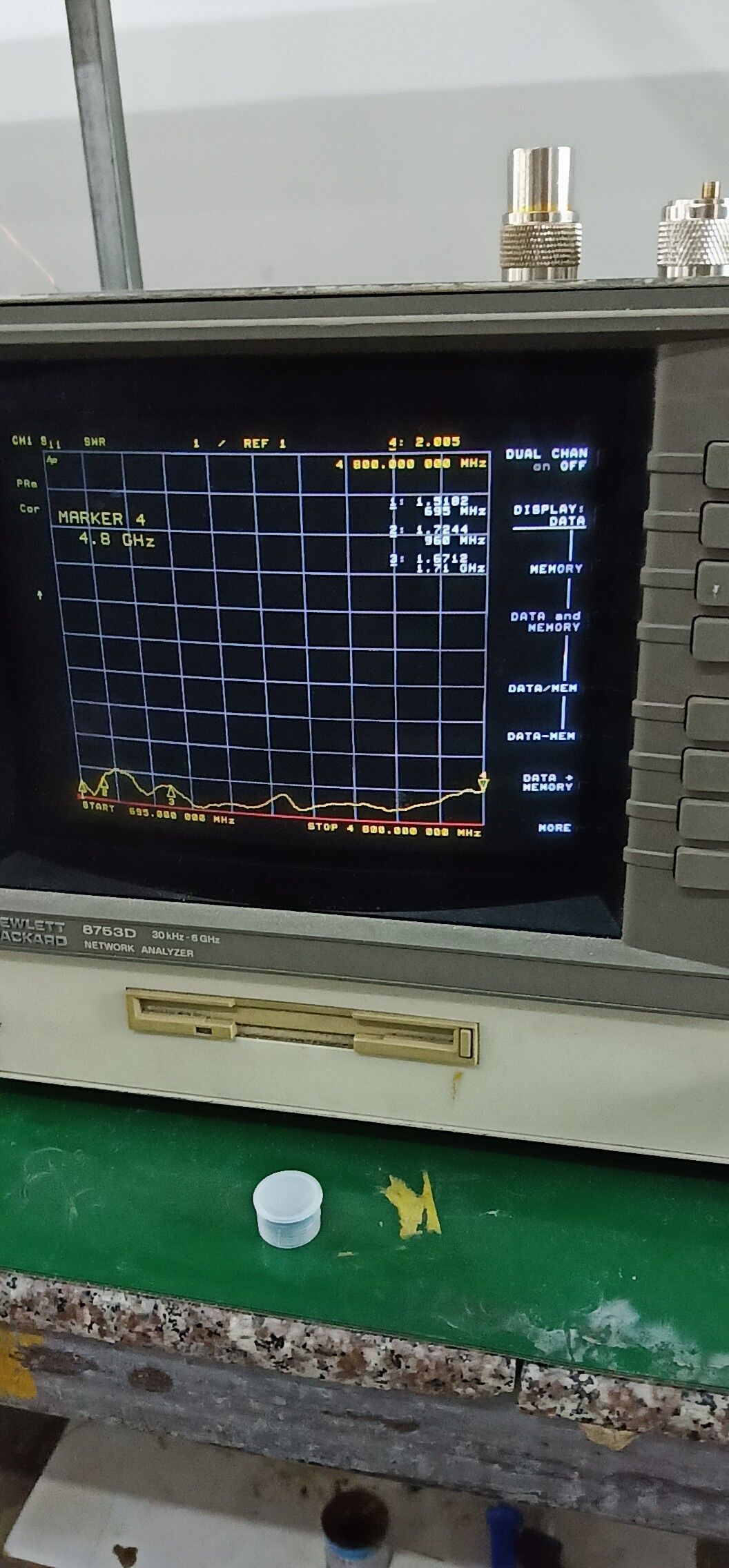

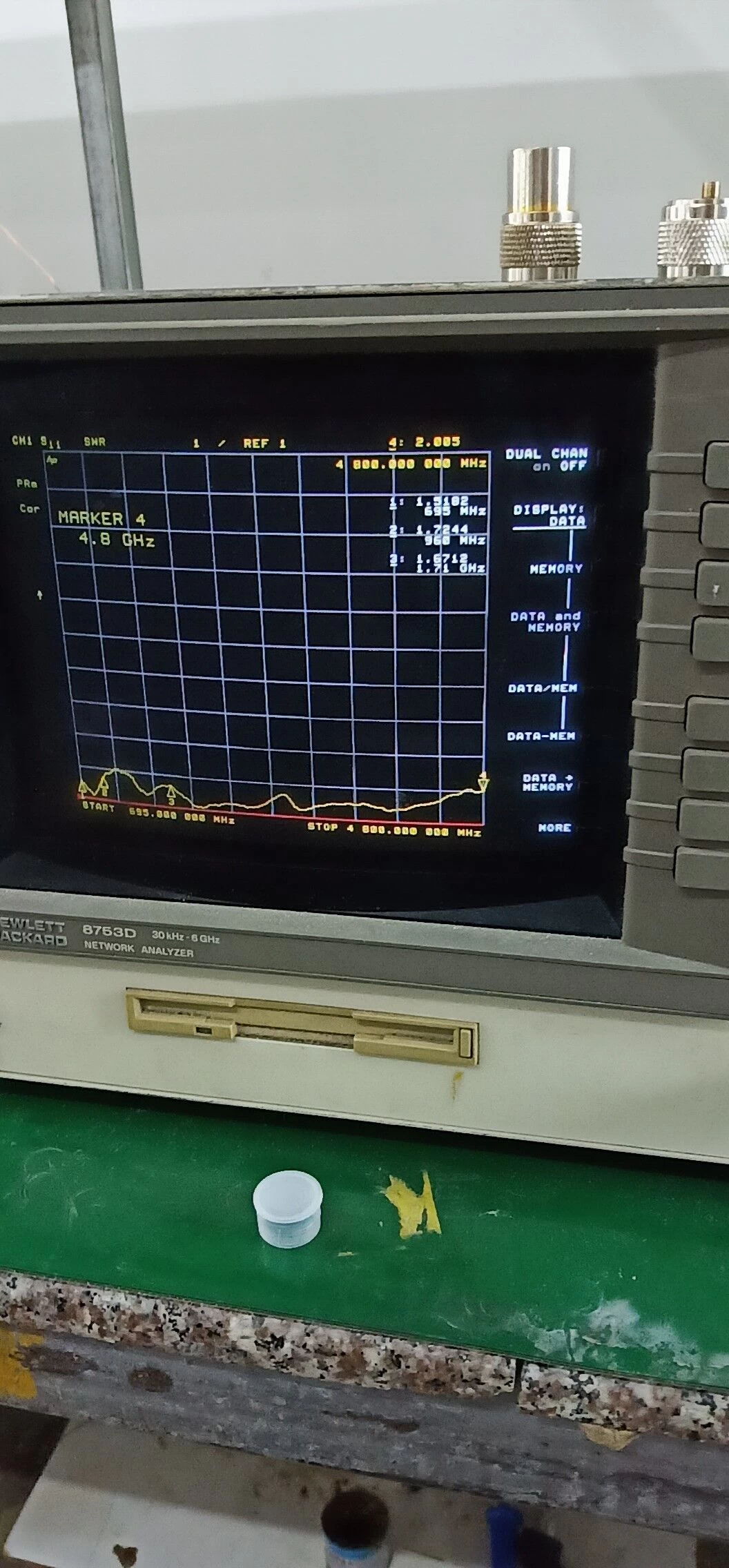

VSWR;≤3(698-800), ≤1.5(800-960/1710-2700) ≤1.5(2700-48700)
Polarization;Vertical
Nominal Impedance-Ω;50
Maximum Power-W:50
