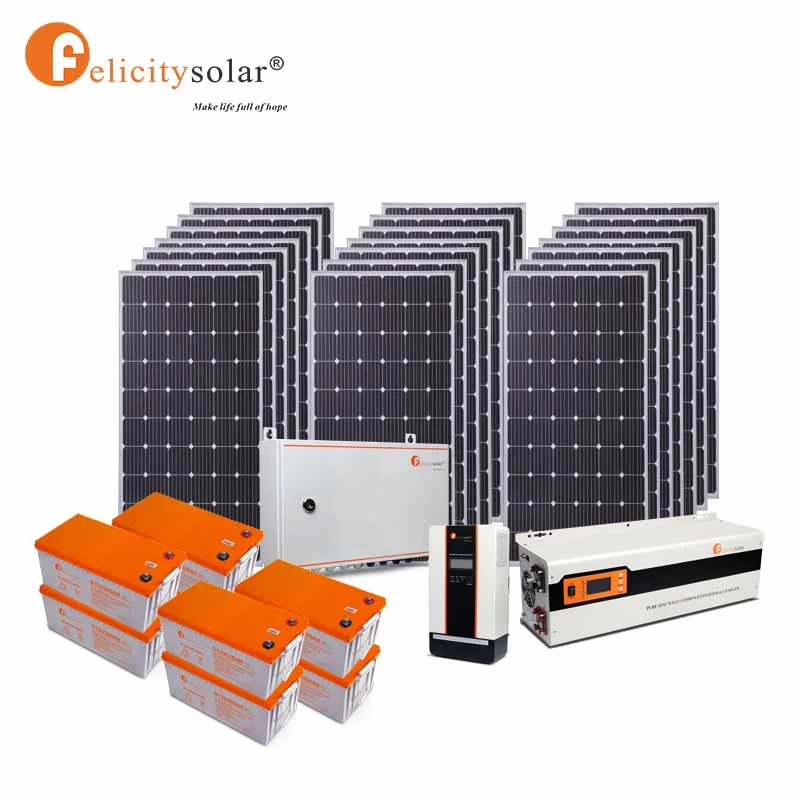

5000va 48V Solar Energy System
High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.
Low M0Q, fast delivery time, long service life.
Data Sheet
|
Model
|
FL-POWER-5000VA 48VA
|
|

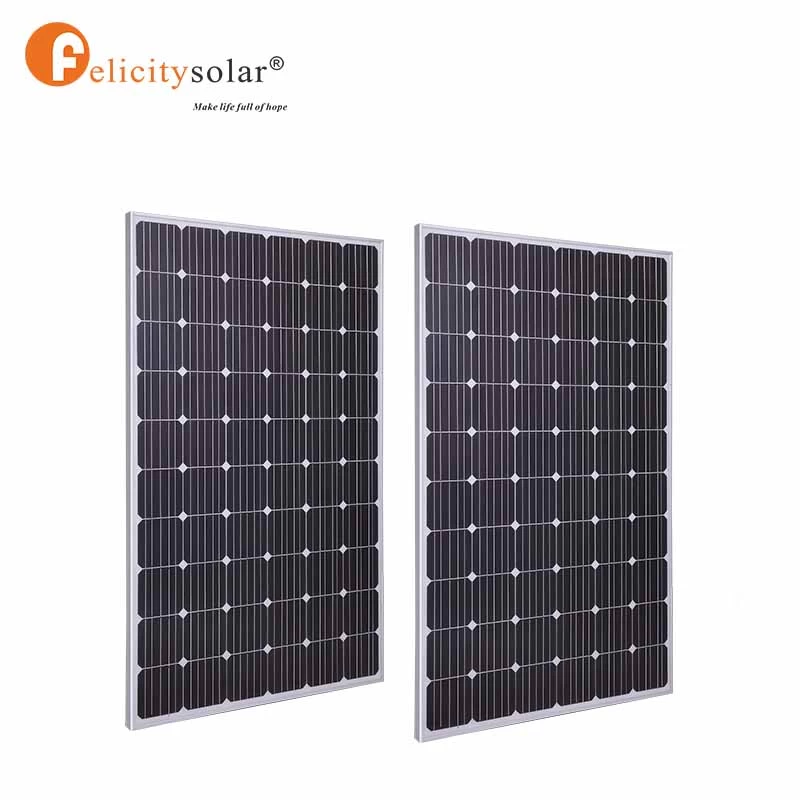

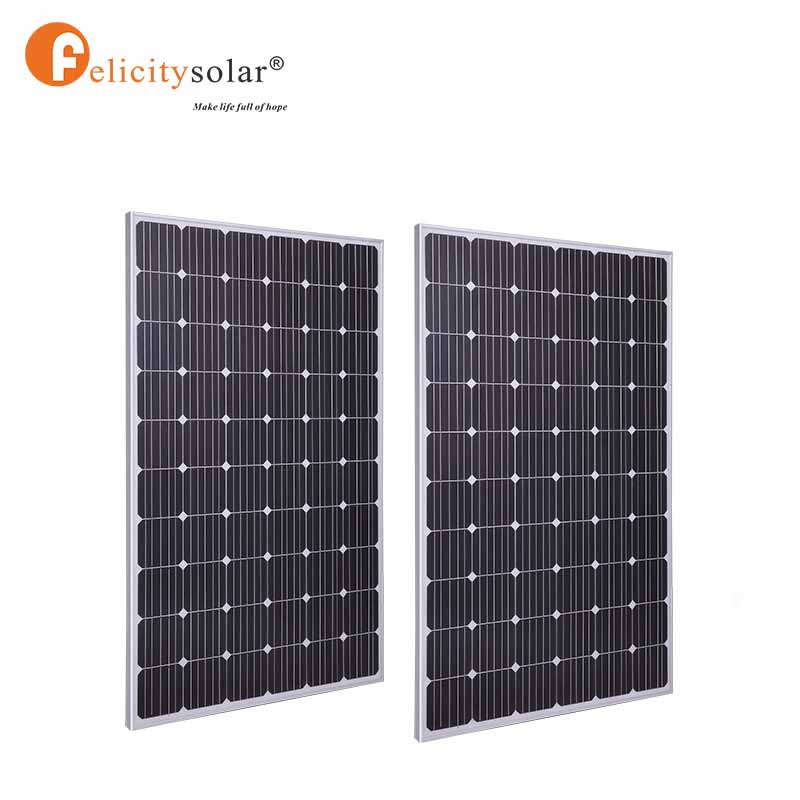

Solar Power
|
Mono 260w/30v * 21PCS
|
|

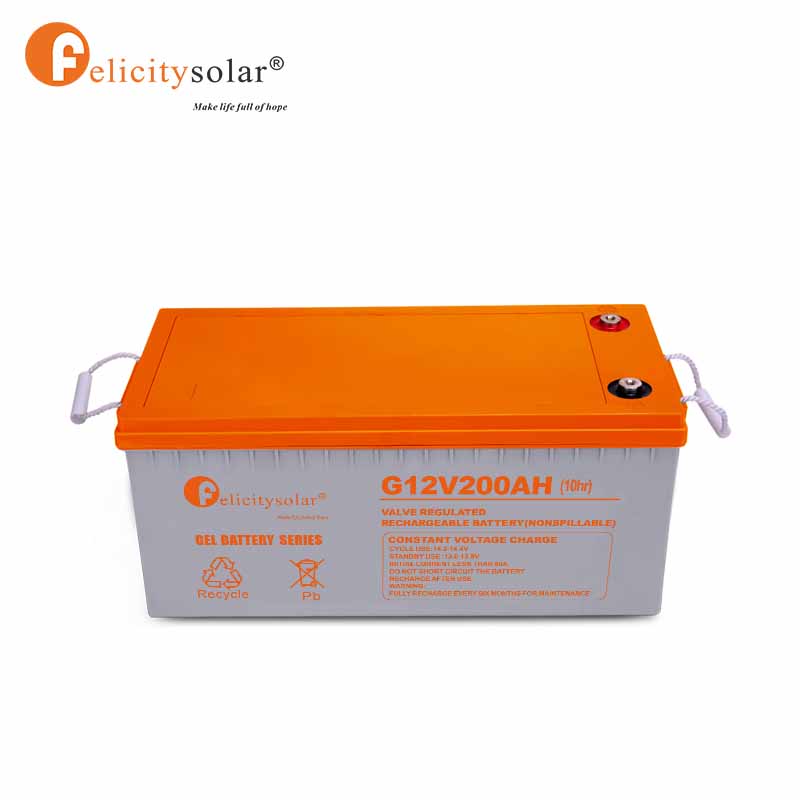

GEL Deep Cycle Battery
|
200AH/12V * 8PCS
|
|

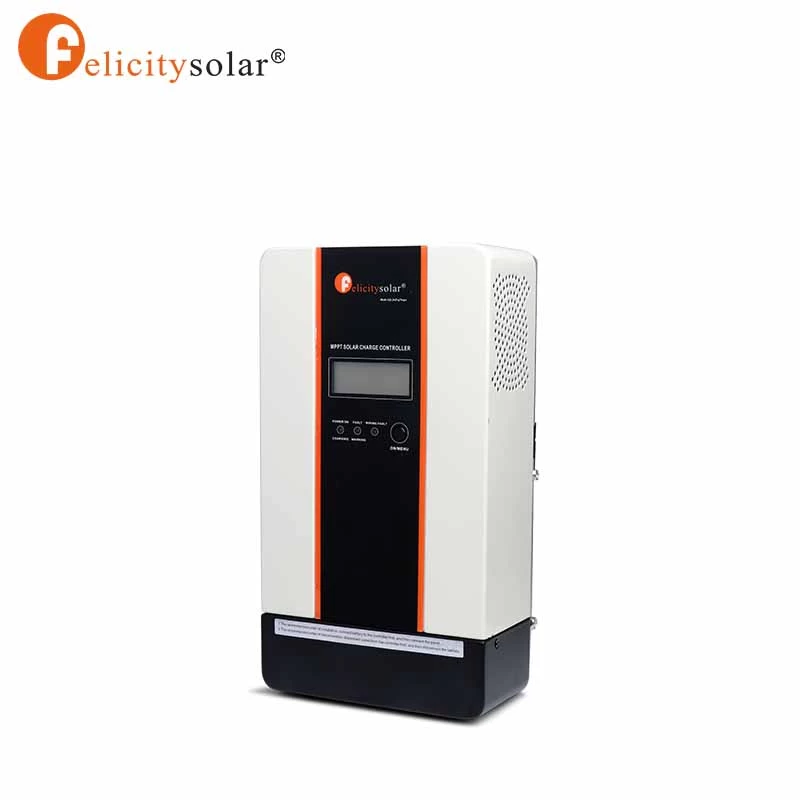

Controller
|
MPPT charge controller 120A DC12/24V/48V with LCD * 1PCS
|
|

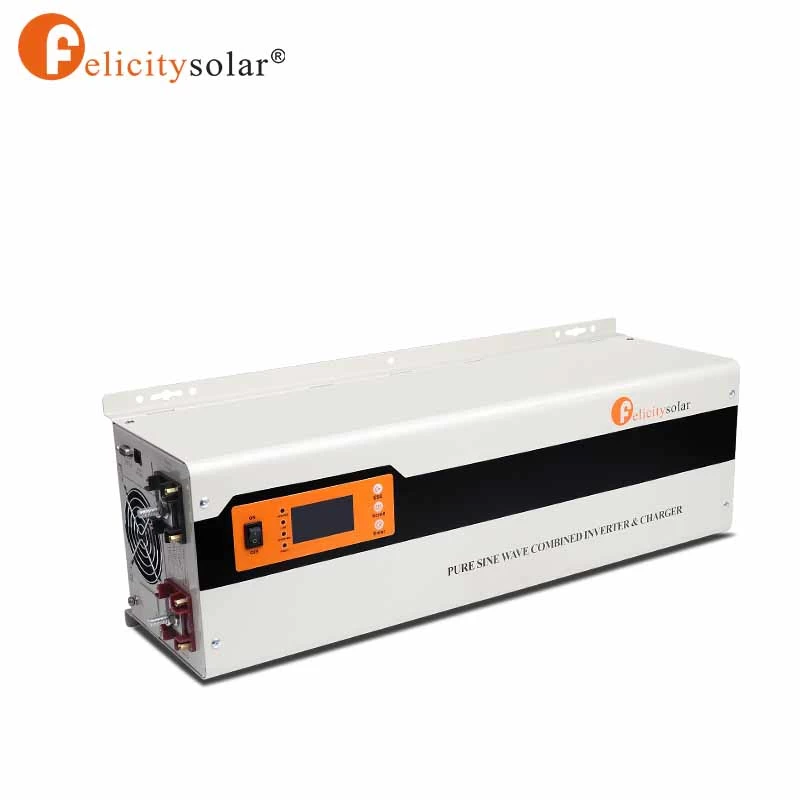

Inverter
|
Pure Sine Wave Inverter 5000VA 48V * 1PCS
|
|

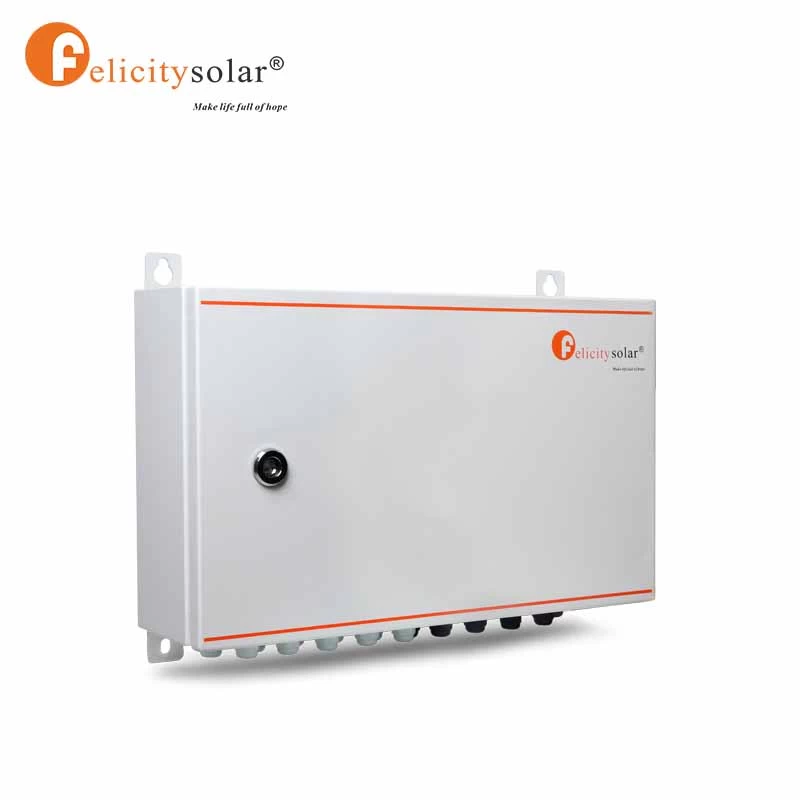

Photovoltaic Box
|
8 Combine 1 Photovoltaic Box* 1PCS
|
|
Battery Box
|
8PCS battery in 2 battery Box
|
|
PV Copper Wire
|
FL-POWER-5000VA 48V:
6MM² 20M 2 pcs; 6MM² 1M 2pcs; 16MM² 0.8M 3 pcs; 16MM² 0.2M 2 pcs
|

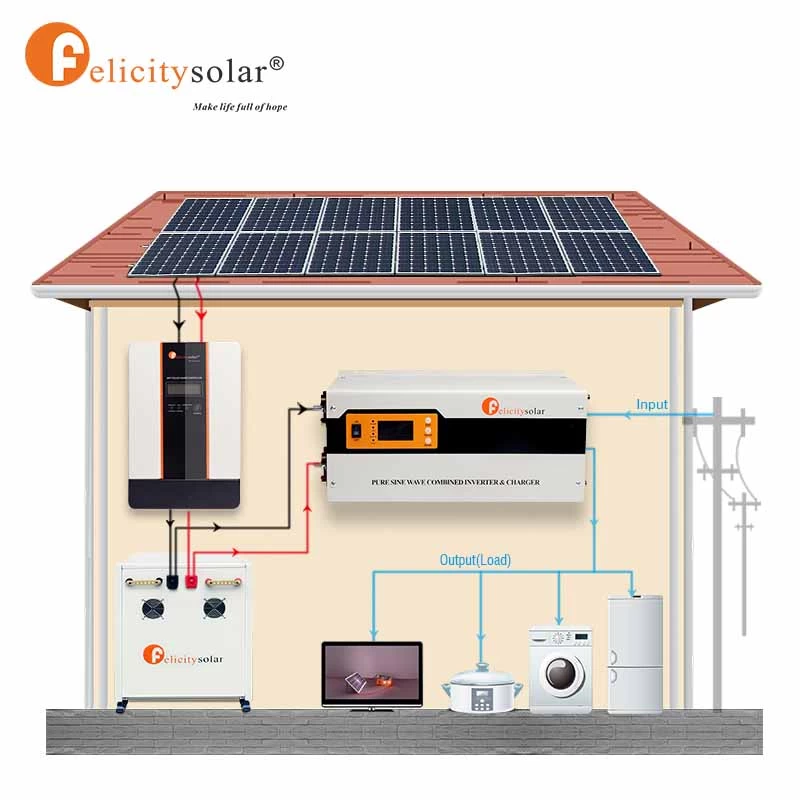

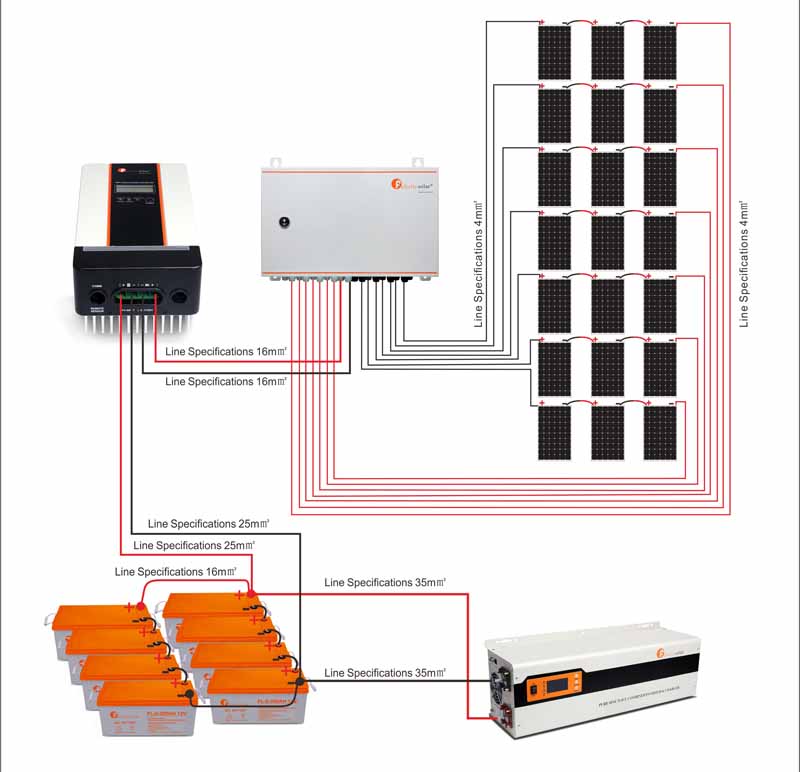

System Connection Diagram
Panel： 3 in series 7 in parallel
Battery：4 in series 2 in parallel
FAQ
Q: How can I choose a solar power system for use?
A:Your total electrical demand (or 'load') can be calculated by your installer. You will need to provide them with information such as the number of lights, appliances etc. Then according to your requirement, we can calculate a suitable for you.
Q: How can I install a solar power system by myself?
A: Felicitysolar solar power system is easy to install, we can provide the connection diagram for you.
Q: What can affect the amount of solar energy received?
A: The strength of the solar energy available depends on the time of year, the time of day, and the latitude of the generation point. The amount of energy generated can be further affected by the amount of dust and water vapour in the air, and the amount of cloud cover.
