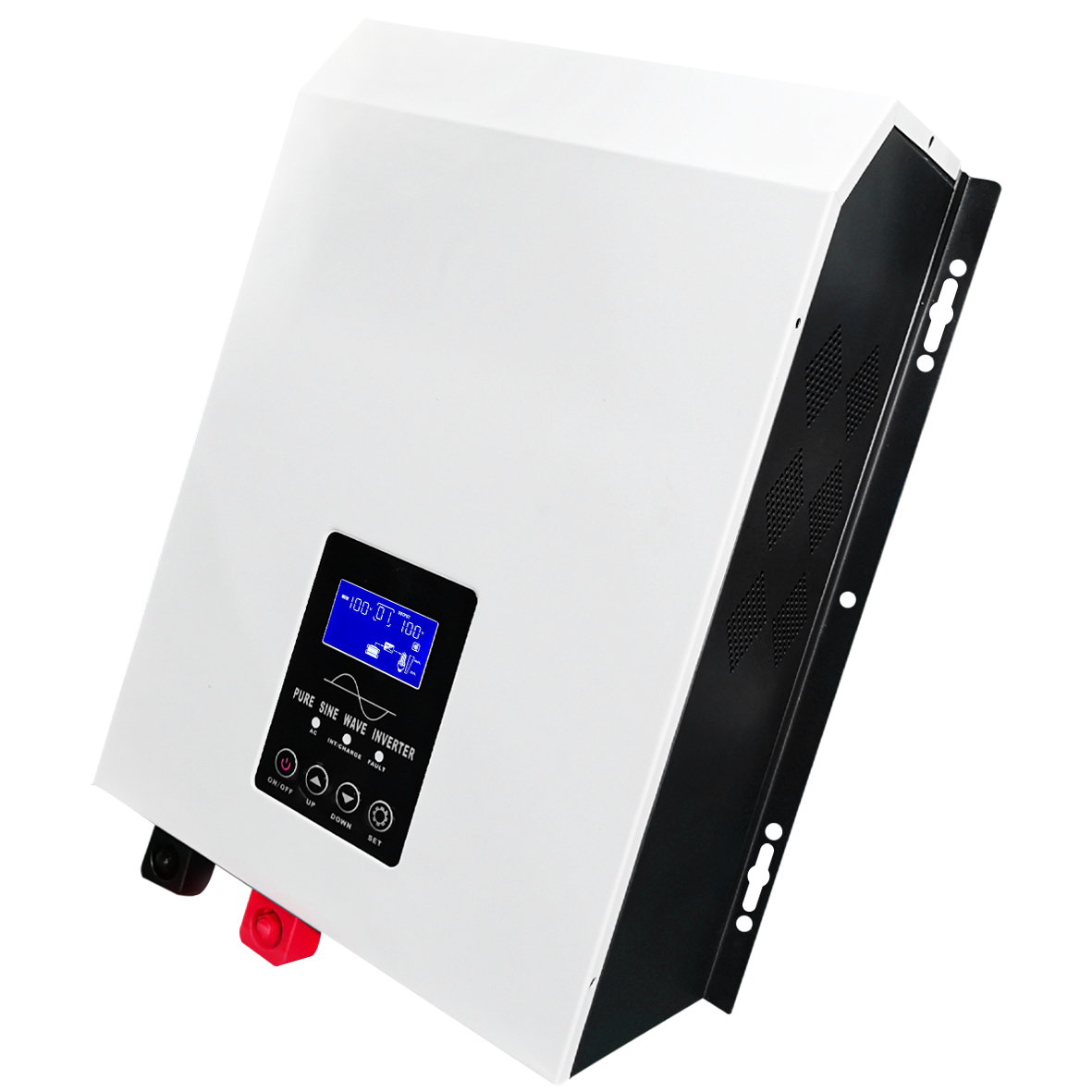

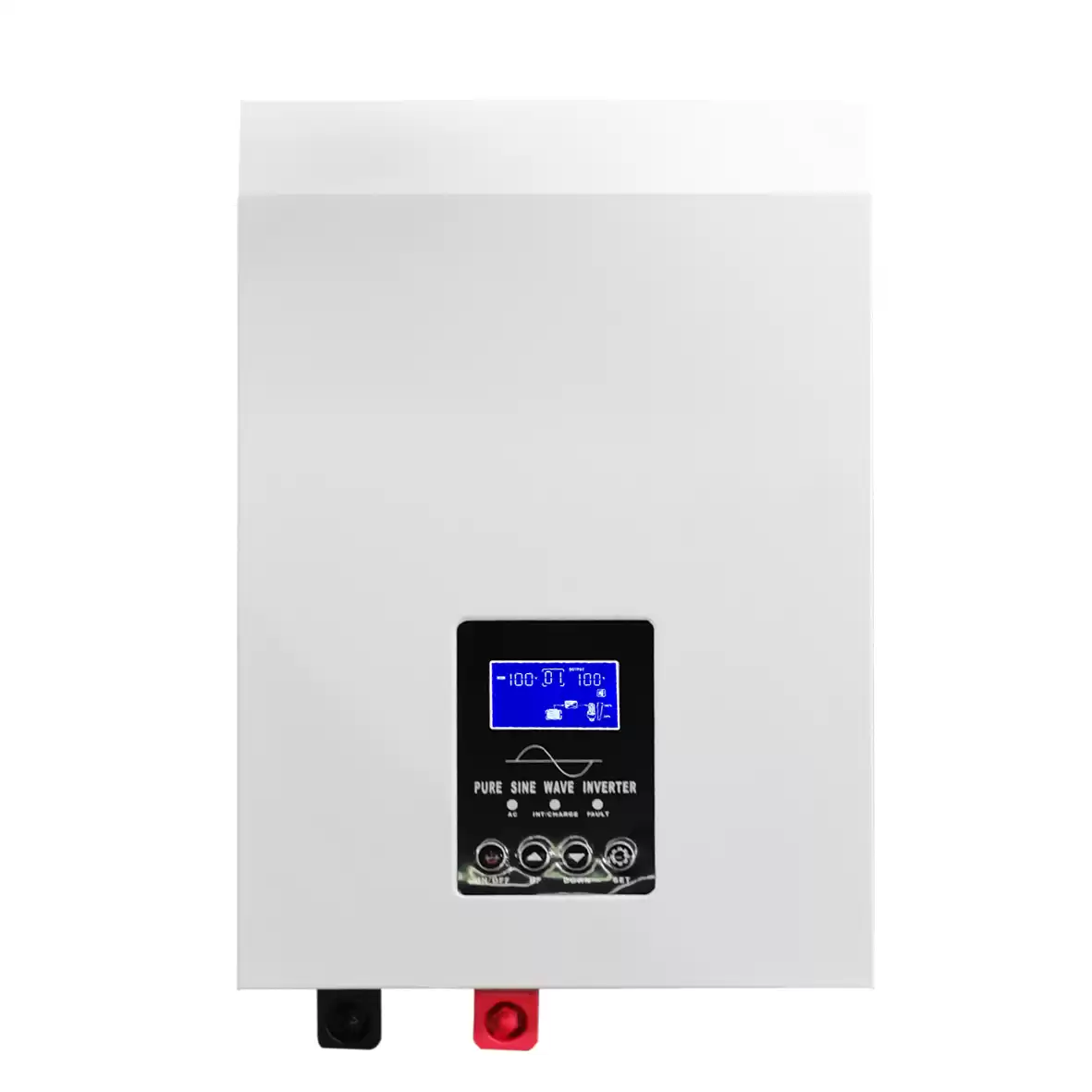

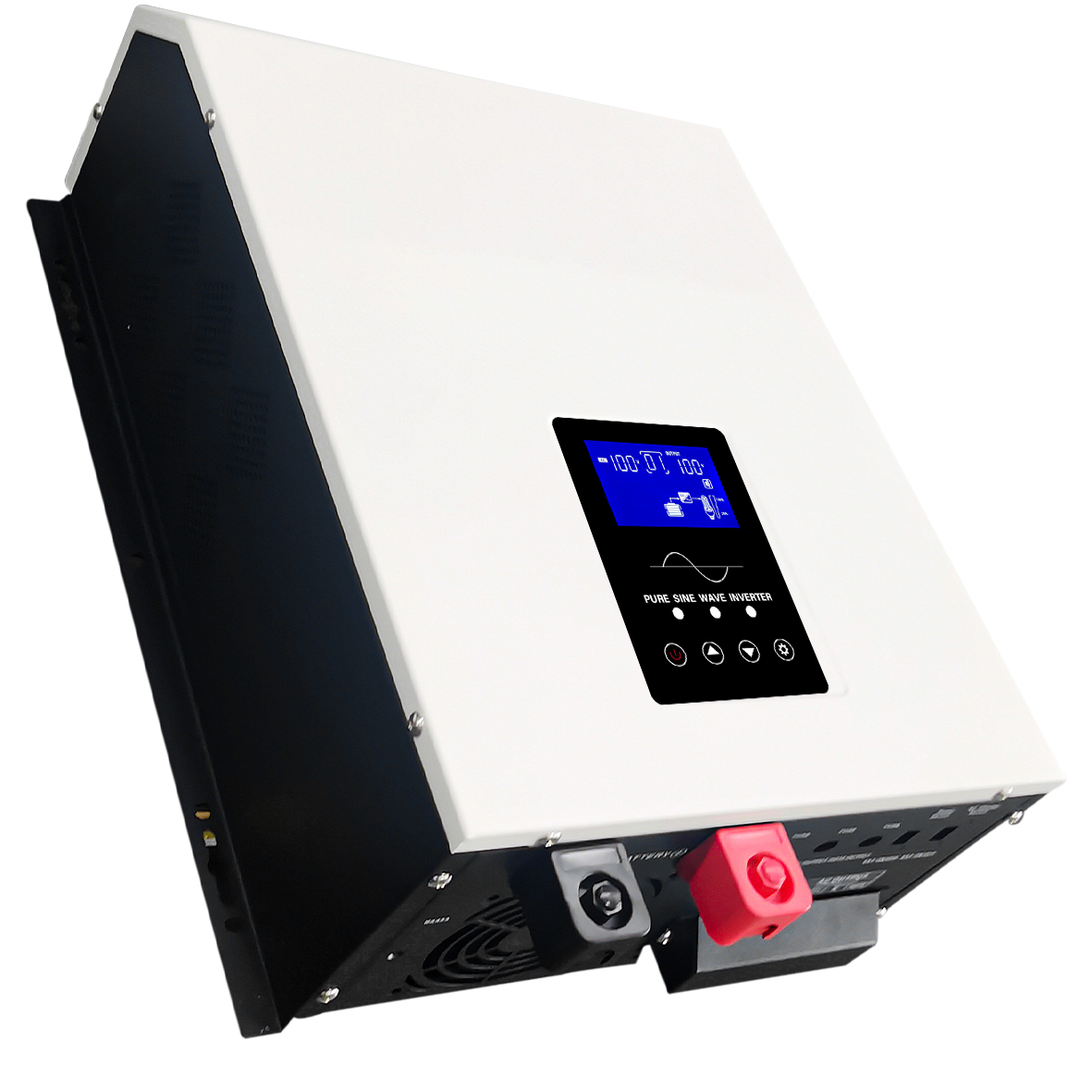

5kw Split Phase Inverter 120v 240v Pure Sine Wave Hybrid Solar Charge Controller for Power Inverter
Feature:

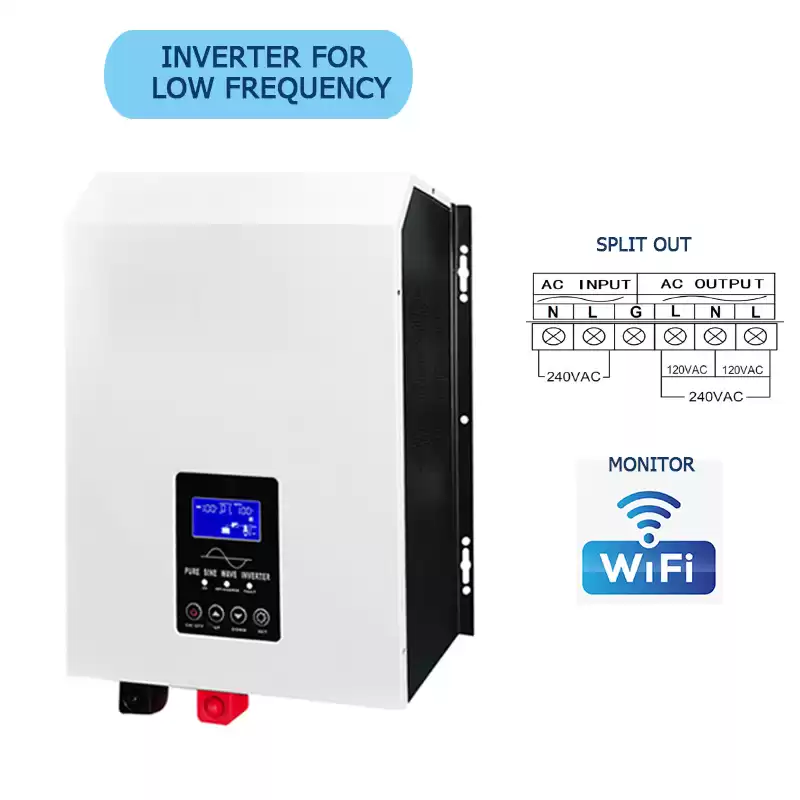

※Pure sine wave output，split phase output
※Rated power 1000W to 12000W
※Built in MPPT or PWM solar
controller
※Can choose different types of
batteries
※Against overload, short-circuit
Protection
※High-low voltage protection
※Over voltage, battery reverse
connection(optional)
※Under-voltage and
over-temperature protection
※Selectable battery priority or
utility priority
※Have UPS function and 35A AC
charger function
※LCD display inverter and solar information
Introduction:
This is a pure sine wave Split Phase Output inverter with AC big current charge,LCD display offer users-configurable and clear data .
Easy-to-operate button operation such as battery type and Battery or city power priority, battery voltage, load ,Input and output voltage query.
It can use for solar power system ,light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, communication equipment and the other house appliance
Specification：
|
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|
12VDC/24VDC/48VDC
|
24VDC/48VDC/96VDC
|
48VDC/96VDC
|
|
Inverter Output
|
Rated power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|
Surge rating (20ms)
|
3000W
|
6000W
|
9000W
|
12000W
|
15000W
|
18000W
|
24000W
|
30000W
|
36000W
|
|
Capable of starting electric Motor
|
0.5HP
|
1HP
|
2HP
|
2HP
|
3HP
|
3HP
|
4HP
|
5HP
|
6HP
|
|
Wave form
|
Pure sine wave/ Same as input (AC mode)
|
|
Nominal output voltage RMS
|
110/120VAC (L-N) & 220/230/240VAC (L- L) ± 10RMS
|
|
Output frequency
|
50Hz60Hz±0.3Hz
|
|
Inverter efficiency(Peak)
|
>85%
|
|
Line mode efficiency
|
>95%
|
|
Typical transfer time
|
8ms(Max)
|
|
Built-in AVR stablizer(AC voltage)
|
110/120/220/230/240VAC
|
220/230/240VAC
|
--------------------
|
|

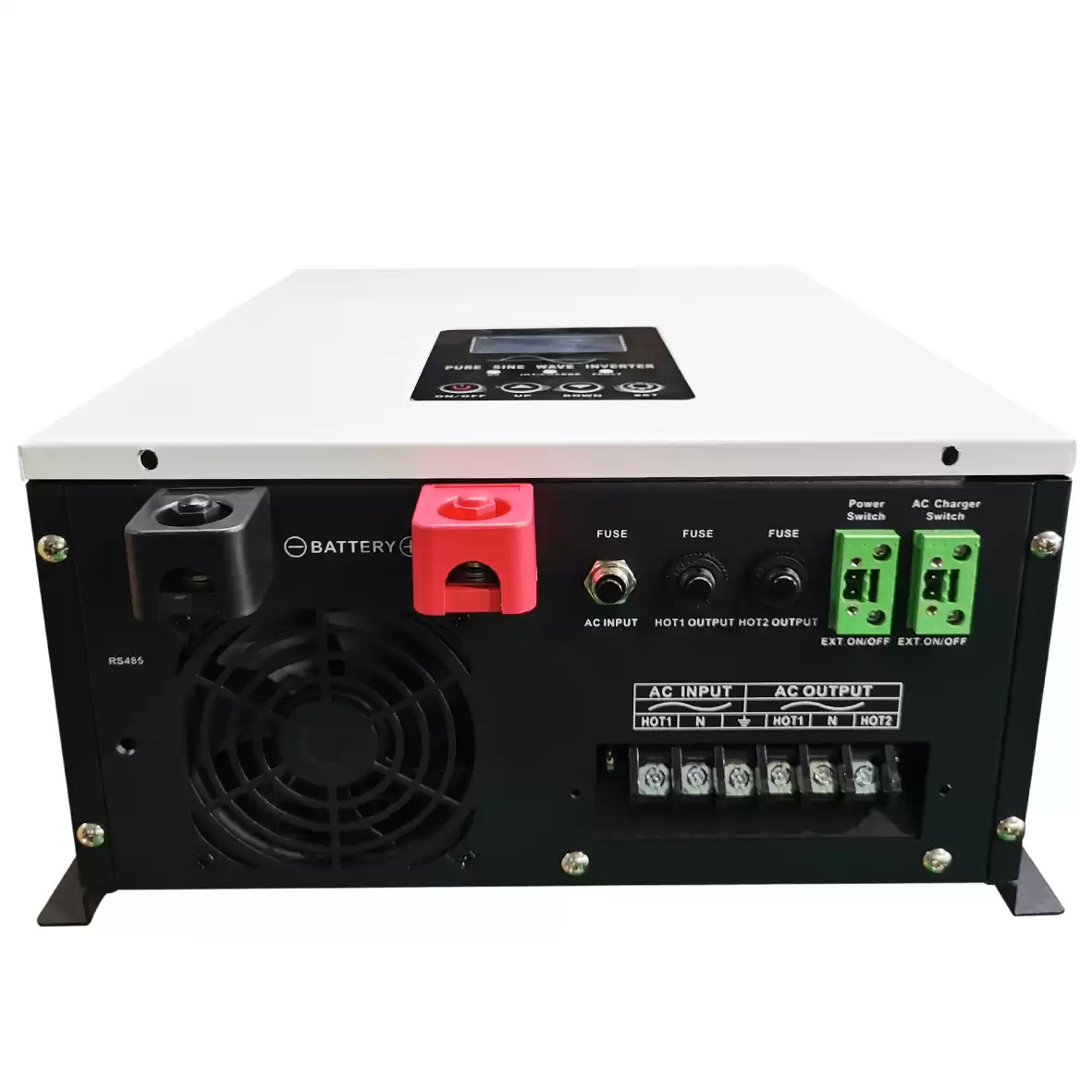

AC Input
|
Voltage
|
110/120VAC (L-N) & 220/230/240VAC (L- L) ± 10RMS
|
|
Selectable voltage range
|
85-138VAC(AC:110)
170-275VAC(AC:220)
|
180-260VAC(AC:220)
|
|
Frequency range
|
50Hz:45-65Hz 60Hz:55-65Hz
50Hz/60Hz(Auto sensing)
|
|
Battery
|
Low battery
protection
|
10VDC±0.3V (12VDC); 20VDC±0.3V (24VDC); 40 VDC±0.3V (48VDC); 80
VDC±0.3V (96VDC)
|
|
Low battery cutoff
|
10.5VDC±0.3V (12VDC); 21VDC±0.3V (24VDC); 42 VDC±0.3V (48VDC);
84VDC±0.3V (96VDC)
|
|
High Battery alarm
|
15VDC±0.3V (12VDC); 30VDC±0.3V (24VDC); 60 VDC±0.3V (48VDC); 120
VDC±0.3V (96VDC)
|
|
High Battery protection
|
16.5VDC±0.3V (12VDC); 33VDC±0.3V (24VDC); 66VDC±0.3V (48VDC);
132VDC±0.3V (96VDC)
|
|
AC Charger
|
Maximum charge
current
|
0-35A(Set by yourself)
|
|
Protection
|
Over load
protection
|
Rated power over 110%; shut down automatically
|
|
Temperature protection
|
Built-in temperature sensor real-time induction; ≥85 alarm;
≥85 shut down the whole machine
|
|
Short circuit protection
|
Automatic Shutdown
|
|
Solar Charge Controller
|
Max solar
charging current
|
30A; 40A; 50A; 60A; 80A
|
50A; 60A; 100A; 120A
|
|
Voltage
|
12V; 24V; 48V; 96V
|
|
Max PV input power
|
12V-30A:360W; 12V-50A:600W; 12V-60A:720W; 12V-80A:960W;
12V-100A:1200W; 12V-120A:1440W
|
|
24V-30A:720W; 24V-50A:1200W; 24V-60A:1440W;
24V-80A:1920W; 24V-100A:2400W; 24V-120A:2880W
|
|
48V-30A:1440W; 48V-50A:2400W; 48V-60A:2880W;
48V-80A3840W; 48V-100A:4800W; 48V-120A:5760W
|
|
96V-50A:4800W; 96V-60A:5760W; 96V-100A:9600W;
96V-120A:11520W
|
|
PV array MPPT voltage range
|
12V:18V-100V; 24V:36V-100V; 48V:72V-150V; 96V:144V-280V
|
|
Peak conversion efficiency
|
>99%
|
|
Other
|
Mounting
|
Wall mount
|
|
Display
|
LCD+LED
|
|
Cooling fan
|
Intelligent fan cooling system
|
|
Audible noise
|
<60dB
|
|
Coommunications
|
RS-232; SNMP(Optional）
|
|
Operation temperature range
|
-10℃~70℃
|
|
Storage temperature
|
-10℃~60℃
|
|
Packing
|
Product
size(L*W*H)
|
510*325*215
|
645*325*215
|
765*320*250
|
|
Packing size(L*W*H)
|
580*385*270
|
725*410*290
|
840*405*320
|
|
Net weight(Kg)
|
16
|
19
|
22
|
31
|
33
|
35
|
55
|
61
|
67
|
|
Gross weight(Kg)
|
18
|
21
|
24
|
34
|
36
|
38
|
59
|
65
|
71
|

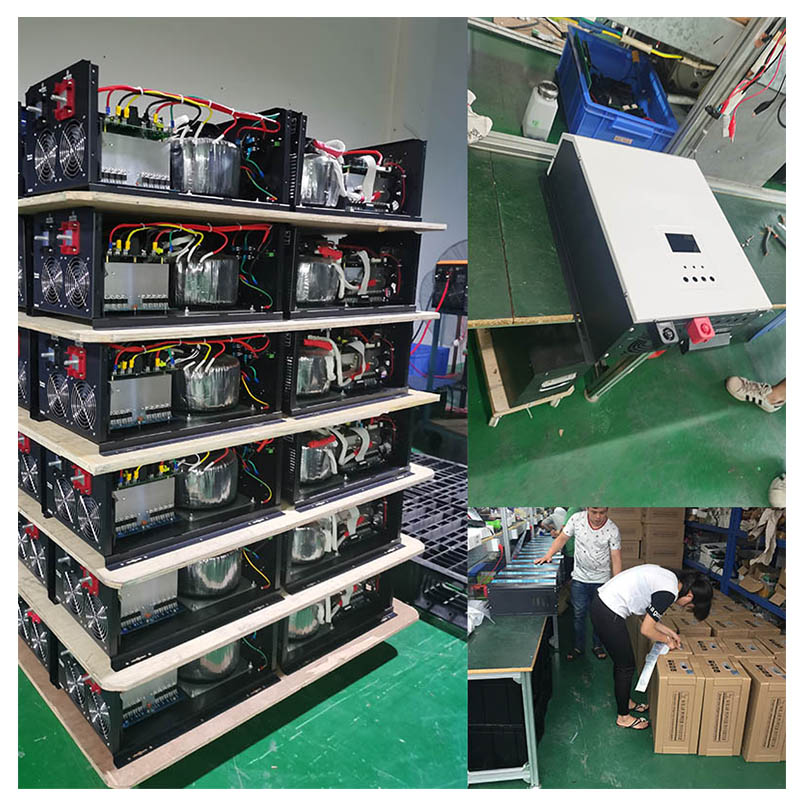

Packing:
Projects：
