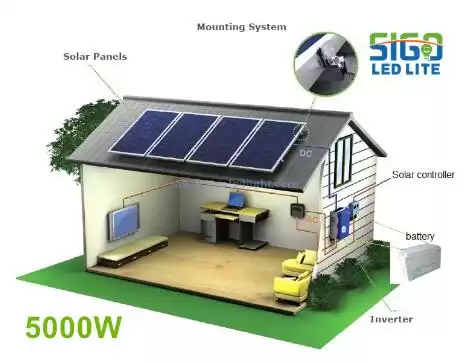

5KW Off Grid Solar System for Home and Factory Use
Features of 5KW off grid solar system kit
Solar Panels
● 500W mono solar panel.
● Multi-grid design can effectively reduce the risk of cracking and fracture.
● We use the anti-reflective glass with self-cleaning function, module efficiency is increased by 2%. New generation of polycrystalline series, high efficiency power output by reducing resistance loss.
● High efficiency 144 cells half cell MBB, high conversion up to 21%.
● Junction box: IP68
● Dimension:2279*1134*35m, weight: 23.9KG
● The advantages of solar panels.
Long service life, sustainable energy, save your money, environmentally
Hybrid of Inverter
● Pure sine wave inverter: DC 24V input, 220V(single phase ) output, use copper transformer, bypass function with AC charger.
● Using off grid inverter: stable performance, low interference and high impact resistance.
● MPPT charging way: charging efficiency up to 90%-95%, intelligent control, temperature compensation.
● Various protection functions: under-voltage, over-voltage, overload, high temperature, short circuit and other multiple protection functions, to protecting the safety of electricity.
PV Array Combiner
● 24V PV strings inputs simplify wiring between PV array and inverter, wide range of DC input voltage,thunder and lightning protection.
● Anti-backflow protection: while no sun at night, the battery electricity will backflow to the solar panel, to protect the solar panel from damage.
Lithium battery
● Battery type: LiFePO4, 100% deep discharge cycle, especially suitable for cyclic use, the life of the battery is higher than ordinary batteries, effectively improving the reliability of the system.
● Wide application: can be used in the temperature of -40℃-60℃.
Panel Rack
● Flexible installation, horizontal and vertical rows can be easily achieved.
● Ground rack installation including complete fittings (other slope rooftop of rack type can be customized as your requirement ).
PV Cables
● Specialized photovoltaic cable with special irradiation treatment, can be used outdoors for more than 25 years.
● Photovoltaic adapters, waterproof IP67 rate

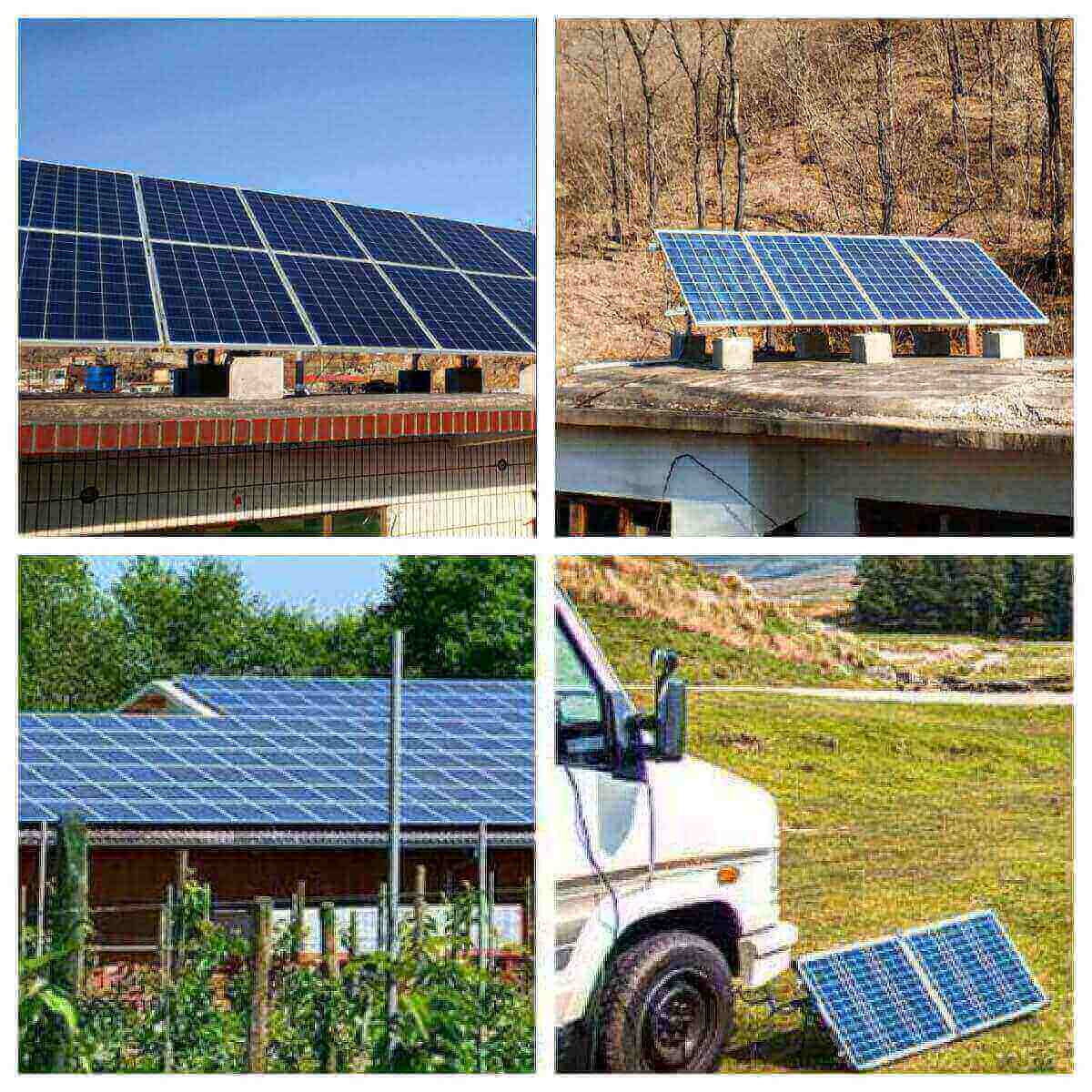

Application of customized 5KW off grid solar system
FAQ
- What’s an off-grid solar system?
Off-grid means that the system works independently and the consumer is not connected to any utility's electrical system. This system uses batteries to store the solar energy generated.
To ensure that power is available at all times, off-grid solar systems require battery packs and backup generators (if you live off-grid).
Off-grid solar systems (off-the-grid, stand-alone) are an obvious alternative to grid-tied solar systems.
- The advantages of an off-grid system.
1. you become completely independent of the external energy supply
2. you can combine different energy sources such as photovoltaic, wind and hydropower
3. You can expand or change your system at any time in a modular way
- About the sample policy.
Samples are available for each model. Once payment is received, they can be ready within 1-5 days.
- What is the lifespan of off-grid batteries?
The lifespan of a residential solar off-grid battery is between 5 to 15 years. If you decide to install solar battery today, it is almost certain that you will need to replace the battery in the future to match the 20 to 30 year life of your solar off-grid power system.
