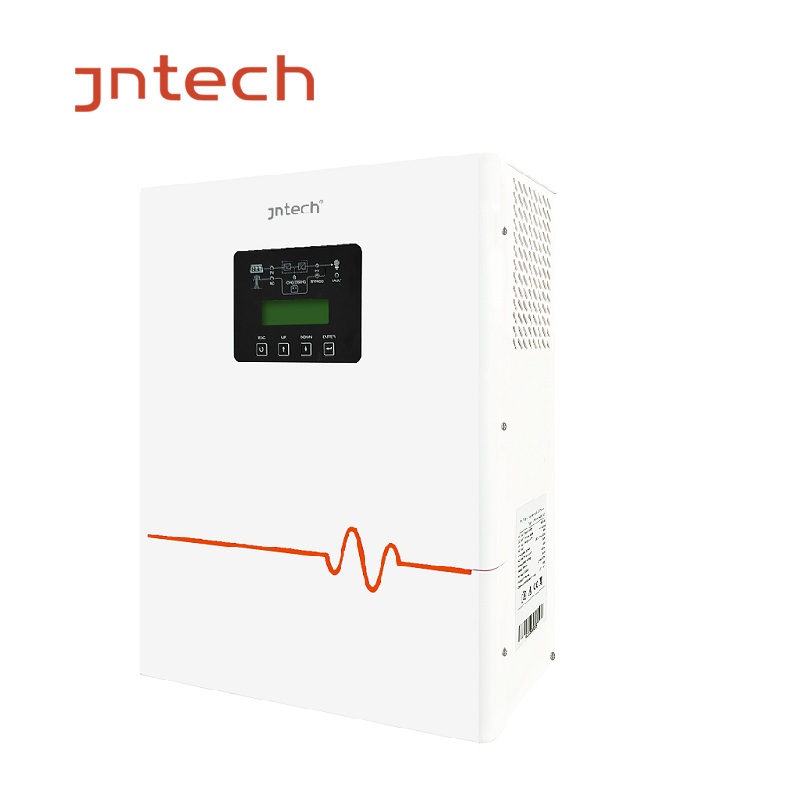

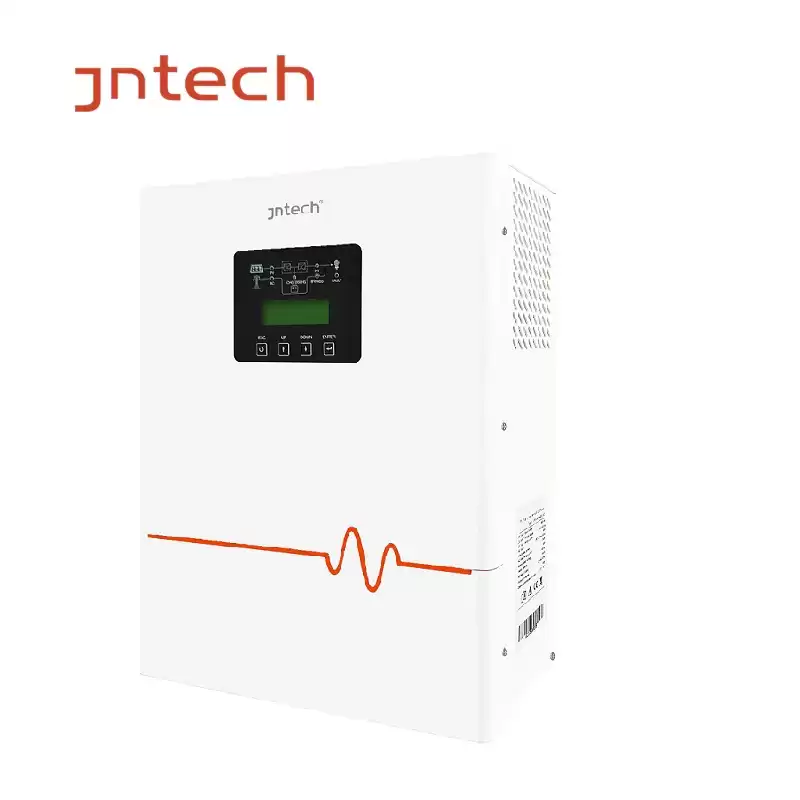

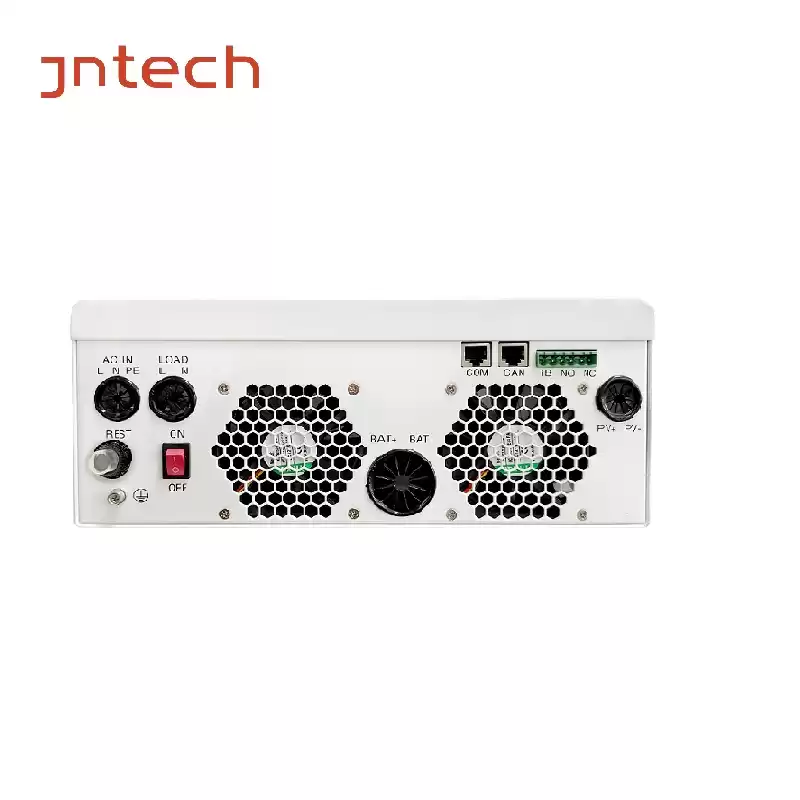

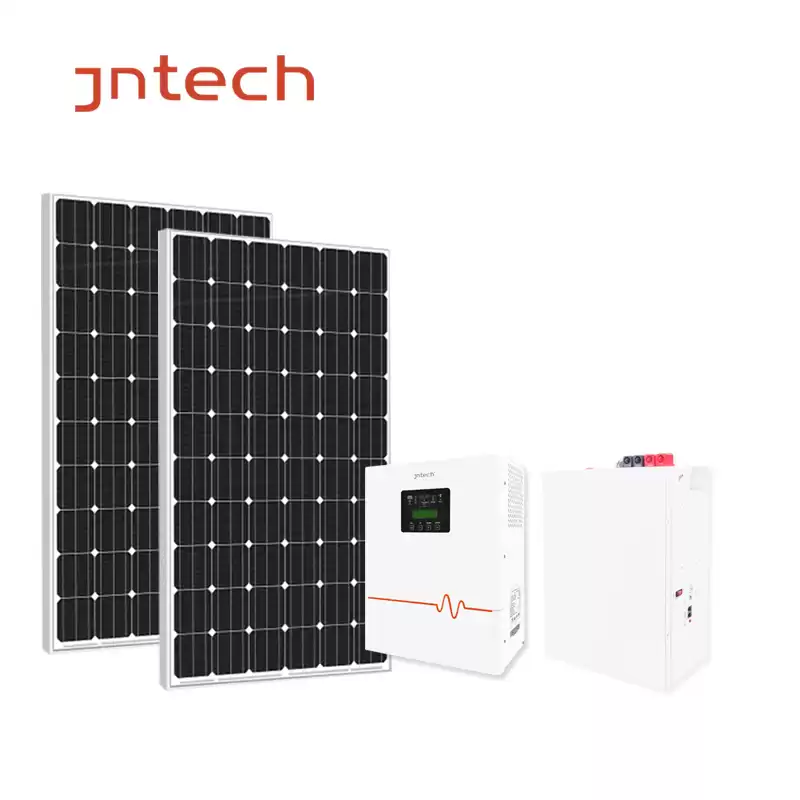

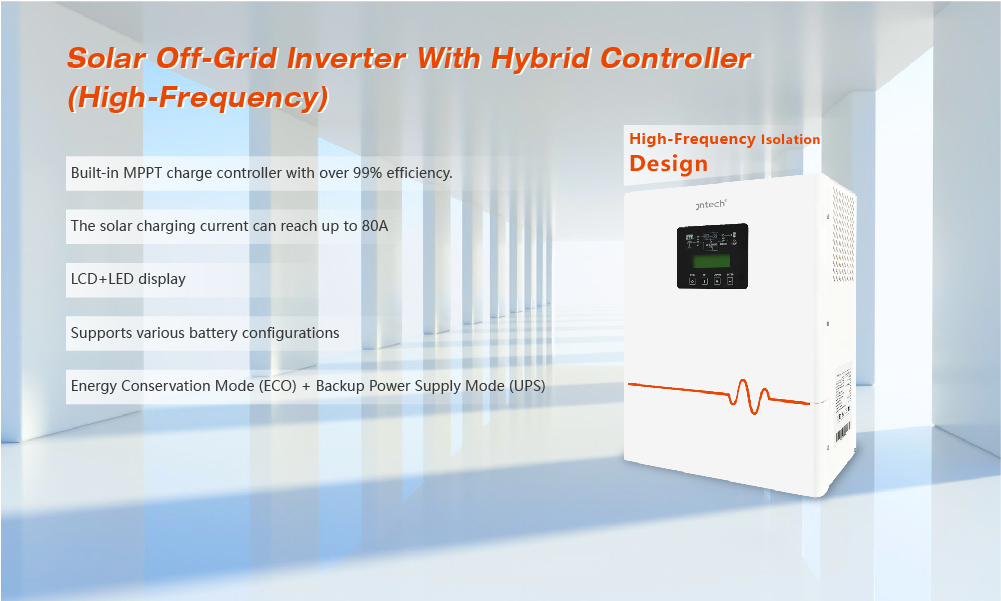

5kW Solar Off Grid Energy Storage System
1.Pure sine wave solar inverter;

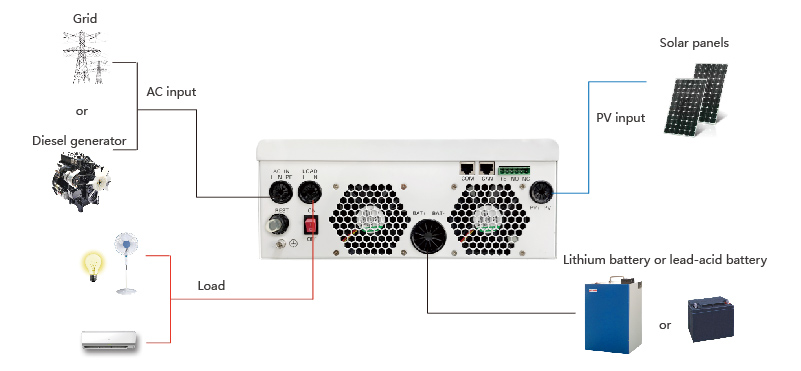

2.AC input source is compatible with power grid and diesel engine, intelligent control;
3.Advanced energy management system, which can adapt to different application scenarios;
4.There are power saving mode (ECO) and backup power supply (UPS) mode;
5.The switching time between bypass and inverter is less than 10ms, so as to realize fast switching;
6.Wide range of photovoltaic input voltage;
7.Built in MPPT charging controller, MPPT efficiency is more than 99%;
8.The maximum photovoltaic charging current is 80A, and the utilization rate of photovoltaic is higher;
9.The charging current can be set to protect the battery and extend the battery service life;
10.The battery is equipped in various ways, and colloidal or lithium batteries are optional;
11.The intelligent speed regulation of the cooling fan in the product can extend the service life of the fan.
|
Model
|
JNF5KHF48V-V1
|
|
PV input
|
|
Max. input DC voltage
|
480Vdc
|
|
Recommended input power
|
7000W
|
|
MPPT working voltage range
|
150~450Vdc
|
|
Battery
|
|
Rated voltage
|
48Vdc
|
|
Max. charging current
|
80A
|
|
Max. charging efficiency
|
≥97%
|
|
Battery
|
Gel/lithium
|
|
AC input and bypass output
|
|
Voltage and frequency
|
230Vac±20%,50/60Hz (±3%)
|
|
Max. charging current
|
60A
|
|
Switching time
|
≤10ms
|
|
Inverter output
|
|
Rated output capacity
|
5000VA
|
|
Peak output capacity
|
15000VA
|
|
Rated output power (linear load)
|
5000W
|
|
Output voltage
|
220Vac OR 230Vac
|
|
Rated frequency
|
50/60Hz (±3%)
|
|
Standby loss
|
≤10W
|
|
Max.efficiency
|
93%
|
|
Wave form
|
sine wave
|
|
Total harmonic distortion
|
<3%
|
|
Overload
|
5s@≥130% load;10s@ 105%～130% load
|
|
Machine parameters
|
|
Size(W/H/D)
|
315mm*430mm*120mm
|
|
Weight
|
10Kg
|
|
Other parameters
|
|
Protection level
|
IP21
|
|
Noise
|
<60dB
|
|
Cooling method
|
Forced cooling
|
|
Working temperature
|
-20～+50℃
|
|
Storage temperature
|
-25～+70℃
|
|
Display mode
|
LCD+LED
|
|
Communication interface
|
RS485
|
|
Altitude
|
2000m(>2000m derating operate)
|
