5L Electric Vacuum Mixing Machine with Single Axis Helical Blade
Product Specification
1 TOB-SFM-6E vacuum mixing machine is designed for making chemical compound via blending and mixing in single container under vacuum driven by electricity only.
2 The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
3 The TOB-SFM-6E vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Vacuum mixing machine TOB-SFM-6E
|
|
Features
|
5 liter 304 stainless steel container with double layer water cooling jacket.
(2-5Liters mixing tank can be customized)
Advanced T type sealing to keep vacuum pressure up to 12 hours.
Double Step Rotary Vane Vacuum Pump, is included for immediate operation
Container is opened or closed by electric motor (no air pump is required any more)
Programmable controller to set time, speed, rotation direction.
|
|
Voltage
|
110/220 AC single Phase, 50/60Hz
|
|
Rate Power
|
750 W
|
|
Rotor Rod Speed
|
0 -1400 RPM variable
|
|
Lifting
|
Electric motor ( no compress are pump required any more )
|
|
Water Requirement
|
16 L/min water flow required to cool mixing tank
Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket)
Suggest you order recirculating water chiller by to save water
（water chiller is not included)
|
|
Vacuum Pump
|
Double Step Rotary Vane Vacuum Pump, is included
Vacuum gauge is built in with minimum vacuum level -0.1 MPa
|
|
304SS Container Size
|
About : Dia 215*Height 200mm
|
|
Dimensions
|
550mm(L) *320mm(W) *1300mm(H)
|
|
Net Weight
|
About 100 kg
|
|
Warranty
|
One year limited warranty with lifetime support
|

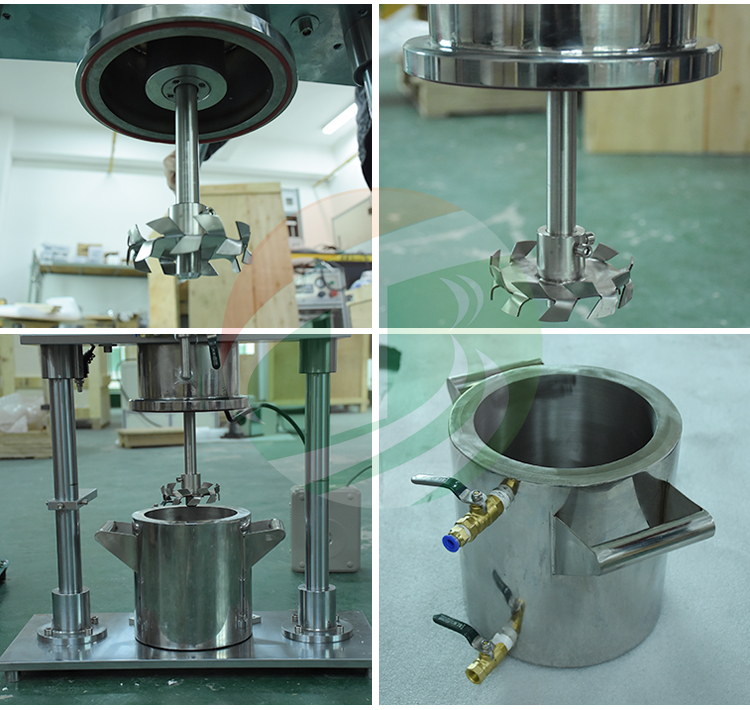

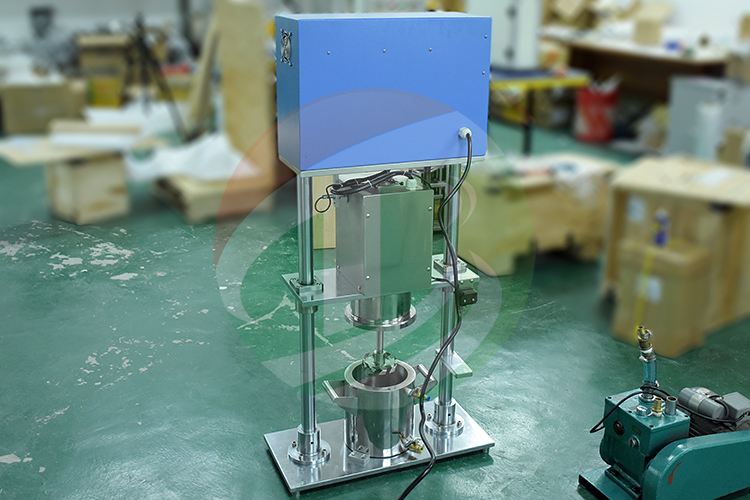

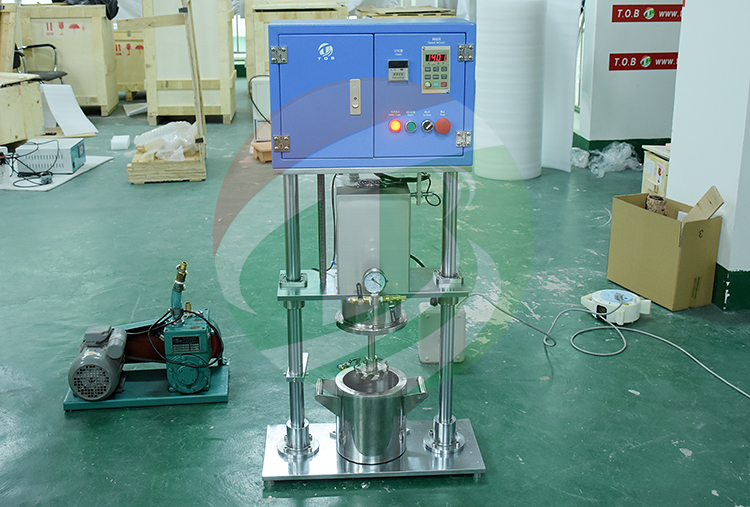

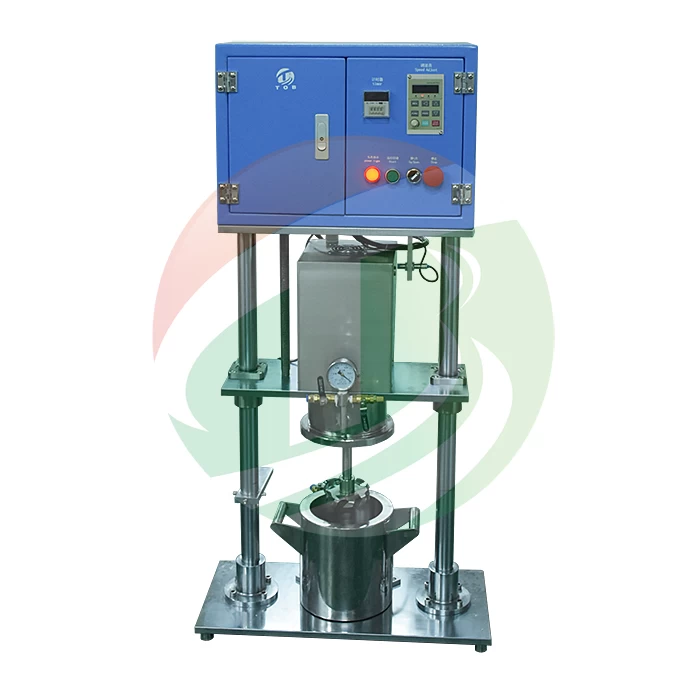

Product Image
Packing
