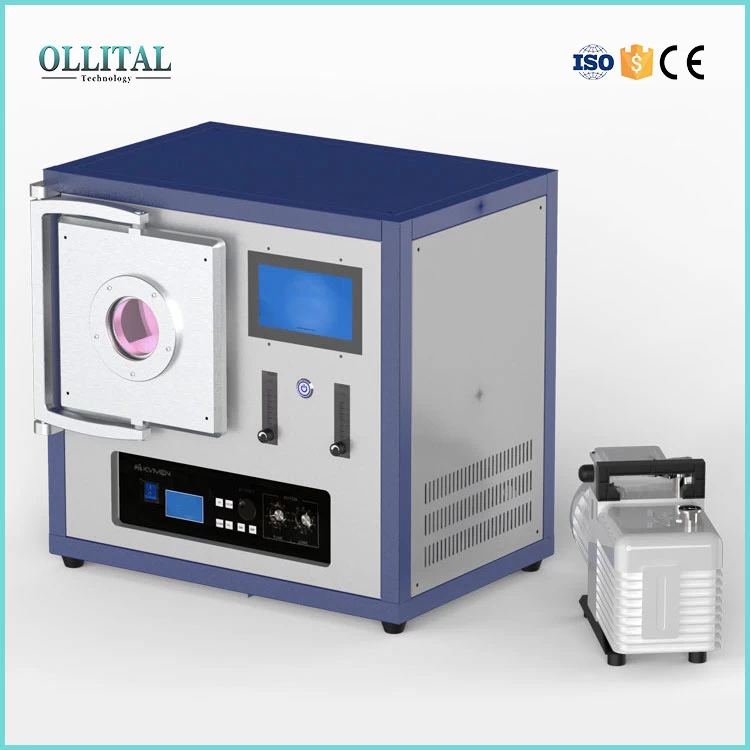

5L lab Plasma Cleaner With Stainless Steel Chamber
Model
|
OLT-PS-5L
|
|
Power supply:
|
AC108V-240V
|
|
Working current:
|
Total working current not higher than1.2A (Not include the vacuum pump)
|
|
RF Power:
|
200W
|
|
Radio frequency:
|
13.56MKHZ(offset less than 0.2Hz)
|
|
Frequency offset
|
Less than 0.2KHz
|
|
Characteristic impedance:
|
50 Ohm,Automatic matching
|
|
Vacuum degree:
|
30Pa—100Pa
|
|
Gas flow:
|
10—100ml/min(Adjustable)
|
|
Process Control:
|
MCU Automatic and manual mode
|
|
Cleaning time:
|
1-6000 secds adjustable
|
|
Power supply:
|
10%-100% Adjustable
|
|
Inside chamber size
|
150mm×270mm
|
|
Outside dimension:
|
480*390*350mm
|
|
Weight:
|
45Kg
|
|
Vacuum chamber temperature
|
Less than 65°C
|
|
Cooling type:
|
Forced cooling
|
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
