5L Small Magnetic De-ironing Filtration System for Battery Electrode Slurry
SPECIFICATIONS

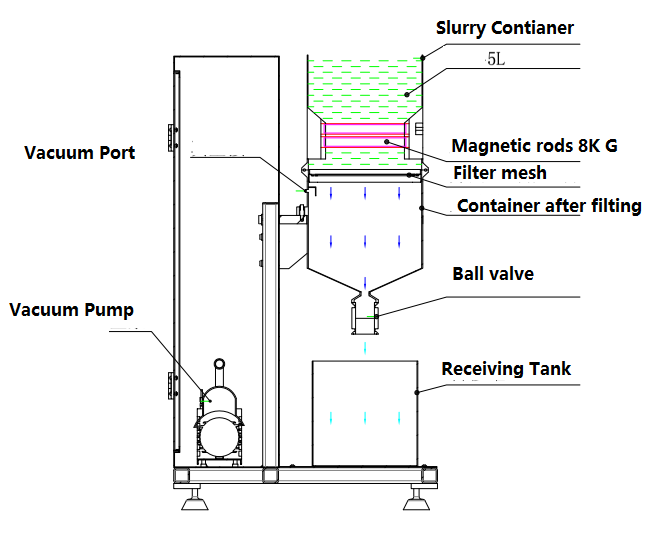

TOB-LB-FT02 is a CE Certified magnetic de-ironing filtration system. This Lab de-ironing filter designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
|
Model
|
TOB-LB-FT02
|
|
Voltage supply
|
110Vac - 240Vac universal power
|
|
Power
|
50W
|
|
Working Temperature
|
<=40°C
|
|
Process Capacity
|
5L
|
|
Magnetic Field Strength
|
8000 G
|
|
Filter
|
3 mesh filters: 80, 100, 120
|
|
Structure
|
Containers Made of Stainless Steel 304
|
|
Slurry Viscidity
|
<=15000CP
|
|
Humidity
|
0-90%RH
|
|
Deironing Function
|
8000-10000 GC
|
|
Overall Dimensions
|
500mm(L) x 300mm(W) x 850mm(H)
|
|
Shipping Weight & Dimension
|
130 lbs, 48"x40"x43"
|
|
Compliance
|
CE Certified
CE, TUV, UL, CSA certified in power supply
Machine is safe 24VDC input,which can be used without any safety certification
|
|
Warranty
|
One year limited with lifetime support
|
STANDARD PACKAGE LIST
|
Item
|
Qty
|
|
Magnetic De-ironing Filtration System (5L) for BatteryElectrode Slurry
|
1 set
|
|
Receiving tank for Battery Electrode Slurry
|
1 pcs
|
|
Slurry Container
|
1 pcs
|
|
80,100,120 Filter mesh
|
3 pcs
|
|
Operating manual
|
1 book
|

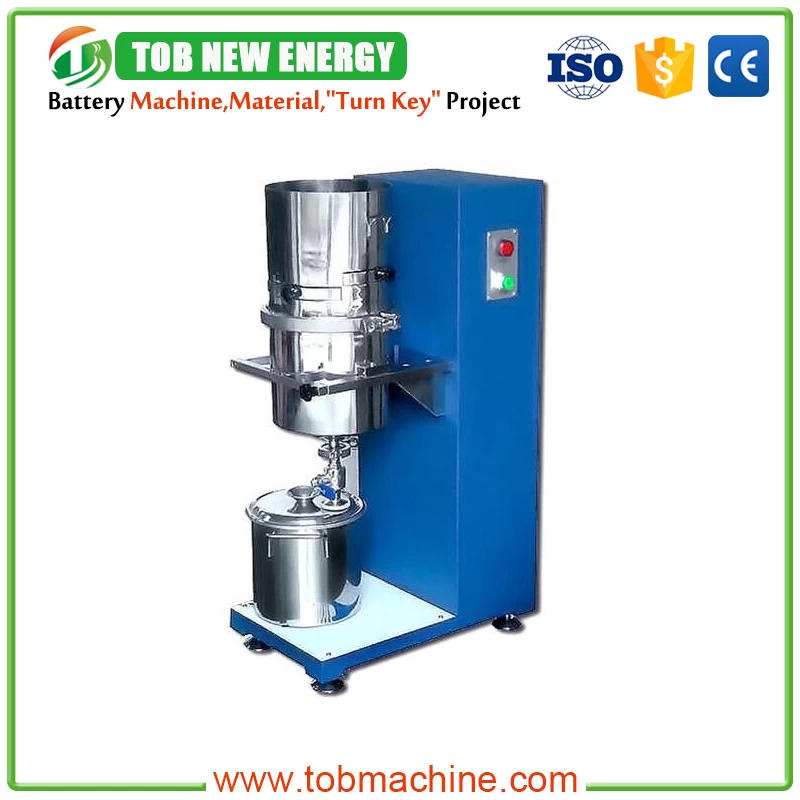

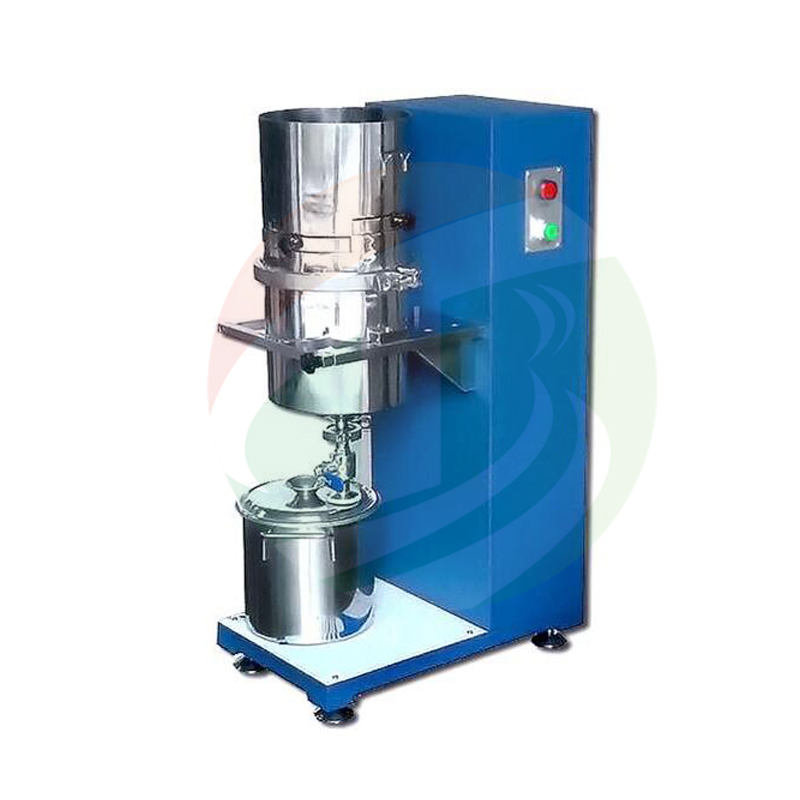

PRODUCT DISPLAY
