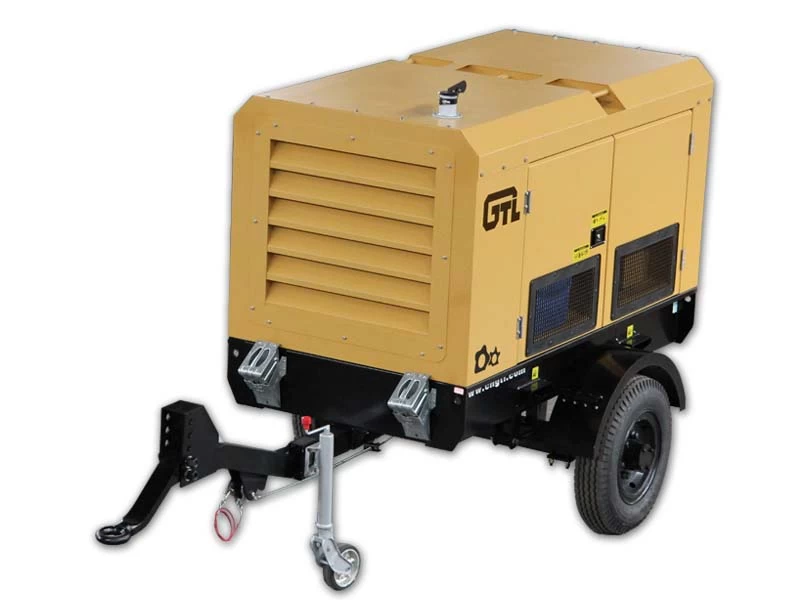

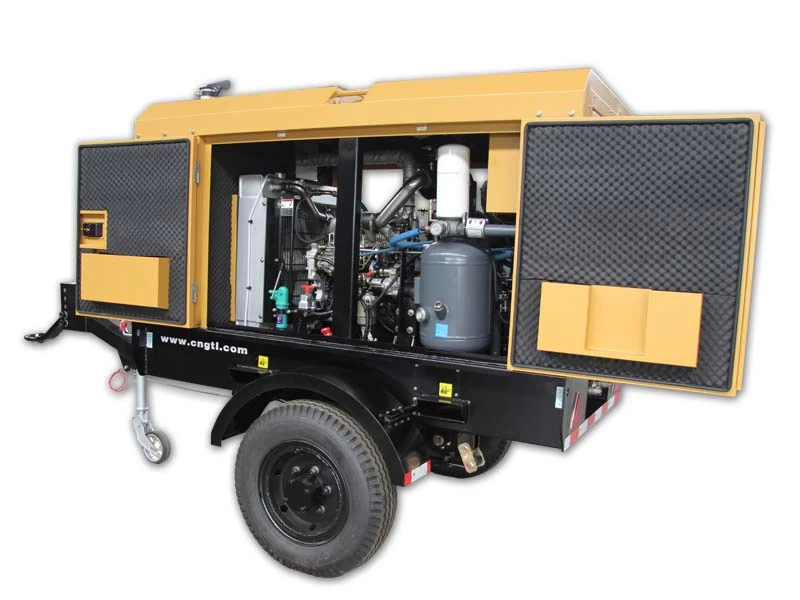

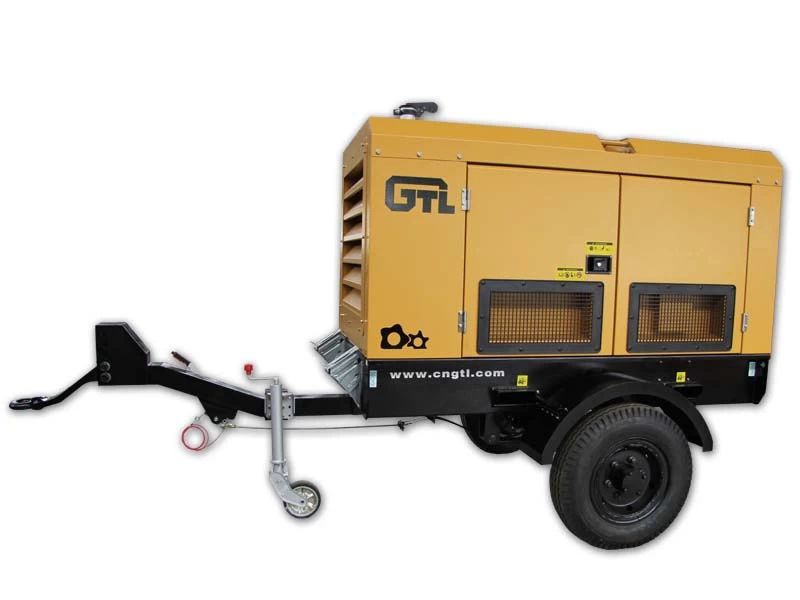

5m³ 7bar Diesel Screw Air Compressor with trailer
GTL Screw Air Compressor Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, clothing industry,pipeline pressure test, public works, etc.
| Name of produce | Screw Air Compressor with trailer | |
| Place of Origin: | Xiamen, China | |
| Type: | Screw | |
| Colour | customer's color | |
| Warranty time | 24 months or 2000 hours | |
| Air delivery | m3/min | 5 |
| cu.ft/min | 182 | |
| Discharge pressure | bar | 7 |
| psig | 101.5 | |
| Manufacture Model | FOXAIR & 4JB1T | |
| Capacity of pressure reservoir (L) | 20 | |
| Cylinder Number | 4 | |
| Displacement (L) | 2.779 | |
| Rotation speed | Rated speed | 2200 |
| Idle speed (r/min) | 1400 | |
| Rated power (KW [HP] | 52 | |
| Lubricating Oil ( L ) | 6.5 | |
| Fuel capacity ( L ) | 90 | |
| Voltage of battery | 12V | |
| Cooling method: | Water Cooling | |
| Pipe size No. | 3/4" *2pcs | |
| Dimension mm | 2080*1020*1675 | |
| Weight |
1565kg |
|
