5m3

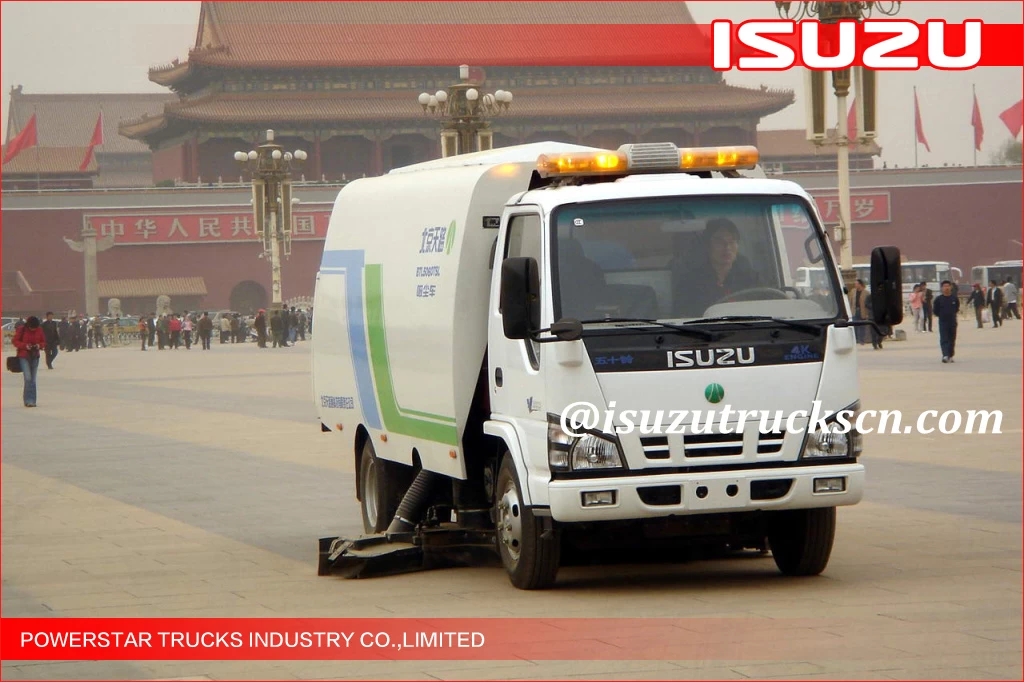

Pure Vacuum Suction Sweeper Isuzu Dirty suction Vehicle
Description:
Our new Vacuum
Suction Sweeper truck changes the traditional mode for a past motor sweeper to
brush and sweep with its disc brush rolling, entirely adopts air current to
complete an operation, and makes use of air current movement modes to collect
and store dust and garbage, with very high cleanness.
These products can
effectively reduce dust contamination, exalt air quality, lower the contents of
absorbable particles in the air and improve people’s living environment.
Areas of
Application and Use:
◆ urban road and square cleaning
◆ High way and airport cleaning
◆ School area cleaning
◆ Dock and stadium cleaning
◆ Other hardened cement pavement that need to
keep clean
Features:
◆ Entire sucking dry. An operation uses air
current for completion, with the combination of blowing and suction but without
secondary dust emission.
◆ With a
dry suction type. As soon as it passes, the ground will be very clean
◆ The dustbin is made of stainless steel,
corrosion resistance and large capacity, which can last for a long time without
stop
◆ With imported PLC (programmable logic
controller) for integrated control
◆ Very good dust suction effect. It can
effectively clear away waste matter ranging from dust of tens of microns to
general small stones, tree leaves, etc.
◆ Its structure is simple, worn parts are few, use
and maintenance are convenient and operation is simple.
Main specifications:
|
Model
|
PT5070TXC
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
3360
mm
|
|
Overall Dimension
|
6190x1990x2590 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Sweeping System
|
Working
radius (mm)
|
3000
|
|
Maximum
speed of sweeping (km/h)
|
20.8
|
|
Volume
of dust collecting chamber (L)
|
5000
|
|
Percentage
of finished sweeping (%)
|
98.6
|
|
Weight
of the biggest particle collected (g)
|
1250
|
|
Diameter
of the equivalent ofthe biggest particle inhaled (mm)
|
110
|
|
Biggest
angle of overturn of the dust collecting chamber (°)
|
47
|
|
Cleaning
ability (㎡/h)
|
60000
|
|
Engine
|
Model
|
4KH1-TCG40
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
88
KW (120 HP)
|
|
Gearbox
|
MSB
5-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
7.00-16
|
|
Color
|
White (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|
Working
Principles
