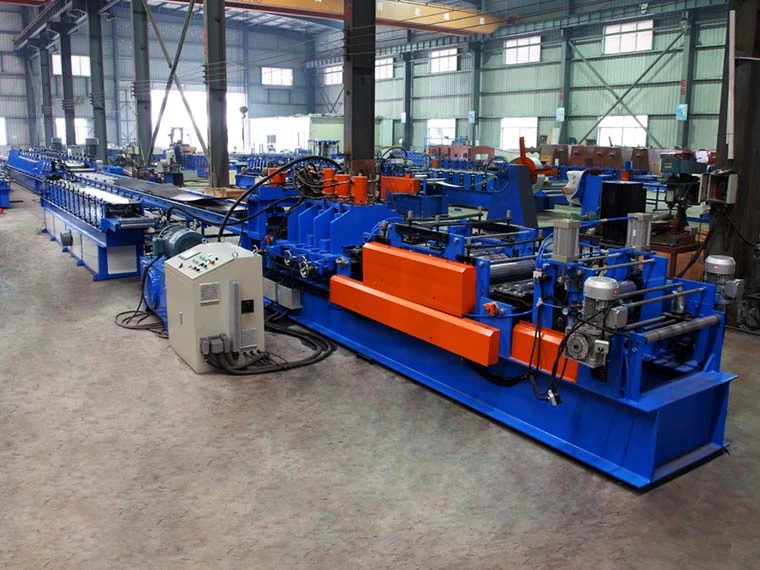

5mm Thickness Automatic C Purlin Machine
Click here to check the video: Automatic C Purlin Roll Forming Machine
1.Main features of 5mm thickness automatic C purlin roll forming machine
The advantages of C purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
2.Detailed Images of C purlin roll forming machine
Machine Parts

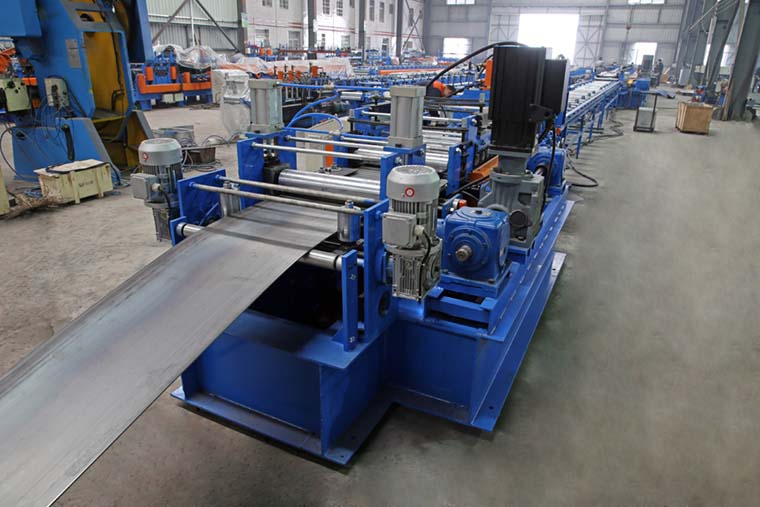

1) Strip Straightening with servo controlled roll feeders
Brand: BMS Original: China
7 Straightening rolls(3 rollers on up and 4 on lower)
11 KW servo motor(China famous brand INOVANCE) feeding,
REMARKS ：positioning by electric adjustment ，jogging without connect with PLC.
And the feeding with air cylinder(air source supplied by buyer)

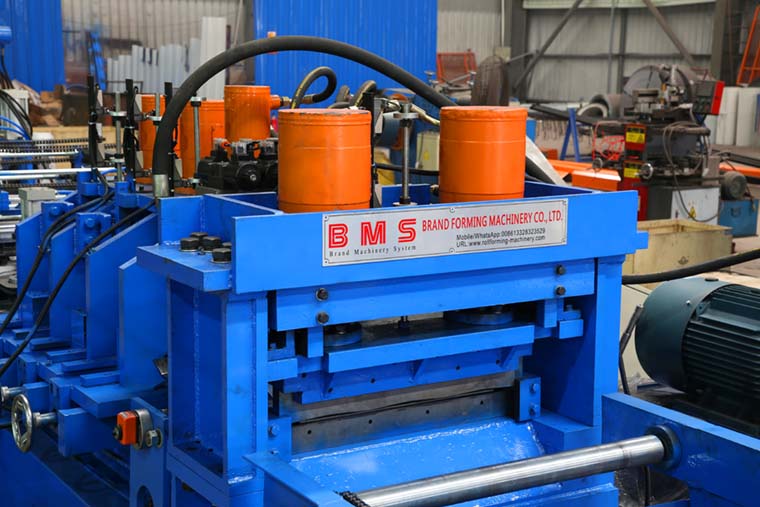

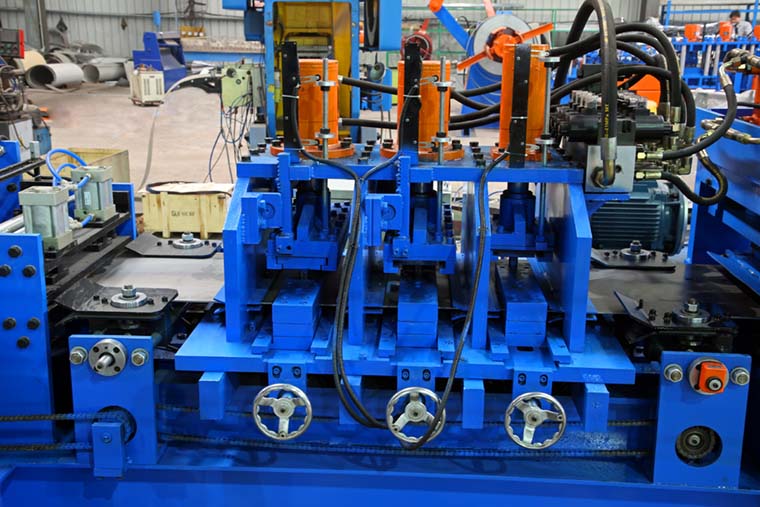

2) Three-Cylinder Hydraulic Pre-Punching and Single Cylinder Pre-Cutter:
3 sets of punching mold：dual-hole design for web hole and flange hole，single-hole design for
middle hole;With 3sets of female mold for 2.5mm,3.5mm and 5mm
slot hole size:14x25mm and round hole ø 12, 14, 16 and 18mm(Pins and punching molds for ø12,
14, 16 and 18. Punching pin and female mold material:Cr12MoV(D2 steel)；
Flat sheet cutter: one set;
Hydraulic station with motor power 22KW (China famous brand DASHU,
electromagnetic valve brand: HUADE/YUKEN)
3) Power Transmission Platform:
Length=12m，1.5KW, positioning by hand wheel

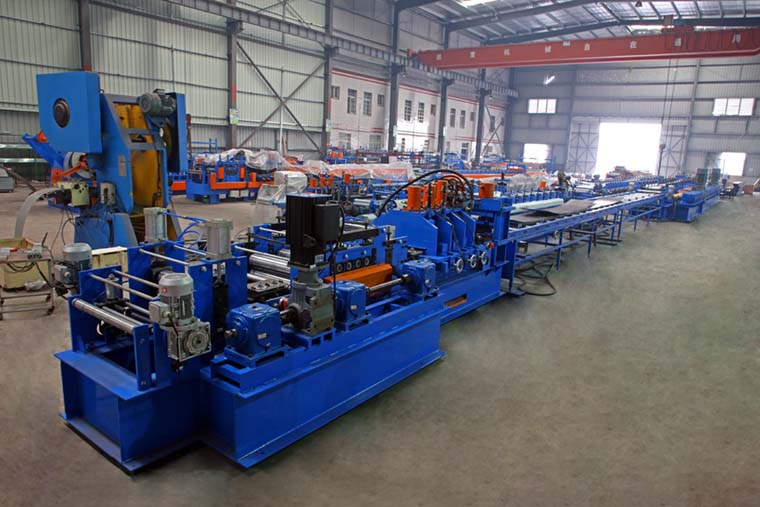

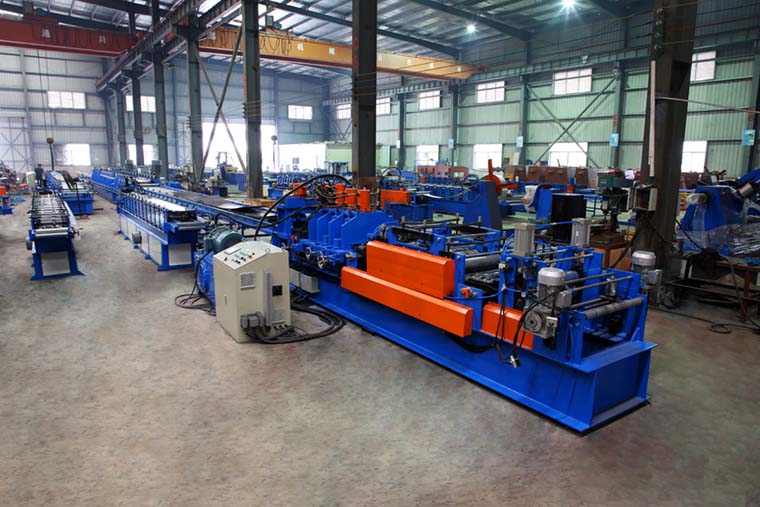

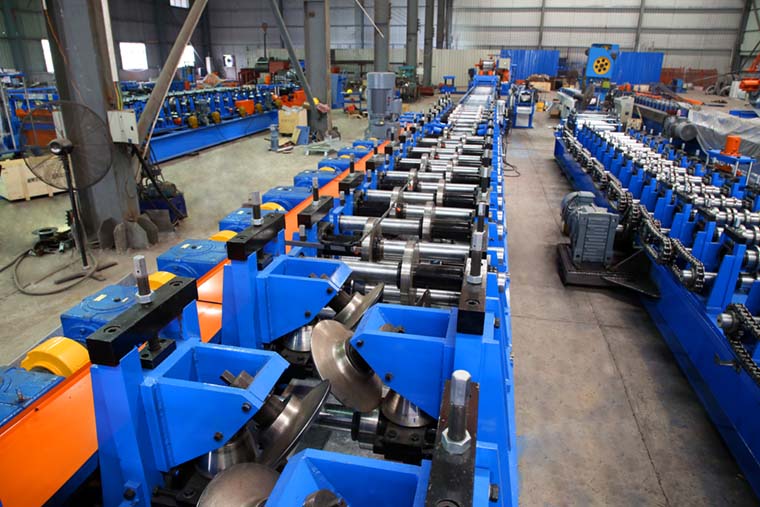

4) Heavy Duty Design Automatic Size-Changing type roll forming mill
Feeding material side positioning by PLC to adjust lip; Gear box driving and powerful motor,
forming station: about 20 step, through going shaft type, linear guide rail;
Shaft material: 40Cr, shaft diameter : ≥95mm, electroplating;
Main power: AC motor 30KW x2,Size-changing motor: 0.75KW*2+2.2KW*1
Roller material: Cr12(D3 steel),precision machining, heat treatment,

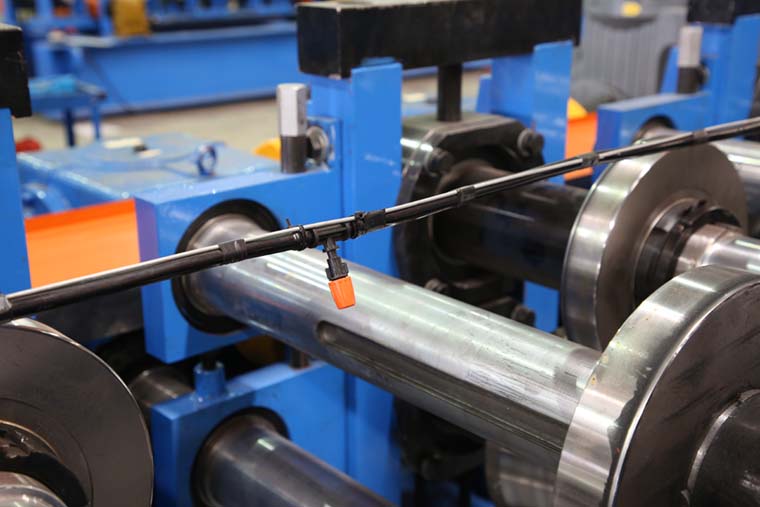

5) With cooling system

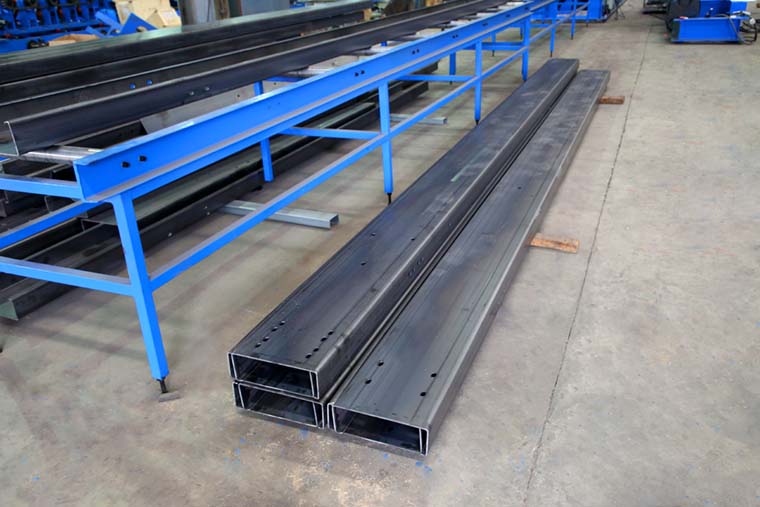

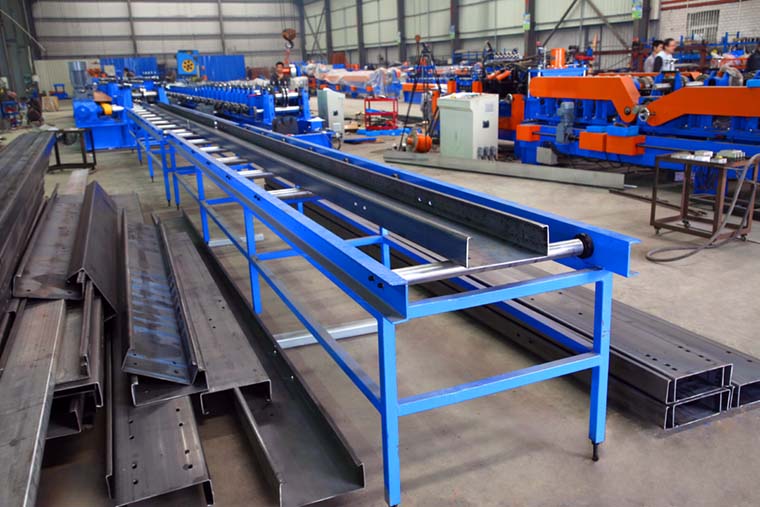

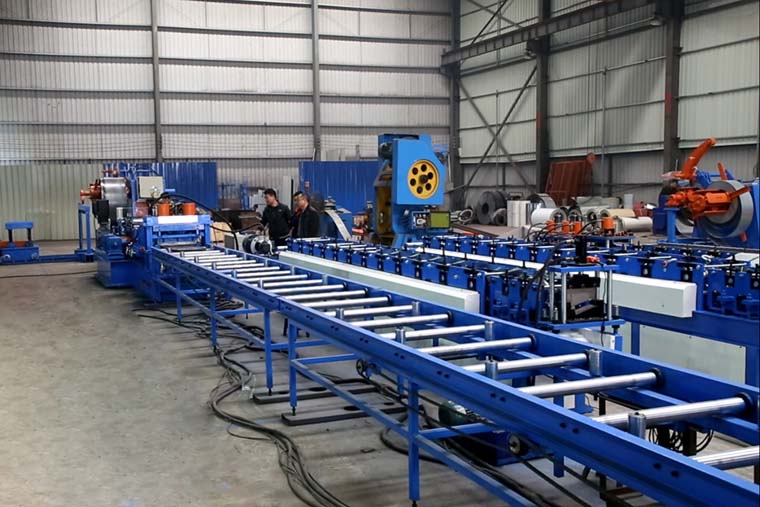

6) 5mm thickness automatic c purlin machine products display

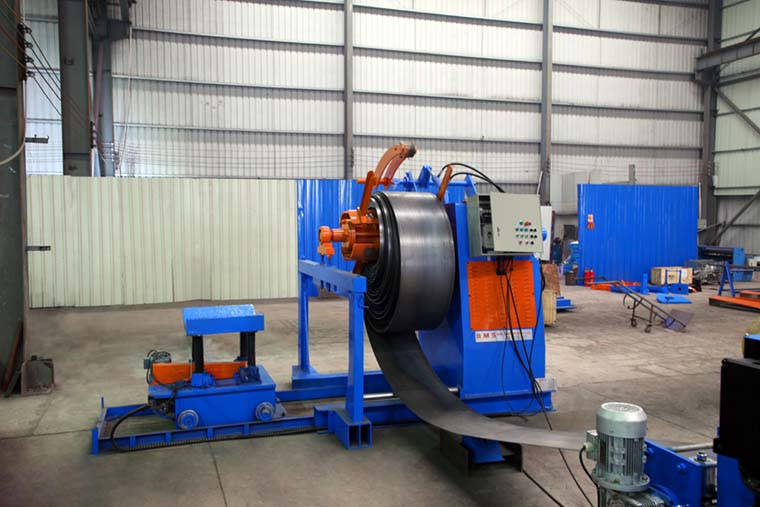

7) 8 tonX650mm hydraulic un-coiler(wedge type, with hydraulic follow pressing)
Hydraulic system expand coil inner hole, Pump motor: 3KW(China famous
brand DASHU, electromagnetic valve brand: HUADE/YUKEN)
Frequency Inverter to regulate turning speed, Motor: 2.2KW(China famous brand
SUPROR, with braking function)
Inverter: DELTAbrand Load capacity= Max.8Tons；
Coil inner–diameter=510±30mm； Coil width = Max.1850mm ,with single clamp arm for safety
Max loading capacity 8tons.with coil car(Loading carriage unit for coil, WITH ETXTR COST
USD1.500,00)

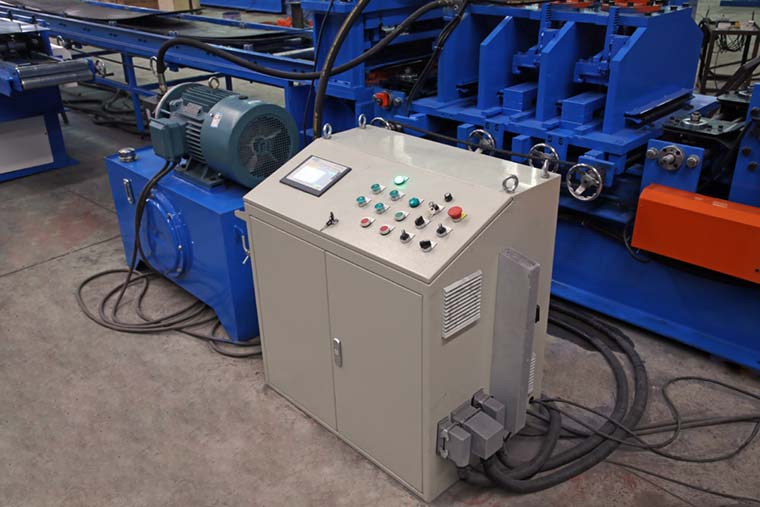

8) PLC Control System
Brand: BMS Original: China
All line adopt PLC control system, touch screen and HMI to reach interaction between operator
and PLC. Monitoring of production process will be achieved by program designed. The operation
parameters and fault indicator will under monitoring by operator. With MANUAL mode
/AUTOMATIC mode for option.
PLC: SIEMENS(German brand
Inverter: DELTA(Taiwan brand)
HMI(touch screen): SIEMENS(German brand)
Encoder: OMRON (Japan brand)
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
After-sale service of 5mm Thickness C80-300 purlin machine
1. The warranty of 5mm thickness purlin roll forming machine C80- 300
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
