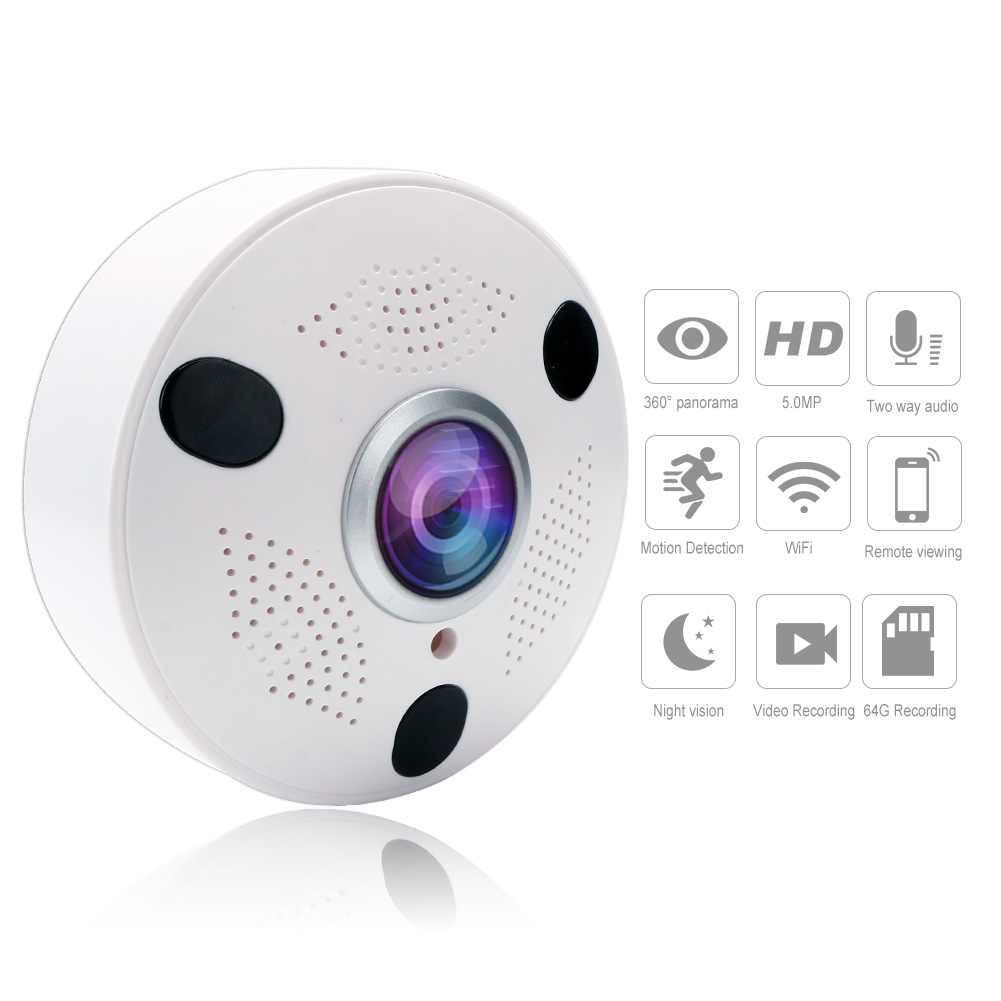

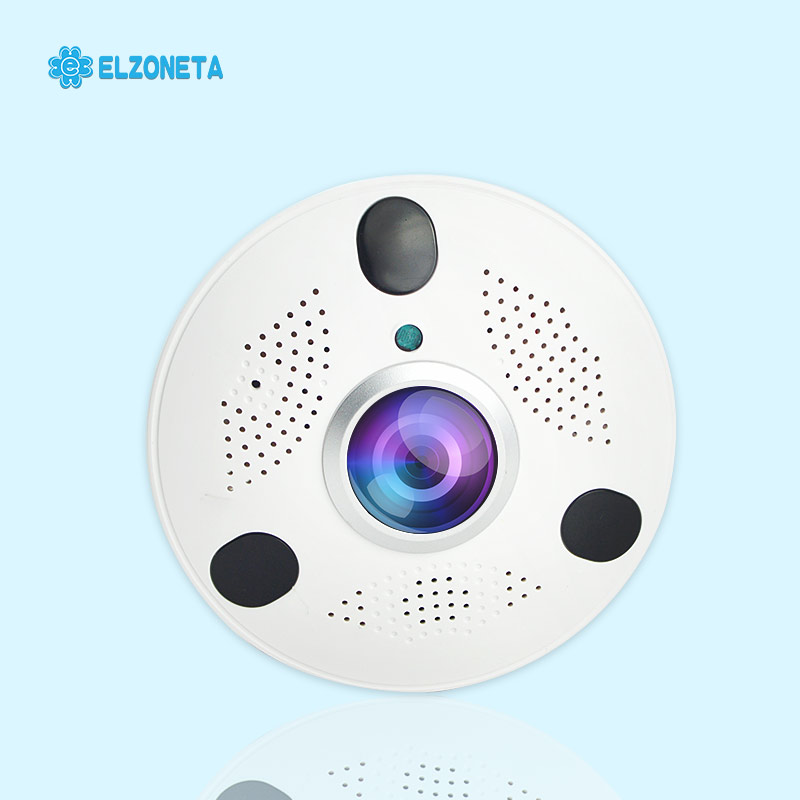

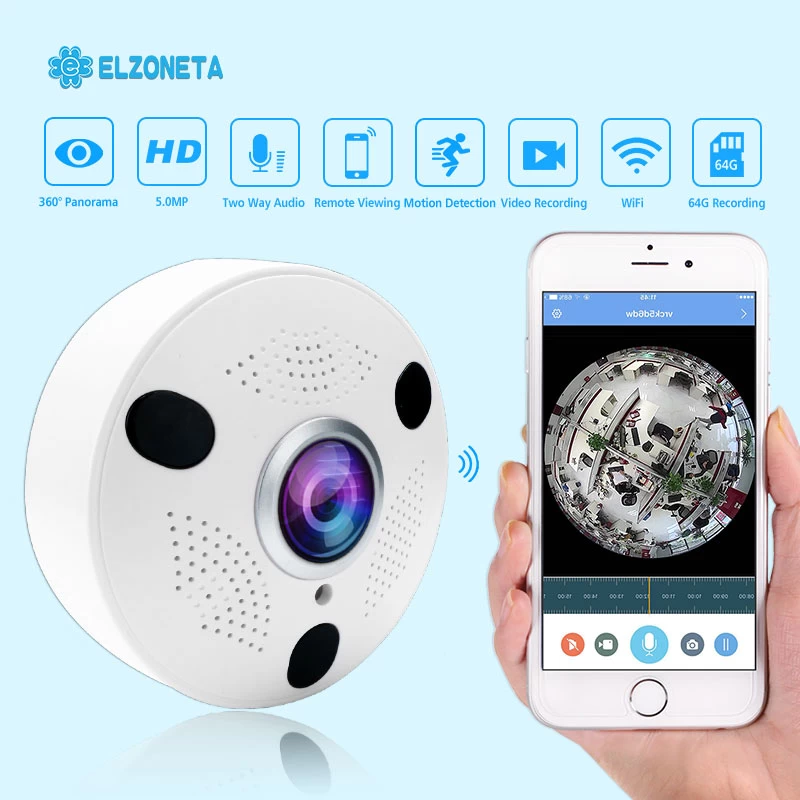

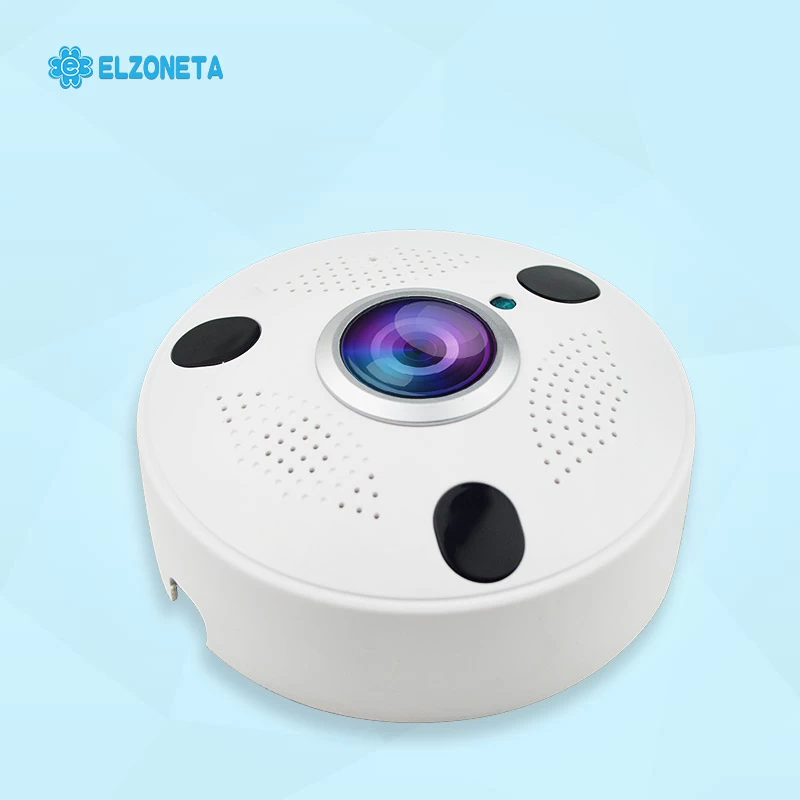

EC-F01X H.265 Full View Camera
EC-F01X Full view camera can show you a 360 viewing angle to check everywhere without blind spot. So you needn't to set up cameras at every cornor. Let me explain clearly to you as below:

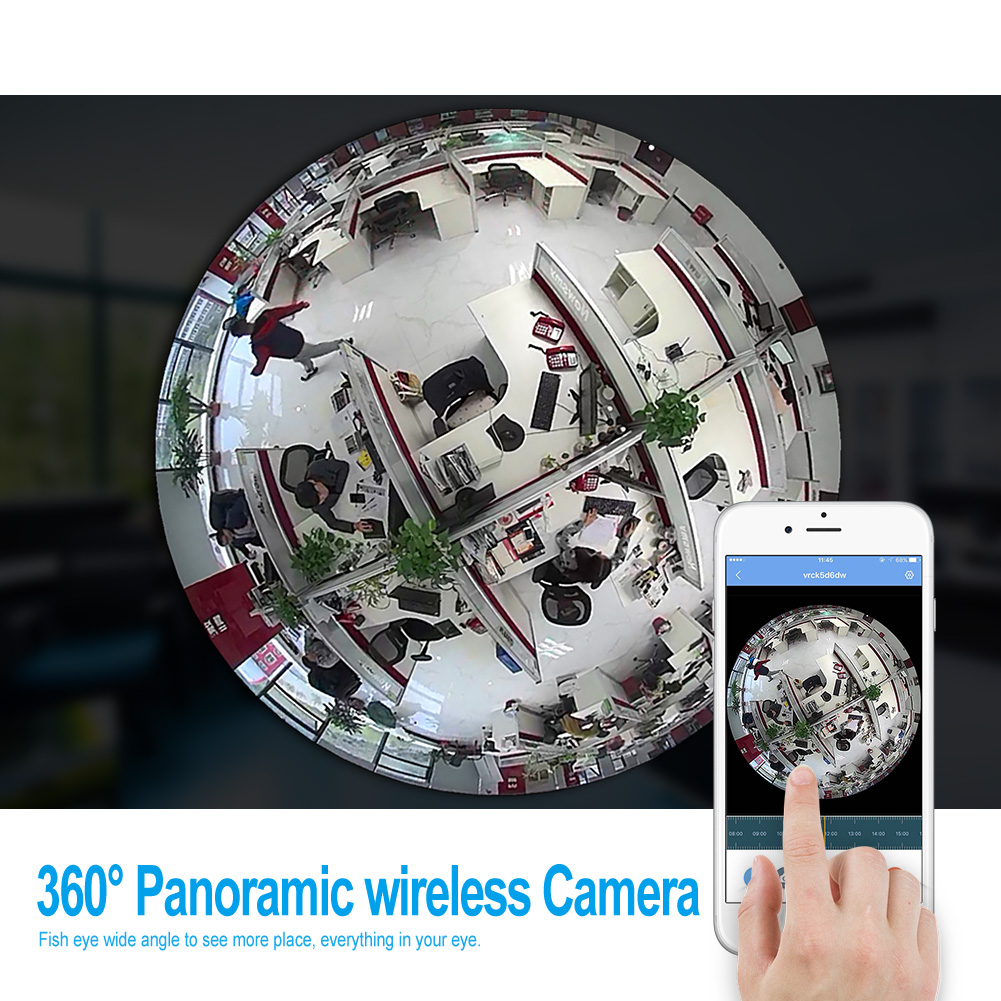

The feature of fisheye full view camera is its 360 degree viewing angle. Using a traditional bullet cameras or dome cameras, it requires many to work at the same time to meet the requirement. But using the 360 Degree Fisheye Full View Camera, only one piece can be monitored in 360 degree without blind spot.It saves a lot of manpower and material resources.
This kind of full view camera is usually suitable for large areas of wide viewing area such as conference rooms, offices, halls/lounges, shopping malls, warehouses, and workshops.
Features:
1. 3D perspective
2. 360° Panoramic Fish Eye Lens
3. H.265/H.264/MJPEG, Mobile phone, UPNP
4. Support TF card/Wireless
5. Motion detection
6. Support two-way voice intercom
7. P2P Cloud Services
8. Plug and play
9. Remote control
10. Infrared night vision
11. Inter Audio ,Inter WIFI
12. Support Multi-user online access
13. Power Supply:5V2A
14. Product Guarantee for 2 years
Specification:
|
Video
|
|
|
Video Compression
|
H.265/H.264/MJPEG
|
|
Day /
Night Mode
|
Color
during day, switches to B&W at night
|
|
Maximum
Frame Rate
|
12fps@2592*1944
|
|
Maximum
Streams
|
3
Simultaneous Streams
|
|
Camera
|
|
|
Sensor
|
1/3"5.0 Mega Pixel Color CMOS sensor
|
|
Max.
Resolution
|
2592*1944(5 Megapixels)
|
|
Lens
|
360°
fish-eye Lens
|
|
ICR
Control
|
Yes
|
|
Viewing
Angle
|
360°
|
|
Min.
Illumination
|
0.08Lux
|
|
PTZ
|
|
Pan/Tilt
Range
|
N/A
|
|
Night Vision
|
|
Night
Vision Distance
|
up to
10M/33ft
|
|
Illumination
|
Array LED
|
|
Audio
|
|
|
Audio
Input
|
1 Built-in
Microphone
|
|
Audio Output
|
1 Built-in
Speaker
|
|
Compression
|
G.711
|
|
Network
|
|
|
Network
Type
|
TCP/IP,
ICMP, HTTP, HTTPS, DHCP, DNS, DDNS,
RTP, RTSP, PPPoE, NTP, UPnP, SMTP, P2P
|
|
WIFI
|
IEEE
802.11b/g/n, 2.4GHz band
|
|
ONVIF
Support
|
ONVIF
Profile S
|
|
P2P
|
Yes,
|
|
Maximun
Online Visitor
|
3 visitors
simultaneously
|
|
Alarm
|
|
|
Motion
Detection
|
Yes
|
|
Alarm I/O
|
optional
|
|
General
|
|
|
External
Storage
|
MicroSD
Card (Capacity supports up to 64G)
|
|
Indoor /
Outdoor
|
Indoor
|
|
Operating
Temperature
|
0°C ~ 50°C
|
|
Power
Consumption
|
DC 5V/1A
|
|
Dimension
(LxWxH)
|
110 x 112
x 122mm
|
|
Weight
|
500g
|
|
mobile phone
|
|
Operating
System
|
iOS&android
|
|
Package Content
|
|
contains
|
EC-F01X 360°Panoramic camera
Type-C Cable(optional)
Quick
Installation Guide
Power
Adapter
Screw Kit
|
