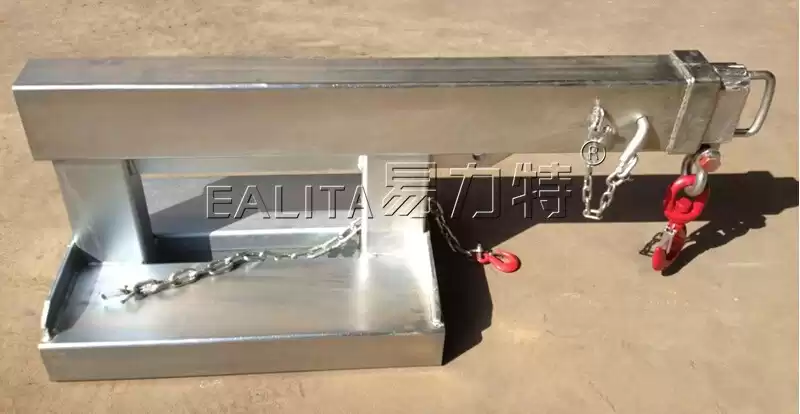

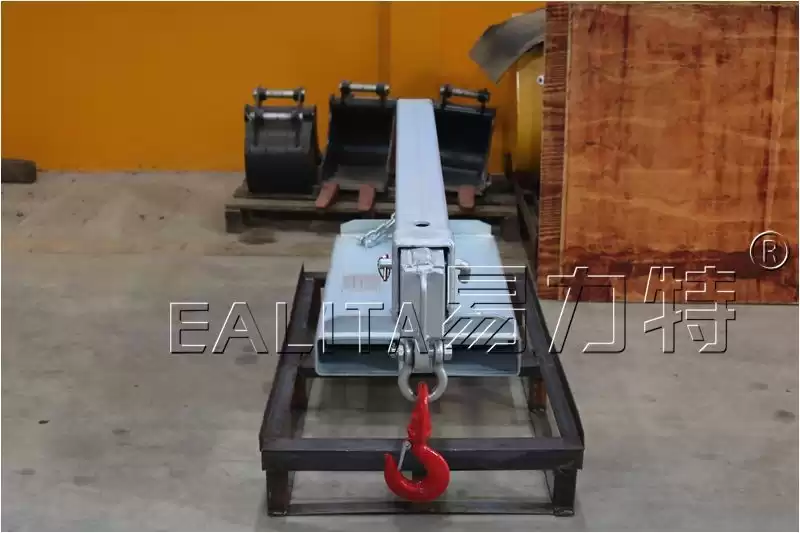

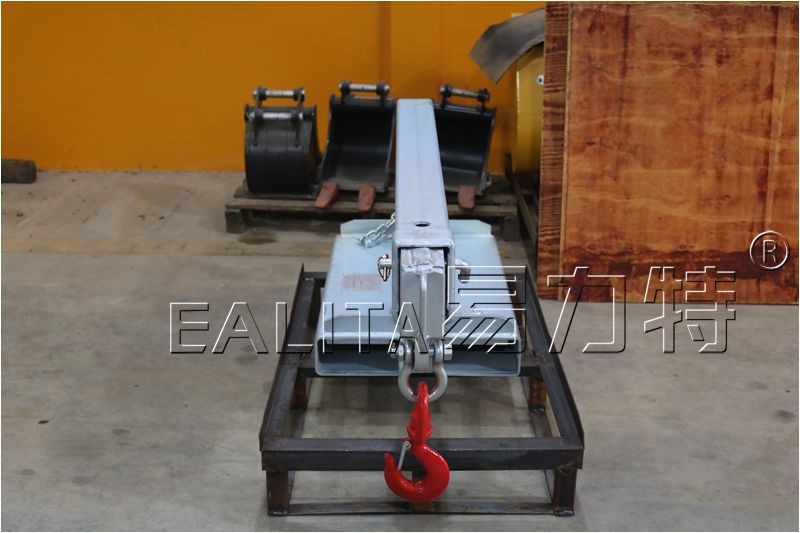

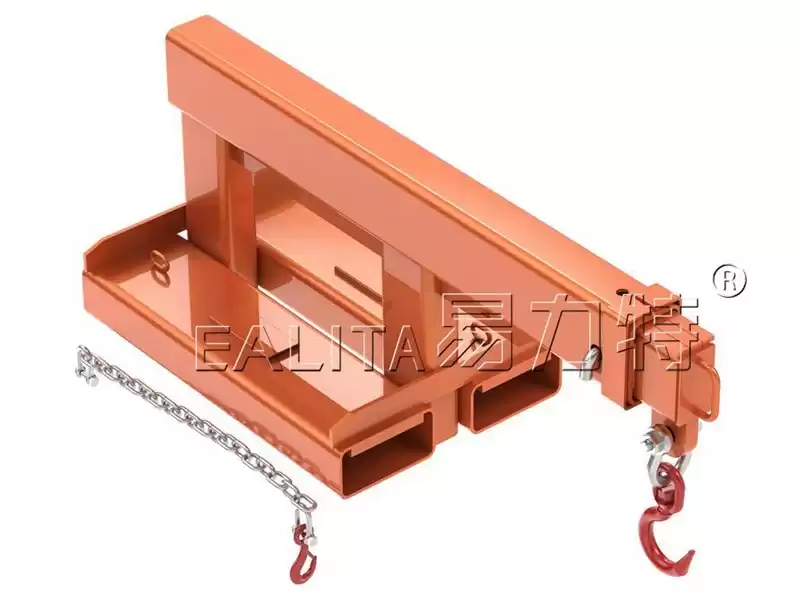

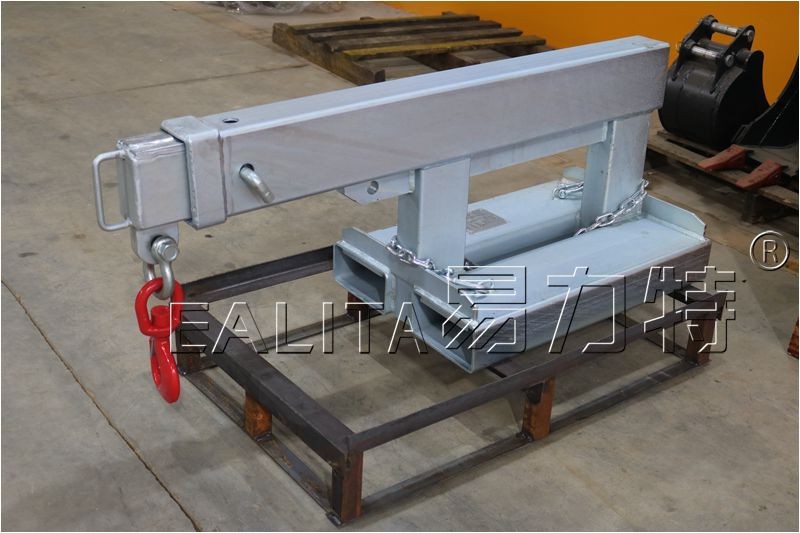

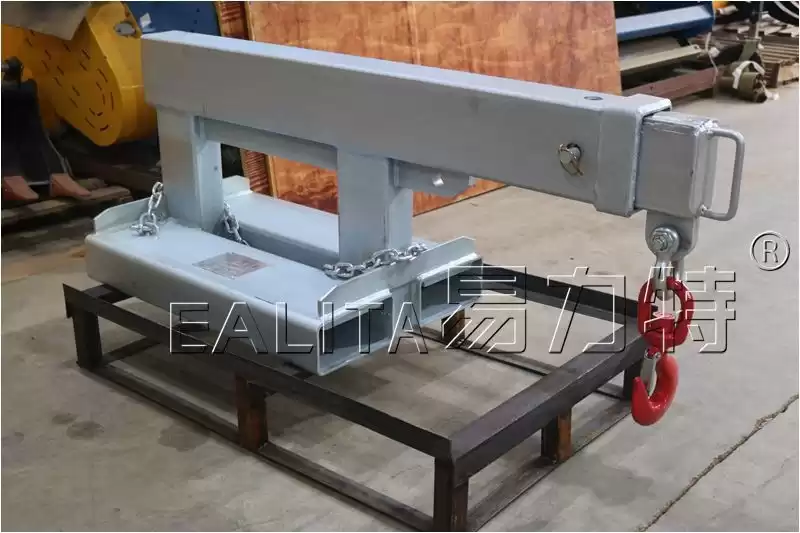

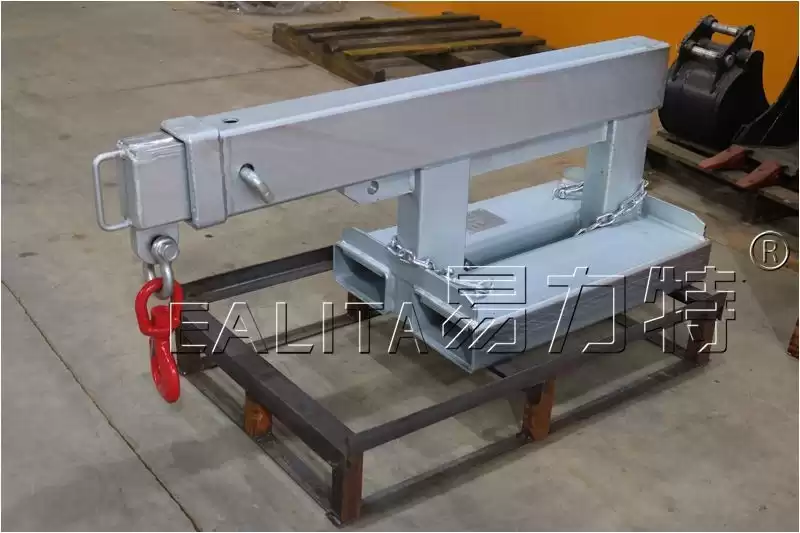

The Jib has a 1.96 metre reach when fully extended, and an overall length of 1.3 metres when retracted.
- The jib is secured to the forklift by a safety chain.
- Zinc plated finish.
Specifications
• Code: 03.01.04.0015
• Safe Working Load (SWL) 4750kg Max.
• Unit Weight 130kg
• Load Centre 780mm
• Pocket Size 185 x 75
• Pocket Centres 275 mm
• Horizontal C of G 700mm
• Vertical C of G 165mm
