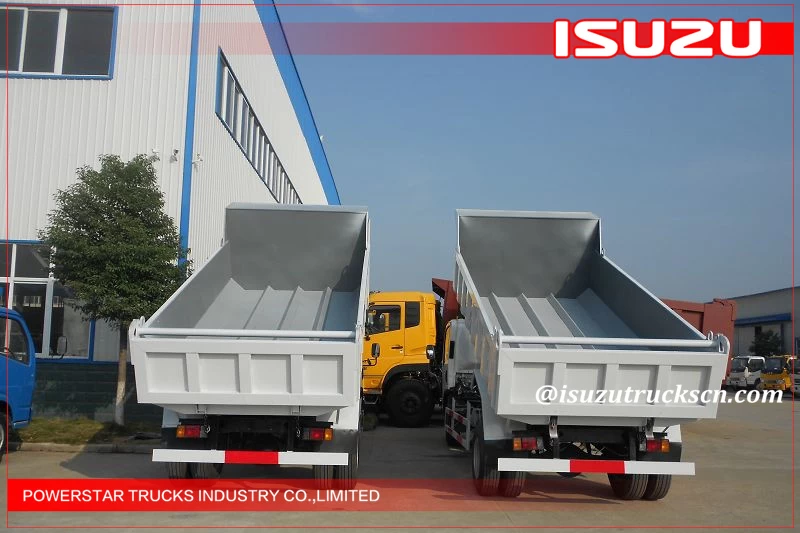

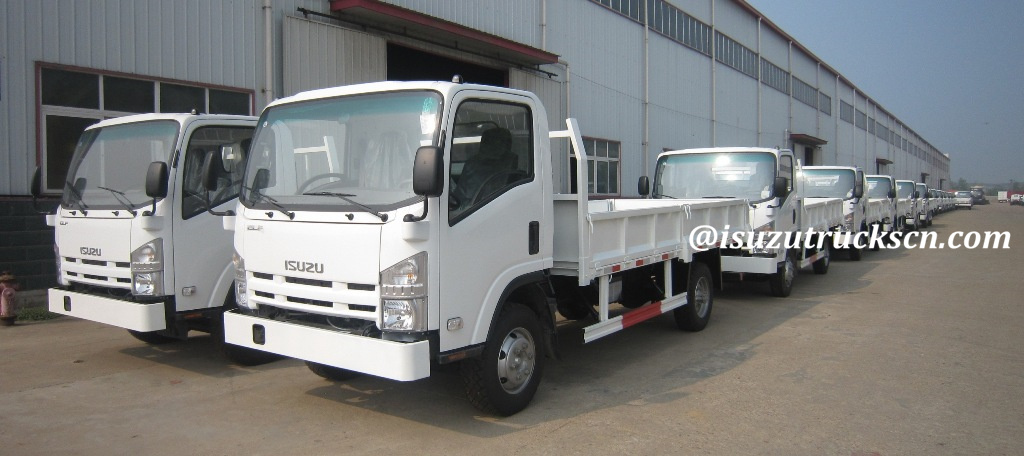

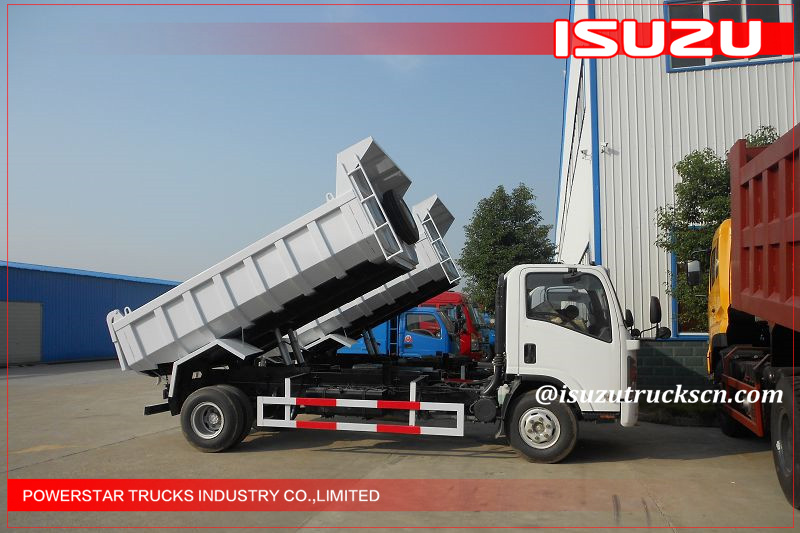

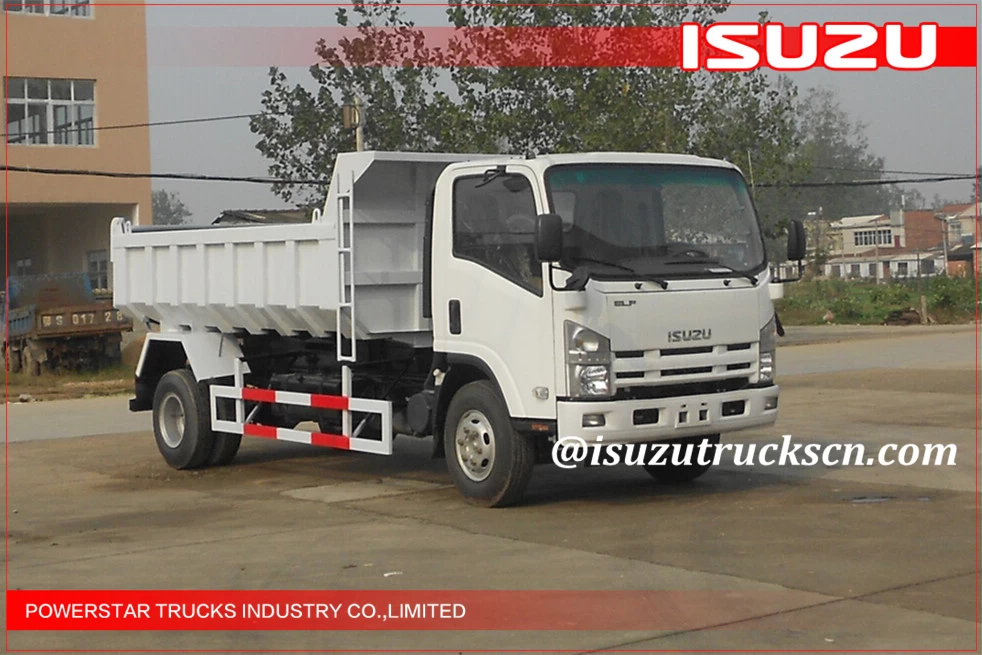

5Ton Japanese Elf Isuzu
tipper trucks 6wheels
Main specifications:
|
Model
|
PT3100ZX
|
|
Driving
Type
|
4x2
|
Left hand drive
|
|
Weight
|
Kerb Weight (kg)
|
4960
|
|
Loading Capacity (kg)
|
5000 kg
|
|
Dimensions
(mm)
|
Wheelbase
|
4175
|
|
Overall
Dimension
|
6750x2220x2470
|
|
Tipper Body
|
3760x2120x600
|
|
Front Overhang
|
1110
|
|
Rear Overhang
|
1465
|
|
Cab
|
All-steel-welded construction, 2
seats with A/C
|
|
Engine
|
Model:
|
4HK1-TCG40
|
|
Cylinder in Line
|
4
|
|
Capacity
|
5200 ml
|
|
Type
|
Diesel, turbo
charged inter-cooled
|
|
Max. Power:
|
139/2600 KW/RPM
|
|
Max. Torque
|
510/1600 N.m/RPM
|
|
Gearbox
|
MLD 6-shift,
mechanical type, 6 forward and 1 reverse with
|
|
Tyre
|
8.25-20
|
Isuzu Tipper Trucks have pass China Compulsory Certificate. Our company has perfect quality assurance system and has passed ISO9001 international certificate in 1999. Order now!
Recently Customer Build Examples:
HOT sale Isuzu Trucks
