Description

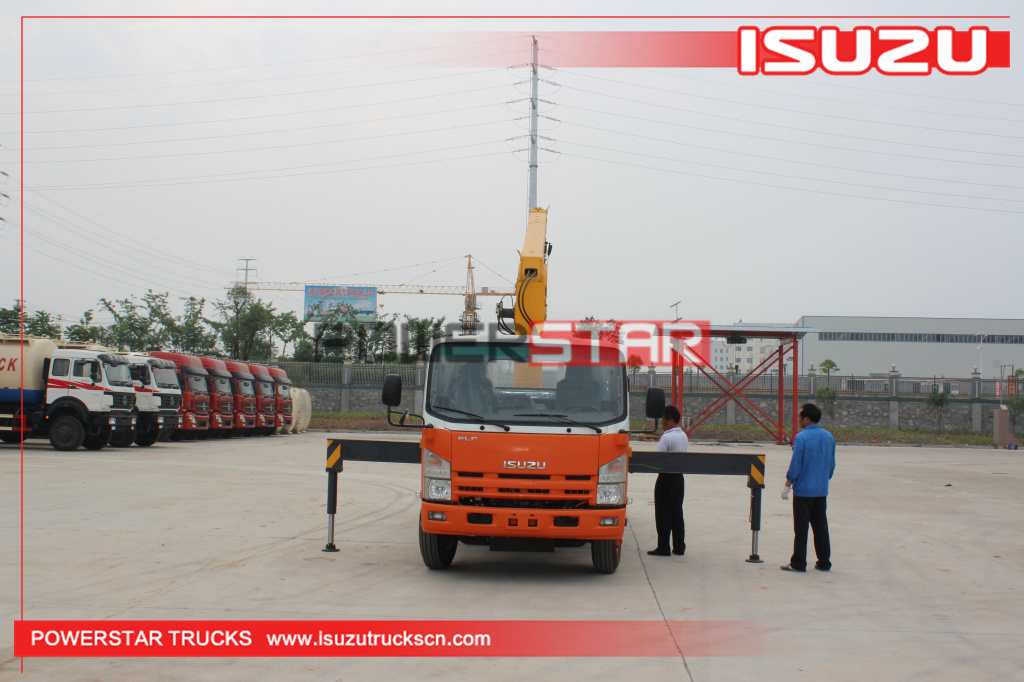

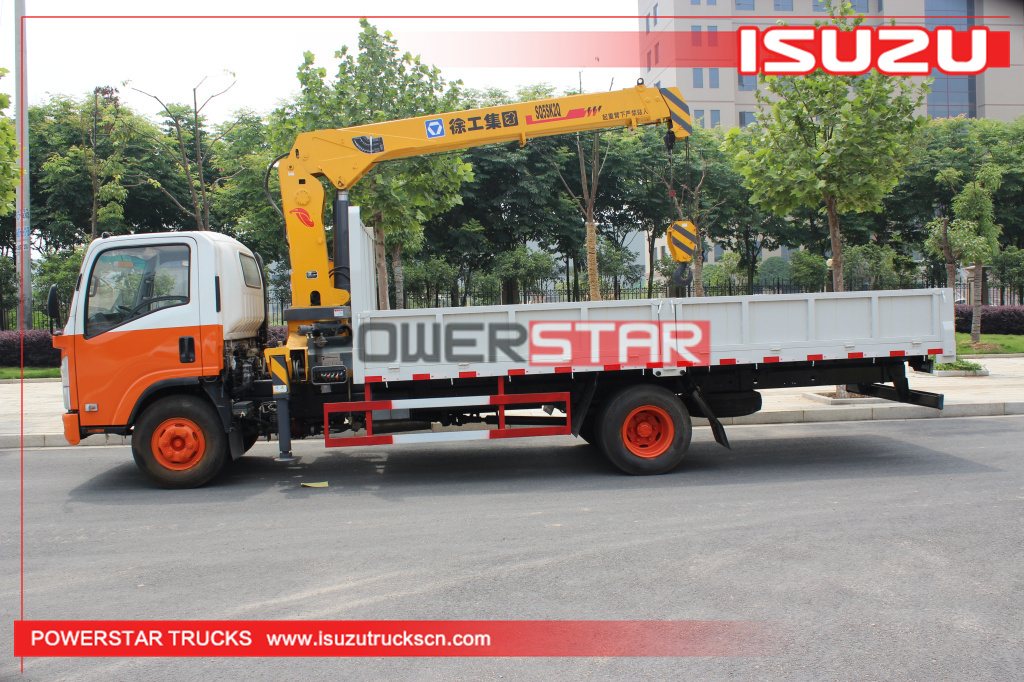

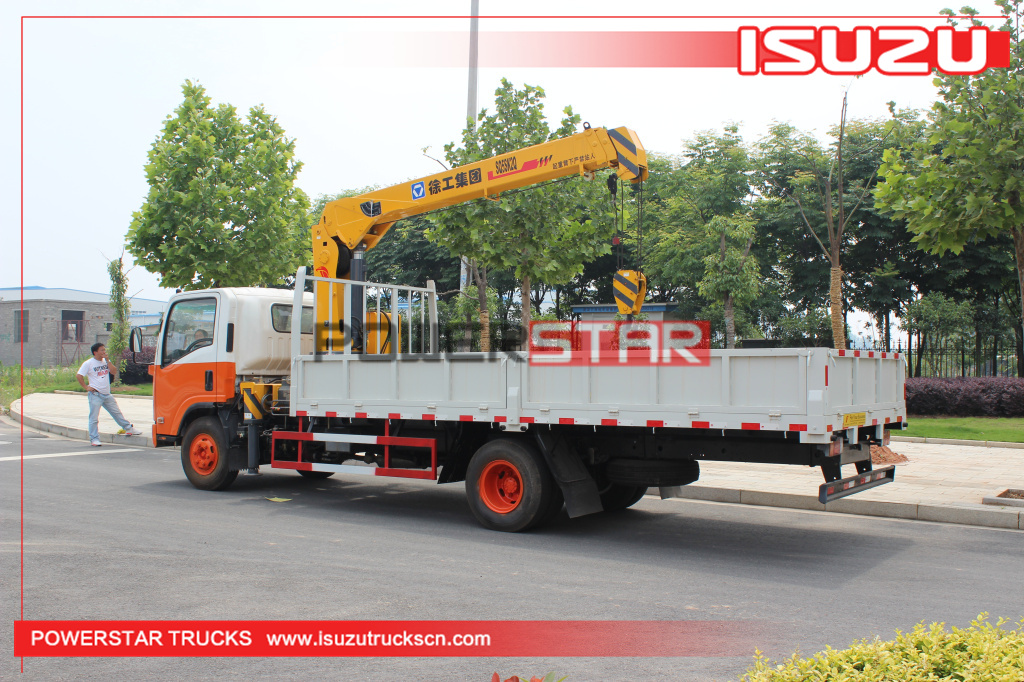

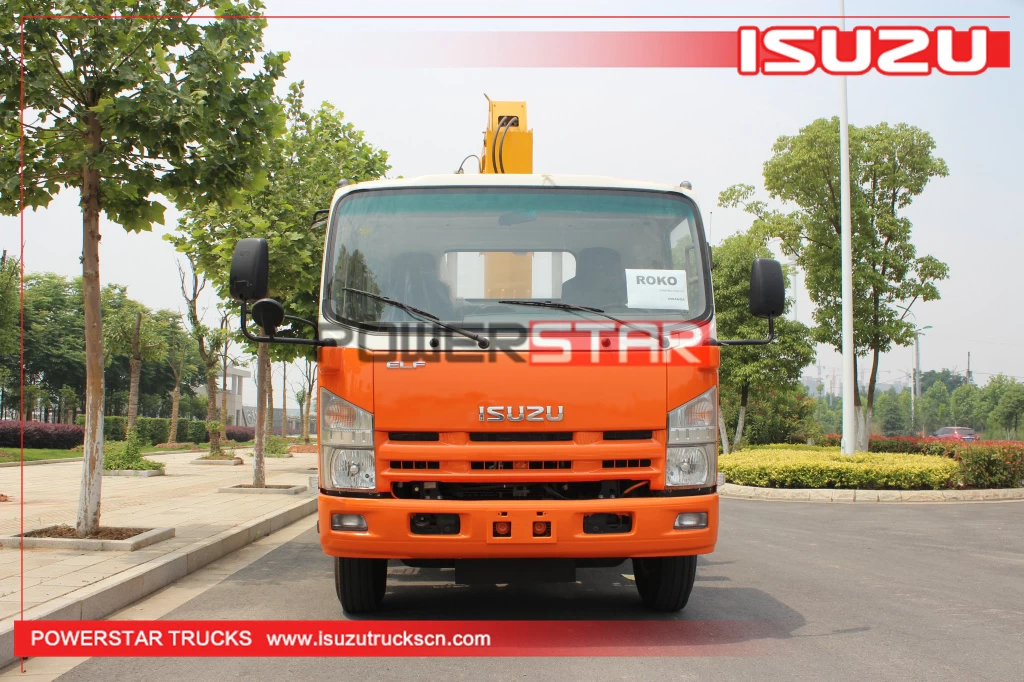

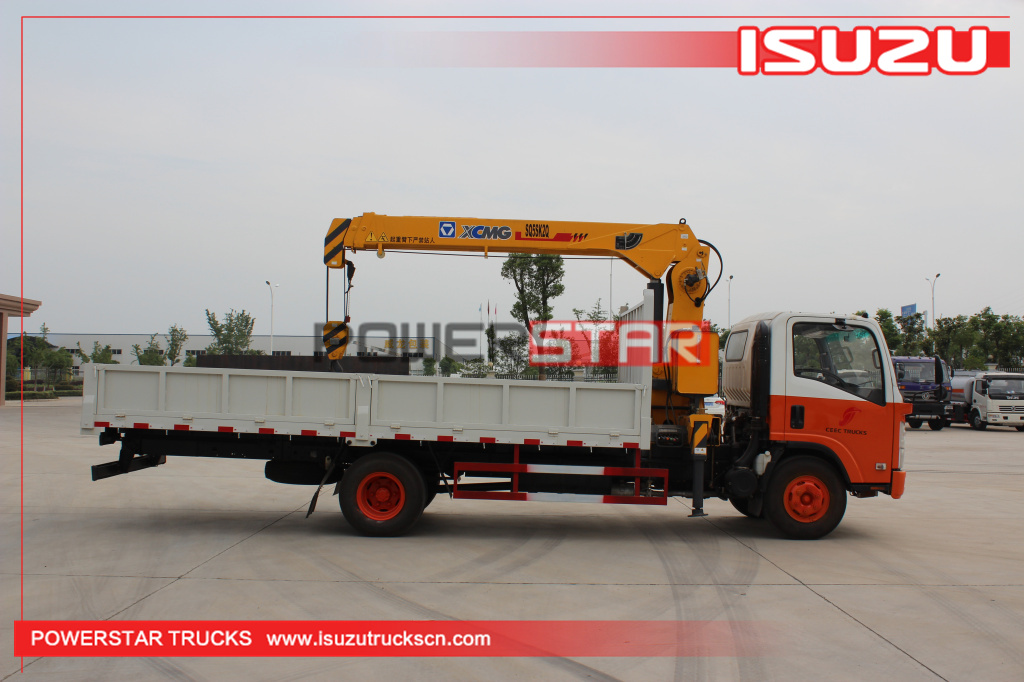

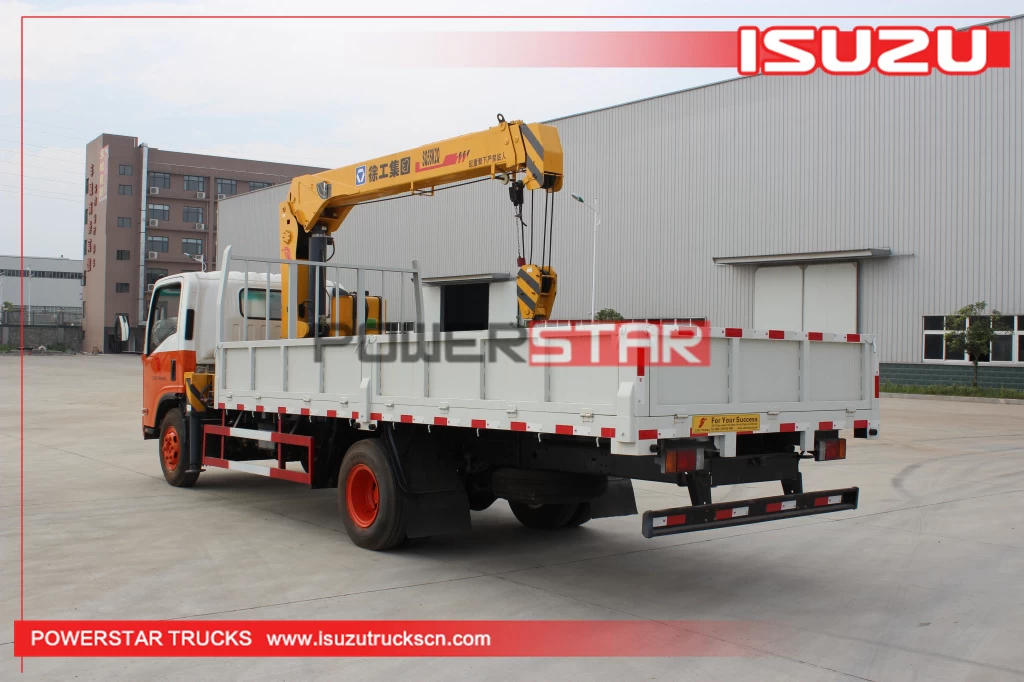

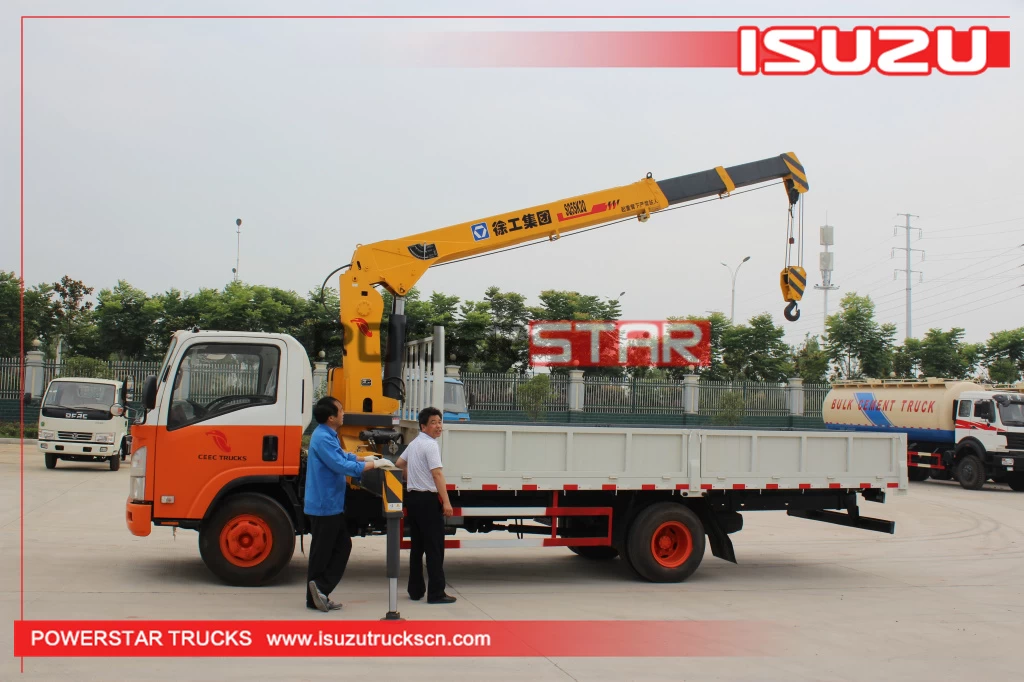

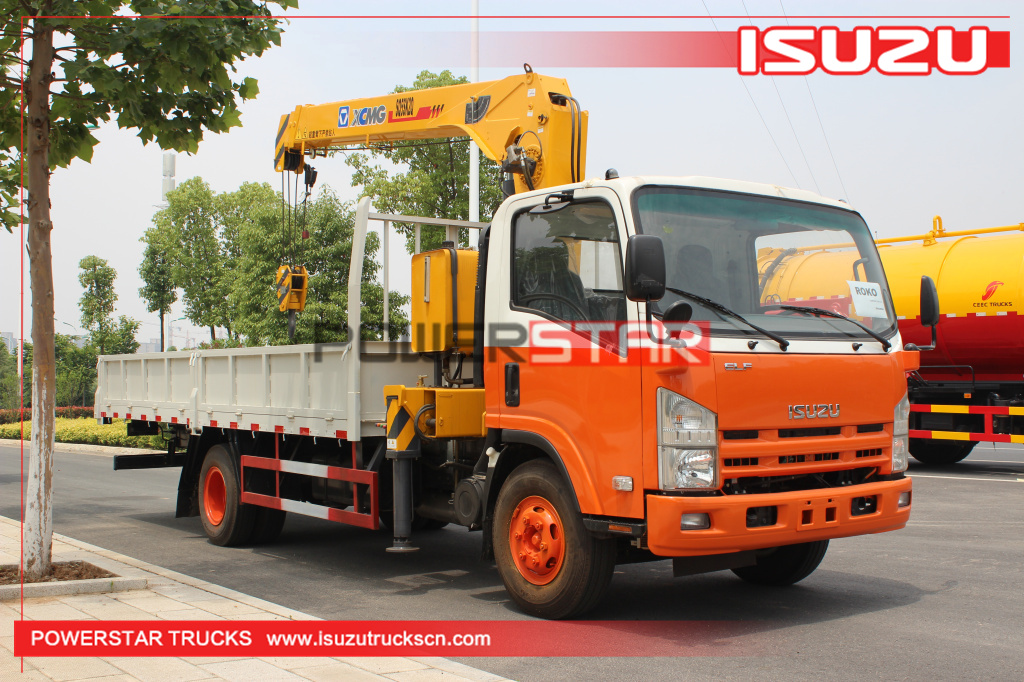

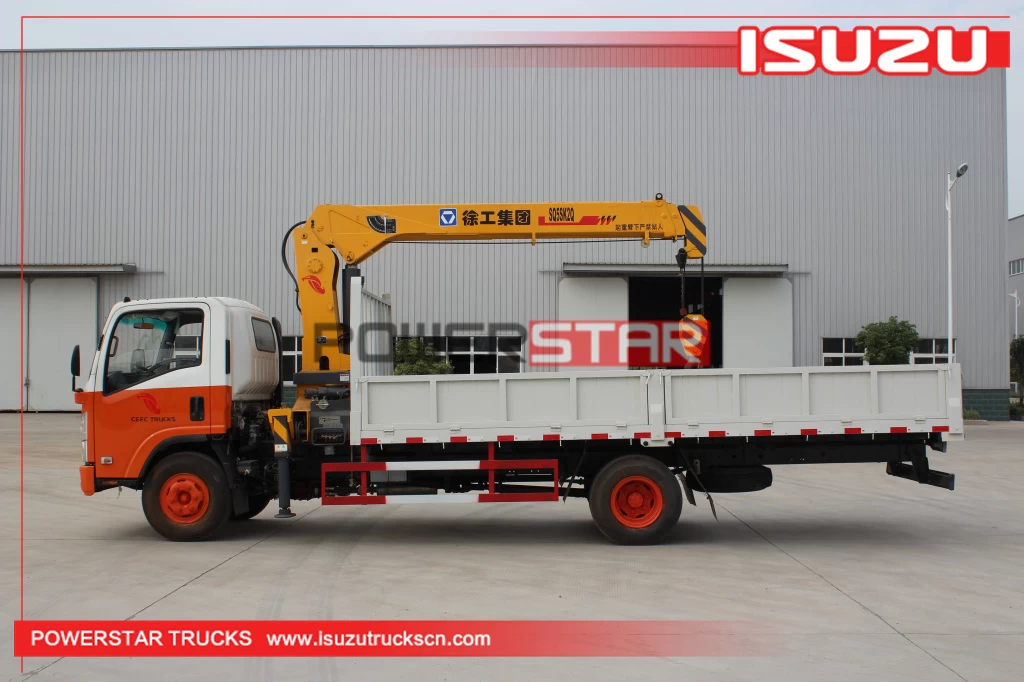

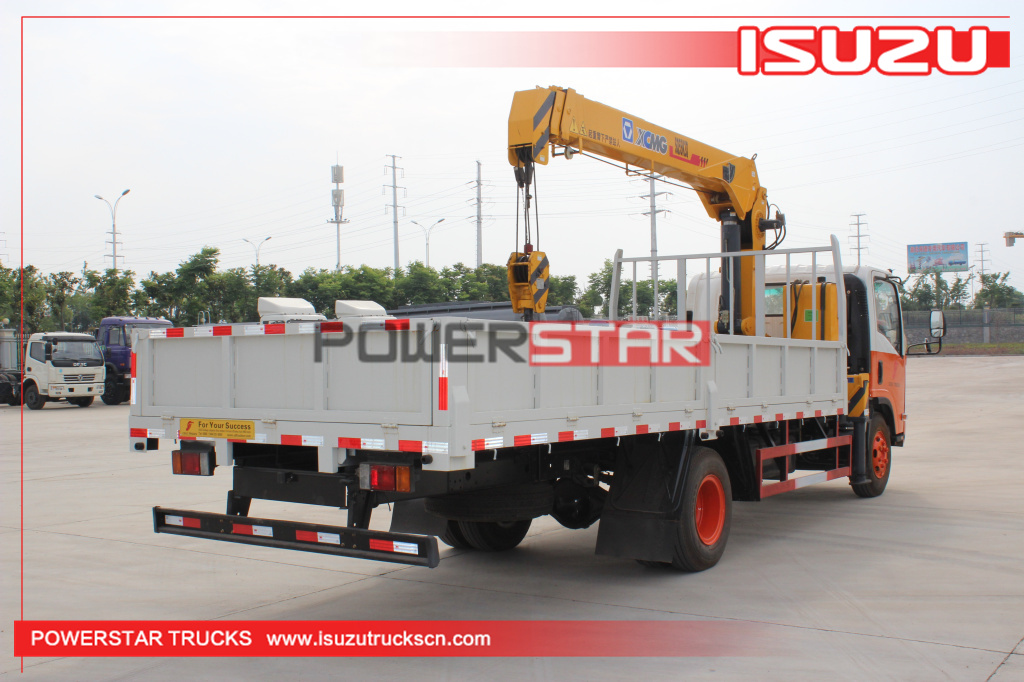

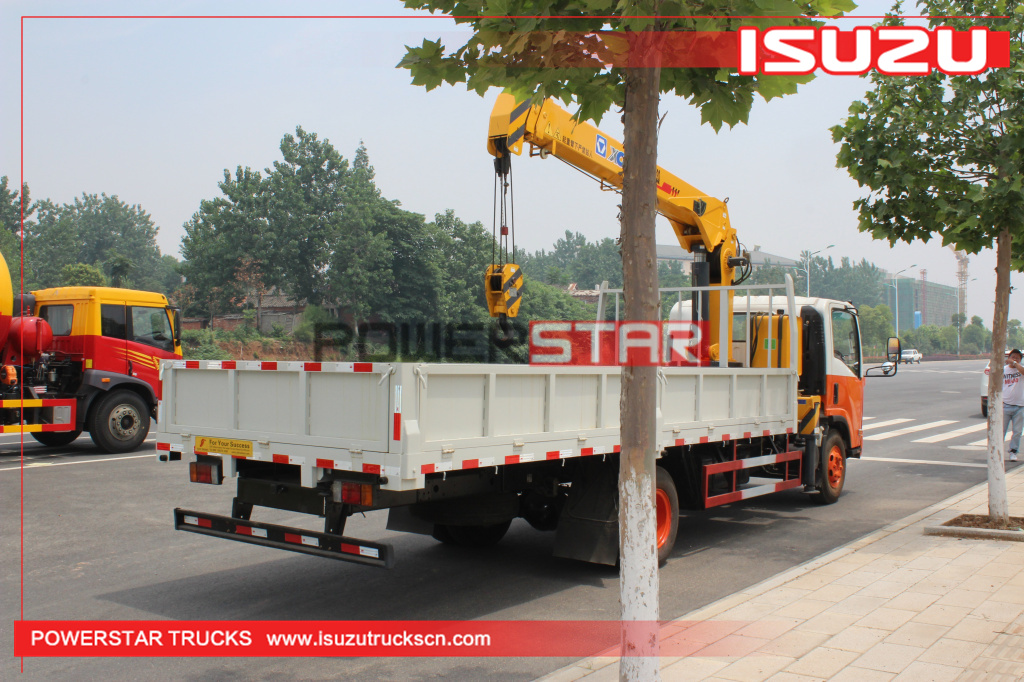

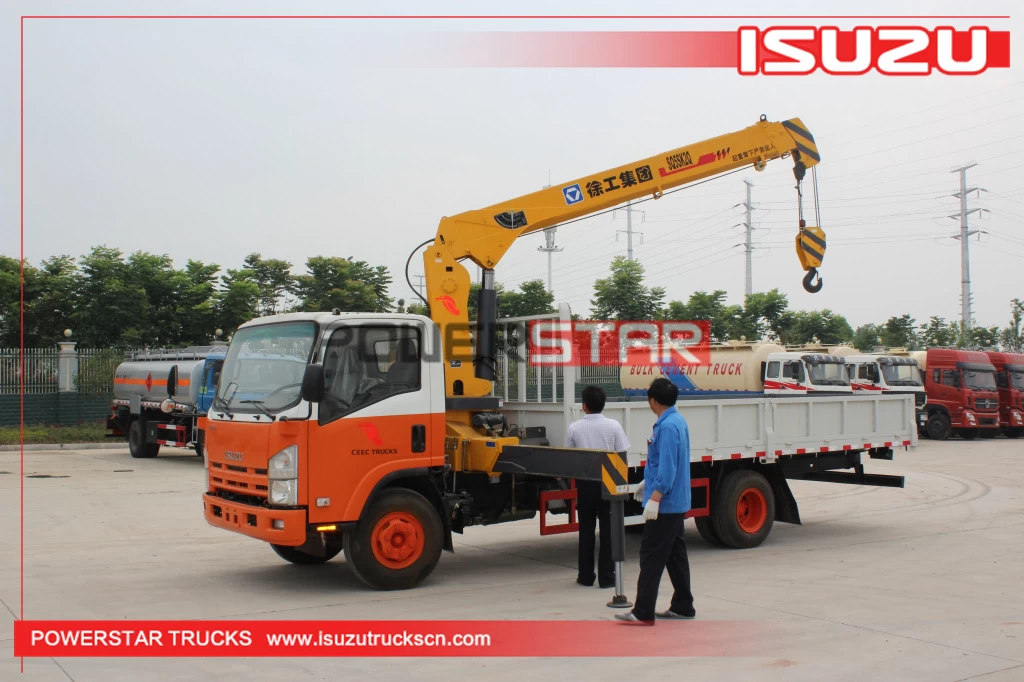

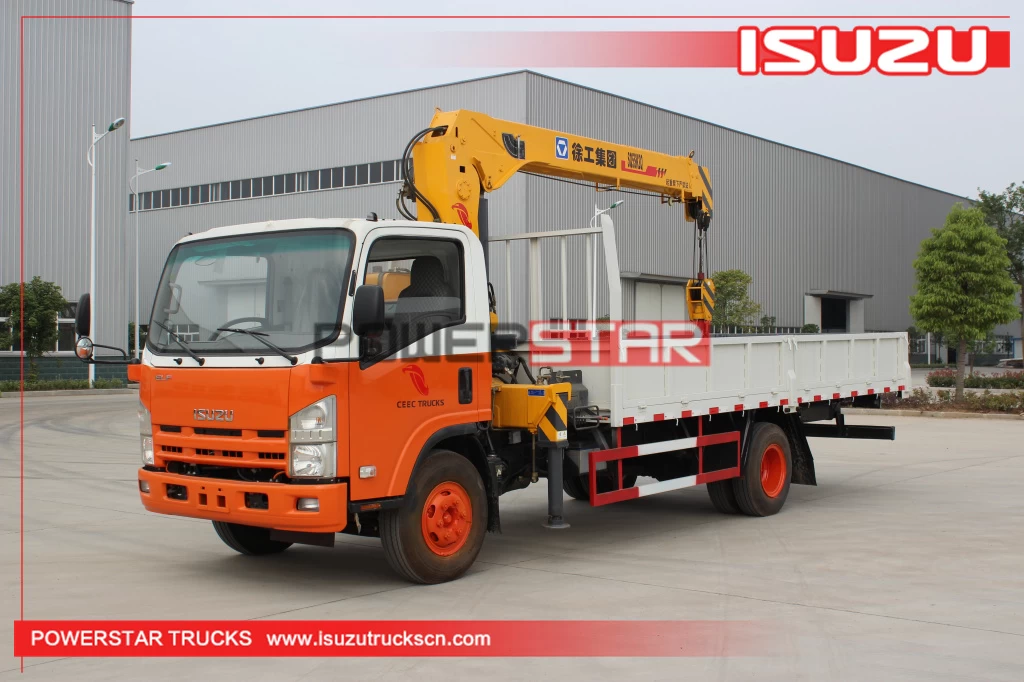

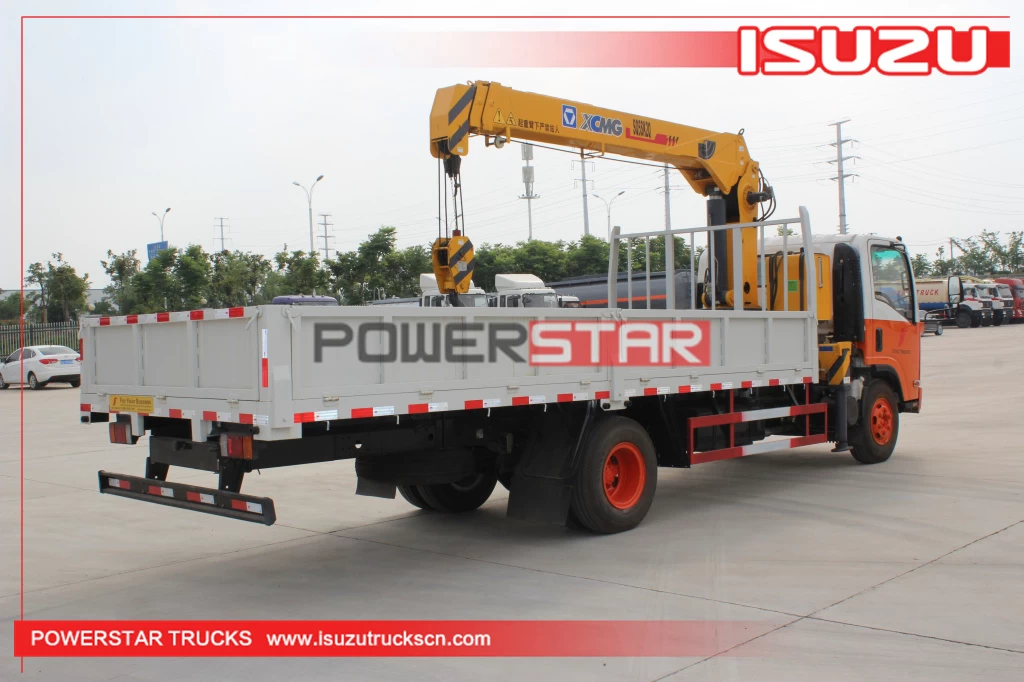

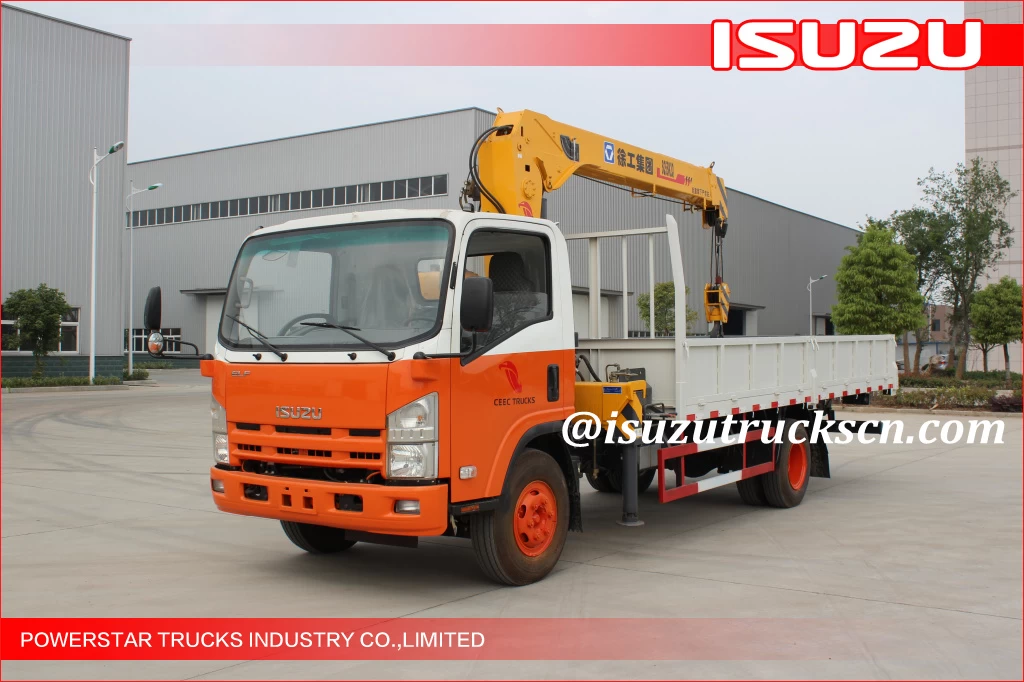

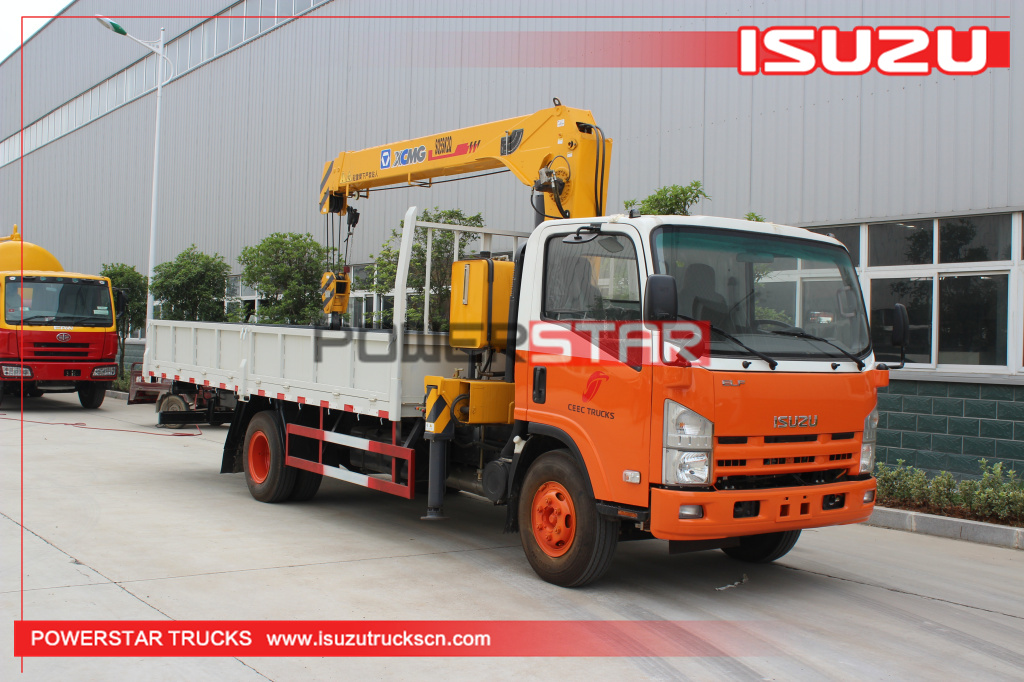

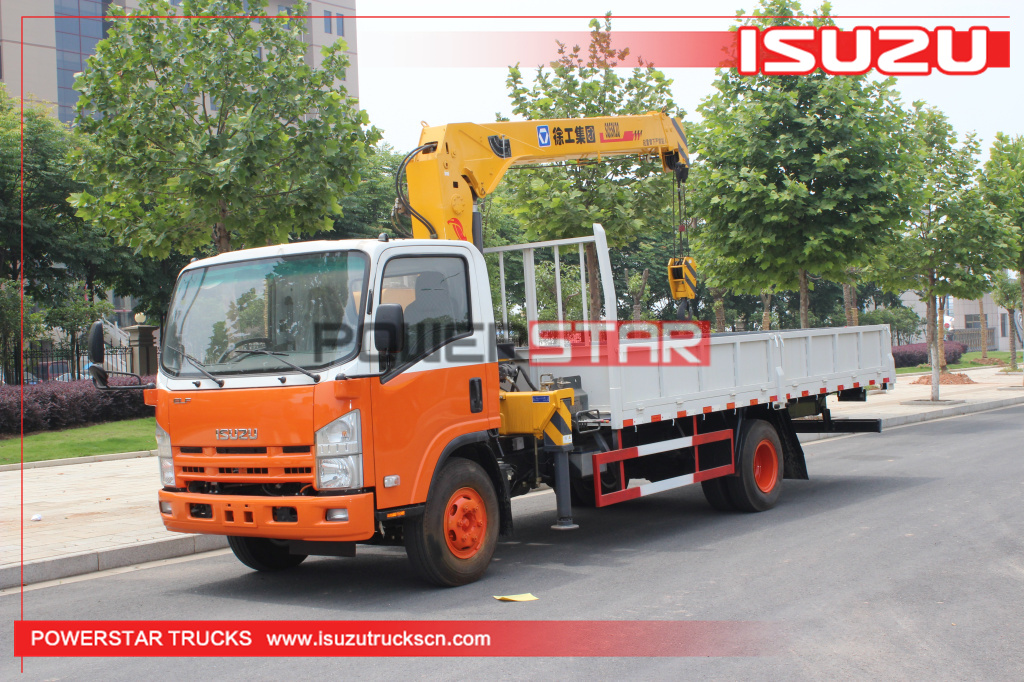

5ton Rwanda Isuzu Mobile Commercial Telescopic Boom Truck Mounted Crane

Japan ISUZU Boom Crane trucks（also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane) is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

Description:

Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks

Areas of Application and Use:

◆ General Materials Lifting of various size and load with standard Hook arrangement for Construction Sites / Mines / Projects / Logistics Requirements

◆ Handling Concrete Block for Building / Projects through Rotary Brick Clamp

◆ Man Lift or Cherry Picker for Maintenance on Electricity Poles / Overhead Lines etc, thru Person Carrying Basket

◆ Erection of Light Post through Auger

◆ Handling of Wood Logs (Forestry)

◆ Garbage Handling with Clamshell Bucket

◆ Palletized Load Handling thru Pallet Fork

◆ Tyre Manipulator Application

◆ Scrap Handling through Orange Peel Clamp

Features:

◆ Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime

◆ All Structural made of High Strength Steel

◆ Easy to mount and Minimum space required for Mounting

◆ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

◆ Optional Chassis 4x2, 6x4,8x4 and engine power

◆ Optional Crane brand: XCMG, UNIC, PALFINGER, HIAB

◆ Optional Crane type: Telescopic boom crane or knuckled boom crane

◆ Radio Remote Control Available as an Optional Fitment

◆ Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)

◆ Crane capacity : 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons

Main specifications:

Model	PT5100TSC
Driving Type	4x2 (Left hand drive)
Wheelbase	3815 mm
Cab	Forward control over engine, all-steel-welded construction

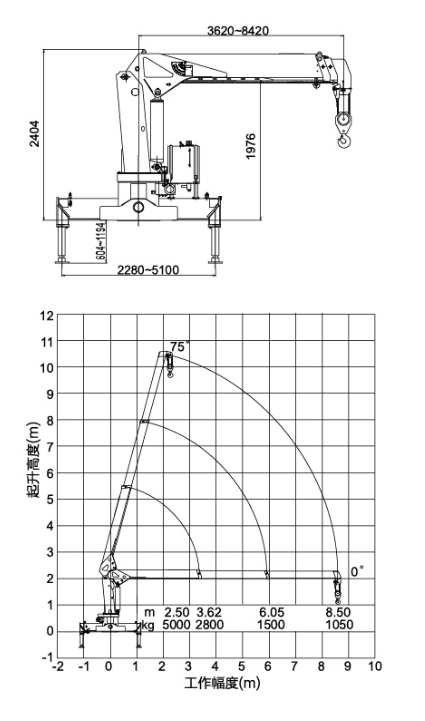

Crane System	Max Lifting Capacity	5000 kg
	Max Lifting Moment	6.8 T.M
	Recommend Power	14 kw
	Max Oil Flow of Hydraulic System	25 L/min
	Max Pressure of Hydraulic System	20 MPA
	Oil Tank Capacity	30 L
	Rotation Angle	All Rotation
Engine	Model	4HK1-TCG40
	Type	Diesel, turbo charged inter-cooled, 4 cylinder
	Max. Power	139 KW (190 HP)
Gearbox	MLD 6-shift, mechanical type, 6 forward and 1 reverse with
Tire	8.25-20
Color	Red (Any color & logos up to wish)
Max Speed	100 km/h
