Applications:
Flat Bed Truck (also called Low
flat bed vehicle, excavator carrier truck, machinery transport vehicle,
flatbed truck, excavator transport truck, lorry carrier truck, etc) is used for transporting machine that is non-removable or machinery
that can't be driven on road, such as excavator, loader, harvester,
machine equipment, etc. It's widely used in the construction,
agriculture field.

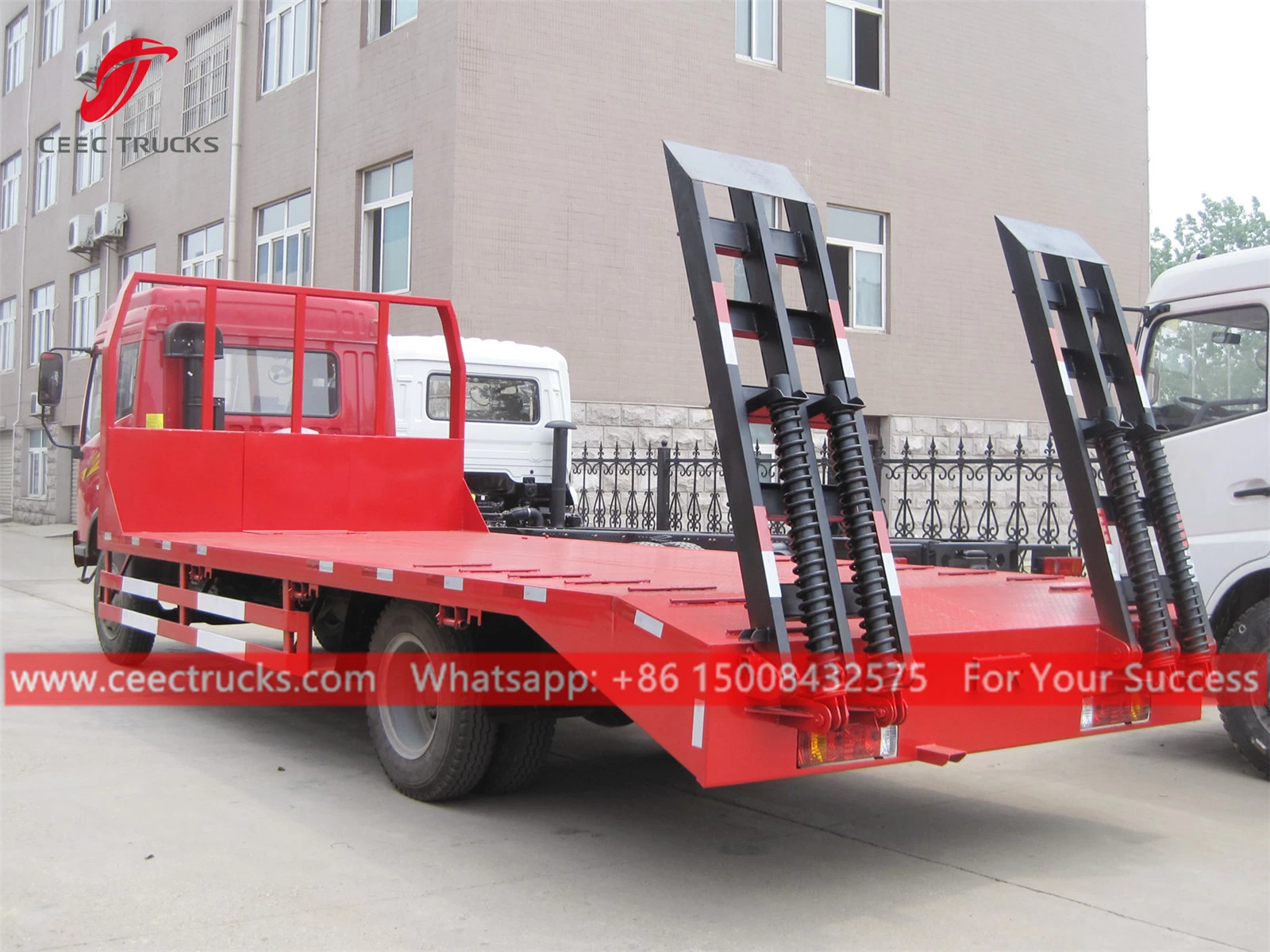

CEEC TRUCKS produced excavator carrier trucks are easy to load machinery, there is a
hydraulic ladder at rear of the platform. When loading machinery on,
turnover the ladder to ground to build a slope between platform and
ground. When finished loading, the ladder should be fold up and fastened
by manual.
As for the flat bed carrier trucks, driving type could be 4x2. 4x4, 6x4, 6x6, 8x4, etc.
Key Features:
---- FAW truck chassis, perfect performance
---- FAW series engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Famous screen for optional
---- Roof fire extinguisher system to guard safety.
---- Massive, durable, long service life.
Specifications:
|
Excavator
Carrier Truck FAW (5Tons)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
FAW
|
|
Overall Dimension
|
7900 * 2300 * 2750 mm
|
|
GVW / Kerb Weight
|
11,000kg / 5,900kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air
conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
FAW
|
|
Power
|
154 HP (113 KW)
|
|
Displacement
|
4040 ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 6 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3950 mm / 2
|
|
Tire Specification
|
8.25-16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Flatbed Loading Capacity
|
≤5Tons
|
|
Flatbed Material
|
Strengthen checked plate,
anti slip
|
|
Flatbed Thickness
|
5 mm
|
|
All standard accessories: Basic
tool kit, English manual……
|
|
Optional
|
** Hydraulic ladders at rear
of the platform.
** Width extensible manual
or hydraulic.
** Front hydraulic lifting
system.
|
