Applications:

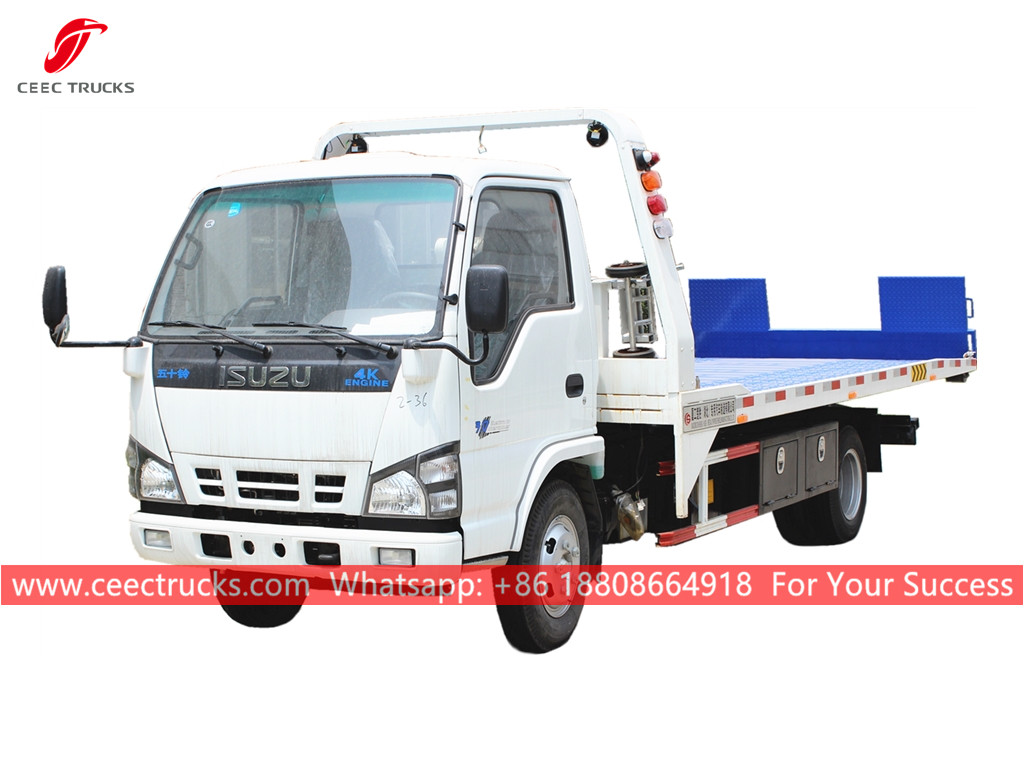

Road towing truck ISUZU (also called Road Wrecker truck, Wrecker towing truck, Road rescue vehicle, road accident rescue truck, ISUZU Platform tow truck, Hydraulic tow truck wrecker) is
a high efficiency vehicle mainly used in high ways, airports, seaports,
automobile repair plants and traffic police stations. It can quickly
move away vehicles.
CEEC TRUCKS can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton,
6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons.Towing capacity is
optional.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Telescopic boom crane or Knuckle boom crane can be optional.
----
Safety Devices are available, such as relief valves, balance valves,
double-way hydraulic locks, motor emergency system etc.
Specifications:
|
Road rescue
truck ISUZU
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
8600 x 2400 x 3250 mm
|
|
GVW / Kerb Weight
|
11,000 kg / 6,800 kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
With air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU engine
|
|
Power
|
190HP (140KW)
|
|
Displacement
|
5193 ml
|
|
Emission Standard
|
Euro 4
|
|
Chassis
|
Drive Type
|
4X2, left hand drive
|
|
Transmission
|
Manual transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km
|
|
Wheelbase/No. of axle
|
4175 mm / 2
|
|
Tyre Specification
|
8.25-16
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Flatbed Dimensions
|
6400x2250mm
|
|
Load Capacity
|
5 Tons
|
|
Towing Capacity
|
6 Tons
|
|
Gradient of flat board
|
10 degree
|
|
Control
|
Control panel on both side
|
|
Wire rope
|
21 m
|
|
Max towing speed
|
40 km/h
|
|
Equipment
|
2 units of towing wheel, 1
unit of 4 ton winch, 1 unit of steel wire tope, 1 unit of spare tire, 1unit
of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm
lamp
|
