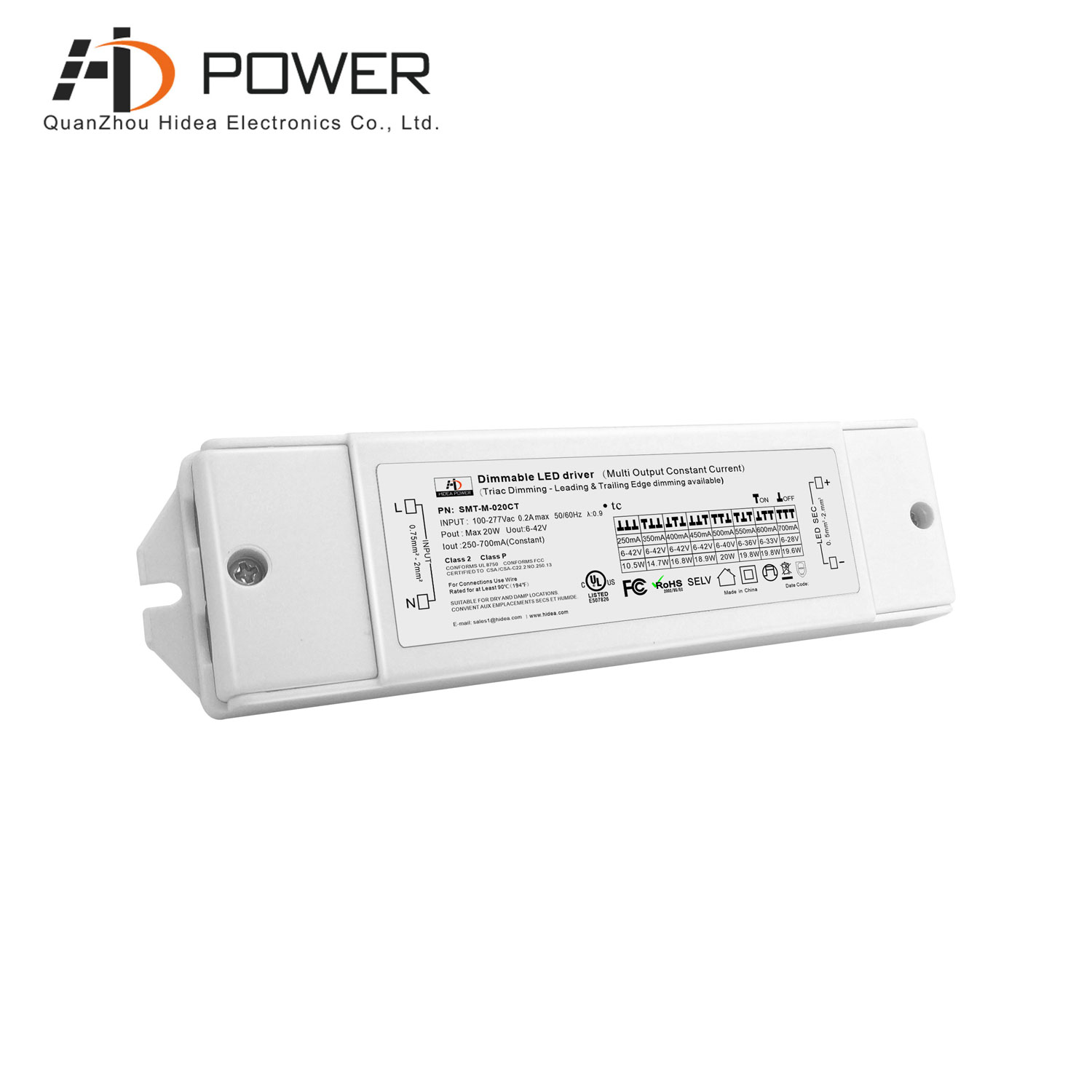

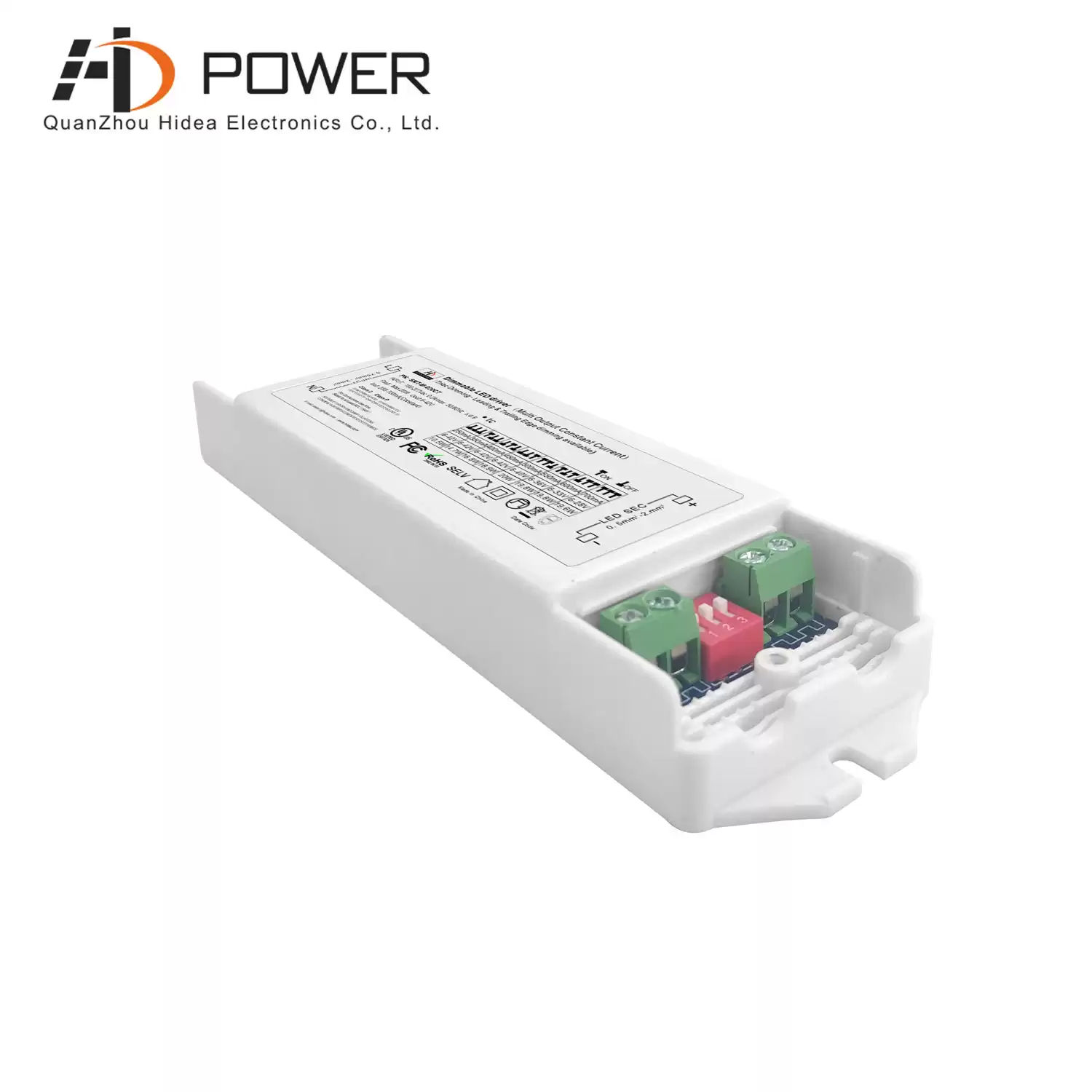

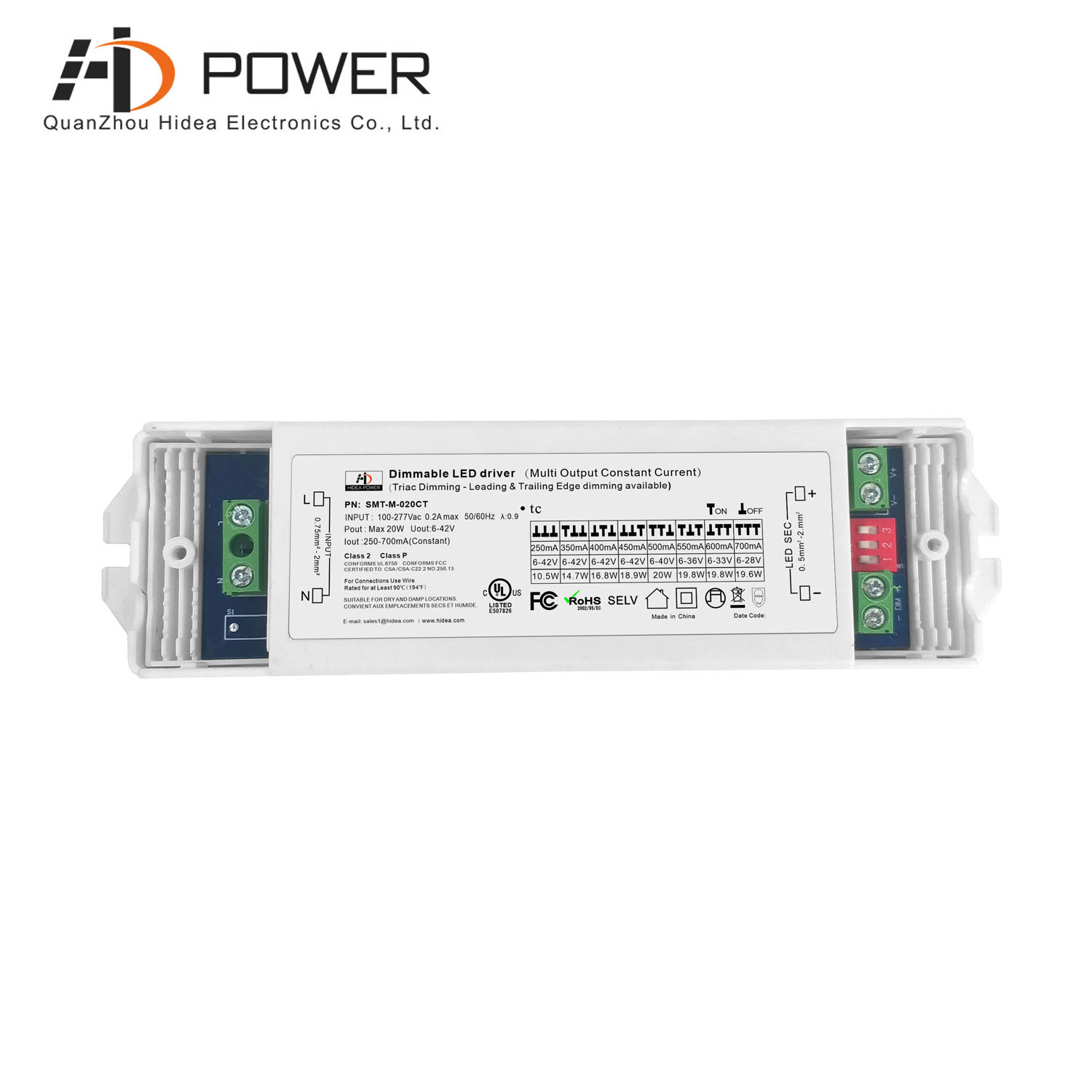

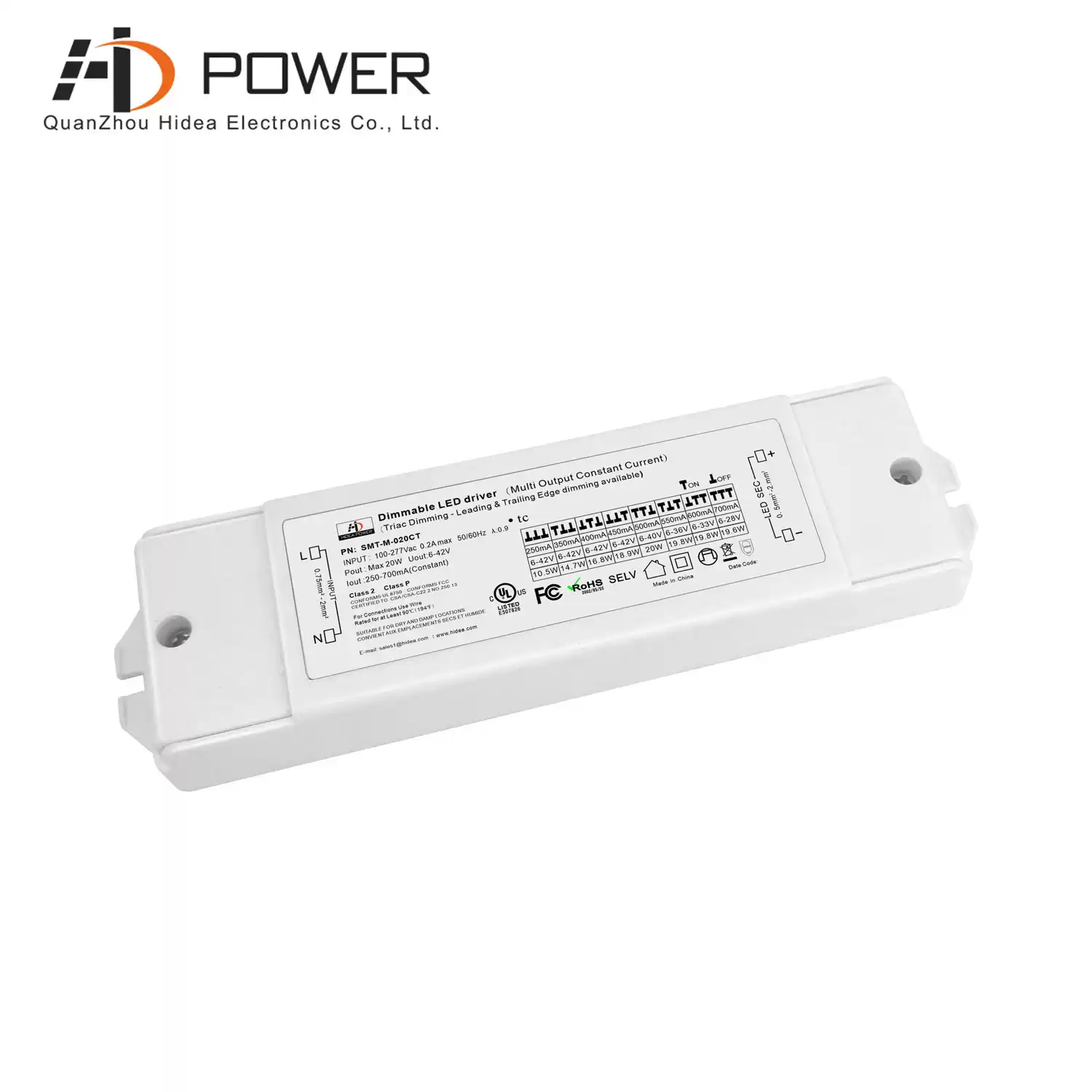

5V-36V Multi-current selectable triac dimmable led constant current driver 20W 550ma

277vac Multi-current selectable 550ma 20W TRIAC dimmable led driver free air convection cooling, plastic shell design, ip20 suitable for indoor installation, can be well connected with most dimmers on the market, and can also be perfectly matched with sunco lighting's 20W LED floodlight

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)20W
Output Voltage
Shape & SizeStandard Size
Output Current550mA
Size159.5*43*20mm
Weight150g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

5V-36V Multi-current selectable triac dimmable led constant current driver 20W 550ma

7-year warranty, this 550ma 20W triac dimmable multi-current with dip switch led driver, constant current 550ma 20W, constant voltage working mode, working efficiency up to 78%, plastic shell design, good heat dissipation

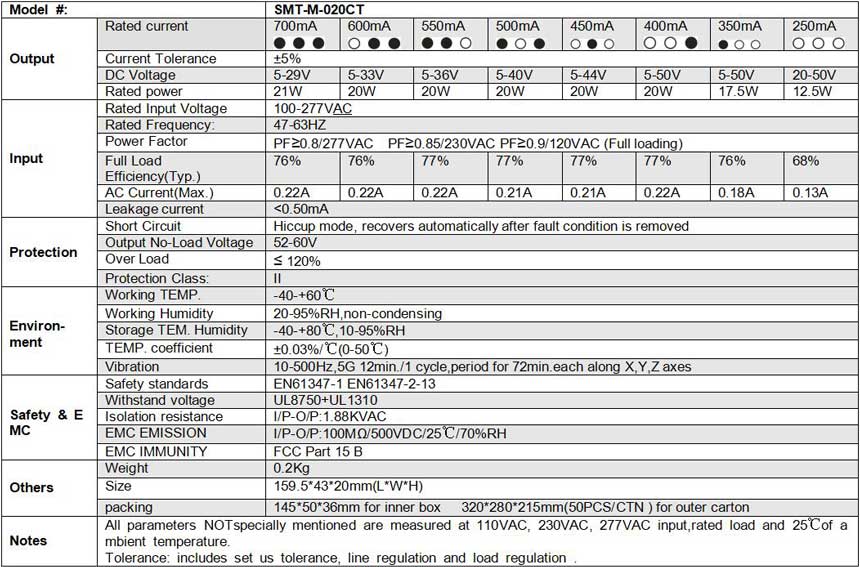

Specification

Related Products

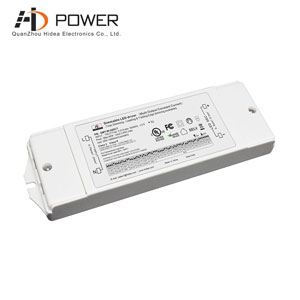

40w triac dimmable Multi-current selectable led power supply output current is optional between 300ma-1400ma, built-in active PFC function, 7-year warranty, guaranteed quality

Mode：SMT-M-040CT

Dimming Mode : triac dimming

Output Power : 40W

intput voltage：100-277Vac

Size：172*54*20mm（L*W*H）
